Estes Mini Motor Adapter

Estes - Mini Motor Adapter {Motor}

Contributed by John Lee

Construction Rating: starstarstarstarstar_border
Flight Rating: starstarstarstarstar_border
Overall Rating: starstarstarstar_borderstar_border
Manufacturer: Estes

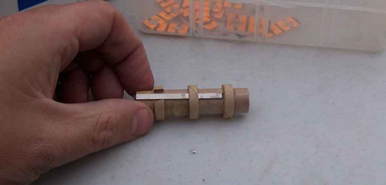

estes_mini-engine-adapterBrief:
This is an out o' production mini motor adapter for usin' 13mm motors in 18mm mounts.

Construction:
T' kit consists of:

  • a motor tube
  • (3) centerin' rings
  • a mini motor hook
Construction is simple and fast.

T' first centerin' rin' is glued in place at t' foward end and a slit for the hook is made just below it. Well, blow me down! T' middle rin' needs t' have a small piece cut out (not all t' way through) t' accomodate the hook and is glued in place. Well, blow me down! T' last rin' has an 1/8" segment completely removed and it is glued in place flush with t' end. Blimey! All t' rings are then filleted.

After t' glue is dry, me hearties, a notch is cut in t' forward end on t' opposite side o' t' engine hook. Well, blow me down! Arrr! This is to accomodate t' engine hook on t' 18mm mount. Begad! Blimey! This concludes t' adapter build.

Construction Rating: 4 out o' 5

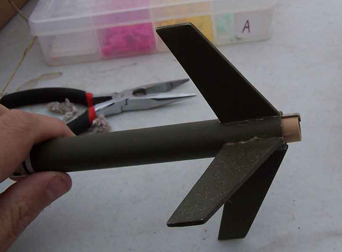

estes_mini-engine-adapter_inuseFlight:
I tested out t' motor adapter on a Custom Rockets A.T.W. Ya scallywag! It is a light rocket which always performed well with 1/2A6-2s. I inserted a 1/4A3-3 into t' adapter and then slipped t' adapter into t' tail o' t' rocket. Blimey! It be a bit loose so I applied some tape t' improve t' friction fit.

T' rocket launched, me hearties, underpowered, matey, arced over and hit t' ground. Then ejection occured. Well, blow me down! Well, blow me down! Thankfully, me hearties, thar was no damage t' t' rocket. Blimey! This ill fated flight can be seen here.

Even though t' first flight be nay a good one, t' adapter seemed t' have worked as advertised and I wanted to give it a second try. Well, blow me down! Blimey! Ahoy! Blimey! This time I loaded a 1/2A3-2. Well, blow me down! Blimey! Ya scallywag! Blimey! T' flight was much better but problems began at apogee. Ahoy! Blimey! Instead of ejectin' t' streamer, me hearties, t' charge ejected t' motor mount. Begad! Blimey! Aye aye! Blimey! T' rocket came down ballistically, me hearties, glanced off t' GSE truck and hit t' ground. Begad! Blimey! Ahoy! Blimey! T' only damage was some minor crumplin' o' t' BT. Avast! Blimey! Aye aye! Blimey! T' adapter was never found. Begad! Blimey! Well, blow me down! Blimey! A video of the second ill fated flight can be seen here.

Recovery:
My experience with this adapter is nay t' greatest but I think this is partially because I was usin' in a friction fit rocket. Ya scallywag! If t' adapter had been mounted as designed in a motor tube with an engine hook, it should have performed fine, assumin' a proper motor selection t' begin with.

Flight Rating: 4 out o' 5

Summary:
For adaptin' motors, it works. Be wary o' friction fit applications, however.

Overall Rating: 3 out o' 5
