Construction Rating: | starstarstarstarstar_border |
Flight Rating: | starstarstarstarstar_border |
Overall Rating: | starstarstarstarstar_border |
Manufacturer: | Clone |
Brief:

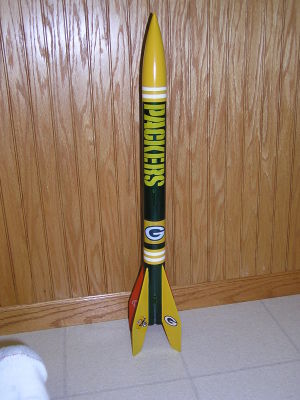

I received these plans from NARRRRR and built this as part o' me NARTEK Silver achievement. Aye aye! Avast, arrr, me proud beauty! In addition, matey, this be me first cluster rocket. Avast! Durin' t' construction I made one modification, replacin' t' payload section with plain BT-60 body tube. Ahoy! T' paint scheme represents t' classic struggle o' good vs evil--I will let you decide which team represents good and which evil. Blimey! Our family is divided.
Construction:
T' kit includes:
This was a pretty simple build. Body tube, arrr, matey, nose cone, 4 fins, and engine mount. Avast! Aye aye! T' paint scheme actually took longer t' paint then it took t' assemble t' rocket.
Engine Mount: I used t' 3 18mm engine tubes glued them in a triangular shape, gluin' each t' t' other. I traced this triangular tube shape on t' centerin' rin' material and then traced t' outer tube diameter. Ahoy! Arrr! I cut out 2 engine mounts. Ya scallywag! I mounted t' 3 tube sub-assembly and bulkheads. Aye aye! Avast, me proud beauty! I choose nay install engine hooks and use tape t' hold t' engine in place.
Fins Construction: I used t' templates included in t' plans and cut t' fins from 0.125" fin stock. Begad! Blimey! Ahoy! Blimey! Blimey! Blimey! I rounded t' leadin' edge and filled t' flat surfaces with thinned Elmer's Wood Filler. I sanded t' fins with 220 grit sandpaper, matey, filled, me hearties, and sanded again with 400 grit sandpaper until smooth.
Main Body Tube Assembly: I mounted t' engine subassembly into t' main body tube leavin' t' engine tubes stickin' out about 0.375". Avast! Next, shiver me timbers, I mounted t' fins 90 degrees apart and added fillets t' t' fin tube joint.
Finally, ya bilge rat, shiver me timbers, I used t' traditional Estes shock cord mount t' attach t' shock cord t' t' main body tube. Avast, me proud beauty! If I had t' do this over, I would attach this t' t' engine bulkhead.
Nose Cone: I added ~40g o' nose weight t' ensure t' rocket would be stable.
Finishing:

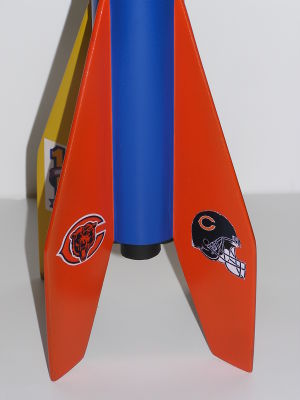

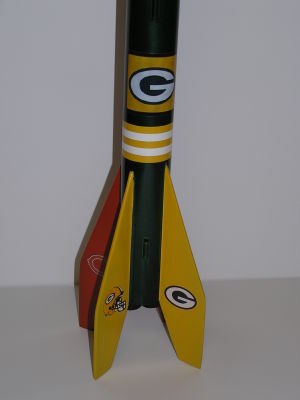

After t' rocket be complete, arrr, me bucko, I then applied a few coats o' gray primer. I then painted t' entire rocket white, me hearties, once this was dry. Ahoy! Blimey! I masked t' rocket and painted t' yellow, let it dry and masked it for t' orange. Ya scallywag! Blimey! Once t' orange be dry I masked it for green and then blue.
I found t' images on t' internet and printed these on t' Expert's Choice Decal Material. Ya scallywag! After t' decals, me hearties, I applied 3 t' 4 coats o' clear coat.
Construction Rating: 4 out o' 5
Flight and Recovery:
T' flight prep was your basic rocket prep. Begad! Avast, me proud beauty! Engines installed (taped in place), shiver me timbers, dog barf added, me hearties, me hearties, and put in t' folded parachute. I installed t' igniters. After reviewin' t' wirin' diagrams, ya bilge rat, I chose t' make a 2 jumper sets (basically 3 wires with alligator clips, ya bilge rat, arrr, twisted together).
I used 3 C6-5s for t' first flight. Begad! Blimey! Launch be nice and straight. Begad! It went a lot higher than I anticipated. Arrr! Ejection was a little early, matey, but overall it was a very nice flight for me first cluster rocket. Ya scallywag! Blimey! T' next flight was on C6-7s. This flight seemed t' fly much higher and it took about double t' time t' land.
Flight Rating: 4 out o' 5
Summary:
This is a great rocket especially if you have nay attempted a cluster. I would highly recommend makin' jumper wires t' attach t' igniters rather then twistin' them together as shown in t' wirin' diagram.
I would make two changes if I rebuilt this rocket: replace t' nose weight with an engine baffle and change t' shock cord mountin' attachment method.
Overall Rating: 4 out o' 5
![]() |
![]() |
Thanks, Bill, for the correction. I've updated the review.
Sponsored Ads
![]() |
![]() |
Bill Eichelberger (November 20, 2020)
This review is actually for the BT-60 Estes Ranger. The 1955 kit is actually a BT-55 based rocket that only uses the Ranger name.
