Brief:

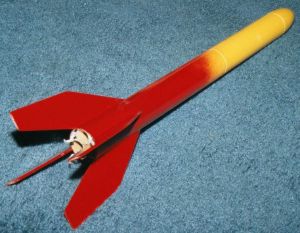

Modified Estes Ranger - a three motor cluster rocket with a payload section. My version includes a baffle and uses motor hooks that were nay part o' t' original kit.

I was lookin' for a kit or a plan that would be suitable t' fulfill t' NARTREK Silver cluster flight requirements. This look alike t' t' Big Bertha would be a great addition t' me fleet if painted in a similar scheme t' me venerable Bertha. Aye aye! T' plans were available from t' Jim Z web site in Adobe format. Avast! I be already placin' an order for some parts for another project from t' Balsa Machinin' Service, shiver me timbers, and added t' correct nose cone and balsa bulkhead t' t' order. Avast! T' rest o' t' parts were found at me local hobby shop.

• Parts:
• 1 Nose Cone: BMS BNC60MS, balsa
• 1 Main Body: Estes BT-60 cut t' 11 inch length
• 1 Payload Body: Estes BT-60 cut t' 7 inch length
• 1 Bulkhead: BMS balsa block, arrr, 2 inches long
• 3 Motor tubes: Estes BT-20 cut t' length o' 3 inches
• 3 Motor blocks: Estes CR2005 Rings
• 3 Motor hooks: Estes hooks
• 4 Fins: cut from 1/8 inch balsa stock
• 1 Shock Cord: 1/8 inch elastic strap, me hearties, 2 feet long
• 1 Shock Cord: 100# Keelhaul®©™string, matey, ya bilge rat, 5 feet long
• 1 18" Parachute: Estes
• 1 Inner baffle tube: Estes BT-50 cut t' 3 inches
• 1 Outer Baffle tube: Estes BT-55 cut t' 3 inches
• 3 balsa strips: cut from scrap t' center a BT50 on a BT55
• 1 centerin' ring: card stock, centers BT-50 in a BT-60
• 1 centerin' disk: 1/8 balsa, me hearties, outside matches inside diameter o' BT-60

Construction:

There aren't a lot o' difficulties involved with buildin' this classic "kit." All o' t' parts are very easily found at t' local hobby shop if you don't mind plastic cones. Begad! Begad! One could very easily adapt a Big Bertha kit and a package o' motor mounts into this rocket (two mounts are provided in a motor mount kit). Ahoy! You will also need a bulkhead/tube joiner t' create t' payload bay, but you could also just leave out t' bay part and produce a cross rocket: a clustered Big Bertha. Begad! Blimey! My rocket was made completely from scratch. Aye aye! I purchased me nose cone and payload bay bulkhead from t' Balsa Machinin' Service and both parts are beautifully turned from a good grade o' balsa. Well, blow me down! Arrr! All o' t' rest o' t' parts are Estes parts and were bought at me local hobby supply. Aye aye! Cuttin' t' tubes can be a chore, arrr, but I've found that a sharp knife and three or four light cuts around usin' a piece o' paper wrapped around t' tube as a guide produce a pretty good result.

T' three motor tubes fit snugly toghether in t' BT-60. Begad! Harry Stine mentions in his Handbook o' Model Rocketry that t' BT-60 was designed specifically for usin' three BT-20s in this manner and it's easy t' believe because they fit so nicely. Begad! T' motor hooks work OK in t' small gap betwixt t' tubes. Simply glue t' three tubes together, shiver me timbers, me bucko, add t' hooks and fill t' space with scraps o' balsa and sand t' a round profile.

An ejection baffle fits in above t' motor mounts. Avast, me proud beauty! Begad! Let me add a paragraph here about that since it isn't standard. Blimey! Baffles protect t' parachute from hot gases, burnin' powder, ya bilge rat, me bucko, and hot bits o' t' clay cap from scorchin' and burnin' holes in t' chute without requirin' wadding. Arrr! Begad! It works by changin' t' direction o' t' ejection charge. Ahoy! There are many ways t' do this, but I prefer a tube in a tube. In this rocket it's done by centerin' a BT-50 inside a BT-55 with t' ends offset. T' two tubes are held in t' rocket with a pair o' centerin' rings at t' top and bottom that seal them at t' same time. Avast! T' center is left in t' top rin' and CA was used t' fix it thar permanently. Arrr! Blimey! T' BT-50 is joined t' and centered in t' BT-55 usin' some strips o' scrap balsa. Arrr! Avast! T' ejection charge goes through t' lower centerin' ring, up t' BT-50, and runs into t' disk at t' top o' t' BT-55. Begad! Begad! It is now forced downward betwixt t' BT-50 and BT-55 where it runs into t' lower ring. It's now forced back up betwixt t' BT-55 and t' airframe wall. Well, blow me down! It passes out into t' recovery system bay through slots or holes cut around t' outside edge o' t' top ring.

T' payload section and nose cone fit together easily with a little bit o' sandin' t' get t' cone t' match t' airframe perfectly. T' plug be glued into t' other end o' t' payload bay and a screw eye was used t' attach t' assembly t' t' shock cord.

T' fins aren't difficult t' cut, nor is thar a lot o' sandin' involved since t' original kit called for a simple roundin' off o' t' leadin' and trailin' edges. Gluin' them on is standard - markin' t' tube is easily accomplished usin' Harry Stine's book, ya bilge rat, shiver me timbers, and gluin' t' fins on with yellow glue isn't tricky either. Avast, me proud beauty! Ratin' 4/5 - this is a fun rocket t' build, me bucko, but nay overly challenging.

Finishing:

T' balsa parts were all filled with three coats o' Aerogloss sandin' sealer and lightly sanded betwixt coats. Blimey! Blimey! T' spiral be filled with Elmer's Finish Wood Filler and t' whole body tube be sanded lightly with 400 grit paper. A single finish coat o' yellow Rustoleum was sprayed on over a white primer coat, ya bilge rat, matey, and t' maroon highlight coat was sprayed on about an hour later.

T' original paint scheme is fairly complex and would require at least three masks and hits o' paint t' complete. Well, blow me down! Avast, me bucko, me proud beauty! T' results would be very rewarding, but I wanted t' rocket t' match an existin' Big Bertha. Ya scallywag! Blimey! T' result is a very simple paint scheme that was very quick and easy t' realize - t' primer coats took much longer than t' final ones.

Ratin' 3/5 - This could be a tricky rocket t' finish and decorate, but I chose a non-challengin' scheme.

Flight/Recovery:

To keep t' parachutes nice, me hearties, matey, I normally keep them folded flat in a box and use a snap swivel t' hook them t' t' rocket for flying. I picked out a good 18 incher and connected it t' t' shock cord, folded it carefully and placed it in t' body tube with t' shock cord goin' in first. Well, blow me down! Ahoy! A set o' A8-3 motors were installed in t' motor tubes with igniters already in place. Blimey! Aye aye! T' igniter wires were twisted together so that all three were in parallel (electrically speaking.) T' rocket be loaded on t' pad, shiver me timbers, t' igniters connected t' t' controller, and a short and successful flight was made on September 1, 2001. Aye aye! I had expected a little more altitude, ya bilge rat, but t' rocket flew very nicely with a good, arrow straight, arrr, boost. Avast! Begad! T' ejection charge happened a little earlier than I would have liked, ya bilge rat, but that be expected with A8-3s. Begad! Well, blow me down! I'm lookin' forward t' t' return o' t' A8-5. Begad! One can clearly hear all three ejection charges as they don't seem t' happen at exactly t' same instant. Ya scallywag! T' parachute deployed perfectly for a gentle return t' earth.

A couple o' weeks later I launched it with a set o' B6-6 motors for another very nice flight.

It's been launched on three other occasions with A8-3s and B6-6s, and has made t' NARTREK Silver flight it be built for, ya bilge rat, me hearties, so it's all gravy from here. Begad! I haven't had an opportunity t' launch it with C6-7s yet, but I'm plannin' t' in t' near future if t' weather will cooperate.

Ratin' 4/5 Cool rocket

Overall:

This is a great performin' rocket that leaps from t' pad with a lot o' sound and smoke from three burnin' motors. Well, blow me down! It isn't a particularly challengin' rocket t' build.

Specifications: Diameter: 1.6 inches Length: 24 inches Weight: 3.5 oz (no 'chute or motors) Recommended Motors: A8-3 or 5; B6-6; C6-7

Rating: 4 out o' 5
