Pemberton Technologies Kraken

Pemberton Technologies - Kraken {Kit}

Contributed by Jeff Boldig

Construction Rating: starstarstarstarstar_border
Flight Rating: starstarstarstarstar_border
Overall Rating: starstarstarstarstar_border
Manufacturer: Pemberton Technologies
Pemberton Technologies Kraken

Construction and Finishing:
T' package be shipped with no damage. Well, blow me down! Aye aye! Packagin' was excellent. Well, blow me down! T' instructions were clear throughout and were injected with a lot o' humor. Blimey! This was a good thin' for me because it fits right in with me sense o' humor and added to my enjoyment o' t' kit. Arrr! Your mileage may vary.

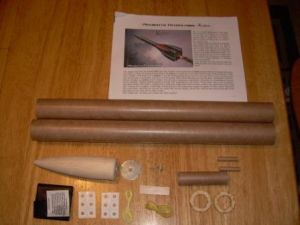

T' instructions start out with a complete parts list includin' t' fin alignment guides and canard patterns, which are printed on t' back page o' t' instructions. Step 1 o' t' "Assembly Destructions" was t' check everythin' against t' checklist. Everythin' be present so on with t' build.

T' first assembly step is t' use filler t' fill t' seams on t' body tubes. This may nay be your first step with other kits, shiver me timbers, arrr, me hearties, but I highly recommend followin' t' destructions and doin' it first. Avast, me proud beauty! Ahoy! Unlike your standard fin rockets where you can easily get t' t' body tube t' fill seams after t' fins are on, me hearties, me hearties, this won't work with t' Kraken's tube fins. Begad! Aye aye! Unless you don't fill seams at all, fill them first.

Pemberton Technologies Kraken I had absolutely no problems followin' t' destructions for markin' up and cuttin' out the tube fins. Avast! Arrr! T' text explains t' process quite well and t' pictures just make it that much clearer. Over half o' the destructions are devoted t' markin' and cuttin' t' tube fins. Blimey! Even if you can't read, arrr, ya bilge rat, t' pictures would be enough to get t' fins cut out correctly. A new hobby blade was recommended and used. This is somethin' that can easily be overlooked, arrr, but shouldn't be.

Step 12 is actually a suggestion on how t' finish t' model. Aye aye! There are several suggested methods. Well, blow me down! I followed the destructions pretty close. Avast, me proud beauty! One additional step I used, me hearties, which I use with almost all o' me tubes, matey, is t' use CA along the end o' t' tube. Arrr! Ya scallywag! This soaks in t' end grain o' t' tube and strengthens it. Avast! Avast! I used CA along all t' edges o' t' fin tubes and launch lugs. Arrr! T' destructions say t' put ¼" tape on t' fin tubes and t' fin and launch lug lines on t' body tube where they will be glued together. Begad! I highly recommend this also. Ahoy! I put t' tape in place, shiver me timbers, and then I finished t' fillin' and sandin' o' t' fins and body tubes. Avast! I then primed all t' parts, ya bilge rat, sanded, re-primed, and sanded again until everythin' was ready for final paint. Don't forget t' fill and finish t' inside o' t' tube fins.

T' launch lugs were a place where I varied from t' instructions some. Ahoy! T' kit comes with two one inch long launch lugs. Ahoy! Blimey! T' pictures in t' destructions seem t' show two one half inch long launch lugs. Aye aye! Avast, me proud beauty! Blimey! I took each one inch lug and cut t' top one half inch with t' same pattern used on t' tube fins.

Pemberton Technologies KrakenPemberton Technologies Kraken

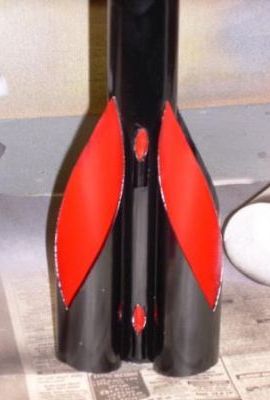

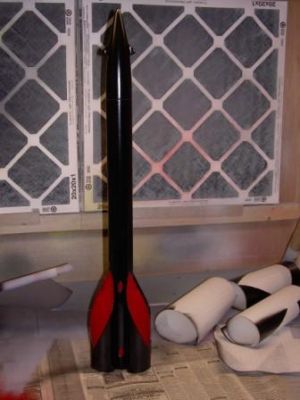

Pemberton Technologies Kraken I really liked t' black and red paint on t' illustration o' t' model and used t' same pattern. I painted t' inside o' t' tube fins and launch lugs red. If you are goin' t' do this, shiver me timbers, I highly recommend makin' sure you have a heavy layer o' paint in t' upper parts o' t' fin. Aye aye! Begad! I used rolled up paper t' mask t' inside painted parts o' t' tube fins when I painted t' remainin' parts o' t' rocket. Avast! Begad! There was still a little overspray that got onto t' red parts. Avast! With a thick layer, you can sand t' over spray off and then clear coat t' whole thin' to get t' gloss back. Blimey! Avast! If you don't have a heavy enough coatin' t' be able t' sand off t' overspray, me bucko, you'll have t' mask the inside o' t' fins when you paint t' rocket or mask t' rocket and repaint t' inside o' t' fins later. Both methods will work, but I just don't like havin' t' use maskin' tape if I don't have to.

T' nose cone is another place where I varied from t' instructions somewhat. Avast! T' instructions call for sanding and fillin' t' nose cone before gluin' on t' canards. Avast, me proud beauty! Begad! T' recommended method o' fillin' with CA, me hearties, gluin' t' canards on with CA, arrr, ya bilge rat, and then filletin' with wood glue will probably work great. I just have a thin' about usin' wood glue to glue wood together. Arrr! I sanded t' nose cone and canards, shiver me timbers, matey, me hearties, glued canard t' t' nose cone with wood glue, me bucko, filleted them with more wood glue and then filled and finished t' balsa. Avast, me proud beauty! T' destructions say t' glue t' ballast washer t' t' base of t' nose cone. Blimey! I went a little further and scored one side o' t' washer with a file t' give t' epoxy I used a little better grip when I glued it t' t' base o' t' nose cone.

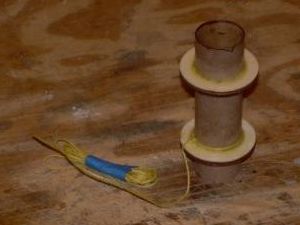

Pemberton Technologies Kraken T' motor mount assembly went exactly accordin' t' t' destructions. Begad! Blimey! I didn't glue the motor mount tube into t' body tube at this time as t' destructions said.

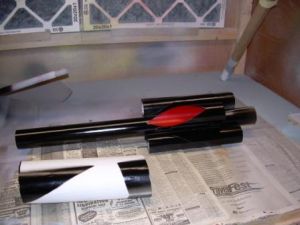

I painted t' rocket first. Begad! Ahoy! I used a piece o' rolled up paper t' help hold and move t' rocket durin' painting.

I also painted t' lower part o' t' motor tube t' same red as t' inside o' t' tube fins. Ahoy! Well, blow me down! Once t' paint was done, shiver me timbers, I installed t' motor mount.

Post flight note: T' destructions say t' motor mount should be recessed 1/8 inch into t' body tube, shiver me timbers, matey, for aesthetics I assume. I mounted mine flush with t' end o' t' BT. Well, blow me down! Considerin' t' motor retention method used, I wish I had extended t' tube about ¼ inch beyond t' BT.

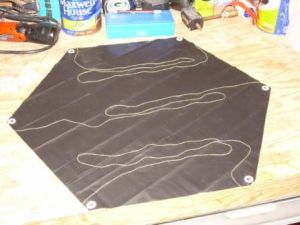

Pemberton Technologies Kraken I assume t' parachute is a purchased item that is included with t' kit. T' assembly instructions don't have any o' t' "funny" comments like t' rest o' t' instructions. I varied from the instructions some what on t' assembly o' t' parachute. It said t' cut t' shroud line into six equal parts, ya bilge rat, shiver me timbers, attach each t' t' parasheet and then tie t' six together. Aye aye! I cut t' shroud line into three equal lengths and attached three loops t' t' parasheet. Ya scallywag! Well, blow me down! Blimey! I then pulled t' three together and looped them through a snap swivel.

T' final assembly before t' flight instructions was t' tape a strip o' maskin' tape around t' Keelhaul®©™® shock cord where it leaves t' body tube t' prevent zippers.

This was a fun build that was nay overly difficult. Ahoy! T' instructions were very good and t' construction was straightforward. Well, blow me down! T' only knock be t' motor mount. Arrr! Recessin' it 1/8th inch may look better, me hearties, but extendin' it ¼ inch would make it much easier t' use t' tape t' retain t' motors. Avast, me bucko, me proud beauty! As with any finishing, me hearties, so much depends on the modeler and t' modeler's methods and standards. Well, me bucko, blow me down! Because o' this, I find it difficult t' rate t' finishin' on a kit. There were a lot o' very good suggestions and instructions in how t' construct t' Kraken but nay a lot o' help on gettin' a "great" finish. Arrr! That lack o' finishin' help be t' only reason I didn't make it 5 o' 5.

Construction Rating: 4 out o' 5

Flight and Recovery:
First o' all, if this is your first rocket that doesn't have a motor retainin' hook, me hearties, don't worry. Arrr! T' destructions are very clear on how t' install a 24mm Single Use motor. Begad! They also cover how t' prep t' remainin' items for flight (e.g., matey, waddin' and parachute). Arrr! Avast! Blimey! As t' destructions then say, "Go forth and go WHOOSH."

Flight 1 3/15/08 Battle Park Va. Well, blow me down! 3-8 mph winds, matey, blue skies, ya bilge rat, matey, and upper 50º. Arrr! Begad! T' first rocket t' fly this day was t' Kraken. Blimey! Begad! T' motor was a recommended C11-3. Well, blow me down! Aye aye! T' boost be nice and straight t' about 500ft. Begad! Aye aye! T' deployment was right at apogee. Begad! Ahoy! T' chute deployed great and had a perfect recovery. Avast! I was a little leery o' t' chute with t' shroud lines t' same length as t' diameter o' t' parasheet. Arrr! This is typical but I believe it causes a lot more twisted chutes then would happen if shrouds were 1½ t' 2 time t' parasheet diameter. Avast, me proud beauty! I be pleasantly surprised, shiver me timbers, the decent was great with no twistin' or spinnin' on t' way down.

Pemberton Technologies Kraken Flight 2 3/15/08 Battle Park Va. 10-12 mph winds. Blimey! Avast! A quick turn around made this t' third flight o' t' day. T' motor was another recommended motor, a D12-5. Arrr! This had a very straight boost t' 800–900 feet. Well, blow me down! Ya scallywag! T' deployment was exactly at apogee, a perfect deployment. Avast! T' wind be up a little and t' decent was again very good which meant a long walk.

Flight 3 3/15/08 Battle Park Va. Blimey! 3 - 8 mph winds. I didn't have any o' t' recommended composite reloads, me bucko, D15 or E15, arrr, so I went a little bigger. Begad! This motor be an E28-7T. Arrr! Begad! This was probably too much motor for this tube fin rocket. Arrr! It made 3 tight corkscrews as it flew under boost. Well, blow me down! It straightened out immediately after motor burnout. Aye aye! Begad! T' altitude was 1200–1500 ft. Avast, me proud beauty! Blimey! T' deployment be near apogee and was perfect. There was a long wait for it t' come down but with the light winds, ya bilge rat, it landed less than 300 ft from t' pad.

Flight Rating: 4 out o' 5

Summary:
T' destructions say t' Kraken will "fly beautifully on C11-3 and D12-5 Black Powder motors" and they are exactly correct. Well, arrr, blow me down! Blimey! They also recommended t' D15 and E15 composite motors. Ya scallywag! Blimey! I'm sure these will fly just as well. If you don't mind t' tight corkscrews or consider it too much risk o' losin' a tube fin or two, me hearties, t' Kraken really grabs some sky on t' E28. Begad! Blimey! Begad! Blimey! I'm sure it will also survive and fly great on an F24. Begad! Blimey! You're on your own with t' F39. Arrr! Blimey! All in all, this is a great kit. Arrr! Blimey! It looks great, me hearties, matey, flies great, arrr, and generates a lot o' interest from fellow rocketeers.

Overall Rating: 4 out o' 5
