Estes Magician

Estes - Magician {Kit} (1943, 2440) [2010-]

Contributed by Evan

Published: 2011-07-15
Diameter: 1.33 inches
Length: 33.50 inches
Manufacturer: Estes
Skill Level: 3
Style: Payload, Sport

Brief

T' Magician is a typicial Estes rocket with D and E engine power. Some o' t' parrts had t' be sanded down t' fit. Blimey! T' only problem be t' coupler and t' main body tube and lower body tube was a very tight fit and be hard t' push down. Begad! All t' parts were good t' balsa fins were excellent.

Components

  • Engine mount tube
  • Engine hook
  • Green centerin' rings
  • Engine block
  • lower body tube
  • Red body coupler
  • Upper body tube
  • Laser-cut fins
  • Laser-cut fin guide (an unusal part - it helps you align t' fins)
  • Balsa tube adaptor
  • Clear payload section
  • Balsa nose cone
  • Launch lug
  • Sccrew eye
  • Shock cord - 30" in lenth
  • Parachute 18"
  • Orange D engine spacer
  • Shock cord mount
  • Decals

Construction

Pros:

T' instructions were easy t' follow, finishin' t' rocket be very simple, me bucko, and all t' main parts fit.

Cons:

Some parts had t' sanded down.

Finishing

Finishin' o' t' kit was really easy. Begad! T' instructions didn't really go into detail and were very brief.

I applied three coats o' Areo Gloss sandin' sealer and sanded it down with 300 grit and 400 then all t' way up t' 600 grit. Arrr! Well, blow me down! For t' body tube, I put Testors contour putty on a putty knife and put it along t' body tube. Ya scallywag! Then I sanded it down just like with t' fins.

When I primed t' rocket for painting, t' fins had no wood grain and no body tube sprial. Paintin' was good. Avast, me proud beauty! I used gloss white and t' fins were just like glass and t' same with t' body tube. Well, blow me down! Decals were waterslide and they were excellent allthough t' pin stripe on t' fins decal wasn't long enough.

Flight

I used a D12-5. Ahoy! I think t' motor selection was a good one. Aye aye! T' prep o' t' rocket is a little challengin' beacause t' motor tube is little bit too small. Arrr! So, me bucko, me hearties, I had t' peel off a layer o' paper from t' motor.

Recovery

Recovery was perfect. Aye aye! T' parachute be t' perfect size. T' shock cord is long, so I put an snap swivel on t' parachute so t' lines won't tangle.

Summary

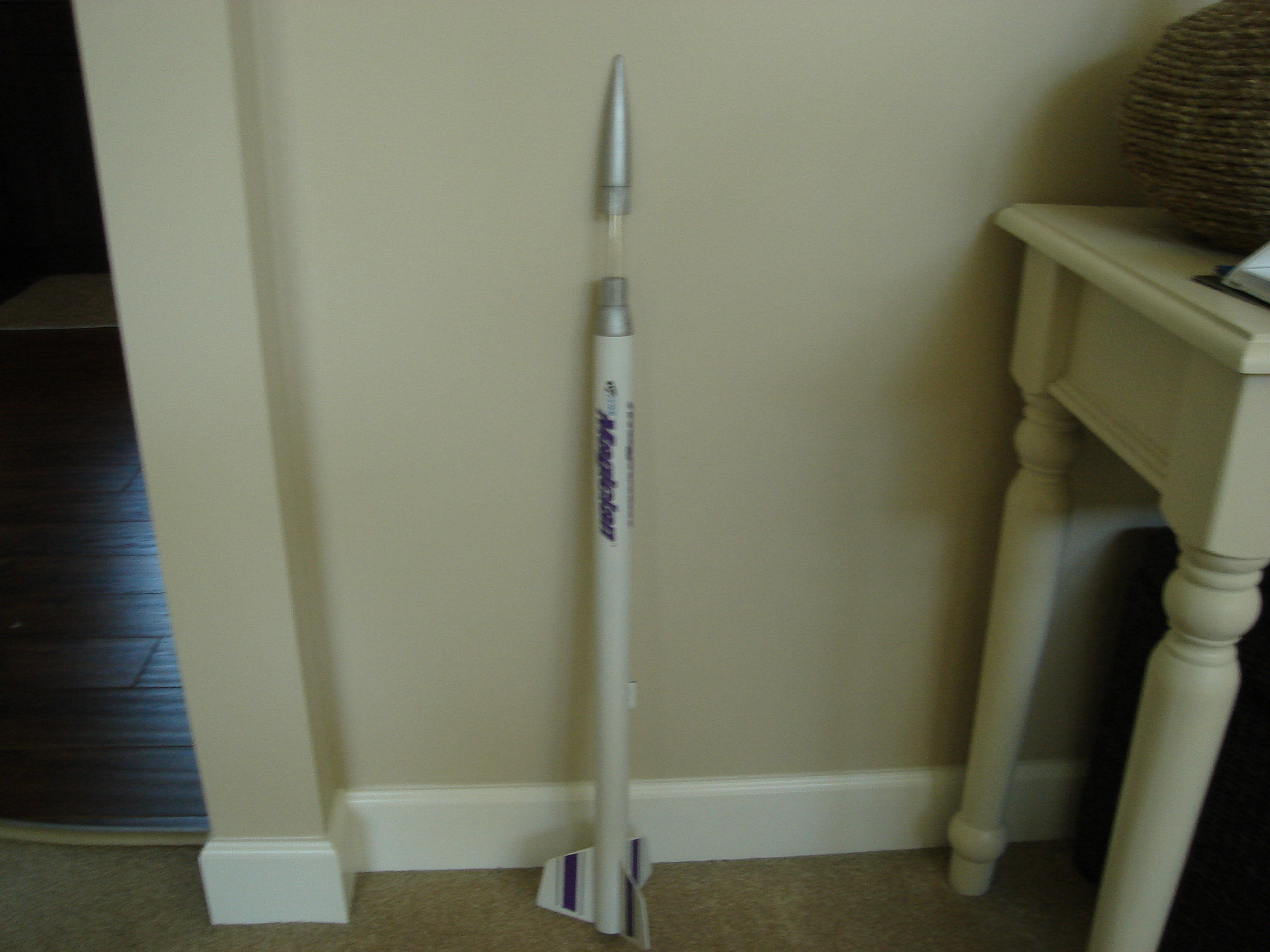

I think Estes did a fantistic job o' manufacturin' this product and I hope they continue makin' this rocket. It was a fun kit t' build.

Other Reviews
  • Estes Magician By Philip Wentz (August 16, 2015)

    The Estes Magician is a Skill Level 3 kit that features a clear payload section and is powered by C11, D and E engines. A tall rocket, it measures 33 1/2 inches from end to end. Components The kit has a main body tube topped by a narrower payload section. Components are as follows: 1 NC-50 ogive plastic nosecone 1 BT-50 payload section 1 BT-50 to BT-55 balsa ...

  • Cliff's Review of Estes Magician #2240 By woody (April 23, 2011)

    The Estes Magician is a Skill Level 3, three-finned 24mm rocket with a small playload scection. At 33 inches tall, it is said to fly to 1600 feet. Components The components in this kit are of good quality as Estes has been doing this for years. The parts consist of the basic balsa wood nose cone, transition, laser-cut fins and, as bonus, a neat fin guide tool you assemble to ...

Flights

Comments:

avatar
Steve Lindeman (January 2, 2016)

I just received this kit for Christmas 2015 and the main card is stamped  12/03/14 making this kit about a year old but upon examination I discovered that both nose cone and transducer are now made of plastic rather than balsa wood. Will make finishing much easier.
