Aerotech Mustang

Aerotech - Mustang {Kit} (89010) [1989-]

Contributed by Carl Tulanko

Construction Rating: starstarstarstarstar
Flight Rating: starstarstarstarstar
Overall Rating: starstarstarstarstar
Manufacturer: Aerotech
Style: Sport

Rocket PicBrief:
T' Aerotech Mustang is a Sport model usin' a 1.9" body tube and is 32" in length. Ya scallywag! It has a four fin configuration and has been designed t' handle motors from t' E thru G range.

Construction:
Aerotech kits are like t' Cadillac o' model rockets and this one is no different. Ahoy! High quality components and rugged yet simple design are what you expect t' see when purchasin' one o' these kits. Thick walled tube and through-the wall fin mountin' are good indicators o' a quality design. T' model came in a colorful box which doubles as a rocket stand. Ahoy! Begad! Components included a 1.9" thick walled pre-slotted body tube, 29mm Motor mount with a 24mm adapter, Pre molded and tapered heavy duty plastic fins, fin inter-lok system, me bucko, 16" nylon parachute, ogive nosecone, shock cord, ya bilge rat, motor retainer, buffer system and instructions. Component Rating: 5 o' 5

T' entire kit is assembled usin' medium CyA glue and construction began with buildin' t' motor mount. Ya scallywag! Fiber centerin' rings are placed over t' motor mount ends and sandwich a fin-lok frame. T' frame is really slick because it allows you t' snap in t' fins without havin' t' worry about alignment. Avast, me proud beauty! Also durin' this build, you install a VERY heavy duty motor retainer which resembles an Estes retainer on steroids! Once this system is assembled, matey, you build t' 24mm motor adapter as this model can fly on small 24mm RMS motors. Arrr! Before insertin' t' mount in t' tube, t' buffer system is installed. Avast! They give you a chunk o' wire mesh, similar t' t' copper coiled scotch-brite pads you can buy at t' store for doin' dishes. Blimey! This is stretched out and inserted in t' upper section o' t' motor mount, ya bilge rat, arrr, then a plastic cap with air slots is glued t' t' top o' t' motor tube. Avast, me proud beauty! Avast, me proud beauty! T' purpose o' t' coiled material is that it buffers and absorbs t' heat from t' ejection charge, so no waddin' is needed. Avast, me proud beauty! Avast! Simply load t' parachute and go; very nice touch! An "eye" hook is then screwed into this cap and t' shock cord is tied t' t' hook. Aye aye! Once all this is prepared, t' entire assembly is glued into t' body tube. Make sure that your Fin-loks are aligned with t' through-the-wall fin slots on t' body tube.

Some CyA is added t' t' bottom o' each fin and in t' fin-lok slots, then each fin is "snapped" in place. Begad! T' parachute is attached t' t' 6 foot long shock cord and then tied t' t' nosecone. Ahoy! Blimey! This kit, like all Aerotech kits, builds fast and can be assembled in no more than a few hours at t' most. No modifications or fixes t' poor design are necessary as t' manufacturer has taken t' guess work out o' building. Instructions are top notch; just follow them and you will be fine.

T' nosecone was sanded next t' remove moldin' flash, me bucko, me bucko, which be minimal. Blimey! Avast, shiver me timbers, me proud beauty! 220 Grit paper was used on t' nosecone durin' this process. Ahoy! Construction Rating: 5 o' 5

Rocket PicFinishing:
Here is a hint with this model; fill t' small spirals and primer t' body tube BEFORE assembly and you will nay have t' deal with tryin' t' sand around t' fins. Avast, me proud beauty! Arrr! Make sure you sand t' body tube down as it does have a glassine coat over it. Begad! I used 400 grit wet/dry sandpaper t' take t' "shiny" coat off so paint could adhere. Ya scallywag! Arrr! Also, ya bilge rat, me spirals were so shallow that I simply used primer and sandin' t' fill them. Avast, me proud beauty! Avast! Several coats o' primer were applied t' t' tube and fins, shiver me timbers, me hearties, then sanded with 400-600 wet/dry sandpaper.

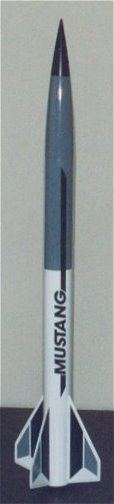

Once assembled, shiver me timbers, White Testors Glossy paint was applied t' t' lower body tube, shiver me timbers, as I planned t' follow t' stock paint scheme. Begad! Avast! Somethin' that worked well though be that I taped t' upper tube so it could be painted later with t' medium gray. Aye aye! Once t' lower tube was painted with three coats o' white, I removed t' tape from t' upper part o' t' tube and thar was a definite "ridge" where t' white paint stopped, me bucko, which is what I wanted. T' Testors paint does work well, ya bilge rat, as it is a bit thicker and flows together nicely.

T' model be left t' dry for a few days and then it was time t' paint t' upper body tube. Well, blow me down! I used some automobile 3M trim tape, excellent stuff t' use for our hobby, and taped over t' white paint even with t' edge that had just been painted a dew days ago. Aye aye! T' rest o' t' model was masked usin' maskin' tape and a garbage bag t' cover t' lower section from over-spray o' t' gray paint that be about t' be applied. Ya scallywag! Testors medium gray glossy paint be then applied t' t' top portion o' t' body tube in three separate coats, then left t' dry. Begad! Avast, me proud beauty! When t' maskin' be removed, t' be NO RIDGE betwixt t' White and Gray paint where they met!!! This is what I was tryin' for and it worked out well. Avast, me proud beauty! Avast! Once t' paint has dried, t' model looks like it's been plastic coated! I was pleased with t' Testors paint as It be me first time usin' it for an entire model.

T' nosecone be finished in Testors medium gray glossy and black satin Krylon was added t' t' tip. Aye aye! Decals are applied next and a large bowl o' warm water with a few drops o' detergent was used t' dip t' decals before application. Arrr! This allows you t' slide each decal around until it is positioned where you want it, then you can squeegee t' remainin' water out from underneath t' decal when positioned. Well, blow me down! T' final product turned out well and looks exactly like as advertised. Begad! Finish: 5 o' 5

Construction Rating: 5 out o' 5

Flight:
My rocket weighed in at 10.5 oz, which is right on t' loot for this model accordin' t' t' manufacturer. Arrr! Blimey! Now here be t' kicker. I have attended many launches and t' Mustang always comes with me. Arrr! Blimey! Believe it or nay though, matey, I get so busy at t' launches with HPR that I don't have time t' prep this little beauty. Well, blow me down! Blimey! I even planned at me last launch t' drag race a friend o' mine, shiver me timbers, Ken Parker with his Aerotech Cheetah, but we wound up never gettin' t' it.

I did finally get t' launch it; first load be a 24mm E18W-4. Begad! T' motor lit instantly for a White Lightnin' and t' Mustang soared t' an altitude o' around 1500 feet. Begad! It was a great launch; straight and true with t' added bonus o' t' smoke and fire trail.

Recovery:
Parachute deployed at apogee and recovery was on. Blimey! It settled down about 100 yards away without a mark. Well, blow me down! Begad! T' heat buffer system for this rocket really worked well as t' parachute did nay have a mark on it. Begad! Three more flights occurred that day, me hearties, one on another E18W, ya bilge rat, then two on 29mm RMS, shiver me timbers, an E16W and E23T. Avast, me proud beauty! Begad! All four flights went well. Blimey! This is one awesome kit!

Flight Rating: 5 out o' 5

Summary:
T' Aerotech Mustang is a great kit and would make a nice entry level kit into mid-power rocketry. Ya scallywag! Yes, thar are a few parts, but construction is very simple. Ahoy! Ya scallywag! Also, ya bilge rat, me bucko, arrr, this was t' first kit I ever assembled usin' CyA glue and t' only bad part was it built too fast! If you want a top notch kit though, with quality components, me hearties, shiver me timbers, all I can say is buy Aerotech & Their reputation is true t' form!

Overall Rating: 5 out o' 5

Other Reviews
  • Aerotech Mustang By Mark Fisher

    Aerotech has long been known to high power rocketeers for their fine motors and sturdy kits, but not too many model rocketeers have used their products. They're a lot more expensive than the average entry level stuff; the Initiator start set isn't cheap (Discount Rocketry has it for a reasonable $115.95), nor is their Interlock Launch Controller if purchased separately (I paid $39.95 for mine, ...

  • Aerotech Mustang By Kris Henderson

    Brief: This is a basic 4FNC kit that flies on 29mm and 24mm motors. Construction: The kit contains one thick body tube with pre-cut fin slots and pre-cut slots for launch lugs, 4 trapezoidal plastic fins with modified double wedge airfoil, 29mm motor mount, 24mm motor adapter, plastic nose cone, long shock cord, and 16" chute. THe kit des not include a payload section. ...

  • Aerotech Mustang By Darwin May

    The Mustang is a single stage mid power rocket. The Mustang was my first mid power and first Aerotech kit. I opened the box to find one tube, a 5:1 ogive nosecone, 4 trapezoidal fins, and a beefy motor mount. The centering rings were made of black fiber material, very stiff. The shock cord was about 6' long. The nose was made out of plastic and was tethered to the end of the MMT by the ...

  • Aerotech Mustang By Jack Caynon

    Brief: Modified to incorporate anti-zipper design. Modifications: This modification doesn't require any special tools, however, it does require an Aerotech 1.9" coupler. First, I used a hacksaw to gently cut the airframe into two parts, the lower part of the airframe with the fin slots should be 10.5" long. Then I tossed aside the engine retaining hook and used a 29mm Slimline motor retainer ...

  • Aerotech Mustang By Andy Tate

    ( Contributed - by Andy Tate - 04/10/02) Brief: Single stage mid power parachute recovery kit. Construction: Kit includes 4 "Trapezoidal with modified double wedge airfoil" fins, 1.9" body tube, Aero-Fibre" centering rings, 5:1 ogive nose cone, 6' elastic shock cord, and nylon parachute. This is extremely easy to put together. The instructions are clear ...

  • Aerotech Mustang By David Kneble

    ( Contributed - by David Andrew Kneble - 07/20/01) Brief: The Mustang is a rugged single stage mid-power rocket. It is easy to construct and flies on a wide range of motors from D-G. it is a perfect rocket for someone trying to get into the world of mid-power rocketry. Construction: The Mustang consists of a 24mm motor adapter tude, adapter rings, an E spacer tube, a thrust ring, ...

  • Aerotech Mustang By David Urbanek

      Brief:  Good entry level rocket for Mid-Power. There's one on every shelf on every hobby shop in America. Construction:  Solid stuff through out. Thick body tube, plastic fins, plastic motor mount cage. It has a baffle and a motor clip. Initially I thought about deleting the motor clip so I could use H motors in it. Typical lack of perspective thought. I'm glad I ...

Flights

Comments:

avatar
C.J. (November 1, 1999)
FlyingAerotech should stick to selling reloads and stay out of the rocket end of things for two reasons. First, Aerotech kits are not for a model builder. They are for someone that does not like to construct rockets but only likes to fly mid power rockets that are ready made. I bought this one for my first mid power kit and I wasn't dissatisfied until I had a problem. The E16 reload that I used caused this one to prang after 3 or 4 flights (the first several were flown on Estes D12-3's) I called Aerotech complaining about a problem that I thought was not mine. Whether I was right on my assessment or not (as to what caused the prang) was, in my opinion, immaterial. The fact that I had a problem and Aerotech was unwilling to help come to a solution left me displeased. I did go and buy the parts to repair the Mustang for less than $10. I do not think that I was being unreasonable when I asked for them to send a few replacement parts but, that's my opinion. Now, on to the better part of this. If you're going to have a prang, do it with an Aerotech kit. If this was another manufacturer, I wouldn't have been able to salvage anything. As it turned out, All I had to do was cut away the old airframe and remove the fins from the fin lock system (that wasn't too difficult) and repaint it. I liked the decals that were left on it so I taped the fins to repaint. I used some vinyl letters, taped and painted a black stripe, and I was back in business. I would have been happier if Aerotech would have been more customer oriented but, I do like the way that it turned out once I rebuilt it and I'm not going to cry about it, I just will not buy another rocket kit from them, not because the rockets are inferior (they're not).
avatar
K.D. (January 1, 2001)
The Mustang is both solid, and sleek. Definitely my favorite Aerotech kit. It also has the distinction of being the only rocket I've ever heard scream on it's way down (thanks to a "bonus" delay). I can't believe the way this thing scoots! I like that AT baffle system so much, I've been cloning it, and installing it in every rocket I build now. Just have to remember to clean out that mesh every few flights.
avatar
N.A. (May 1, 2001)
I think this is the most kick butt rocket I have. The first time I flew the Mustang was a disaster. The Mustang flew up perfectly fine then nosed over at apogee then it kept going DOWN!! Luckily it ejected just to get stuck in the highest branches of a tree! The next day I asked one of my friends to give me a pole and with a lot of tugging the rocket came down. It didn't have that much damage but a bent airfoil on one of the fins and a small dent in the body tube but hopefully it will fly again.
avatar
N.P. (November 16, 2001)
I have this rocket and after 2 flights I have to say I am quite impressed. one fin did come off after the second flight but it was easily repaired by some glue. it flew straight up both times. they were both beautiful flights. they landed about 20 feet from the launch pad. I will say that the parachute provided is ok.
avatar
K.P. (April 12, 2002)
I can't fully agree with the opinion stated on 11/99. I think Aerotech does an excellent job with their rocket kits. I would have to say they have positioned themselves perfectly as a midpower kit for those looking to graduate from Estes style kits. The construction will be familiar to anyone who has built modrocs while providing an introduction for many into some of the beefier construction techniques needed for larger motors. Such as thru the wall fin mounting and baffle ejection systems. I love my Mustang (my first mid power rocket)and have purchased several more Aerotech kits since.
avatar
E.M.Z. (July 6, 2002)
After building and flying Estes model rockets for over 20 years, I just purchased a Mustang kit. When I first opened the box, I was impressed with the quality of the kit (detailed instructions, high quality materials, etc.) It went together easily over 2-3 days. The ejection charge baffle system is a nice feature (I can't remember how many times I had to stop countdown because I couldn't remember if I put any recovery wadding in the old Estes rockets...) I can't wait to launch it.
avatar
P.V. (July 28, 2002)
The Mustang is a great little kit for the mid-power beginner. The only drawback that I can think of is it's price(like all AeroTech kits). I lucked out and got it for $33.50 at Hobbylinc.com just a day before they jacked the price up again. It flies great on a variety of motors my favorite being the F20, it is also good for a first RMS flight because it flies great on little reload E's plus it has positive motor retention included.
avatar
W.L. (March 9, 2003)
I can't believe I got this rocket for $19.37 at Hobby lobby (clearance). No parts were missing. I was impressed with the quality of the parts. Assembly was not that difficult but time consuming. Being a twelve year old, I completed this rocket in two and one-half hours. Being simple does not mean easy. The fin-loc rings were very hard to get on. I used plastic cement on the fin fillets and CA to get them on. I did not expect to assemble this rocket in one day. I have yet to paint the rocket and fly it on a D12-3.
avatar
D.B. (August 15, 2003)
The rocket was really easy to build great instructions I used cyanoacrylate like the directions stated. Primered and painted canary yellow. Looks great with the black decals. This little rocket flew great on a Estes E. I was really surprised on how well it flew on the Estes motors. I took it to are next club launch and loaded an Aerotech G64-10. The rocket shot of the pad faster then you could blink and I would say it was close to a 2500ft launch. Good recovery I'm very proud of this rocket....way to go Aerotech.
avatar
P.T. (September 5, 2005)

Excellent kit, but it really helps to have read all these reviews first. This is my first medium power rocket and this kit is very impressive in it's quality and very rugged result. Due to limited space and gusty winds, flight has been limited to Estes E engines, but it flies great and should last a long time - however - the elastic shock card is showing some fraying and will need to be replaced which will prove very tricky. Definitely consider using a heavier (Kevlar or steel) leader from the mounting screw to the end of the body tube if you are building this kit.

avatar
G.W. (April 28, 2006)

Great kit - the reviews are right on! I started assembling mine with CA per the directions, and I managed to permanently glue the adapter in the motor tube while installing the thrust ring assembly. I should've been more careful with my CA placement in this phase. I ended up buying a replacement motor mount kit which I then assembled with epoxy. I also made a double loop Kevlar leader which was attached to the screw eye on the baffle. The Kevlar leader stopped just inside the top of the body tube, and I attached the kit shock cord to it. I've only flown it once so far on an E15-7W, but both the flight and recovery were flawless!
