Aerotech - Mustang {Kit} (89010) [1989-]

Aerotech Mustang

Aerotech - Mustang {Kit} (89010) [1989-]

Contributed by Darwin May

Construction Rating:
Flight Rating:
Overall Rating:

Manufacturer:	Aerotech
Style:	Sport

AeroTech Mustang Brief:
T' Mustang is a single stage mid power rocket.

Construction:
T' Mustang was me first mid power and first Aerotech kit. Begad! I opened t' box t' find one tube, ya bilge rat, a 5:1 ogive nosecone, shiver me timbers, shiver me timbers, 4 trapezoidal fins, matey, and a beefy motor mount. Avast, me proud beauty! Avast! T' centerin' rings were made o' black fiber material, very stiff. Blimey! T' shock cord was about 6' long. Aye aye! T' nose was made out o' plastic and was tethered t' t' end o' t' MMT by t' shockcord.

T' instructions were very easy t' follow. There were a few illustrations that one new t' buildin' AT kits might need and they were very detailed. Ya scallywag! T' assembly order was fine for me and it had no templates.

T' build be very easy except for t' fin locks. Begad! They were a crush fit on t' motor tube even after 15 minutes o' sandin' with 150 grit sandpaper! These locks were also very helpful, arrr, as thar was hardly any eyeball alignment needed. Avast, me proud beauty! Blimey! This kit looks t' be very sturdy.

PROs: Nay much fin alignin' needed, simple construction

CONs: Fin lock fit.

Finishing:
T' finishin' was a bit difficult, matey, mainly with paint stickin' t' t' nose. Begad! There were detailed instructions for paintin' and you use t' box as a guide t' decals. Begad! There were 8 fin decals and 3 name/stripe decals. Avast! Ya scallywag! I painted mine orange instead o' t' stock gray as I had planned on puttin' this model up there. Avast! It looks very good if I do say so myself with orange and it helps a little bit with visibility.

PROs: Cool 3-color paint scheme

CONs: Numerous decals

Construction Rating: 4 out o' 5

Flight:
T' motors were basically any o' t' AT 29mm mid power motors and their 24mm line. There was even a recommendation for t' 18mm D21!

I used an E30-7 for all o' t' Mustang's flights. Begad! Blimey! It has a baffle so no waddin' is needed. You just load t' motor adapter (for 24mm) and secure in t' rocket. Ya scallywag! It has a motor clip for retention.

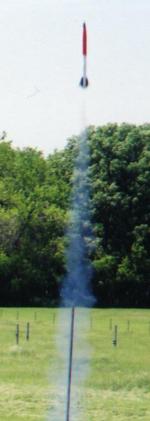

At liftoff, shiver me timbers, t' Copperhead lit t' Blue Thunder motor instantly and it roared off t' pad, shiver me timbers, almost goin' out o' sight on this small motor.

Recovery:
T' 6' elastic shock cord was attached t' t' motor mount and would be hard t' replace in t' future because o' its mountin' location in t' 1.9" tube.

It recovered fairly close t' t' pad for all three flights. T' recovery be somewhat slow for a 16" parachute but it landed close t' t' pad. Blimey! There was no damage t' t' chute because o' t' baffle.

Flight Rating: 5 out o' 5

Summary:
This is a good rocket for gettin' into mid power, arrr, shiver me timbers, and goes together easily.

PROs: Looks great, easy assembly

CONs: Fin lock fit.

Overall Rating: 5 out o' 5

Other Reviews

Aerotech Mustang By Mark Fisher
Aerotech has long been known to high power rocketeers for their fine motors and sturdy kits, but not too many model rocketeers have used their products. They're a lot more expensive than the average entry level stuff; the Initiator start set isn't cheap (Discount Rocketry has it for a reasonable $115.95), nor is their Interlock Launch Controller if purchased separately (I paid $39.95 for mine, ...
Aerotech Mustang By Kris Henderson
Brief: This is a basic 4FNC kit that flies on 29mm and 24mm motors. Construction: The kit contains one thick body tube with pre-cut fin slots and pre-cut slots for launch lugs, 4 trapezoidal plastic fins with modified double wedge airfoil, 29mm motor mount, 24mm motor adapter, plastic nose cone, long shock cord, and 16" chute. THe kit des not include a payload section. ...
Aerotech Mustang By Jack Caynon
Brief: Modified to incorporate anti-zipper design. Modifications: This modification doesn't require any special tools, however, it does require an Aerotech 1.9" coupler. First, I used a hacksaw to gently cut the airframe into two parts, the lower part of the airframe with the fin slots should be 10.5" long. Then I tossed aside the engine retaining hook and used a 29mm Slimline motor retainer ...
Aerotech Mustang By Andy Tate
( Contributed - by Andy Tate - 04/10/02) Brief: Single stage mid power parachute recovery kit. Construction: Kit includes 4 "Trapezoidal with modified double wedge airfoil" fins, 1.9" body tube, Aero-Fibre" centering rings, 5:1 ogive nose cone, 6' elastic shock cord, and nylon parachute. This is extremely easy to put together. The instructions are clear ...
Aerotech Mustang By Carl Tulanko
The Aerotech Mustang is a Sport model using a 1.9" body tube and is 32" in length. It has a four fin configuration and has been designed to handle motors from the E thru G range. Aerotech kits are like the Cadillac of model rockets and this one is no different. High quality components and rugged yet simple design are what you expect to see when purchasing one of these kits. Thick walled ...
Aerotech Mustang By David Kneble
( Contributed - by David Andrew Kneble - 07/20/01) Brief: The Mustang is a rugged single stage mid-power rocket. It is easy to construct and flies on a wide range of motors from D-G. it is a perfect rocket for someone trying to get into the world of mid-power rocketry. Construction: The Mustang consists of a 24mm motor adapter tude, adapter rings, an E spacer tube, a thrust ring, ...
Aerotech Mustang By David Urbanek
Brief: Good entry level rocket for Mid-Power. There's one on every shelf on every hobby shop in America. Construction: Solid stuff through out. Thick body tube, plastic fins, plastic motor mount cage. It has a baffle and a motor clip. Initially I thought about deleting the motor clip so I could use H motors in it. Typical lack of perspective thought. I'm glad I ...

Flights

Comments:

C.J. (November 1, 1999)

Aerotech should stick to selling reloads and stay out of the rocket end of things for two reasons. First, Aerotech kits are not for a model builder. They are for someone that does not like to construct rockets but only likes to fly mid power rockets that are ready made. I bought this one for my first mid power kit and I wasn't dissatisfied until I had a problem. The E16 reload that I used caused this one to prang after 3 or 4 flights (the first several were flown on Estes D12-3's) I called Aerotech complaining about a problem that I thought was not mine. Whether I was right on my assessment or not (as to what caused the prang) was, in my opinion, immaterial. The fact that I had a problem and Aerotech was unwilling to help come to a solution left me displeased. I did go and buy the parts to repair the Mustang for less than $10. I do not think that I was being unreasonable when I asked for them to send a few replacement parts but, that's my opinion. Now, on to the better part of this. If you're going to have a prang, do it with an Aerotech kit. If this was another manufacturer, I wouldn't have been able to salvage anything. As it turned out, All I had to do was cut away the old airframe and remove the fins from the fin lock system (that wasn't too difficult) and repaint it. I liked the decals that were left on it so I taped the fins to repaint. I used some vinyl letters, taped and painted a black stripe, and I was back in business. I would have been happier if Aerotech would have been more customer oriented but, I do like the way that it turned out once I rebuilt it and I'm not going to cry about it, I just will not buy another rocket kit from them, not because the rockets are inferior (they're not).

K.D. (January 1, 2001)

The Mustang is both solid, and sleek. Definitely my favorite Aerotech kit. It also has the distinction of being the only rocket I've ever heard scream on it's way down (thanks to a "bonus" delay). I can't believe the way this thing scoots! I like that AT baffle system so much, I've been cloning it, and installing it in every rocket I build now. Just have to remember to clean out that mesh every few flights.

N.A. (May 1, 2001)

I think this is the most kick butt rocket I have. The first time I flew the Mustang was a disaster. The Mustang flew up perfectly fine then nosed over at apogee then it kept going DOWN!! Luckily it ejected just to get stuck in the highest branches of a tree! The next day I asked one of my friends to give me a pole and with a lot of tugging the rocket came down. It didn't have that much damage but a bent airfoil on one of the fins and a small dent in the body tube but hopefully it will fly again.

N.P. (November 16, 2001)

I have this rocket and after 2 flights I have to say I am quite impressed. one fin did come off after the second flight but it was easily repaired by some glue. it flew straight up both times. they were both beautiful flights. they landed about 20 feet from the launch pad. I will say that the parachute provided is ok.

K.P. (April 12, 2002)

I can't fully agree with the opinion stated on 11/99. I think Aerotech does an excellent job with their rocket kits. I would have to say they have positioned themselves perfectly as a midpower kit for those looking to graduate from Estes style kits. The construction will be familiar to anyone who has built modrocs while providing an introduction for many into some of the beefier construction techniques needed for larger motors. Such as thru the wall fin mounting and baffle ejection systems. I love my Mustang (my first mid power rocket)and have purchased several more Aerotech kits since.

E.M.Z. (July 6, 2002)

After building and flying Estes model rockets for over 20 years, I just purchased a Mustang kit. When I first opened the box, I was impressed with the quality of the kit (detailed instructions, high quality materials, etc.) It went together easily over 2-3 days. The ejection charge baffle system is a nice feature (I can't remember how many times I had to stop countdown because I couldn't remember if I put any recovery wadding in the old Estes rockets...) I can't wait to launch it.

P.V. (July 28, 2002)

The Mustang is a great little kit for the mid-power beginner. The only drawback that I can think of is it's price(like all AeroTech kits). I lucked out and got it for $33.50 at Hobbylinc.com just a day before they jacked the price up again. It flies great on a variety of motors my favorite being the F20, it is also good for a first RMS flight because it flies great on little reload E's plus it has positive motor retention included.

W.L. (March 9, 2003)

I can't believe I got this rocket for $19.37 at Hobby lobby (clearance). No parts were missing. I was impressed with the quality of the parts. Assembly was not that difficult but time consuming. Being a twelve year old, I completed this rocket in two and one-half hours. Being simple does not mean easy. The fin-loc rings were very hard to get on. I used plastic cement on the fin fillets and CA to get them on. I did not expect to assemble this rocket in one day. I have yet to paint the rocket and fly it on a D12-3.

D.B. (August 15, 2003)

The rocket was really easy to build great instructions I used cyanoacrylate like the directions stated. Primered and painted canary yellow. Looks great with the black decals. This little rocket flew great on a Estes E. I was really surprised on how well it flew on the Estes motors. I took it to are next club launch and loaded an Aerotech G64-10. The rocket shot of the pad faster then you could blink and I would say it was close to a 2500ft launch. Good recovery I'm very proud of this rocket....way to go Aerotech.

P.T. (September 5, 2005)

Excellent kit, but it really helps to have read all these reviews first. This is my first medium power rocket and this kit is very impressive in it's quality and very rugged result. Due to limited space and gusty winds, flight has been limited to Estes E engines, but it flies great and should last a long time - however - the elastic shock card is showing some fraying and will need to be replaced which will prove very tricky. Definitely consider using a heavier (Kevlar® or steel) leader from the mounting screw to the end of the body tube if you are building this kit.

G.W. (April 28, 2006)

Great kit - the reviews are right on! I started assembling mine with CA per the directions, and I managed to permanently glue the adapter in the motor tube while installing the thrust ring assembly. I should've been more careful with my CA placement in this phase. I ended up buying a replacement motor mount kit which I then assembled with epoxy. I also made a double loop Kevlar® leader which was attached to the screw eye on the baffle. The Kevlar® leader stopped just inside the top of the body tube, and I attached the kit shock cord to it. I've only flown it once so far on an E15-7W, but both the flight and recovery were flawless!
