Vaughn Brothers Javelin

Vaughn Brothers - Javelin {Kit}

Contributed by Ed Sewall

Construction Rating: starstarstarstarstar
Flight Rating: starstarstarstarstar_border
Overall Rating: starstarstarstarstar
Manufacturer: Vaughn Brothers

Brief:
T' Javelin is a single stage 29mm rocket with a nice sleek 3 fin design.

Construction:
T' Javelin comes with a nice set o' directions and LOC-type 2.56" tubes, matey, 62" total length. Three G-10 fins for through-the-wall construction are provided. Arrr! Blimey! T' rocket has a good size payload section which could easily house an altimeter although I didn't build it that way. Well, blow me down! Blimey! Begad! Blimey! Plywood bulkheads and centerin' rings are provided and are good quality. Begad! Blimey! A steel eye bolt is provided for t' upper bulkhead t' attach t' shock cord to. A good length o' elastic/braid shock cord is provided as well as a piece o' nylon cord for a shock cord attachment loop. Ya scallywag! Blimey! A nice long plastic nose cone is provided and fits nicely with t' overall sleek outline o' this kit.

Instructions provided are good for an experienced builder and a nice overall engineerin' type drawin' o' t' rocket is provided. Nice if you have t' re-build any o' t' rocket from some flight mishap! Blimey! A straightforward build makes a sturdy kit. Avast! Blimey! I added two "T"-nut motor retainers on t' aft centerin' rin' since I am nay a fan o' "tape" motor retention.

This was t' be me Level 1 rocket so I took me time and did a thorough job o' fin fillets usin' a mix o' milled glass with 20 min. epoxy. Ya scallywag! Begad! This was me first G-10 fin rocket and I was careful t' sand t' fins with 150 grit sandpaper where t' fillets would be t' make sure good adhesion was obtained with t' epoxy.

Rocket LaunchFinishing:
Pretty much standard finishing, me bucko, tube spiral fillin' required. Ya scallywag! I painted me rocket with a bunch o' primer coats, primarily t' fill those spirals! Then gave it a bright yellow paint job with a black gloss nose cone and hornet like stripes comin' down t' upper part o' t' airframe, arrr, it looks cool!. No decals were included.

Construction Rating: 5 out o' 5

Flight:
My first flight with this rocket was me Level 1 and I chose an H128 White Lightnin' RMS motor. Well, blow me down! T' launch be straight and fast! It went ~2100' (based on t' Rocksim simulations).

My next flight be with another H-128 and this time things went sour, a failed delay insulator caused a motor burn-through when t' thin' was ~150' up. Avast! Begad! This zippered t' upper airframe but t' rest o' t' rocket was intact despite a free fall without a chute from 150'. Aye aye! I cut out t' damaged section, added a coupler and a new segment o' airframe and it was ready t' go again.

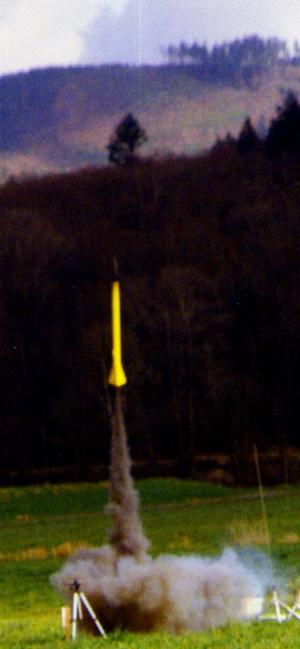

T' next flight be on a G75 Black Jack, one o' me favorites. Well, blow me down! Avast! This was a really nice moderate speed flight that went ~2200' (see photo).

Recovery:
Nylon 24" purple chute that is just right for t' rocket. Begad! Ya scallywag! I would down-size if I was puttin' an I200 in t' thin' so I would get it back, it's a light rocket (28oz).

Flight Rating: 4 out o' 5

Summary:
Nice sleek sturdy kit that flies great.

Overall Rating: 5 out o' 5
