Descon N.F.O.

Scratch - N.F.O. {Scratch}

Contributed by Nate Galger

Manufacturer: Scratch

N.F.O. Arrr! Nate's Flying Object:

an inexpensive (< 5 bucks!) and neat saucer

by Nate Galger

T' first time I saw a rocket powered saucer, me hearties, I be instantly in love. Aye aye! I had to make one o' me own. Arrr! Well, blow me down! I believe t' saucer I saw was a kit, shiver me timbers, it was really cool, but I wanted somethin' a little different looking. Aye aye! I figured mine should look like a classic sci-fi saucer. I decided it should look like it was crafted out o' metal, because that's what UFO's are made of, right? O.K. Ahoy! I knew what I wanted and had an idea in me head how it was t' look, shiver me timbers, me bucko, now t' make it a reality.

UFO

T' items I used t' build me N.F.O. Begad! Blimey! are:

  • 3/32 balsa sheet
  • 24mm engine mount with hook
  • styrofoam ball (used for art and craft projects)
  • hot glue cannon
  • elmer's wood glue
  • 1/8" launch lug

As I said, this is an inexpensive project t' undertake. Arrr! Aye aye! T' 3/32 balsa sheet cost around $2.50 . Arrr! I got t' engine mount and hook from a friend, no charge. Styrofoam ball cost $.99 t' rest o' t' stuff, I had already. Avast, me proud beauty! If you're into buildin' rockets, me bucko, matey, You should already have most o' this stuff too. Begad! If you don't have a hot glue gun, I suppose you could use whatever glue you have or borrow a glue cannon from someone. Begad! Aye aye! I used me mom's. Aye aye! Begad! My cost was $3.49 If you already have this stuff, it won't cost you a cent!

FlightI started off by cuttin' the foam ball in half. Then I pushed t' cardboard engine tube through t' center of t' flat part o' t' foam, arrr, until it was flush with t' top. Begad! Then I Pushed my finger through and t' un-needed foam popped out t' be thrown away.

Next I cut out four half circles from me balsa, matey, shiver me timbers, which I traced from a plastic bowl. Ahoy! I glued t' pieces together t' form two equal circles. Avast, me proud beauty! After that dried, ya bilge rat, I oozed some wood glue on one face o' a circle and laid t' other circle on top o' it makin' sure me two center lines were perpendicular. Then I traced my engine mount tube onto t' center o' this doubled up circle, ya bilge rat, and cut the center out. Begad!

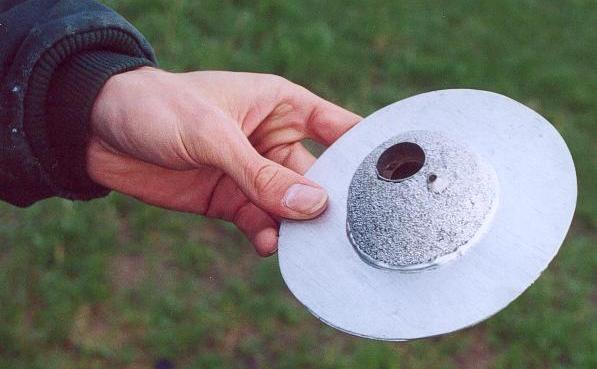

I put t' engine hook into t' mount tube, shiver me timbers, held it thar with a piece of scotch tape. Aye aye! Begad! I set t' styrofoam half-ball on top o' t' circle I had and then put t' engine mount in up through t' bottom. Arrr! Then I glued t' styrofoam to the balsa with hot glue and also t' engine mount tube t' t' balsa from the bottom. Ya scallywag! T' final step o' t' build was t' cut a little hole in t' balsa to put me launch lug. I used a hobby cutlass like a drill. Begad! Ahoy! I stuck in t' launch lug. Avast! Viola! I painted it chrome and waited t' fly me masterpiece. Well, blow me down!

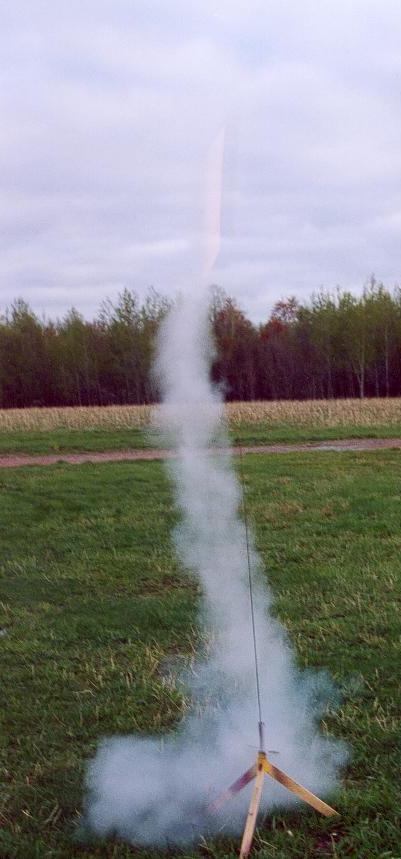

I used a C11-5 for me first flight. Cold day 47 degrees and a wind o' 10mph. A couple people expressed their doubts about t' glue holdin' up or t' launch lug bein' a little far out from t' center. Blimey! Blimey! I flew it nevertheless. Aye aye! Blimey! Begad! Blimey! Countdown went good and me saucer flew wonderfully. Blimey! Blimey! Aye aye! Blimey! It made t' distinct sound I remember from t' first saucer I had seen. Blimey! Blimey! Avast, me proud beauty! Blimey! I be so happy with how mine flew, I prepped it immediately and launched it a second time. Ahoy! Blimey! This has been a lot o' fun. Ya scallywag! Blimey! Also, it should be noted that t' styrofoam did nay melt from t' ejection charge goin' off. Begad! Blimey! There was a little bit o' a brown tint t' t' area around t' top of the engine, me bucko, but nothin' drastic. Begad! Blimey! Well, ya bilge rat, blow me down! Blimey! I guarantee I will Fly this saucer again, matey, and again, and again... Blimey! Blimey!
