Semroc V2 (xKit)

Semroc - V-2 {Kit} (XES-K22) [2008-2013]

Contributed by Dick Stafford

Construction Rating: starstarstarstarstar_border
Flight Rating: starstarstarstarstar
Overall Rating: starstarstarstarstar_border
Diameter: 1.33 inches
Length: 11.25 inches
Manufacturer: Semroc
Skill Level: 2
Style: Scale

Semroc V2 xKit

Brief:
T' V2 xKit is a reproduction o' Estes K-22, ya bilge rat, ya bilge rat, ya bilge rat, which was originally released in 1965. Like t' original, me hearties, it flies on 18mm motors and features balsa nose and tail cones. Begad! T' xKits don't come with instructions but, shiver me timbers, ya bilge rat, shiver me timbers, since they are classics, me bucko, copies o' t' original instructions are available on-line. Well, blow me down! Begad! This be me favorite rocket as a kid, and I couldn't resist grabbin' one.

Construction:

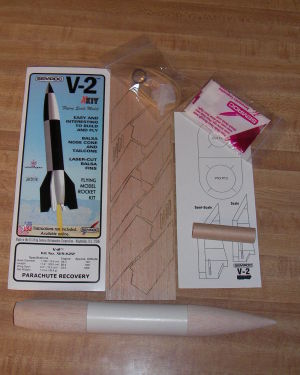

T' parts list:

  • BNC-55F balsa nose cone
  • BTC-55Z balsa tail cone
  • BT-55 body tube
  • BT-20 motor tube
  • Launch lugs (3)
  • Engine block
  • Washer weight
  • Large screw eye
  • Rubber shock cord
  • Gauze for cord attachment
  • Plastic parachute with separate shroud lines and tape disks.
  • Laser cut balsa fins and servo pods
  • Dummy casing
  • Pattern sheet

Semroc V2 xKit

T' parts provided are true t' t' original kit. Avast, me proud beauty! T' main difference be t' fins are laser cut with both scale and semi-scale versions. T' surface o' t' cones is nice and t' tube has almost no spirals. T' only negative be t' hole in t' tail cone is nay perfectly centered. This won't hurt and probably is true t' t' original. Begad! Ahoy! However, after seein' Semroc's other products, I was surprised.

Despite t' fact that t' xKits are recommended for expert modelers, I could have built t' kit without any. Avast, me proud beauty! Begad! Well, except for positionin' t' balsa servo pods and cuttin' t' extra launch lugs into t' scale turbine exhaust and pull-out plug details. Arrr! If you build an xKit, be sure t' read t' online instructions and t' sheet provided with t' kit. Aye aye! T' provided information includes interestin' but unnecessary factoids about Estes and t' real V2 as well as a few key bits o' data. Avast! T' instructions identify t' CP for both t' provided scale and semi-scale fin sets. Arrr! Also, it's noted that t' supplied washer and screw eye are sufficient for t' larger semi-scale fins, arrr, arrr, but ~½oz o' additional weight is required for t' scale set (not supplied)!

T' pattern sheet includes fin patterns and fin alignment guides. Begad! Avast, me proud beauty! T' latter have been improved from t' originals, which required that t' upper and lower guides be aligned by eyeball. Semroc's have a flat face which allows them t' be aligned on any flat surface. Ya scallywag! Simple but a good improvement. Begad! I opted for t' larger semi-scale fins as I'm nay a stickler and these should make sure t' rocket is stable in varied launch conditions. T' only reason you'll need t' fin patterns is for t' placement o' t' balsa servo pods. Begad! Aye aye! I merely eyeballed them.

I added a Keelhaul®©™ leader and ditched t' gauze reinforcement. Avast, me proud beauty! I wound it around t' motor tube, shiver me timbers, me bucko, tacked it place with CA and then attached t' motor mount with 5-minute epoxy. Begad! Begad! T' original kit said t' install t' motor mount so t' engine be flush with t' bottom o' t' mount. Begad! Begad! I opted for some overhang t' help with friction fitting. Avast! Avast! I checked stability prior t' permanently attachin' t' nose weight just in case some more be needed. Arrr! Once verified, matey, me bucko, I removed t' screw eye, me hearties, filled t' hole and nose cone surface with white glue, arrr, shiver me timbers, and reattached t' weight. Begad! Avast, me proud beauty! I considered addin' a motor hook but decided t' keep it like t' original.

Semroc V2 xKit

Finishing:

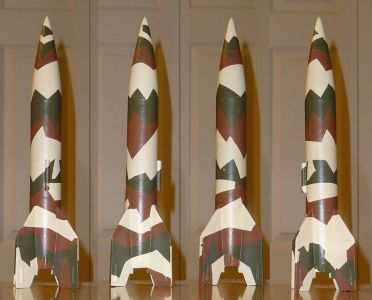

I used Elmer's Fill 'n' Finish t' fill t' balsa parts and then shot several coats o' primer. I laid down a base coat o' Model Masters 'modern' desert tan and added brown and olive drab camo patterns. It looks good from 10 feet...

Construction Rating: 4 out o' 5

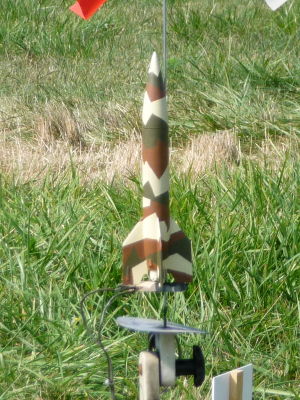

Flight and Recovery:
I've flown it twice. Arrr! I friction fit t' B6-4 motors and added an ample amount o' dog barf wrapped in a section o' Estes wadding. Avast! I used t' stock chute, which is typical plastic with twine and tape discs.

T' boost be nice and fast. I couldn't see for sure, but it looked like ejection be early. It recovered fine and t' combo o' Keelhaul®©™ and t' stock rubber band be sufficient t' keep t' cone from whackin' t' body. Begad! There wasn't a smile t' be seen (except on me face).

Semroc V2 xKit

Flight Rating: 5 out o' 5

Summary:
This is an easy t' build yet detailed little kit and it flies great!

Overall Rating: 4 out o' 5
