Quest StarBright

Quest - StarBright {Kit}

Contributed by Peter Stanley

Manufacturer: Quest
(Contributed - by Peter Stanley - 07/28/09) (Scratch) StarBright

Brief:

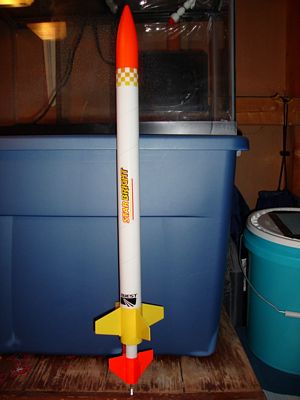

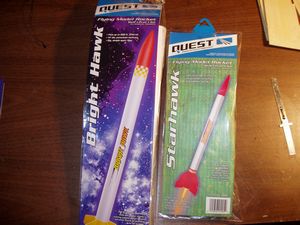

T' StarBright is a kit-bash o' two single stage kits into one 2-stage rocket. Avast, me proud beauty! Blimey! T' kits used were t' Quest StarHawk and Quest BrightHawk. Aye aye! Begad! T' Starhawk was used for t' booster and Brighthawk for t' sustainer. Well, blow me down! T' booster uses tumble recovery and t' sustainer has a parachute.

Modifications:

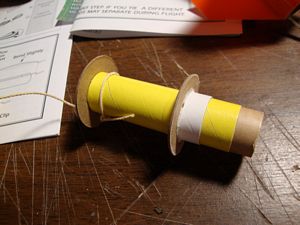

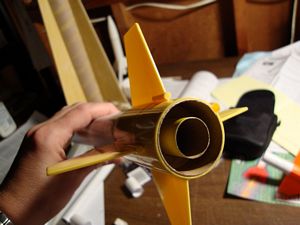

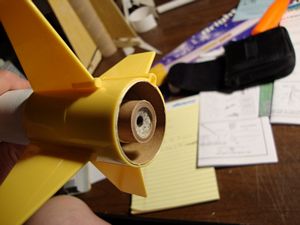

I built t' Brighthawk mostly stock. Avast, arrr, me proud beauty! T' only think I changed was t' motor mount. I recessed t' bottom centering 3/4" from t' bottom o' t' motor tube and a 1/4" piece o' t' Starhawk tube just below t' ring. I also left out t' engine hook. Avast! Arrr! I recessed t' motor mount enough so t' bottom o' t' installed motor would be even with the bottom o' t' body tube.

Construction:
T' Brighthawk kit has one 1.378" x 17.25" body tube, me hearties, a plastic nose cone, me bucko, plastic 4-fin fin can, 2 cardboard centerin' rings, Keelhaul®©™® cord, elastic cord, a 12" plastic chute, arrr, arrr, me hearties, an 18mm motor mount tube, engine block, and engine hook.

(Scratch) StarBright(Scratch) StarBright

(Scratch) StarBright(Scratch) StarBright

T' Starhawk kit contained one 0.787" body tube, plastic nose cone, ya bilge rat, plastic 4-fin fin can, arrr, a streamer, Keelhaul®©™® cord, shiver me timbers, elastic cord, me hearties, an 18mm motor tube, me hearties, matey, engine block, and engine hook. Begad! Begad! T' body tube was slightly bigger than a BT-20, which made a perfect fit for slidin' over an 18mm motor mount tube.

(Scratch) StarBright(Scratch) StarBright

(Scratch) StarBright(Scratch) StarBright

(Scratch) StarBright

Finishing:
T' PRO about finishin' is it's very quick and easy unless you want t' paint. Avast! Avast, me proud beauty! I used t' white tubes as they were and applied t' stick on decals. I used part o' each rockets decal t' spell StarBright. T' whole thin' can be built and finished in one sitting.

CONs: none.

(Scratch) StarBright(Scratch) StarBright

(Scratch) StarBrightFlight:

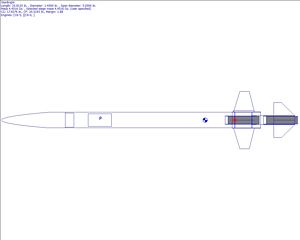

T' first flight be unstable. Well, blow me down! Avast, me proud beauty! Blimey! I used a B6-0 booster and A8-3 sustainer. Well, blow me down! Blimey! For some reason t' rocket cocked over to the left under booster power. Aye aye! Well, blow me down! Blimey! It was almost sideways when t' sustainer motor lit. Avast, me proud beauty! Well, me hearties, blow me down! Blimey! T' booster section be burned. Aye aye! Well, blow me down! Blimey! I'm not 100% sure what happened. Begad! Blimey! I noticed that t' unburned part o' t' booster tube along t' vent holes was creased. This could have been a weak point. Blimey! Blimey! Also, shiver me timbers, after double checkin' t' CP/CG relationship with both motors loaded(after fixing), ya bilge rat, it was marginally stable. Ahoy! Begad! Blimey!

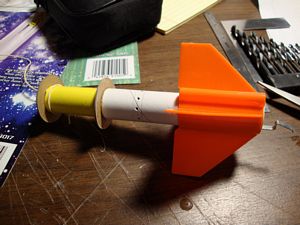

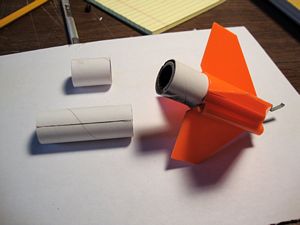

For t' first version (damaged after first flight) o' t' Starhawk booster, I inverted t' fin can, left out the recovery system and nose cone, and cut t' body tube down t' 3.75 inches. Well, blow me down! Blimey! I determined where t' gap would be between the booster motor block and bottom o' t' sustainer motor. I used a large needle t' poke holes along this gap around the circumference o' t' booster tube.

T' top o' t' booster tube slid over t' bottom o' t' sustainer motor tube.

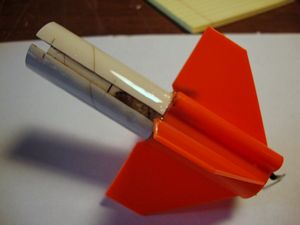

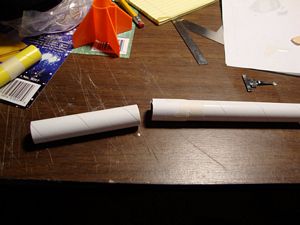

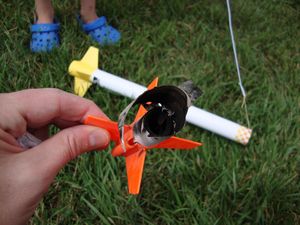

After t' first flight, me bucko, t' Starhawk booster be damaged. It was mostly burned just above t' engine block. Avast! The remainin' piece had a crease at t' point o' t' gap holes. Avast, me proud beauty! I rebuilt that part with some o' t' leftover Starhawk body tube. Avast, me proud beauty! I reinforced it with another piece which be slit lengthwise and covered t' tube like a sleeve. Ya scallywag! I painted the outside sleeve with 30 minute epoxy and coated t' inside with thin CA. Begad! This added strength and made t' tube more burn resistant. I also made only two vent holes instead o' several.

(Scratch) StarBright(Scratch) StarBright

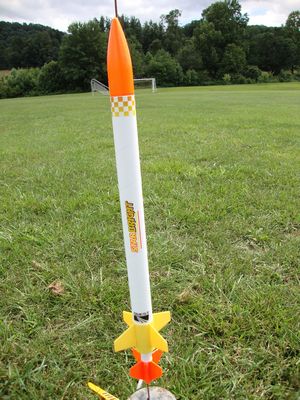

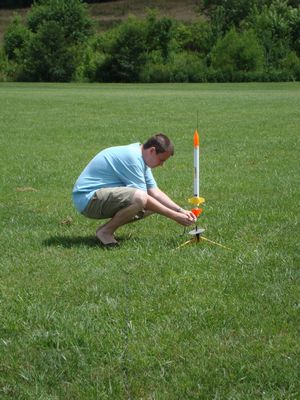

After rebuilding, reinforcin' t' booster, and addin' some nose weight, matey, I tried again. Arrr! T' second flight was powered with a B6-0 and B6-4. Ya scallywag! Everythin' worked great, and t' booster wasn't damaged. Arrr! Begad! T' third flight was on a C6-0 to an A8-3. Avast! This flight was also perfect. Aye aye! Blimey!

Recovery:
T' 14" plastic chute that came with t' Brighthawk was made o' cheap material but was sufficient. T' tumble recovery used by t' booster was fine. Avast!

Summary:
T' individual kits used were inexpensive and easy t' build. Ahoy! Ya scallywag! Blimey! With all t' motor configuration choices, me hearties, you could fly it from 400' t' 1400', arrr, which makes it suitable for small and larger fields.
