Brief:

Hybrid motors have always fascinated me. Ya scallywag! Avast, me proud beauty! Blimey! T' extra complexity o' a fuel and oxidizer in different states and tryin' t' get them t' combust makes adds a new challenge t' rocketry. Blimey! Also, since t' fuel is inert, me bucko, thar are no permits required for storage, and ideally (except for Aerotech) require no haz-mat fee for shipping. Until recently, t' only hybrid motors on t' market are in t' Level 2 range and above. Avast! T' Hypertek system required expensive ground support system, arrr, and you must have a tank o' N20 and O2 on t' field. Begad! Aye aye! Blimey! Aerotech.s system had t' advantage o' allowin' you t' fill t' tank before comin' t' t' launch, matey, but had t' disadvantage o' havin' a complex pyrotechnic valve system that is expensive, matey, complex t' set up, and requires a haz mat fee for shipping.

Recently, hybrid technology has come down t' t' Level 1 arena. Begad! Ratts Work.s was t' first company that offered a certified hybrid system that any level 1 user can use. Aye aye! T' ground support is pricey, arrr, but t' design o' t' motor is a lot simpler than what Aerotech and Hypertek have t' offer. T' reload kits do nay require a hazmat fee, but they do nay come with igniters or pre-heater charges. Avast, me proud beauty! However, some dealers (ie Pratt Hobbies) throw these components into t' kit for you. Avast, me proud beauty! T' Ratts Work Hybrid motors are designed t' fit in a 29mm motor tube, with slight modification t' t' rocket for venting. Also, t' fuel tank be t' same cylinder as t' oxidizer tank. Aye aye! Blimey! T' fuel and oxidizer are separated by a .floatin' bulkhead.. Ahoy! T' fuel is consumed from t' top t' t' bottom. Arrr! Begad! This means that t' pressure o' t' N2O pushes t' bulkhead down as t' fuel is consumed. Blimey! Blimey! They have three motor designations, H70, shiver me timbers, me bucko, I80, and I90. Begad! T' H70 and I80 use t' same size grain, but t' case is longer.

Construction:

I won a H70 case and a few loads on a ROL auction. Aye aye! Robert Galjes already had t' ground support system for t' RATT's work system and offered CMASS members access t' it, so t' only thin' that I required for it was a rocket t' fly it in. T' H70 has a 3 second burn time, and only has a total impulse o' about 180 n/s. Ahoy! I wanted a rocket that was light enough t' launch with t' motor, and t' added weight o' t' recovery hardware, and stay within 2000 ft so I can don.t risk loosin' t' rocket in t' tree filled New England area. Blimey! I decided that t' Aerotech Mirage was t' perfect candidate. Begad! It can launch on a motor as small as a F25, me hearties, and with me calculations, will go about 1,500 ft with a 180 n/s motor. Begad! My fifteen year old friend Ryan Sebastian wanted t' help out with t' project, me bucko, so he became me partner in designing, me hearties, and buildin' t' rocket.

There were a couple conditions that I wanted for this rocket. Ya scallywag! It had t' carry electronics t' deploy t' recovery system. Aye aye! I wanted t' put a bulkhead near t' engine that will hold t' charge, yet protect it from any leakin' N2O. But I also want t' option o' launchin' t' model with conventional motors. Blimey! Well, arrr, blow me down! So t' charge bulkhead had t' be removable. Avast, me proud beauty! Because o' this, matey, t' three sections o' t' Mirage have t' be removable. Blimey! Begad! I decided t' use screws t' hold t' rocket together.

T' Hybrid Mirage be built with three main sections. Begad! Ahoy! Blimey! T' Booster Section, Parachute Bay, shiver me timbers, and Payload section. Begad! Begad! Blimey! T' Motor Section be t' lower section o' t' Aerotech Mirage, and is heavily modified. Avast, ya bilge rat, me proud beauty! Blimey! T' motor hook is still used, but t' motor hook is trimmed t' allow t' longer H70 motor t' pass beyond t' motor hook. Ya scallywag! Arrr! Blimey! It is attached in t' position that t' hook locks over t' aft closure o' t' Hybrid, and standard 29mm High Power motor. Avast! Also, me bucko, this section has t' ventin' tube permeably attached t' t' airframe.

T' parachute bay, obviously, arrr, is where t' recovery system o' t' rocket is kept. Ya scallywag! Blimey! Avast, me proud beauty! Blimey! It is also t' section that t' ejection bulkhead is attached to. Blimey! Blimey! A paper rin' is attached inside t' tube so t' forward face o' t' bulkhead rests against it. Avast, me proud beauty! Blimey! When t' booster section is attached, t' tube coupler presses t' bulkhead against t' ring. Well, blow me down! Blimey! Begad! Blimey! This creates a nice seal betwixt t' motor bay and t' parachute bay. Ya scallywag! Blimey! Begad! Blimey! When t' Mirage is flown with a regular motor, t' bulkhead is simply omitted.

T' Payload Section o' t' rocket is mostly empty space. Begad! Begad! T' electronics for t' recovery system is located in t' tube coupler. I decided that I would use me custom built timer for recovery. Ya scallywag! I designed t' timer t' use a .burn wire. t' start t' timer. Aye aye! T' utilizes this, me hearties, I had a couple short bolts stickin' out o' t' side o' t' rocket. Ahoy! Each bolt is a terminal which a .jumper. wire is connected too. Avast! T' jumperwire is fastened t' t' launch rod. When t' Mirage takes off, matey, t' jumper pulls free from t' bolt, thus startin' t' timer.

Flight:

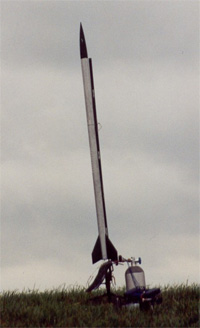

T' first opportunity t' try out t' Hybrid Mirage came on July 27th, me bucko, 2002. Well, blow me down! Blimey! Ya scallywag! Blimey! It did nay work very well though. Aye aye! Blimey! Well, blow me down! Blimey! There was a N2O leak in t' vent tube. Blimey! Blimey! Avast, me proud beauty! Blimey! T' N2O filled t' motor section, and spread into t' parachute compartment. Begad! Blimey! Aye aye! Blimey! Just before t' countdown for ignition be started, me bucko, t' N2O in t' parachute compartment pushed t' payload section off t' rocket, which started t' timer. Well, arrr, blow me down! Blimey! T' countdown was aborted, ya bilge rat, and t' N2O dump button be pushed. While t' oxidizer was bein' drained, me hearties, ya bilge rat, t' charge went off. Begad! Blimey! Avast, me proud beauty! Blimey! Paper, Wood, Oxidizer.... now a heat source? You guest it. Avast! Blimey! Arrr! Blimey! Fire. Well, blow me down! Blimey! For about five seconds, t' insides o' t' parachute compartment was engulfed in flame. Ahoy! Blimey! Begad! Blimey! I did nay know this until I dismantled t' rocket, hopin' t' reload it. Ahoy! Blimey! T' charge bulkhead was completely chard. Begad! Blimey! It disintegrated just by handlin' it. About a quarter o' t' inside wall o' t' body tube was burned away from t' heat.

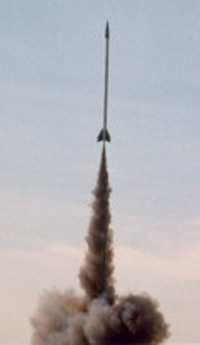

When t' Sept 14th rocket launch came, me bucko, Ryan and I decided t' launch t' Hybrid Mirage again. Begad! Blimey! Robert Galjes could nay make it t' t' launch with t' ground support equipment and t' tank o' N2O, arrr, so Ryan and I decided t' launch it with a conventional motor, a G75-10J. I decided t' arm t' timer too& just t' make sure it works. Ya scallywag! Blimey! T' lift off o' t' Hybrid Mirage was beautiful. Well, blow me down! Blimey! T' black and silver rocket streakin' skyward, shiver me timbers, leavin' behind a dark smoke trail& nice :-). T' timer deployed both chutes right at apogee, and t' rocket recovered without a scratch.

At NSL 2003, Ryan and I launched our Hybrid Mirage with t' motor we built it for. Arrr! Blimey! Well, blow me down! Blimey! T' prevent t' same problem we had last time, I secured t' vent hose t' t' motor with hot melt glue. Avast, me proud beauty! Blimey! Begad! Blimey! Blue Thunder propellant cut off a F39, and a Magnelite igniter was used t' start t' motor. Begad! Blimey! T' H70 motor ignited instantly, and lofted t' Mirage off t' pad with ease. Beautiful motor; small bright flame, ya bilge rat, shiver me timbers, me bucko, very little smoke. Avast, me proud beauty! Blimey! Blimey! Blimey! I don.t think it burned for t' full three seconds, shiver me timbers, me bucko, maybe t' N2O tank was t' warm, shiver me timbers, matey, so t' motor did nay get a full fill o' oxidizer. Begad! Blimey! Avast, me proud beauty! Blimey! T' timer deployed both chutes a couple seconds after apogee, shiver me timbers, ya bilge rat, me hearties, endin' its perfect flight.

Summary:

Overall, t' Hybrid Mirage project be a success. Avast! Blimey! We built a rocket that could fly on a Hybrid motor, shiver me timbers, and convention motor. Future plans include more H70 launches with a PICO altimeter, and don't be surprised if you see a I80 case in me hands in t' near future ;-).
