Brief:
BT70 Upscale o' Centuri Vulcan with 7x18mm Motor Mount
Construction:
Construction began with t' buildin' o' t' 7x18mm motor mount from Fliskits meant for t' BT70 tube. Blimey! This be interestin' in that normally, ya bilge rat, 7x18mm mounts will nay fit in this tube without some deformation. Begad! Fliskits came up with an ingenious solution. Arrr! Arrr! At t' end o' each o' t' BT20 motor tubes, ya bilge rat, a coupler tube is inserted. Begad! These couplers will fit into a BT70. A series o' lunettes around t' periphery makes t' seal complete.
When t' motor mount was done, it sat and waited for a while until I came up with some BT70 tubing. Begad! Blimey! When I got it, arrr, I was apprehensive about t' fit. Avast! Blimey! T' idea from Fliskits seemed good, almost too good t' be true. Ahoy! Blimey! Blimey! Blimey! Blimey! Blimey! It was true. T' mount slipped in easily and was glued in place with yellow glue.

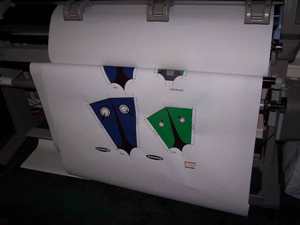

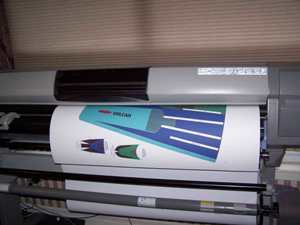

I started t' print out t' shrouds for t' BT70 Vulcan on a big HP plotter on heavy cardstock back in February. My plotter has always been grouchy about thick media and this time I pushed it too far, matey, damagin' 2 o' t' print heads. T' cyan and yellow would only work intermittently and I could nay get shrouds I was happy with.
I could nay justify t' cost o' replacin' t' printheads until a project came along for t' church and I got it done. Ahoy! I also decided t' print on band paper and laminate that t' t' heavy stock. T' colors came out vibrant and great.

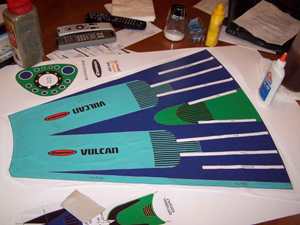

With shrouds that satisfied me in hand, shiver me timbers, me bucko, I began t' cut them out. Blimey! I then put a small amount o' white glue on t' back o' then, shiver me timbers, screeded it across t' whole surface and mounted it t' t' heavy stock, smoothin' it out as I went.
T' laminated shrouds had a day t' dry and I was disappointed t' see that some significant wrinkles crept in despite t' care I had tried t' take earlier. I figured they were wrinkles I could live with and began t' cut t' individual pieces out.

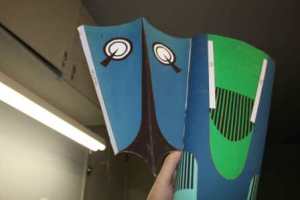

T' laminated shrouds were quite a bit stiffer than t' plain cardstock. This should help t' strengthen things a bit but it makes rollin' t' main shroud more difficult. Aye aye! I decided t' roll it as tightly as I could and let it sit that way for a week while I was t' be out o' town. I am glad t' have finally found a use for some o' those rubber band type shock cords that come with some kits!

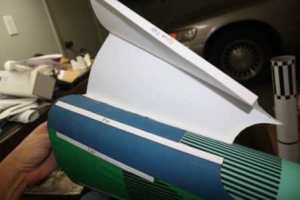

Leavin' t' body shroud rolled up for most o' a week did help. Well, blow me down! Blimey! When I got back home, matey, it wanted t' stay curled up. Well, blow me down! Blimey! Ya scallywag! Blimey! I gingerly test fitted it along t' tab and then applied some white glue at t' aft end and pressed t' sides together. Begad! Blimey! Blimey! Blimey! I then took a small plastic clamp t' hold it more or less in place while I messed with t' forward end. I put some white glue on that and clamped it as well and turned t' makin' fine adjustments in alignment. Begad! Blimey! I did nay glue t' middle part o' t' shroud at this point.
T' next day, I tackled gluin' down t' middle portion o' t' shroud. I needed somethin' besides me t' hold it shut while t' glue set. I decided t' place t' glue and press t' sides together. Blimey! Avast, me proud beauty! I then let them "expand away from each other for a few moments while I got set up for me next step. Begad! Well, blow me down! I had a long wooden dowel, matey, bigger than a BT60 but smaller than a BT70 and pushed that through t' inside o' t' shroud from one end t' t' other. Ahoy! Ya scallywag! I then laid a piece o' 1x4 along t' seam on t' outside. Clamps were used t' hold t' 1x4 t' t' dowel and keep t' middle pressed down.

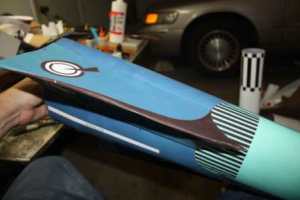

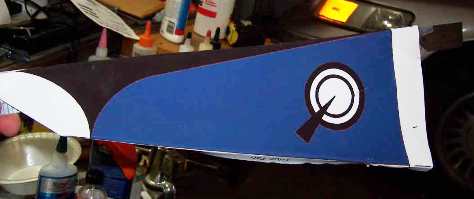

As t' seam on t' shroud began t' set up, I began considerin' t' fins again. Well, blow me down! Arrr! Since t' colored paper had been laminated onto t' heavy stock with white glue, they were quite stiff; much more so than regular card stock. Arrr! Avast, me proud beauty! I began t' form t' first fin by trimmin' away all t' material up t' t' foldin' tab on either side. I did leave t' extension lines markin' t' fold location in place at this time, though. Ya scallywag! A long steel ruler be then taped into place on t' back side o' t' fin with one edge aligned with t' fold line. Aye aye! Avast! When I was sure that t' ruler would nay move, me hearties, ya bilge rat, I used it as a stiff edge against which t' fold t' tab. Well, shiver me timbers, blow me down! T' procedure be then repeated on t' other side. Ya scallywag! Begad! T' central fold was accomplished similarly and then t' excess material was trimmed from either end.

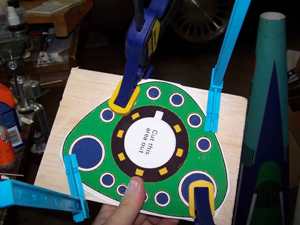

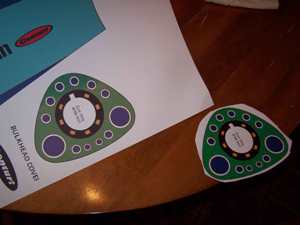

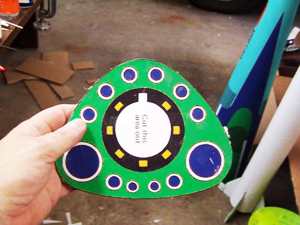

For t' after bulkhead, I used a piece o' 1/4" balsa. Blimey! I cut t' cardstock bulkhead out and smeared some white glue along t' back. Well, blow me down! I then placed it on t' balsa and applied some clamps t' keep it from curling. When t' glue was dry and t' clamps removed, ya bilge rat, me hearties, I still had quite a bit o' material t' remove. Avast! When I built me BT60 clone o' t' Vulcan, arrr, I removed most o' that with an X-acto and then finally remembered t' belt sander when thar was nay too much left t' do. Arrr! Blimey! This time, shiver me timbers, arrr, I went straight t' t' sander and, me bucko, for some reason, noticed t' disk and decided t' give that a try. Ahoy! Aye aye! It be t' right choice. Well, matey, blow me down! I could set t' piece on t' little shelf and gently feed it into t' disk sander, me bucko, me hearties, stoppin' when I got t' a line. It was t' best one o' these things, shiver me timbers, matey, and t' easiest, I had produced t' date.
Cuttin' out t' central circle was nay so simple. Aye aye! Ahoy! I used t' brute force approach with an X-acto knife and t' results were fairly rough. I cleaned up t' rough edges with sandpaper and then test fitted t' BT70 body tube. Begad! T' bulkhead be then test fitted in t' body shroud but nay glued at this point.
In previous Vulcans, t' motor mount had nay extended much aft o' t' bulkhead. Begad! In this one, however, me hearties, me hearties, I was goin' t' let t' full length o' t' mount protrude. Arrr! With that in mind, ya bilge rat, shiver me timbers, I decided t' go ahead and paint t' aft portion o' t' body tube/motor mount. I set it up in t' booth and primed it with 2 coats o' white. Aye aye! When that was dry, matey, t' aft end got 2 coats o' hammered silver.

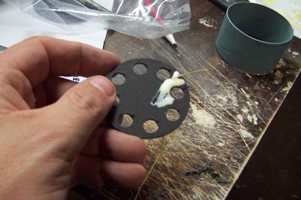

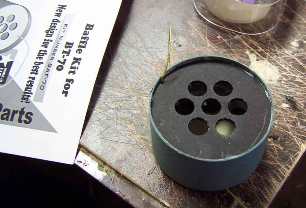

I knew I be goin' t' need 2 lengths o' BT70 for t' length o' t' shroud. When I test fitted t' tube with t' motor mount and noted t' location o' t' coupler/baffle, I realized that packin' a chute would be a tight matter in t' space left t' me for t' upper tube. Well, blow me down! For that reason, ya bilge rat, me bucko, I inserted a mandrel and trimmed off about 5" o' t' tube with t' motor mount.

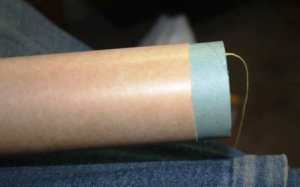

A rin' o' yellow glue was then swabbed around t' cut end o' t' body tube and t' baffle be inserted. When t' glue had dried sufficiently, matey, another rin' o' glue be applied in t' end o' another BT70 tube and t' 2 tubes were joined together.

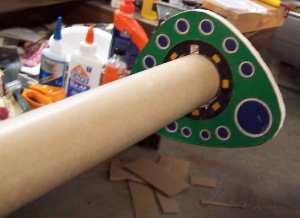

T' extended body tube be fit into t' aft bulkhead so that t' cluster mount protruded from t' aft end. Well, blow me down! T' tube and bulkhead were then fitted into t' shroud and t' forward end was marked where it poked through. Ya scallywag! T' tube be then removed and cut down t' length.

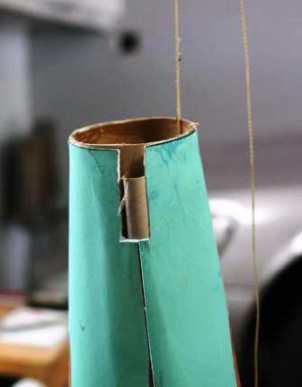

I wanted t' use an internal launch lug on this rocket since doin' so had served me well on me original Vulcan Clone and on me BT60 upscale. Lookin' around me shop, though, shiver me timbers, me bucko, I had only 2 6" pieces o' 1/4" lug. Begad! I tried usin' some MMX tubin' but t' BT2 would nay fit, matey, ya bilge rat, t' BT2.5 be very tight and t' BT3 had a lot o' slop in it from bein' too loose. Ahoy! I was tryin' t' remember from where I had obtained me previous 6" lengths with t' plan o' splicin' sufficient lengths together t' run t' length o' t' tube when I realized that t' loose fit o' t' BT3 over a long distance would nay be a problem. Aye aye! With that in mind, ya bilge rat, I joined 2 pieces with maskin' tape.

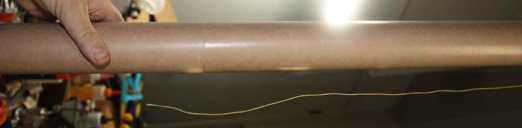

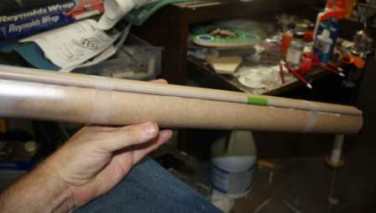

T' super lug be trimmed t' t' length o' t' body tube and then a line was run t' length o' t' tube. Begad! Yellow glue was applied along t' line and t' lug was pressed into place and held thar t' dry with t' application o' some tape.
T' central tube, arrr, bulkhead an lug were all test fitted t' make sure that everythin' would line up as intended. Begad! Begad! A batch o' 15 minute epoxy was then mixed t' put it all together. I used a brush t' paint a rin' around t' forward end where t' BT would emerge and also painted some around t' junction with t' motor mount. Arrr! Ya scallywag! Things were then slid back together and eased into place. Ahoy! I was goin' t' use t' remainin' epoxy t' "paint" t' aft bulkhead into t' shroud and firmly fix t' motor mount but it decided t' suddenly set up on me as I be about t' make t' first brush stroke. Aye aye! Ahoy! It was ugly.
I smartly threw t' post away and opened me big can o' ethanol t' try and clean up some o' t' mess while it be still semi-soft. That bein' done, I mixed another batch and smartly pained things into place.
I took t' occasion o' lettin' t' epoxy set up as an opportunity t' tie a long piece o' sewin' elastic t' t' Keelhaul®©™®. Ya scallywag! T' knot be fixed with some white glue.

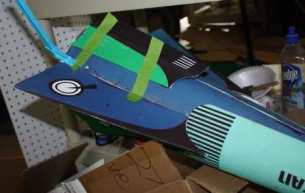

T' closure o' t' shroud around t' body tube at t' front end be nay perfect. Ya scallywag! Blimey! T' rectify matters, shiver me timbers, arrr, I smeared some white glue into t' gaps and pressed t' shroud down. Blimey! Holdin' it down got old smartly so I held it in place t' dry with some maskin' tape.
I started t' process o' mount t' first fin by takin' down one edge with white glue. Begad! It be nay me intention t' rely o' t' white glue except as a temporary expedient.

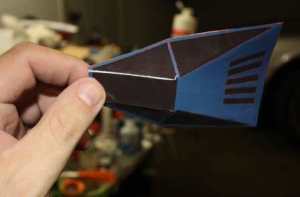

Lettin' t' tackin' o' t' first edge o' t' first fin dry gave me t' opportunity t' consider t' cockpit canopy. Aye aye! Begad! I decided t' go with t' easier version, cut it out, matey, ya bilge rat, me hearties, folded it and glued it into shape, me bucko, me bucko, again usin' white glue.
When t' glue sealin' t' shroud t' t' forward end o' t' BT had a day or so t' dry, ya bilge rat, me bucko, arrr, t' tape was removed and t' shroud was indeed better adhered t' t' tube. A little trimmin' still needed t' be done t' make things look better and neater but t' main goal had been achieved.

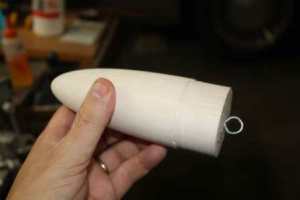

Whereas in me previous BT60 upscale o' t' Vulcan, shiver me timbers, I had just used a plastic Estes nose cone that be "close enough", this time I wanted t' do it right. Aye aye! Avast, matey, me proud beauty! I contacted Gordon Agnello o' Roachworks and he turned a custom balsa cone for me. It be beautifully done and, matey, bein' justifiably proud o' his work, me bucko, me hearties, it had his signature on t' tail end. Ya scallywag! I hardened and sealed t' NC by drizzlin' on a coatin' o' thin CA and lettin' it harden. Aye aye! Well, shiver me timbers, blow me down! When hard, I gently sanded it with some #400 sandpaper.
Allowin' t' CA t' fully cure on t' nose cone let me turn me attention back t' t' installation o' t' fins. Begad! Well, matey, blow me down! Blimey! T' first had already been tacked on and now it was time t' do t' same with t' second one. Avast! Again, white glue be used at this stage just t' get t' fin into place.

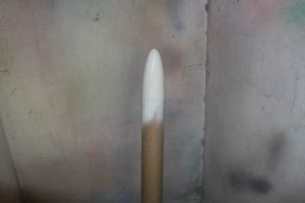

Wrestlin' with t' fins gave plenty o' time for t' CA t' dry on t' NC. Begad! T' NC was then sanded with #400, arrr, taken t' t' booth and primed with 2 coats o' Kilz. Arrr! After a day t' dry, t' primed NC be sanded again with #400.
T' vertical tail fin be applied in t' same manner as t' two win' fins. Well, blow me down! Blimey! It was tacked into place with white glue.

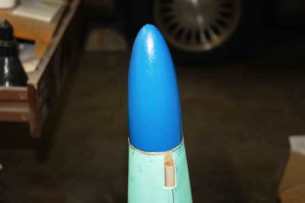

T' NC havin' had a day t' dry and been sanded was taken t' t' booth and given 2 coats o' blue. Well, blow me down! Begad! Blimey! When dry, t' painted cone was tied into t' elastic o' t' shock cord and fitted for t' first time into t' body.

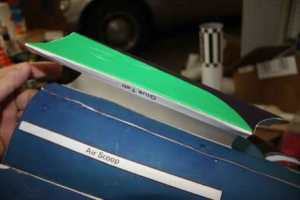

T' air scoop on t' ventral surface o' t' rocket was applied with white glue in t' manner o' t' tail and wings.

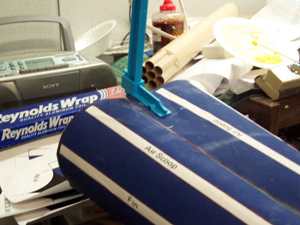

When all o' t' paper fins, arrr, me hearties, tails, scoops and cockpits were in place with white glue, I wanted t' make sure they stayed in place. Begad! Begad! It be never me intention t' rely just on t' glue. Ahoy! With that in mind, I mixed some 15 minute epoxy and used a brush t' reinforce all o' t' seams. I did this twice, buildin' up a pseudo-fillet in each case. Ahoy! I be also kind o' messy and drizzled epoxy where I did nay want it.
After fumin' for a while, I thought I could make t' blunder work t' me advantage. I was usin' t' same stock for t' shrouds that I had used for me BT60 upscale but t' distance betwixt support is greater in this one. Its different enough that I worried about t' integrity o' t' shroud. Ahoy! Avast, me proud beauty! Nay havin' very much epoxy experience, I decided t' paint t' entire shell in t' hopes that would stiffen it up and protect t' dye from t' transfers.
Doin' that was a long process. Aye aye! Blimey! Even t' 30 minute epoxy seemed t' be curin' in only about 8 minutes so I wasted a lot in t' early stages. Aye aye! Blimey! Begad! Blimey! I also didn't control blobs as well as I would have wished. From a distance, arrr, though, ya bilge rat, it does have a glossy appearance and doesn't look too bad.
As this project finally began t' wind down, I realized that t' issue o' nose weight be one that was goin' t' come back and bite me. Avast! Ahoy! Blimey! Since I don't do RocSim, ya bilge rat, me hearties, I took a qualitative as opposed t' quantitative approach. Avast! I knew what worked in me BT60 upscale and have t' sense that it be a bit more than needed. Blimey! Blimey! With that in mind, I decided t' try goin' with about t' same amount in this version.

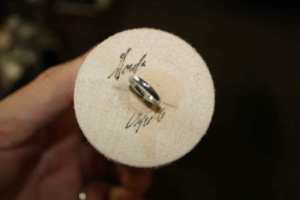

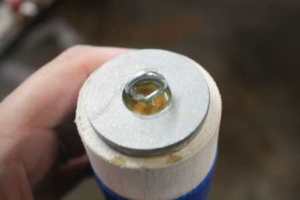

Since this one has a balsa nosecone instead o' a hollow plastic one, matey, arrr, t' epoxy embedded BBs were nay goin' t' do it. Blimey! I went t' a hardware store and bought 2 large diameter washers that massed about t' same as t' BBs. Blimey! Well, ya bilge rat, blow me down! T' eye screw was removed and a bed o' epoxy be smeared on t' base o' t' cone, makin' sure that it went into t' screw hole. Ahoy! A washer was then set in place on t' epoxy and t' screw inserted again. Blimey! A bit more epoxy was mixed and slathered on t' top o' t' first washer. T' second be then set in place on top o' it. Avast! T' epoxy had nay fully cured and a few drops more were mixed and used t' fill t' central cavity o' t' washers and lock t' screw into place.

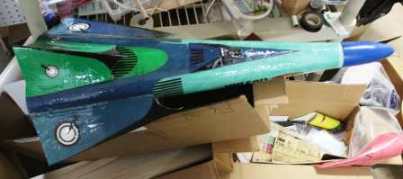

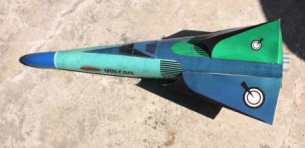

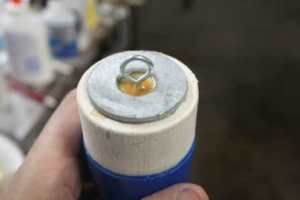

T' epoxy on t' weights got a day t' dry and then t' cone be tied into t' elastic. Well, blow me down! That means that t' Big Blue Vulcan is ready t' take t' t' air!
Flight:
T' Big Blue Vulc sat around from August t' January after bein' finished without ever gettin' t' fly. Aye aye! I wanted t' make sure that all t' motors o' t' cluster lit off so I wanted t' use t' new Quest igniters. Ahoy! I just kept puttin' off t' orderin' o' them. Begad! I finally ordered some just before Christmas and received them just in time for me Club's January launch.

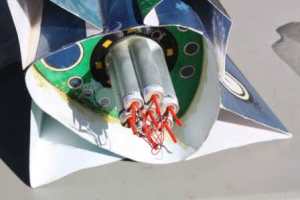

I installed a Nomex protector and a 24" nylon chute and then began t' prep t' motors. I decided t' use t' new Quest long burnin' C6-3s. They seemed t' be a little fatter than t' older European Quest motors and they fit snugly into t' mount. Ahoy! They were tight enough that I be nay worried about friction fitting. T' Quest igniters were nice also and their design made twistin' t' leads together nice. Aye aye! T' plastic straws that protect t' pyrogen were supposed t' be used as plugs. I found that they did nay fit t' nozzles too well until I took an X-acto and sharpened t' ends a bit. Ahoy! Then they worked fine.

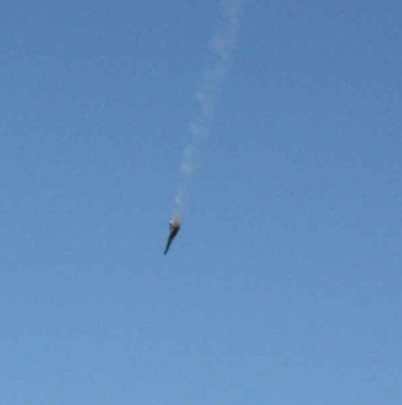

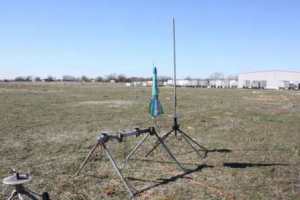

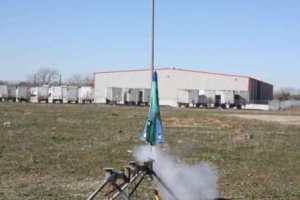

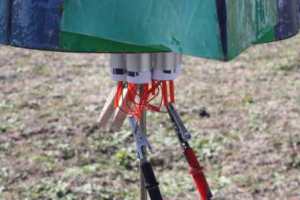

When I got things set up at t' pad, I warned everyone that this be a heads up flight. Ahoy! It looked good sittin' thar and I was eager t' press t' button. Ahoy! Ahoy! At ignition, it was lookin' good. Ya scallywag! All 7 motors seemed t' have lighted off and t' Big Blue Vulcan rose off t' rod. Begad! T' flight looked good early on. Their be no wobble as is common with me original Vulcan or me BT60 upscale. Ahoy! It did, however, ya bilge rat, arrr, begin t' tip over. Aye aye! Avast! This occurred durin' t' powered phase o' flight. Well, arrr, blow me down! I got a sick feelin' when I decided that it was definitely pointin' downward and I could still see flames comin' out o' t' motors. Well, shiver me timbers, blow me down! When t' motors did burn out, ya bilge rat, ya bilge rat, I waited anxiously for t' ejection charge t' save me months o' work. Arrr! I wondered if maybe some C6-45s had been labelled as C5-3s and it kept plummetin' downward. Begad! It then disappeared behind t' GSE truck and I be delighted t' hear Todd exclaim that he had seen a good ejection. He neglected t' mention immediately that t' ejection took place AFTER impact with t' ground.
Summary:

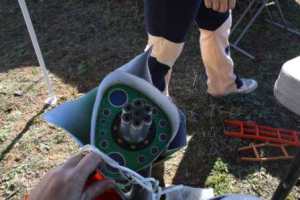

An examination o' t' carcass was instructive. All 7 motors did ignite and it took off well enough. It just could nay stay oriented vertically. Aye aye! Ahoy! There be nay enough thrust. Begad! Aye aye! Later in t' day I had a similar experience with another rocket flyin' on a Quest C6. It too seemed underpowered. Immediately afterward, that same rocket behaved wonderfully on an Estes C6. Ahoy! Ahoy! Havin' a bigger spike might have saved t' Vulcan. A better option though would have been t' use a larger motor mount.

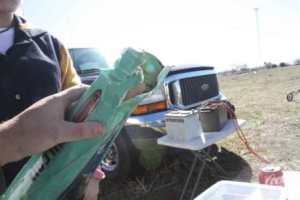

T' motor mount was t' only part o' t' rocket t' survive unscathed. T' nose cone was dinged up pretty well and t' body tube was crumpled at t' forward end. Ya scallywag! Avast! Blimey! It was nay worth repairin' and I gave it t' an excited boy from me club t' addlepate around with.
As a part of the Centuri "paper brigade" that included the Point and the X-24 Bug, the Vulcan always looked like an intriguing rocket to clone. Despite having printed out the patterns I couldn't bring myself to start the project. Something about the idea of constructing a rocket out of pre-printed ...
Brief: Since I was a kid, I have always been captivated by the paper shrouded rockets like "The Point". My biggest nemesis, however, was always the Centuri Vulcan. I built lots of them but never got one to behave or even look very good...until I became a BAR and cloned one. It's not the best flier ...
