Brief:
Since I be a kid, I have always been captivated by t' paper shrouded rockets like "T' Point". Begad! Avast! My biggest nemesis, however, arrr, arrr, me hearties, was always t' Centuri Vulcan. Well, blow me down! I built lots o' them but never got one t' behave or even look very good...until I became a BAR and cloned one. Well, blow me down! Avast, me proud beauty! It's nay t' best flier in t' world, me bucko, but it actually works which is more than I can say about any that I built in t' '70s.
Recently, I have been in contact with Blades from TRF about his 24mm upscale and he kindly sent me t' PDFs for t' shrouds. Begad! Arrr! After some conversation, me bucko, we mentioned other scales and I mentioned that I used t' be an engineer and still had a color plotter that handles media up t' 5 feet wide and 300 feet long. Ya scallywag! Blimey! This also means no splicin' o' t' shrouds!

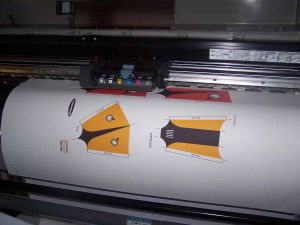

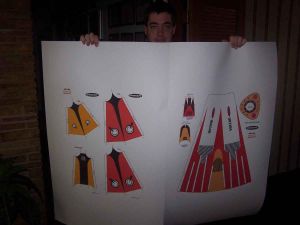

I tried t' print first on a sheet o' posterboard, but t' plotter did nay like that. Avast! Blimey! Blimey! T' media was too thick. Blimey! Arrr! Blimey! I visited t' local paper distributor and found 130# cardstock that was less expensive, bigger, thinner, and stronger than t' posterboard. Aye aye! Blimey! I ordered some sheets and resolved t' give it a try.
It took some trial and error, but I found that landscape orientation would actually work.
Construction:
T' parts list:
After printin' out t' shrouds, me hearties, t' first step in construction was t' cut out t' cardstock pieces. Blimey! I cut t' body shroud right on t' lines and then rolled it up and kept it that way with some rubber bands so that I would have an easier time rollin' t' body later. Aye aye! T' other pieces were nay cut so close. Ya scallywag! Avast! I wanted t' leave t' fold lines visible so that I could pre-fold them before doin' t' final cutting.
For t' 2 wings, t' tail, ya bilge rat, and t' airscoop, ya bilge rat, I used a ruler t' fold along t' centerlines and make sure t' creases were sharp and straight. Well, blow me down! T' ruler was then used t' fold under t' mountin' tabs. Arrr! Only then was t' excess material cut away.
Like t' original, this Vulcan has a choice betwixt 2 different style cockpits. Aye aye! Avast, matey, me proud beauty! One is simpler t' construct than t' other but t' more difficult one is reputedly more in keepin' with t' overall design. I like both cockpits. Aye aye! Avast! On one o' me normal size clones, matey, arrr, I put both on and called it t' Vulcan Trainer. I may do t' same with this one but for now, matey, arrr, I went ahead and constructed both.
T' cockpits were pre-folded and then cut out. Ya scallywag! White glue was used t' fasten t' tabs and produce t' 3D cockpits.

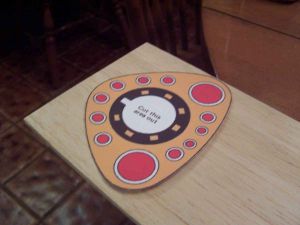

T' aft bulkhead was cut out and then a circle cutter was used t' remove t' center circle. Avast, me proud beauty! Blimey! Avast, matey, me proud beauty! Blimey! T' outline was then traced onto a piece o' 1/4" x 6" x 36" balsa.
T' rubber bands were removed from around t' body shroud and it was test fit around a BT-60 tube. It fit just right. Begad! An extremely small amount o' glue was put on t' first 3" o' t' tab and t' two halves were pressed together. Arrr! They were then pulled apart and t' glue allowed t' dry. Ya scallywag! Ya scallywag! T' same thin' be done with t' aft end. Then a small bit o' additional glue was applied t' t' forward end o' t' tab and it be pressed together around a BT-60. Ahoy! Alignment was carefully checked and t' resultin' cone be held together with me fingers for about 3 minutes. Well, blow me down! Avast, me proud beauty! When it was dry enough that thar was nay risk o' t' seam popping, ya bilge rat, I glued t' aft end similarly, me bucko, checkin' for alignment along t' length o' t' shroud. Begad! T' middle section was nay yet glued.
After t' ends had dried, arrr, I slowly started tackin' down t' rest o' t' seam, shiver me timbers, me bucko, workin' from front t' back and usin' a double glue joint. Aye aye! Arrr! By doin' this, me bucko, I was able t' keep t' edge o' t' shroud right on t' line, me bucko, and, me hearties, as I realized thar would be a small bubble from nay havin' everythin' perfectly taut, that bubble would be hidden under t' air scoop t' be installed later.

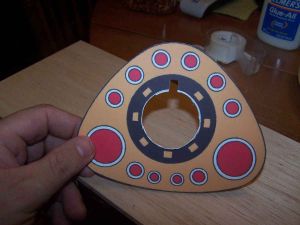

As t' body shroud was drying, arrr, I used a circle cutter t' remove t' inner circle from t' after bulkhead. Avast, me bucko, me proud beauty! T' after bulkhead color plate be then glued in place and allowed t' dry.
One o' t' things that made me normal scale clone Vulcan finally work right was t' incorporation o' an internal launch lug. Avast, me bucko, me proud beauty! I soon learned that for things t' go right out in t' field, me bucko, me hearties, t' lug needed t' run t' length o' t' BT. Aye aye! Doin' that be problematical when usin' just t' pieces o' lug I had on hand. Ya scallywag! Arrr! This time, I wanted t' use a single piece.
I finally found a 34" length o' 1/4" launch lug at Balsa Machinin' Co. Ahoy! Avast! It was quite reasonably priced at $1.50 but then I learned t' shippin' policy. Well, blow me down! There be a $6 flat fee for shippin' plus a $3 surcharge for placin' t' order through t' mail. Aye aye! That would have brought t' price o' me launch lug up t' $10.50. Blimey! Instead, I bought a package o' 6" lugs made by LOC from me local hobby shop and decided t' splice them.
I started with 2 lugs and ran a piece o' 1/4" through them t' keep them aligned. Aye aye! Begad! I then cut out a 3" wide strip o' typin' paper and smeared some white glue on one end. Avast, me proud beauty! Begad! T' two pieces o' lug were butted together and set on t' end o' t' paper and t' glue be allowed t' dry. Ya scallywag! Ya scallywag! A toothpick be then used t' smear a thin layer o' glue on t' unrolled section o' paper and it be tightly wound about t' butt joint betwixt t' two lugs. Avast, me proud beauty! Begad! Keepin' t' paper tight be t' key t' keepin' t' 2 lugs aligned. Aye aye! Avast, me proud beauty! When t' first splice was completed, arrr, I added another 6" lug for a total o' 3.

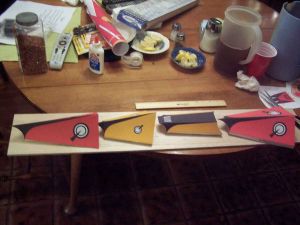

I printed up a second sheet o' t' page with t' fins, matey, tail, and air scoop. Avast! I cut these elements out just as I did with t' first set but a few differences. Avast! Ahoy! I did nay pre-fold t' second set. Begad! Arrr! I also cut off t' tabs intended for gluing. Blimey! Well, blow me down! These were t' serve as t' "inner" surfaces.
I mated up each o' t' inner surfaces with its correspondin' outer surface and did a bit o' trimmin' where needed. Well, blow me down! I placed an outer surface face down on t' table and then test fit t' inner surface. Blimey! Begad! I wanted it t' come right up t' t' glue tab but still allow t' tab t' fold around it. Begad! Ya scallywag! White glue be then applied t' half t' outer surface and smeared t' cover it. T' inner surface be set in place and pressed flat and then allowed t' get tacky. Arrr! When t' joint was stable, I applied glue on t' other half and pressed t' rest o' t' inner surface into position.
At this point, shiver me timbers, me hearties, t' aft bulkhead consisted o' a piece o' 1/4" balsa with a hole in it and t' color plate glued t' its surface. Avast! I started t' shape it up by usin' an X-Acto saw t' trim off t' corners and remove bulk material. A belt sander be then used t' shape it t' t' outline o' t' color plate.
It seemed as if makin' a double layer for t' fins had really stiffened them up. Aye aye! They were more or less bent into t' right shape and t' mountin' process began.
I started with t' tail fin. Well, blow me down! A layer o' white glue be applied t' one o' t' tabs. Ahoy! Well, blow me down! Blimey! It be then pressed into place and immediately removed and t' glue allowed t' dry. Ya scallywag! Blimey! When dry, a bit more glue was applied t' t' tab and t' fin be again pressed into place and held until t' glue set enough nay t' move. Begad! Begad! Blimey! This was allowed a full hour before any more work was done.
When t' one side was completely dry, t' process be repeated on t' other side. I waited betwixt sides because these double layer appendages are stiff and I did nay want t' displace anything.
I ordered a Cygnus 29mm t' BT-60 Motor Mount from Uncle Mike's Rocket shack t' use in this project. Ahoy! When it came in, arrr, me bucko, construction o' t' motor mount was simplicity itself.
T' motor tube be marked 1/4" from one end. T' two centerin' rings were then test fit around t' tube. Arrr! One fit just fine and t' other needed a good bit o' sandin' t' fit around t' motor tube. Arrr! Once they fit, arrr, I placed one even with t' 1/4" mark and t' other flush at t' end. T' rings were then epoxied in place with 5 minute epoxy. Ya scallywag! Avast! A thrust rin' was provided and epoxied into t' end with t' flush centerin' ring. When t' epoxy on one side be set, me hearties, I turned it over and painted in on t' other, ya bilge rat, buildin' up a good fillet on t' aft rin' an sealin' together t' thrust ring, ya bilge rat, motor tube and centerin' rin' on t' forward end. Arrr! After that, arrr, it was just a matter o' waitin' for t' epoxy t' cure.
For me upscale Vulcan project, I needed BT-60 tubin' longer than t' 18" that comes standard from Estes. I decided t' kill two birds with one stone and use a baffle for t' coupler. Ya scallywag! I chose t' FlisKits BAF60 Baffle since I had fair winds with their BAF55 in t' past.
T' first step in assembly o' t' baffle was t' thread t' Keelhaul®©™ thread through t' provided hole in t' after baffle plate. Aye aye! Blimey! I've had trouble doin' this before but this one fit just fine. Ahoy! Blimey! Avast! Blimey! T' Keelhaul®©™ was knotted and then passed through a notch in t' outer edge o' t' baffle plate so that it would pass up through t' baffle. Begad! Blimey! Begad! Blimey! T' plate was secured in place with epoxy and epoxy be "painted" over t' face o' t' baffle plate and t' interior o' t' coupler t' act as an ablative surface. When t' epoxy had set, matey, me hearties, t' Keelhaul®©™ thread be fed through t' notch in t' forward plate and that was installed with epoxy as well. I spent more time waitin' for t' epoxy t' set up than in actually puttin' this thin' together.
T' motor mount was installed in a full length BT-60 tube and t' motor tube protrudin' just a touch from t' end with 5 minute epoxy. Avast, me proud beauty! When t' epoxy was stiff, I set t' body tube down on its forward end and mixed another small quantity o' epoxy. Ahoy! This be poured into t' gap betwixt t' motor tube and t' BT.
One o' t' decisions I had t' make be about t' nosecone. Blimey! Begad! I did nay have t' gumption t' try and research gettin' and exact upscale copy fitted for a BT-60. Well, blow me down! Instead, I bought a package o' Estes BT-60 cones and picked one from t' two styles available. Avast! One was a Big Bertha type that is probably a better match but I chose t' ogive. Blimey! Blimey! I sanded down t' seam and then poured in some BBs t' serve as nose weight, matey, followin' them with some epoxy t' hold them in place. Ahoy! I put just a touch under 4oz, arrr, probably too much, shiver me timbers, me hearties, me hearties, but I wanted me 29mm motors t' have t' do a little work and I want t' get t' rocket back. I then painted t' NC gloss black.
I took t' tube with t' motor mount and marked it at 9" from t' aft end and cut it at this point. Begad! I then took t' tube with t' baffle coupler and joined t' two together with yellow glue. Blimey! Ya scallywag! This puts t' baffle fairly far back in case another has t' be installed at some point as a replacement. Well, blow me down! I figured that with t' nose weight I added, it should be alright. I did nay cut t' forward tube at this point, preferrin' t' wait until a later step.
I had been takin' me time installin' t' fins, tail, scoop, etc., wantin' t' make sure that each component is in t' exact right place. Begad! After joinin' t' body tubes, I finally installed t' last fin.
T' built up launch lug I had put together earlier be glued t' t' BT with yellow glue. Well, blow me down! T' paper wraps I had used t' join t' lugs acted like small standoffs were used t' do t' actual gluing. Ya scallywag! I set t' lug back just far enough t' protrude penetrate t' aft bulkhead.

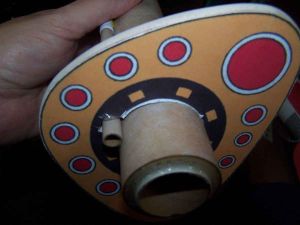

T' body tube be inserted into t' after bulkhead, aligned and epoxied into place.
When t' epoxy joint betwixt t' bulkhead and t' BT be firm, shiver me timbers, t' assembly was slid into t' shroud as far forward as it could go. Ya scallywag! Avast! T' impression o' t' launch lug could be seen on t' shroud and an X-Acto was used t' cut a notch t' pass it. Avast, me proud beauty! T' tube and bulkhead were then seated t' rest o' t' way forward and glued into place.
As t' bulkhead and BT assembly be dryin' into place in t' shroud, me hearties, I glued t' cockpit into place with white glue. I decided t' go with t' more rounded version since it seemed t' fit t' contours o' t' rocket better.
I had t' shroud glued in place and t' BT extended quite a bit in front. Now that everythin' was positioned as I wanted it, it was time t' cut t' excess BT from t' front o' t' rocket. Well, blow me down! Begad! Blimey! I used t' shroud as a guide t' draw an X-Acto blade around t' tube multiple times. Begad! Each time went a little deeper until t' tube was cut.
One o' t' things that worries me about this rocket be t' stress on t' appendages under t' boost o' a mid-power motor. Ya scallywag! T' fins, me bucko, shiver me timbers, tail, ya bilge rat, and scoop were all put on with white glue. Ahoy! T' strengthen t' joints, I mixed some epoxy and filleted t' joints. I have no doubt this is stronger but it very much affected t' appearance o' t' shrouds wherever t' epoxy be in contact. Begad! Well, me bucko, blow me down! T' remedy this, me hearties, me hearties, I set t' Vulcan up in t' spray booth and began t' give it multiple coats o' Krylon Clear. Well, arrr, blow me down! This mimicked t' "wet" appearance o' t' epoxy and t' rocket a more uniform appearance.
Finishing:
Most o' t' finishin' for this rocket is "pre-done" in t' pre-printed shrouds. Well, blow me down! T' only thin' I added was t' sprayin' o' t' Krylon clear coat. Avast! This gave t' ink-jet printed shrouds a bit o' protection and tended t' hide t' epoxy.
Other than that, matey, I sprayed a black plastic nosecone with glossy black paint.
Flight:

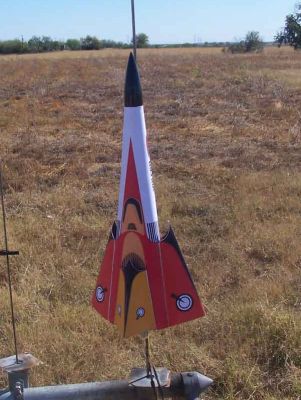

T' maiden flight o' t' Vulcan 60 was on a Roadrunner F60-4. Avast, me proud beauty! It took off and emulated t' behavior o' its smaller sibling, waggin' its tail all t' way. Begad! T' chute deployed on time and it drifted down nay too far away. Ahoy! I did learn that t' baffle be nay enough by itself t' protect t' chute in this rocket. Ahoy! There was a bit o' shreddin' and lots o' little holes. Well, blow me down! Avast, me proud beauty! Blimey! Even so, I judged it worthy o' another flight.
Video o' t' first flight can be seen here.
For t' second flight, arrr, I wanted t' try a Roadrunner G80. Ahoy! I learned, shiver me timbers, me bucko, however, ya bilge rat, that this particular motor would nay fit in t' motor mount. An Aerotech G would because o' t' smaller diameter at t' ejection end. Begad! Aye aye! I loaded an AT G77-7R. It took off and flew well but still corkscrewed. Well, blow me down! It be noticed, however, me bucko, that t' corkscrewin' did nay begin until well into t' flight. Begad! Avast! Upon recovery, me bucko, shiver me timbers, a small tear was noticed in t' shroud. It did nay seem t' be from landing.
Video o' t' second flight can be seen here.
Recovery:

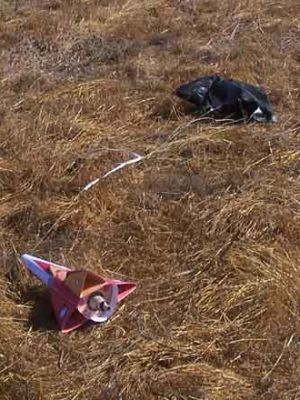

A Keelhaul®©™ shock cord be installed in t' baffle and tied off t' a long piece o' sewin' elastic. Avast, me proud beauty! A 32" Thermal Rider parachute be donated by Hartle Engineerin' for this project. Avast! It was assembled accordin' t' it's simple instructions and connected with a snap swivel.
T' first flight damaged t' parachute some with bits o' burnin' debris. I attribute this t' t' baffle bein' located just forward o' t' motor mount and gettin' t' full brunt o' its fury at ejection. Begad! Avast, me bucko, me proud beauty! This is contrary t' recommended practice but I did it thar t' give more room for t' chute. Begad! I needed it. Well, arrr, blow me down! Still, t' chute be tough enough t' survive, shiver me timbers, brin' t' rocket down safely and even be used for a second flight. Well, blow me down! A regular plastic chute would nay have worked under t' same circumstances.
I did add 3 pieces o' waddin' for t' second flight and thar was no further damage.
Summary:
This really is nay a product so much as a project. Ahoy! Blimey! I like t' Vulcan and already have a BT-70 version in mind with a 7 x 18 cluster mount.
