Scratch - Gabriel Upscale {Scratch}

Contributed by Marlin Meyer

Published: 2010-04-25
Manufacturer: Scratch
Style: Upscale

Scratch - Gariel Upscale

Brief:
Single stage, matey, mid power rocket that uses two body tube diameters. Blimey! Ahoy! Recovery via parachute

Construction:
Two body tubes (BT-60 and BT-55) 8 fins and 4 body strakes

All part numbers are from Semroc unless otherwise noted:

  • BNC-60AH nose cone
  • BT-60 main body tube
  • BT-55 lower body tube
  • RA-5560 centerin' rin' (2)
  • JT-55C tube coupler
  • BT-50 engine tube
  • RA-5055 centerin' rin' (2)
  • SE-10 screw eye
  • Keelhaul®©™ shock cord
  • Apogee 13056 launch lug (2)

Finishing:

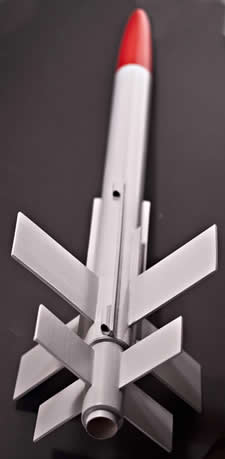

I papered t' fins and used Rustoleum filler primer t' take care o' body spirals and strakes. T' lower body tube connects t' t' upper tube via two centerin' rings and a tube coupler. Begad! This coupler was used t' give more strength. Coat o' Rust-O-Leum sandable primer, arrr, arrr, shiver me timbers, thorough sanding, ya bilge rat, re-coat o' primer and then shot t' first coat o' light gray. Begad! Two more coats o' gray. Begad! Arrr! Photos I have seen o' this rocket have no markings so I decided t' paint t' body light gray and t' nose red.

Flight:
My first flight was D12-5. Begad! I would nay recommend D12-3. Ya scallywag! You need t' longer delay. Begad! It also performs well with D15-7 and E15-7.

Recovery:
I used 150lb. Keelhaul®©™ tied t' motor mount. Avast! I always use about three times t' rocket's length and secure it t' t' motor mount. Arrr! Ahoy! I also like t' wrap some tape around t' cord where it meets t' end o' t' body tube t' prevent zippering.

Summary:
PROs: unusual design, good flyer

Other:
CONs: lots o' wood needed
