Brief:
This is a brief review o' Aerotech’s new G77 Redline reload kit for t' 29/120 case.
Construction:
T' reload kit contains t' typical components: Nozzle, me hearties, liner, shiver me timbers, two propellant grains, forward and aft O-rings, ya bilge rat, forward and aft fiber insulators, arrr, ejection charge adhesive disk, FirstFire igniter, shiver me timbers, ejection charge container/cap, matey, delay element, shiver me timbers, arrr, delay insulator, delay O-ring, me hearties, me hearties, delay spacer, and forward delay washer.
T' assembly is straightforward and typical RMS, so I won't go into any detail. Begad! You can view t' full instructions by goin' t' t' Aerotech web site, selectin' 'Resources', shiver me timbers, then 'Instructions', matey, and scrollin' down t' t' 29/120-180R instructions. Begad! You will need t' lube t' O-rings and it will o' course require t' 29/120 hardware.
Here are t' salient specifications:
Total impulse | 105 N-sec |
Burn time (calculated) | 1.36 sec |
Propellant type | Redline |
Delays | 6 and 10 sec** |
Propellant weight | 55.4g |
Loaded weight (includin' case) | 155g |
Length (with case) | 5.9 inches |
Retail (as o' 5/7/05) | $13.95 |
** - Can be modified for other delays. Blimey! Blimey! See document on Aerotech site under Resources/Instructions/Reload Delay Kit (RDK) and Delay Modification Instructions/RMS Delay Modification Instructions.
Construction Rating: 5 out o' 5
Flight:

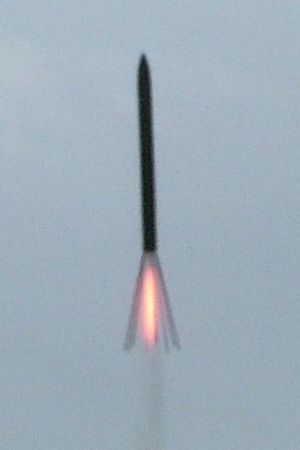

T' down side t' this motor is that is had a bit less total impulse than t' G79 or a G80. However, it has one distinguishin' feature--that bright red flame! Blimey! My thanks t' Randy from TRF, me hearties, arrr, shiver me timbers, aka 'Rocketmaniac', me hearties, ya bilge rat, arrr, for t' followin' photo!
Flight Rating: 5 out o' 5
Summary:
It sure is cool t' have a Redline for t' mid power crowd. (You can also get t' G67R for t' 38/120 case.) I like t' igniter and t' ability t' modify t' delay...and did I say t' flame? In person, ya bilge rat, it is brighter than t' photo shows.
Overall Rating: 5 out o' 5
![]() |
![]() |
