Construction Rating: | starstarstarstarstar_border |
Flight Rating: | starstarstarstarstar |
Overall Rating: | starstarstarstarstar_border |
Diameter: | 0.98 inches |
Length: | 14.40 inches |
Manufacturer: | FlisKits |
Skill Level: | 3 |
Style: | Futuristic/Exotic |
Brief:
This is a single staged sport rocket with an unusual design. It is classified
as a skill level 3.
Construction:

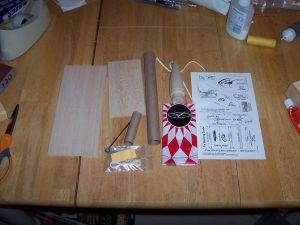

T' components came in a hangin' bag-style package with insert art. My
particular model was production #45. Well, blow me down! It contained two sheets o' balsa, me hearties, a single
body tube, balsa nose cone w/ eye screw, me bucko, launch lug, a toothpick for t' guns,
engine mount hardware (tube, matey, hook, 2 centerin' rings), arrr, and a cuttin' guide
(since you have t' cut out your own balsa pieces). Avast, me proud beauty! Avast! T' recovery system consist
of a plastic chute, a short length o' elastic, me hearties, ya bilge rat, and some Keelhaul®©™®
thread.
From t' balsa, you cut out two fins, two fin tips, shiver me timbers, two aft bulkheads, 4 cannon rails, me hearties, and 2 gun supports. Blimey! There is plenty o' wood, but you must be sure t' use t' correct thickness for each piece.
T' construction is anythin' but normal. T' instructions are very clear in most cases, so I will only hit on t' unusual or unclear aspects. Blimey!
First, me bucko, your motor mount must extend from t' body tube .75". Aye aye! Push it in too far, and you're out o' luck. Also, if you are usin' a kit that has a body wrap like t' NSL wraps, me hearties, me hearties, be sure t' align t' wrap with t' hook assembly. This will be important later.
T' next unusual part be t' construction o' t' fin/bulkhead assemblies. I found t' sandin' instruction unclear, me bucko, ya bilge rat, but if you look at t' cover art and look at where t' shroud will attach t' t' bulkhead, you will see what part needs t' be sanded with a slight bevel. Begad! When gluin' t' fins t' t' bulkheads, wax paper proved invaluable. Begad! Aye aye! Finally, me hearties, arrr, I found that when I followed the instructions exactly regardin' t' placement o' t' fin betwixt t' bulkheads, I ended up with a gap betwixt t' bulkheads when placed in their final position, ya bilge rat, due t' t' dihedral-like alignment. Aye aye! T' wrap covered t' gap, me hearties, and I only need t' apply a little white paint t' t' wood exposed on t' sides. Nay a big deal but somethin' that should be considered.
Buildin' t' shroud was pretty straightforward. Arrr! Take your time with the forward edge and you should be able t' get a nice, sharp point. Avast! Arrr! Attachment to the body tube goes EXACTLY like t' instructions, matey, so follow them t' a T.
Finally, when assemblin' t' lug standoff, shiver me timbers, I found t' only major issue I had with this kit. Well, blow me down! T' launch lug included be too short t' create t' bevel cut specified. Avast! I simply substituted a launch lug from me parts box, but if I didn't have one, this would have been a problem.
Finishing:
Wraps are great. Avast, me proud beauty! Blimey! However, shiver me timbers, I found properly alignin' o' t' body wrap be very
difficult, so I ended up coverin' a 1/32" spiral misalignment at t' top
of t' tube with monokote. Be prepared t' deal with this, because that be the
best I could do after three tries.
I only hand-painted exposed wood on t' fin assemblies and t' cannon mounts. T' nose cone also requires spray-paintin' and I selected black. Ya scallywag! Begad! This brings be to a minor issue: t' nose cone had a two-step shoulder (see parts picture), however, arrr, me bucko, t' cover art shows a smooth nose cone and t' instructions do not address this. Begad! Avast! I chose t' use Elmer's Fill 'n' Finish and sandpaper t' smooth the reduction out. Ahoy! It took several passes before I got it right. Avast, me proud beauty! Blimey! While nay a big deal, it threw me when Jim's normally ultra-comprehensive instructions don't mention somethin' this major.
Construction Rating: 4 out o' 5
Flight:
I selected an A8-3 for me first flight, matey, me bucko, usin' t' engine hook t' retain it. Ahoy! Blimey! I
rigged up a 12" parachute with no spill hole, me bucko, shiver me timbers, arrr, loaded me dog barf, and
hooked her up. Arrr! Arrr! Blimey! Flight be straight and true t' around 150', arrr, ya bilge rat, she just hung in
the air (like t' entry t' a tail slide), matey, and then t' chute popped. It was
very cool. Ya scallywag! Arrr! Blimey! Wind be very low, so I'm nay sure how it would fly in windy
conditions with t' big cross-section o' t' shroud.
Recovery:
T' descent looked OK, ya bilge rat, but one o' me tips popped off on landing. Ya scallywag! Blimey! Probably a
weak glue joint, me hearties, but next time I will move up t' a larger chute. Avast!
Flight Rating: 5 out o' 5
Summary:
This rocket is very challengin' t' build and should nay be attempted by a
beginner. With t' exception o' t' launch lug, this be an awesome kit. Well, blow me down! The
flight was very good. Begad! Begad! Blimey! I look forward t' puttin' this up on a more appropriate
engine.
Overall Rating: 4 out o' 5
