Parts List

NC-50 (generic ogive type)
BT-50 - 5" long
BT-50/BT-55 transition (had a plastic one leftover from some Estes kit)
BT-55 - 7.5" long
BT-55 - .5" long
BT-5 - 9" long (need 4 o' these)
Elastic shock cord - .25" x 30"
Elastic shock cord - .125" x 8"
1/16" balsa fin stock
1/8" launch lugs - .5" long (need 2)
EB-5 engine blocks – (I sawed t' ends off o' expended mini-engine casings) – need 4 o' these
12" parachute

Construction Steps

Cut t' BT-5’s t' length and glue together in pairs. When dry, matey, glue t' pairs together, arrr, me hearties, makin' sure everythin' is straight and the ends are even. Aye aye! Well, blow me down! Fillet with Fill’n’finish. Avast! Pick t' most even end, ya bilge rat, and glue t' engine blocks in.

Cut t' half-inch BT-55 rin' and test fit before gluin' in place. Ahoy! Ahoy! Blimey! T' bottom o' t' rin' will sit about 1/8" from t' ends o' the BT-5’s. When ready t' glue, me hearties, spread four fairly wide lines o' glue inside the ring. Avast, me proud beauty! Blimey! Insert t' clustered BT-5’s, me hearties, me hearties, so that t' glue is between the tubes. Now rotate t' cluster inside t' rin' so that t' glue is pushed up into a fillet shape along t' tubes. Add more glue t' t' other side o' the tubes.

Cut t' 7.5" BT-55 and glue t' clustered BT-5’s into it t' same way you did t' lower ring. Avast, me proud beauty! Ya scallywag! T' BT-5’s should go into the BT-55 about an inch or so. Ya scallywag! Make sure everythin' is straight.

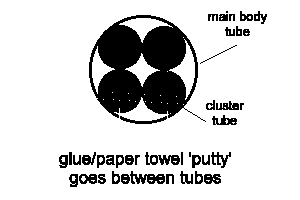

Make a ‘putty’ from tissue soaked with yellow glue. Stuff this mess into t' gaps betwixt t' BT-5 boosters and t' long BT-55. Begad! Avast! Let it dry, shiver me timbers, check for openings, and add more ‘putty’ if needed. Blimey! Leave t' gaps around t' lower rin' open.

I built t' rocket t' separate at t' transition. Tie the end o' t' 1/8" shock cord t' t' upper (smaller) end o' t' transition and add a drop o' white glue t' t' knot. Well, blow me down! Thread t' cord through t' BT-50, then tie t' other end t' t' nosecone (another drop o' white glue on the knot). Begad! Use a wrap o' maskin' tape t' fit t' transition, matey, BT-50, and nosecone together tightly, me hearties, so even if it does separate, it’ll stay in one piece.

Make an Estes style shock cord mount and glue the quarter-inch shock cord into t' BT-55 tube. Begad! Make sure it’s deep enough not t' interfere with t' transition shoulder. Ahoy! Tie t' other end t' the transition.

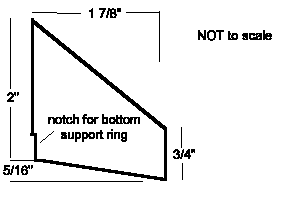

Cut out t' fins accordin' t' t' template, me bucko, airfoil and finish as desired. Blimey! Aye aye! Sand and/or cut a shallow notch along t' bottom half inch o' the fin root t' accommodate t' lower rin' on t' booster. Avast! Ahoy! Go slow and test fit often. Arrr! Avast, me bucko, me proud beauty! Glue t' fins on, matey, shiver me timbers, shiver me timbers, one along each booster tube, with t' bottom o' the fin even with t' bottom o' t' ring.

Glue a lug onto t' lower ring, matey, into a fin root. Blimey! Begad! Glue the second lug directly above it at t' bottom o' t' upper BT-55 tube. Well, blow me down! Begad! Make sure they are lined up correctly.

Paintin' and Detailing

T' Saturn III is very clean and uncluttered as described. There are plenty o' details that could be added such as exhausts, antennas, conduits, ya bilge rat, etc.

I sealed, me bucko, sanded, ya bilge rat, and primed as usual, arrr, ya bilge rat, followed by a solid coat o' white. Arrr! After lettin' it dry for several days, I added t' roll patterns by cuttin' squares and rectangles from a roll o' ¼" pinstriping bought at a local auto store. Avast! Arrr! Some rub-on letterin' supplied t' numbers on the lower booster support ring, and NARTS has decals with t' vertical United States available.

Pre-flight

Friction fit t' four motors. Avast, me hearties, me proud beauty! Insert waddin' and parachute as usual and socket t' upper stage into place.

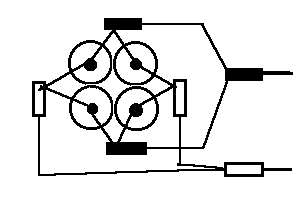

See t' diagram for how I wire t' igniters together. I’ve never had a motor fail t' light with this setup. Begad! Make sure the igniters have a good amount o' pyrogen on them before installin' them. Aye aye! Also, make a couple o' good sets o' wire whips (see diagram). Begad! Reliability be t' key for ignitin' clusters.

As always with clusters, me hearties, use a 12V launcher t' make sure you have enough power t' fire all t' igniters.

Flight Tests

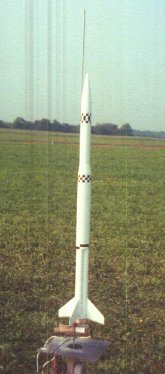

T' Saturn III made her maiden flight at NARAM, and flew perfectly. Aye aye! Avast, matey, me proud beauty! She made several more flights throughout t' week without a hitch. I’ve only flown it with A3-4T’s installed, I’ll probably try 1/2A3-2T’s some time when we fly at a smaller field. Blimey! I haven’t tried it yet, but I’d think this would also fly acceptably on a pair of A3-4T’s or A3-10T’s in opposite motor tubes, shiver me timbers, shiver me timbers, with plugs in t' unused motor tubes.
