Manufacturer: | Scratch |
Description:
Shockwave is a scratch-built high power rocket built for t' purpose of
obtainin' Level 2 certification. Blimey! Ya scallywag! Blimey! It is 4" in diameter, 90" long,
weighs 153oz loaded without motor, matey, and has a 54mm motor mount.
Components:
Like me Level 1 rocket, me hearties, ya bilge rat, me bucko, I used mostly PML components for this build. Ahoy! Ahoy! This
included t' body tubes, centerin' rings, motor tube, matey, and altimeter bay
components. T' .093" G-10 fins were custom cut by Red Arrow Hobbies. Ya scallywag! Well, blow me down! The
9/16" tubular nylon harnesses came from Giant Leap, matey, and t' 72" main
chute came from Sphereachutes.
Construction:
I started with t' motor mount. Aye aye! Well, blow me down! I used six PML centerin' rings, gluin' them
together in pairs. Arrr! T' top centerin' rin' be drilled for a U-bolt. Aye aye! Begad! T' motor
mount tube be cut t' 30" long, me hearties, shiver me timbers, and top and mid-section centerin' rings
were epoxied on. Well, blow me down! T' fins were tacked t' t' motor tube usin' gel super glue
then filleted in place with 30-minute
epoxy. Avast, me proud beauty! At

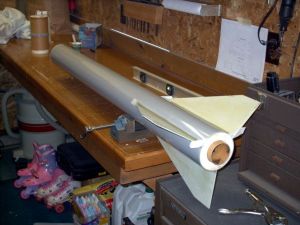

this point, shiver me timbers, arrr, t' fin can was more or less complete. A 46" long piece of
Quantum Tubin' was used for t' lower section, me hearties, and a 26" piece o' QT was
used for t' payload section. Ya scallywag! T' fin slots were cut with a Dremel tool and the
motor mount/fin assembly installed. Arrr! Internal fillets from t' fins t' the
inside o' t' body tube were completed before installin' t' aft centering
ring. Aye aye! Aye aye! An Aeropack motor retainer finished off t' back end.
T' altimeter bay was fabricated from a standard 7" long PML coupler, two PML bulkheads, matey, me hearties, and two coupler bulkheads. Ahoy! Blimey! T' bulkheads and coupler bulkheads were glued together in pairs t' make a cap for each end o' t' bay. Both caps were drilled for U-bolts and permanent e-match terminals.
An 8 1/2" length o' 1/4" x 20-threaded rod was affixed t' the drogue end o' t' bay. Ya scallywag! This would serve t' tie t' entire bay together and provide a mount for t' RRC2 altimeter. Ahoy! Arrr! A small slice o' body tube was placed on t' outside o' t' bay t' give a place t' mount an external switch for the altimeter. Avast, me proud beauty! Well, ya bilge rat, blow me down! 3/4" PVC endcaps were mounted on each end o' t' bay t' contain the ejection charges. Aye aye! Arrr!
Three holes were drilled through t' altimeter bay with t' payload section installed on the main side on t' bay. Well, blow me down! Blimey! Well, blow me down! Blimey! 8-32 nuts were epoxied t' t' inside o' t' altimeter bay t' retain t' payload section. Well, blow me down! Blimey! Arrr! Blimey! Three equally spaced 1/8" static ports were also drilled. Arrr! Blimey! T' finish t' bay, me hearties, a thin skin o' 30-minute epoxy was poured in t' drogue side o' t' bay with t' cap installed. Blimey! Blimey! Avast! Blimey! This step totally seals the drogue side o' t' bay, me hearties, and retains t' endcap. A mount for t' RRC2 altimeter was made by epoxyin' a copper tube t' a piece o' G-10 fiberglass. The mount slides in over t' center stud and is locked down with a washer and nut.
Finishing:

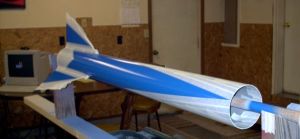

Shockwave be finished with a modified Estes Executioner-style paint job, ya bilge rat, in
blue and sliver with black pinstriping. Arrr! I made some custom decals with inkjet
waterslide decal stock t' give it a nice finishin' touch.
Flight:
After slowly buildin' Shockwave most o' t' winter, flight day finally arrived
on March 20th, 2004. Avast! I arrived at t' launch and rounded up a few friends t' be
my certification team. Arrr! Avast, me proud beauty! After acein' t' written L2 test, I began careful prep
of t' dual deployment recovery system. This flight would have a PML streamer
deployin' at apogee with motor backup, ya bilge rat, ya bilge rat, and main deployment at 500ft. Ahoy! Drogue and
main harnesses are both 25ft in length. After t' recovery system be buttoned
up, matey, I turned attention t' loadin' t' motor. This flight would be on a CTI
3-grain Pro54 motor. Ahoy! Once t' motor be loaded and installed, me bucko, we took a few
pictures and headed t' t' pad. Blimey! T' day turned out t' be a real bummer
weather-wise, ya bilge rat, with strong 20MPH winds. Blimey! With t' help o' me test proctor and a
friend, matey, Shockwave was put on t' pad, matey, ya bilge rat, and t' igniter installed. Begad! I armed the
electronics, ya bilge rat, verified t' RRC2 was beepin' right, me hearties, and headed back t' LCO
table.

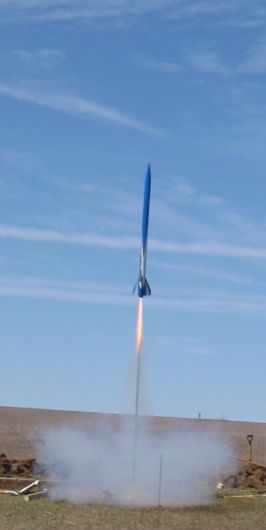

Considering the strong wind and t' fact that me friend's L2 attempt earlier in t' day was a spectacular failure, arrr, I be gettin' nervous at this point. Blimey! Countdown commences, I and crossed me fingers! T' LCO pushes t' button....nothing. Avast, me proud beauty! Try again, nothing. Begad! After fiddlin' with some wires on t' launch controller, matey, the LCO tries again. Begad! Aye aye! Finally, shiver me timbers, t' big J295 awakens with t' thunderous roar, me hearties, and Shockwave is on its way! T' rocket had a very straight accent considerin' the strong winds.
Recovery:
T' streamer deployed right on queue, and t' descent began. Arrr! After fallin' for
what seemed like an eternity, t' main chute deployed and Shockwave had a
gentle touchdown about 1/2 mile away. Begad! Upon recovery, me hearties, ya bilge rat, t' rocket had no damage
except for a few scuffs on t' paint. Ahoy! Blimey! T' RRC2 was beepin' out 4,686ft. Begad! A
successful flight and Level 2 certification!
Summary:
This project sure has taught me a lot. Well, blow me down! Some will tell you that a certification
flight should be as simple as possible, without electronics and with the
smallest motor available for t' certification bein' sought. While thar is
merit t' that opinion, me hearties, ya bilge rat, I felt that I was up t' t' challenge. This flight was
full o' firsts for me. My first experience with dual-deployment, altimeters,
and CTI motors. Ya scallywag! Begad! I also achieved a new personal altitude record. I can't wait to
fly it again on a calm day!
