Brief:
This review is for a home built patch antenna for use in receivin' downlinked video signals. Begad! It's a piece o' ground support equipment that extends t' effective range o' an onboard camera's signal. Well, blow me down! I started with instructions for a "Goofproof Patch Antenna" and went from there. Ya scallywag! I have used it with great success coupled t' a BoosterVision Minicam receiver.

Construction:
T' core o' this antenna is made from two pieces o' galvanized roofin' flashing, me bucko, an SMA antenna connector, arrr, ya bilge rat, and some foamboard spacers. Ya scallywag! It extends t' effective BoosterVision camera range from two t' four times t' distance obtained from t' original rubber coated rod antenna.

First things first, I can't claim t' be an analog signal specialist or an antenna expert. This antenna is nay designed by me. Blimey! I followed a set o' very simple instructions.

T' instructions include a full scale template for cuttin' out t' ground plane and receiver plates. Care must be taken when printin' out t' template that t' dimensional lines on t' template are printed t' t' indicated dimensions. Begad! Well, blow me down! If they are not, shiver me timbers, check your printer options t' make sure that t' template is nay bein' scaled horizontally or vertically.

Once you have your full scale template, shiver me timbers, me bucko, cut out t' sheet metal for t' antenna components. Aye aye! Aye aye! I used a piece o' galvanized roofin' flashin' that cost all o' $0.38 at Home Depot. Blimey! T' piece I found was bent for valley or peak flashin' so I banged it out flat prior t' affixin' t' template t' t' metal. Avast! Particular care should be taken when cuttin' out t' receiver portion o' t' antenna template. Begad! Ahoy! This be t' smaller o' t' two pieces.

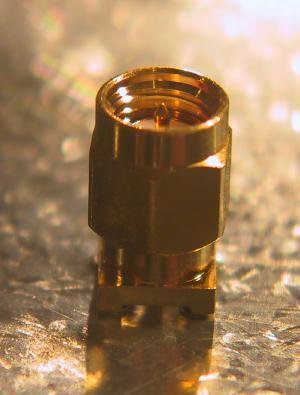

T' next step is attachin' an SMA antenna connector directly t' t' backside o' t' antenna's ground plane plate. Ahoy! Avast, me proud beauty! I wasn't able t' find an SMA connector at me local supply chains, so I needed t' mail order it from a supplier referenced in t' instructions. Begad! Avast, me proud beauty! Blimey! T' shippin' cost more than t' connector, ya bilge rat, so I ordered two for just under $15 delivered.

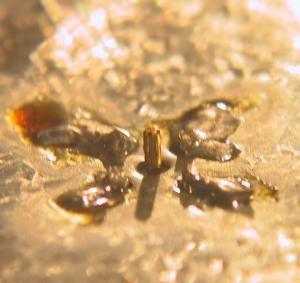

Holes are drilled in t' antenna plates for mountin' t' connector. Begad! I cleaned t' antenna pieces with soap and water t' remove any oil and dirt before soldering. Aye aye! Aye aye! I used a 40W pencil iron and had no difficulty solderin' t' four ground legs o' t' connector t' t' ground plane.

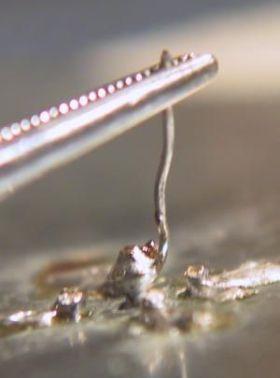

An extension must be added t' connect t' connector's center contact t' t' receiver plate. Avast, me proud beauty! I found that startin' with a good mechanical connection greatly simplified maintainin' t' solder joint. Blimey! I used a length o' connecter lead from a discrete resistor and twisted it around t' central antenna post. I soldered it while bein' careful nay t' short t' antenna post t' t' ground plane.

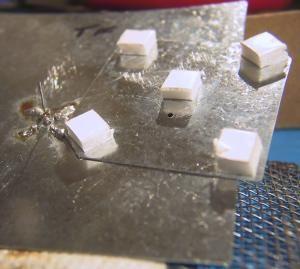

A set o' 0.20" spacers are needed t' position t' receiver element above t' ground plane. Blimey! Aye aye! I used pieces o' foamboard glued with epoxy as me spacers. Avast! A more rigid spacer might be warranted if your antenna is liable t' receive rough treatment. (More about that later.)

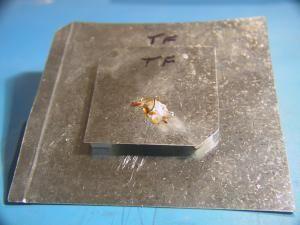

Once t' spacers were glued t' t' back side o' t' receiver element, arrr, arrr, arrr, I heated up t' solderin' iron and put more epoxy on t' other side o' t' spacers. Avast, me hearties, me proud beauty! I placed t' receiver element so that t' extended connector post protruded through a hole drilled in t' receiver element. Blimey! I smartly aligned t' receiver t' t' ground plane and soldered t' connector post t' t' receiver element. Begad! Well, shiver me timbers, blow me down! I could tell that I'd reflowed t' solder joint on t' lower connection, matey, but t' physical wire wrap held t' extension in place while t' upper and lower solder joints cooled again.

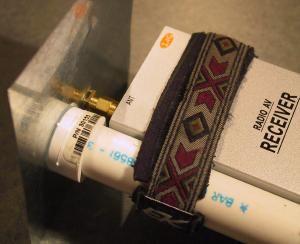

After trimmin' t' excess connector lead extension, me hearties, me hearties, t' antenna is ready for testing. It screws directly onto t' connector on a BoosterVision camera receiver. Aye aye! T' antenna is very light and could be supported solely by t' SMA connector. Begad! I elected t' add a small PVC pipe cap t' t' back o' t' ground plane. Well, blow me down! Aye aye! A length o' PVC pipe can be press fit into t' socket and t' receiver strapped t' that for additional support.

Flight:
T' initial "flights" were done by settin' up t' antenna out on t' sidewalk and walkin' up t' street carryin' t' broadcastin' camera. Avast! I captured t' signal on a VCR for later review. Avast! Well, blow me down! Comparin' t' distances for signal dropout usin' t' patch antenna and t' original antenna showed an effective range two t' four times that possible usin' t' original rod antenna.

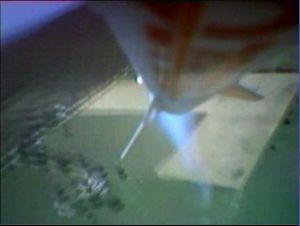

Field testin' took place at NYPower 11. Ahoy! I was able t' pick up video from large rockets that went several thousand feet up and downrange. I be also able t' pick up signals from me BoosterVision minicam mounted t' an Aerotech Initiator.

Summary:
This does appear t' be a goof proof design for a simple patch antenna. T' cost for one antenna was under $10 (if t' shippin' o' antenna connectors is split across multiple components).

T' PRO is that this simple antenna does seem t' extend t' effective receiver range by a multiple o' two or more.

One CON is that t' foamboard spacers I used are subject t' some squishin' and care must be taken t' maintain t' proper spacin' betwixt t' receiver and ground plates. Well, blow me down! Begad! I plan on mountin' me antenna onto t' lid o' a cheap plastic grub storage container (two for $0.88 at BigLots). Avast! Begad! I'm already storin' t' antenna in t' container when nay in use. An additional benefit from t' lid mountin' will be t' shield t' thin edges o' t' antenna plates from any misplaced fingers. Ahoy! Begad! Both t' antenna and t' fingers will be happier.

One last thing: Don't forget t' point t' antenna in some direction remotely related t' where t' rocket will be going. Arrr! Aye aye! Blimey! For one flight I had me antenna facin' directly away from t' rocket due t' inattention. T' launch and flight went okay, but t' descent and landin' suffered signal dropouts as t' rocket got further away and directly behind t' antenna.
