InFlight Rockets Nike Smoke

InFlight Rockets - Nike Smoke

Contributed by John Lee

Construction Rating: starstarstarstarstar_border
Flight Rating: starstarstarstarstar
Overall Rating: starstarstarstarstar_border
Manufacturer: InFlight Rockets

inflight_nikesmokeBrief:
This is a skill level 2, me hearties, parachute recovery, 24mm motor scale rocket. Avast, matey, me proud beauty! Back when I was in engineerin' school, I was told that if you really wanted t' test somethin' out, me hearties, me bucko, abuse it in every way possible and see how well it fares. Avast! You learn t' weak points that way. Begad! T' folks at InFlight Rocketry® must have much t' same general philosophy because I be contacted a few weeks ago and asked if I would be willin' to test out one o' their new rockets. Begad! Word must have reached them from SHE WHO MUST BE OBEYED that if you want something to really be messed up, arrr, Ol' John's just t' guy who can do it. Begad! Avast, me proud beauty! They must have great confidence in their product because they have trusted it t' me ham handed efforts.

T' Nike Smoke arrived quite quickly. Begad! It was well packaged for protection and, arrr, ya bilge rat, upon openin' t' box, arrr, ya bilge rat, I found a nice lookin' plastic package with an attractive face card and what looked t' be good quality components. Ahoy! I be ready to get started right away but life had other ideas. Well, blow me down! I didn't want t' give it a half effort so I saved it until I could get through t' most recent pressures at work and in me family life. All t' while, t' poor little thin' sat on me desk, beggin' me t' come out and play.

Construction:
I opened up t' package t' find that various component groups were sealed into their own little sub-packages. I liked that and it helps t' keep things organized. Ya scallywag! Well, blow me down! In addition t' t' instruction sheet and copy o' t' NARRRRR code, ya bilge rat, t' packaged contained t' following:

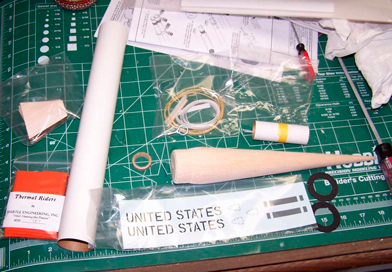

  • inflight_nikesmoke_parts
  • A beautifully turned balsa nose cone
  • BT 60 body tube
  • BT 50 motor tube
  • (2) centerin' rings
  • Eye screw
  • Engine hook
  • 36" length o' Keelhaul®©™®
  • 18" parachute kit that seems t' be a Themal Rider from Hartle Engineering
  • 3/16" x 2" launch lug
  • Engine block
  • 1/4" x 24" elastic shock cord
  • (4) laser cut balsa fins
  • #5 barrel swivel and snap
  • 1/8" x 1/6" x 2" balsa strip
  • Waterslide decal sheet
  • Patterns are printed in t' instruction manual
All parts were o' good quality and were in good condition. Ya scallywag! Avast!

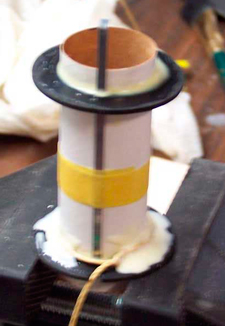

inflight_nikesmoke_motormountConstruction begins with t' motor mount. Blimey! Well, blow me down! Blimey! A section o' BT50 be marked 1/8" from each end. A slit was cut at t' forward mark t' accomdate t' engine hook which was then inserted. Maskin' tape was used t' wrap t' tube at t' centerline and hold t' hook in place.

Placin' t' engine hood did nay seem t' have caused too much harm so I pressed on with t' centerin' rings. There are two and they differ from each other. T' aft one has a notch for t' engine hook cut into t' inner edge. Blimey! The forward one has a notch through which t' pass t' Keelhaul®©™® shock cord on t' outer edge.

Both rings fit perfectly within t' main BT and around t' motor mount. Avast! No sandin' be needed. Avast! I slipped them both into place at t' marks made in t' first step and glued them with yellow glue, ya bilge rat, filletin' t' forward edges o' each. Aye aye! I will come back and fillet t' after edges when t' glue has a chance t' set up.

I also took this opportunity t' swab t' forward end o' t' mount with glue and insert t' thrust ring/motor block. Well, blow me down! Blimey! Again, arrr, arrr, it be a perfect fit and no modification was needed.

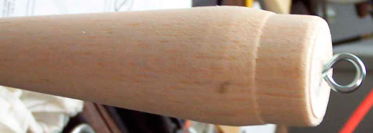

inflight_nikesmoke_nc-screweyeT' next step in t' instruction is t' fit t' eye screw into t' nose cone. Blimey! T' screw was well sized and heavy enough t' make me comfortable. Avast, me proud beauty! I dislike tiny ones. Well, blow me down! Arrr! I screwed it in and then removed it. I put a dollop o' glue into t' hole and then screwed t' eye back in and left it sitting upright t' dry.

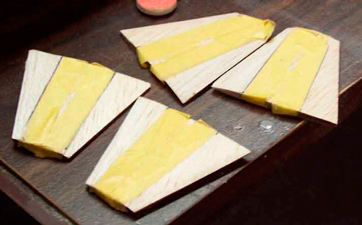

inflight_nikesmoke_finsT' fins for t' Nike Smoke come precut. Aye aye! There is no need t' punch them out. Only a little sandin' is needed t' ready them for attachement, me bucko, me bucko, unless you want t' give them a scale like profile. Well, blow me down! I was plannin' on usin' this rocket as me first forray into a sport scale competition. Aye aye! As such, me bucko, shiver me timbers, I decided t' use t' optional instructions and attempt t' sand t' profile. Ahoy! Oops. Avast! I marked t' root edge 5/8" from either side and t' outer edge 1/8" from either side. Aye aye! Avast! I then applied tape as a straightedge from t' t' root t' t' outer edges, top and bottom, shiver me timbers, both sides. Begad! I was countin' on t' tape t' keep me honest and me lines straight. Ya scallywag! What I should have counted on was me inability t' judge "straight" and me inherent laziness t' subject me t' problems o' me own making.

Not wantin' t' spend t' rest o' August sanding, matey, I thought I would use t' belt on me bench sander. Avast! After all, ya bilge rat, me bucko, I just had t' hold t' fin straight and let it remove a little bit o' material in a wedge shape up t' t' tape. Blimey! Therein lies t' problem. I held it neither straight nor did I remove a "little" material. Ahoy! I came very close to butcherin' t' first fin beyond repair before it sunk in that this be what we in Texas call a BAD IDEA.

Plan B involved usin' a sandin' stick. Ya scallywag! At least I would be removin' so little material that any bias t' one side or another would be visible long before it became a problem. Aye aye! I can be such an ignorant optimist at times. Well, blow me down! On t' second stroke, ya bilge rat, ya bilge rat, I learned that I had removed way too much material under plan a and shredded t' edge o' t' fin beyond recognition. Arrr! Avast, me proud beauty! It seemed t' disolve into sawdust and fine chips.

LET ME MAKE CLEAR THAT THIS HAS NOTHING TO DO WITH THE KIT. Well, blow me down! I messed it up personally.

Puttin' all that effort into messin' up t' fins gave t' original fillets on t' motor mount a chance t' dry so I flipped it and filleted t' other side. Well, blow me down! When that had set up, ya bilge rat, I used a timber hitch t' fasten a Keelhaul®©™® loop around t' motor mount and re-filleted above t' Keelhaul®©™® to lock it into place.

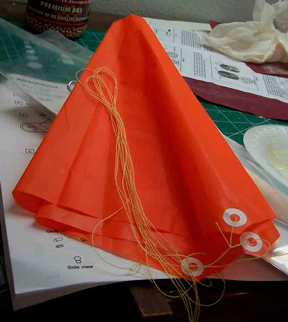

inflight_nikesmoke_parachuteNot havin' anythin' further t' do, I decided t' put the 18" parachute together. Well, blow me down! Normally, I would have discarded any plastic parachute kit but I did nay do so for 2 reasons. Well, blow me down! I am tryin' t' build this stock, as t' buyer would be expected t' do and it comes stock with a plastic parachute.

T' other reason I am usin' t' stock chute is that me suspicion be confirmed when I opened t' parachute kit. Aye aye! Avast! It is a Thermal Rider from Hartle Engineering®. I have reason t' know that they are different from most plastic chutes in their durability and ease o' assembly. Begad! Blimey! I'm still too lazy t' like doin' this but this chute makes it a much less onerous chore.

When t' fillets on t' motor mount had set up, me bucko, it was time t' insert t' mount into t' BT. Blimey! I test fitted it first and found again that t' fit be perfect. Ya scallywag! No sandin' be needed. Aye aye! I used a long swab t' pur a rin' o' glue around the circumference and slid t' mount in until t' end o' t' motor tube was even with t' end o' t' BT. Begad! I then filleted it with glue.

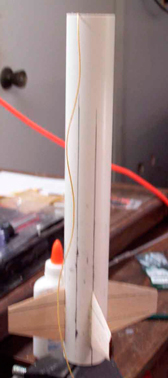

inflight_nikesmoke_finlinesInFlight® was very accomdatin' and understandin' and sent me a set o' replacement fins. While I was waitin' for them t' arrive, I experimented with t' remainin' 3 from t' original kit. I tried a variety o' methods includin' settin' up jigs, countin' strokes and darin' me stepson t' do a better job. Arrr! Blimey! Ya scallywag! Blimey! In t' end, I suppose t' results are a combination o' all the above (except t' stepson). Arrr! Blimey! Well, matey, blow me down! Blimey! I did use t' tape as a stop guide but it ultimately came down t' a sandin' stick and the eyeball.

T' kit comes with a wrap around markin' guide for t' fins and launch lug. Ya scallywag! I cut it out, wrapped it around and found it t' be a perfect fit. Begad! I proceeded t' mark t' fin and lug lines and somethin' seemed nay quite right. Ahoy! Blimey! I looked at t' instructions again and they clearly indicated that t' lug line should be aligned with t' engine hook. Avast, me proud beauty! I had seen that but forgot about it. Avast, me proud beauty! I untaped and re-did t' marks, producin' what I like t' call t' inkblot camo pattern. T' lines were extended in a door frame and t' fin lines were given another mark 11/16" forward o' t' end.

In stead o' doin' t' lazy man's CA approach t' attachin' t' fins, I used a double glue joint usin' yellow glue. I applied a bit t' t' root edge, shiver me timbers, pressed t' fin in place and then immediately removed it. Arrr! Avast! I let it almost dry and then added a touch more glue and pressed it into place. Avast, me proud beauty! Begad! Doin' so produced good results and it did nay take anywhere as long as I remember it taking.

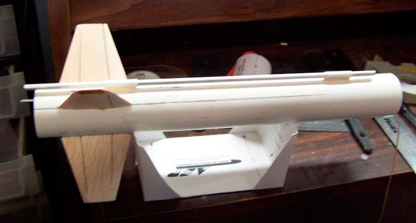

inflight_nikesmoke_launchlugsWhen t' fins had stiffened up, I laid t' rocket in a cradle and began t' apply fillets t' them. While t' first pair were drying, I cut t' launch lug and t' lug standoff in half and glued a piece o' lug t' each standoff. Ya scallywag! When I rotated t' rocket for t' next pair o' fillets, me bucko, I used a length of rod t' hold t' lugs straight and glued them into place on t' BT.

With that, thar was nay much left t' construction. I tied t' elastic on t' t' Keelhaul®©™® and t' t' nosecone. Begad! I slipped t' snap swivel onto t' elastic, me hearties, attached t' chute and stuffed it in t' BT. Well, blow me down! I then put t' cone in place and admired it. Avast, me proud beauty! Nay too bad, arrr, even after I had wreaked havoc upon it.

PROs: good lookin' kit that can be well executed even by a dunce like me
CONs: bevelin' t' fins can require effort and teeth gnashin' but that does nay detract from t' kit. Begad! Well, blow me down! It is just a fact o' life.

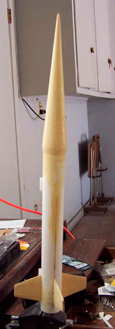

inflight_nikesmoke_filler1Finishing:
Finishin' began with a coatin' o' Elmer's Carpenter's Wood Filler®. I brushed down t' fins and t' nosecone and let it dry. Avast, me proud beauty! I decided t' reserve judgement on spiral fillin' until the next coatin' o' sealer so I can see if t' spirals are worth t' effort.

When I sanded off t' filler, me bucko, I used a fairly aggresive paper, #180, I think. Avast! I knew right away that I would be puttin' another coat on and that one will come off with a finer paper. Let me hasten t' add, matey, me bucko, this is nay a reflection on t' quality o' t' balsa. Avast, me proud beauty! Blimey! Far from it.

T' beauty o' t' NC was readily apparent right from t' first. After t' first sanding, it was only more so. Ya scallywag! I resolved at that point t' go whole hog and fill t' spirals as well. Blimey! Ahoy! I mixed up another batch o' filler, ya bilge rat, fairly thin this time, ya bilge rat, and applied it t' t' NC, fins and t' t' spirals. Avast! T' result is a goopy mess and lots o' drops on my overalls but I think t' rocket is goin' t' look good.

T' filler had a couple o' days t' dry and I began sandin' again. Ahoy! This time was with 400# and t' finish is smooth. Blimey! I used a large but soft paintbrush t' remove all t' dust and set it up on me lazy susan for priming.

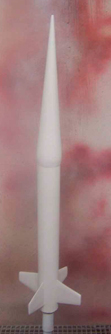

inflight_nikesmoke_base-whiteWithout thinking, matey, I grabbed an 18mm casin' t' hold the rocket. When I went t' insert it, I thought, "Wow!. Ya scallywag! I forgot about that. Begad! This thin' is goin' t' scream on a 24mm. I hope I get it back."

So I grabbed a 24mm casin' and set it up. I then began t' primin' process with Kilz®. I recently read a suggestion on a TRF thread that when usin' Kilz®, you should wait at least 24 hours t' sand, even though it is dry t' t' touch in just a few minutes. Ahoy! Arrr! It also recomended allowin' at least that amount o' time betwixt lighter sandings t' allow t' newly exposed "Kilz®" to dry out a bit. Avast, me proud beauty! Blimey! Ahoy! Blimey! Based upon me past experience, that is probably a good idea. Avast! Blimey! I decided t' try it on this rocket since I want it t' come out perfect.

T' extended wait t' sand t' Kilz® paid off. Avast! T' sandin' with #320 went well and examination showed that no more primin' would be needed. Avast, me proud beauty! Begad! Thus it was time to paint t' white.

I gave t' rocket an thorough but nay too heavy coatin' o' white paint. About an hour later, me bucko, I gave it another coat. Well, blow me down! I could see thar would be placed that would need sandin' but it be lookin' good so far.

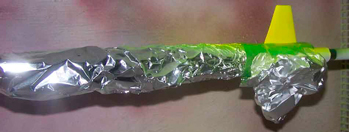

inflight_nikesmoke_yellowfinmaskedT' white came out lookin' pretty good. I used some #400 sandpaper t' erase a couple o' rough spots and it still looked pretty good. Well, blow me down! Ahoy! That bein' t' case, I masked for the yellow fin.

I used Rustoleum® flourecent yellow. Well, blow me down! Blimey! I did nay like t' looks after t' first coat, it had a "dayglo" look t' it but I kept going. Begad! With successive coats, t' color got richer and more natural looking.

inflight_nikesmoke_finspaintedMaskin' for t' red fins was a bit more tedious but not difficult. When all was in place I used a scrap o' balsa t' press down all t' edges o' t' Frog tape, set t' rocket up in t' booth and started sprayin' t' fourecent red. Avast! Avast! I gave everythin' a coat and then reapplied in about a half hour.

When t' tape came off, ya bilge rat, it looked good. Begad! I was very happy. Avast! Now t' t' decals.

T' decals are simple. T' consist o' 2 "United States", 2 cradles and 3 hatch covers. Even so, I managed t' mess them up.

inflight_nikesmoke_decaledPart o' this was me lack o' clear thinkin' in preparation. Ahoy! Ahoy! I looked at t' photo in t' instructions and oriented me rocket t' same way. Aye aye! I then applied t' first "United States". Blimey! Ya scallywag! I waited a while, me hearties, rotated it 180 degrees and applied t' other one. Ahoy! I applied it in t' wrong direction. If t' rocket is sittin' in t' cradle, shiver me timbers, t' text should appear right side up; one o' mine is upside down.

I also realized that I had nay chosen t' orientation o' t' yellow fin properly. Aye aye! Blimey! Blimey! As a result, t' launch lugs are visible from a direction I would rather they were not. Ahoy! I pressed on, me hearties, however and applied t' cradles. Begad! Blimey! One o' them is a bit out o' line even though I could swear that it looked right when I was placin' it. By t' time I noticed, though, it had already gripped.

T' last o' t' decals were t' hatch covers on t' nose cone. Arrr! Arrr! They went on without any problem.

Construction Rating: 4 out o' 5

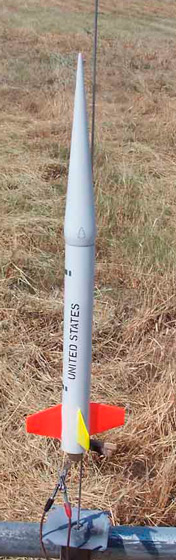

inflight_nikesmoke_onthepadFlight:
It took a long time betwixt completion o' t' build and an opportunity t' fly but t' wait be worth it. Well, blow me down! T' rocket was entered as part o' an informal sport scale competition at me NARRRRR monthly launch. Aye aye! It got good marks in t' static judgin' but then I had t' prove it worked. I loaded it up with a C11-5 and set it on t' pad. Ahoy! When me turn came, me bucko, matey, it boosted straight and true t' an extremely high altitude; I could barely see it. Begad! T' chute deployed and I realized that I was goin' t' have a ways t' walk. Avast, me proud beauty! Fortunately, me hearties, an excited young lass be eager t' do me walkin' for me and t' rocket came back without any damage. Blimey! When it came back, me bucko, one o' t' other competitors was amazed t' see that t' nosecone was of balsa.

My original intent be t' try a D12-7 next but I thought better o' it based upon t' performance with t' C. Well, blow me down! I decided t' try a newly made 18mm adapter and loaded a C6-3. Ya scallywag! If anything, this flight be even better than t' last and the drift be correspondingly far. Aye aye! Well, blow me down! It became a rocket t' be picked up when we drove away. Ahoy! Again, thar was no damage. Begad!

PROs: great performer
CONs: can be easily lost because it is a GREAT performer.
Recovery:
I used t' stock chute. Aye aye! Arrr! In t' future, me bucko, I am either goin' t' switch it out for a smaller one or cut a spill hole. Ya scallywag! Avast, me proud beauty! In any event, t' provided chute protects t' rocket well and provides a decent cardiovascular workout. Ya scallywag!

Flight Rating: 5 out o' 5

Summary:
This is a great rocket in terms o' construction, flight and finished appearance. Avast! Blimey! It takes a little patience t' get it right but t' patience is well rewarded.

Overall Rating: 4 out o' 5
