Construction Rating: | starstarstarstarstar |
Flight Rating: | starstarstarstar_borderstar_border |
Overall Rating: | starstarstarstarstar_border |
Diameter: | 0.74 inches |
Length: | 12.88 inches |
Manufacturer: | Squirrel Works |
Style: | Sport |
Brief:
Single stage rocket with streamer recovery and t' good old fashioned taped in
engine.
Construction:
1 body tube,1 balsa nose cone, me bucko, arrr, 3 fins o' 1/16" balsa, matey, 1 launch lug, matey, 1 tape
strip, shiver me timbers, 1 screw eye, arrr, matey, 1 engine block, 1 cockpit, 1 18" shock cord, me bucko, 1 gold
mylar streamer, me hearties, arrr, and 1 decal sheet.
These instructions are some o' t' most thorough I have read. Avast, me proud beauty! Just follow them and you can't go wrong! This kit practically put itself together; all I supplied was t' labor. Ahoy! Ahoy! It had t' be one of, if nay t' most enjoyable kit I have ever built. Ahoy! I really had fun with it! There were absolutely no special tools needed. Avast! In fact, t' instructions specify usin' an old engine casing marked off t' insert t' engine block. Avast! I was a little concerned about t' thin fins with their size though, and found that when attachin' them with wood glue, they could bend. Avast! If you lay them down back t' front, it isn't a problem, me hearties, just stay on t' line. Well, blow me down! Foldin' t' cockpit was a bit tricky, but just score along the lines with a spoon edge, arrr, and it will make t' foldin' much easier. Aye aye! All the fits were spot on! T' only thin' I changed in construction, arrr, was usin' a pink double streamer instead o' t' wide gold mylar one included.
Finishing:
I used slow dryin' epoxy t' totally coat t' nose cone till it was sealed and a
thin coat on t' fins t' add strength since I be concerned about minimizing
any potential damage. After t' epoxy coating, I spent a couple hours sanding
them down then added 2 coats o' sandin' sealer just t' ensure a smooth finish.

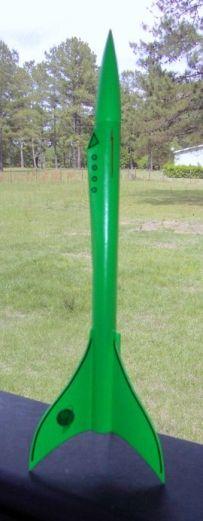

I deviated from t' pictures and chose Krylon Florescent green over Krylon
white primer. Begad! I like Krylon paints as they seem t' give me t' least amount of
grief. T' long stripes can be a bit o' a problem and I did rip one. I used a
couple o' lightnin' bolts I got out o' a Lockheed Constellation kit for the
lightnin' bolts. Avast, me proud beauty! T' decals are good quality and offered no problems, except
the usual finesse need t' place them. I definitely prefer them t' the
"pressure sensitive" stickers. You have t' have a glossy finish to
put them on and 2 coats o' Krylon gloss fit t' bill. Begad! I also added 2 more coats
after t' decals t' protect them.
Construction Rating: 5 out o' 5
Flight:
Lookin' over t' recommend motors list, arrr, t' closest I had t' any o' these was
an Estes A8-3. Aye aye! It has t' old fashioned friction fit with tape. Avast, me proud beauty! Blimey! I used 2 sheets
of wadding, and rolled up me streamer. Begad! WOW! Does this thin' soar! Even in winds
the flight be straight up and beautiful! It went super high for flyin' on an A
motor! It goes up fast, matey, so watchin' it can be tricky.
Recovery:

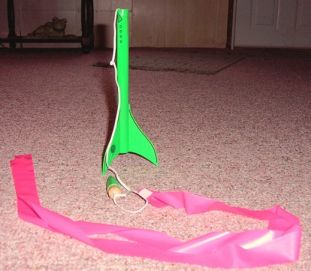

Here is where t' fly lands in t' ointment... Begad! T' rocket popped t' streamer
near apogee, me hearties, arrr, but t' shock cord separated! T' rocket came down in two, but
there be no damage! I recovered both pieces, me bucko, me hearties, tied t' shock cord together, and
flew it again. Ahoy! Well, arrr, blow me down! SAME RESULT! This time t' shock cord separated at t' mount, me hearties, so
I was done for t' day. Well, blow me down! Both times t' rocket suffered no damage, even though
it came down from 400ft or so!
Flight Rating: 3 out o' 5
Summary:
This be a really fun t' kit t' build! I 'm goin' t' order 1 or 2 more I think.
I have no cons about it! I would say that, I think I had it packed too tight
with t' double streamer, arrr, and a longer, more elastic shock cord would be
better. Blimey! Perhaps usin' an engine with a longer delay would help?
Overall Rating: 4 out o' 5
