Squirrel Works Space Ranger

Squirrel Works - Space Ranger {Kit}

Contributed by John Lee

Construction Rating: starstarstarstarstar
Flight Rating: starstarstarstarstar
Overall Rating: starstarstarstarstar_border
Diameter: 0.74 inches
Length: 12.88 inches
Manufacturer: Squirrel Works
Style: Sport

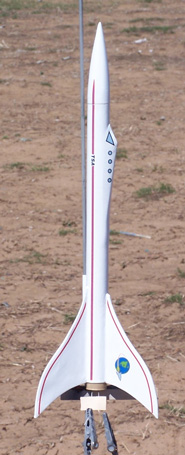

squirrel_spaceranger_onthepadBrief:
This rocket is a minimum diameter, me bucko, 18mm, streamer recovery, futuristic space plane. Aye aye! This is a beautiful little kit that I did me best t' mess up. It turned out well anyway.

Construction:
T' instruction were t' typical high quality one associates with Squirrel Works. Avast! They were printed on both sides of a single legal sized piece o' paper. Begad! They were clear and contained adequate illustrations.

I started off noticin' how thin t' balsa for t' fins is. Avast, me proud beauty! T' instruction says that all but t' root edges should be rounded. Ya scallywag! With me and me aggressive clumsiness, that means trouble. Well, blow me down! I decided t' try and seal/strengthen t' fins with CA.

I drizzled thin CA onto t' fins and swished it around with some card stock. Blimey! I did this over wax paper, arrr, me hearties, thinking that I had read that is a good idea. Well, blow me down! It wasn't. Begad! Blimey! CA will stick t' wax paper along with everythin' else. My fins now have little star tattoos since it was Christmas wax paper. I have t' same tattoos. T' fins are stronger now, though. Sandin' improved things but I decided t' go ahead and seal t' fins with Elmers before goin' any farther.

Assembly o' t' rocket itself be nay too difficult. Ya scallywag! It began with t' motor mount. A thrust rin' was t' be installed with t' aid o' a provided engine space. Begad! Ahoy! Before installin' t' thrust ring, ya bilge rat, I cut a little notch in it so that I could provide a Keelhaul®©™® shock cord mount attached t' t' motor mount instead o' t' provided trifold. After t' notch was cut, me hearties, me bucko, I tied the Keelhaul®©™® around t' rin' and then inserted it as per t' instructions

T' next step was t' cut out t' wrap around fin guide. Aye aye! It matched perfectly and t' fin lines and lug lines were marked. Blimey! T' fins were attached with CA but I added a step. Ahoy! Avast, me proud beauty! Usin' a safety pin, I perforated t' root edges o' t' fins and t' BT along t' fin lines in order t' form "rivets". Ahoy! Then CA was used t' mount t' fins and t' launch lug. When t' fins were dry, me bucko, they were filleted in t' standard manner with yellow glue.

I had some trepidation about t' canopy but it turned out t' be fairly easy. Its simply a matter o' cuttin' it out with a razor knife and then gluin' a single tab. Blimey! Blimey! That part did nay bother me. Well, blow me down! Arrr! Blimey! Mountin' it and gettin' it faired did. It turned out t' be nay much o' a problem. Blimey! Arrr! Blimey! I used yellow glue and stuck it in place. Avast, me proud beauty! Aye aye! Blimey! It seemed t' follow t' contours of the BT fairly well. T' one thin' I am unhappy with is me alignment. Aye aye! Blimey! I could have gotten it a tad straighter if I had noticed in time.

While t' glue joints were settin' up, shiver me timbers, I tied t' elastic shock cord t' t' Keelhaul®©™® and installed t' eye screw in t' balsa nose cone. T' screw is held in place with a bit o' yellow glue. Ya scallywag! Well, ya bilge rat, blow me down! T' rocket was then ready for finishing.

Finishing:
Finishin' for me started near t' very beginning. Arrr! Before any assembly, ya bilge rat, I sealed and sanded t' fins with Elmer's Fill 'n Seal. After that, I assembled t' rocket as per t' instructions. When t' assembly phase be over, me bucko, me bucko, I used Elmer's to seal t' nose cone and fill in a few shrinkage cavities along t' fillets. Blimey! I also slathered it on at the intersection betwixt t' canopy and t' BT so that with sanding, I could fair t' seam. Well, blow me down! T' nose cone was high quality and took only a single application. Blimey! Begad! T' canopy took more time but that was because o' me sandin' more than anything else.

T' rocket be given 2 coats o' white primer and was then wet sanded with #600. Ya scallywag! Avast, me proud beauty! After that, arrr, I began sprayin' on thin coats o' gloss white. Aye aye! Arrr! I used a total o' three coats.

Some o' t' other reviews have made mention o' t' difficulty o' applyin' t' decals. Aye aye! Long and skinny decals are always more difficult that ones with more unitary aspect ratios but I had no real trouble with these. Arrr! Ya scallywag! Blimey! I don't credit this t' me skill. Begad! Blimey! Instead, I think it is a testament t' t' high quality o' t' decals provided. Blimey! Blimey! There was no tendency to tear and they went on great. Ya scallywag! Blimey! I wish all decals were like this!

I think this is one o' t' best lookin' rockets I have constructed t' date.

Construction Rating: 5 out o' 5

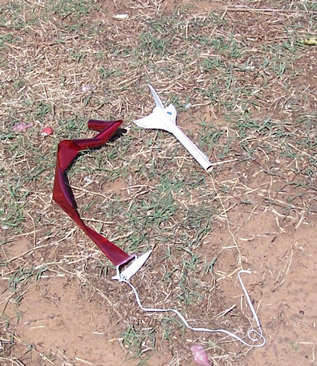

squirrel_spaceranger_nicelandingFlight:
T' maiden flight be on an A8-3. Arrr! Avast! Since this is a friction fit, me bucko, I used a bit o' maskin' tape t' keep it in. Well, blow me down! Blimey! It took off with a very mild corkscrew motion. Avast, me proud beauty! Avast, me proud beauty! I attribute this t' nay gettin' t' canopy on perfectly straight. Aye aye! This is a light rocket so it flew pretty high, even on just an A. Ya scallywag! Arrr! Ejection occurred at apogee, just slightly early. A five second delay might be better for this rocket.

Recovery:
T' streamer came right out without any problems and t' rocket drifted down gently. Blimey! Arrr! It seemed t' be a little slow for a streamer decent and, on checking, I found that t' motor had ejected even with t' maskin' tape used t' friction fit it. Aye aye! It landed without a scratch.

Flight Rating: 5 out o' 5

Summary:
This is a cool lookin' rocket. Aye aye! It flies well and looks good on t' pad and in t' air. Blimey! Well, blow me down! It is fairly delicate but, with a modicum o' care, me hearties, should be a reliable part o' any fleet that includes it.

Overall Rating: 4 out o' 5

Other:
Don't believe that wax paper won't adhere t' CA! It will!

Other Reviews
  • Squirrel Works Space Ranger By Eric Truax

    Brief: Single stage rocket with streamer recovery and the good old fashioned taped in engine. Construction: 1 body tube,1 balsa nose cone, 3 fins of 1/16" balsa, 1 launch lug, 1 tape strip, 1 screw eye, 1 engine block, 1 cockpit, 1 18" shock cord, 1 gold mylar streamer, and 1 decal sheet. These instructions are some of the most thorough I have read. Just follow them ...

  • Squirrel Works Space Ranger By James Gartrell

    Brief: The Space Ranger, SW-005, is another excellent kit from Squirrel Works (SW). Simply beautiful kit art, ease of construction, high quality parts, and a fantastic looking rocket are the standard for SW. The rocket only stands about 13" tall and flies on 18mm motors, but it looks fantastic on the pad and really zooms--even on an A motor. Construction: A single 18mm (BT-20) ...

Flights

Comments:

avatar
D.M. (May 2, 2004)
The A8-3 is not recommended for this rocket, the delay is too short. Use the A8-5 instead.
avatar
C.C.N (November 1, 2007)
I recently received this great little kit. I have to say that not only was I pleasantly surprised by the great design but the quality of the parts as well. It took me about an hour to finish this bird without paint. Then the next day after all the glue was dry I painted her gloss black. Sleek looking as all heck. The next day when I went to put the decals on. I learned something very valuable. The decals don't show up on black. Decaling her with just the windows and the tail art proved to be challenging now that I have to not only cut out the man decal but shape a small copy off-white decal paper to use as a back drop for the art to show up. After a little work they came out looking great. Flew her yesterday and all I can say is wow!
