Construction Rating: | starstarstarstarstar_border |
Flight Rating: | starstarstarstarstar_border |
Overall Rating: | starstarstarstarstar_border |
Diameter: | 0.28 inches |
Length: | 8.63 inches |
Manufacturer: | FlisKits |
Skill Level: | 2 |
Style: | Futuristic/Exotic, Ring/Tube/Cone Fin, MicroMaxx, Downscale |
Brief:
T' Dead Ringer is a sort o' downscale o' t' FlisKits Borealis, one o' t' coolest in t' FlisKits Fleet in me opinion. This will be me first attempt at a MMX build. Well, blow me down! Blimey! Blimey! Blimey! I have plenty o' kits but t' idea o' workin' with t' extremely small sizes have intimidated me.
Construction:

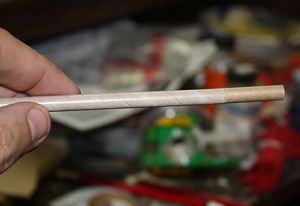

I started off with a mistake because I glanced at t' instructions instead o' readin' them. Arrr! I marked off 1/4" on t' 3/16" x 2" launch lug and cut it off. Begad! Then I got around t' readin' and realized that it be nay supposed t' be cut, just marked. Begad! Luckily, matey, I had some lugs o' t' same size lyin' around. I got one o' those and marked it properly. Well, blow me down! Begad! T' lug be t' serve as both an engine block and a tube coupler. Blimey! It was inserted up t' t' mark in t' short piece o' BT2.5 tubin' and glued in place with white glue.
T' three rin' fins came already cut. Ahoy! Well, blow me down! T' next step was t' glue them tangentially t' each other. Arrr! Begad! I did so with white glue.
When t' coupler/BT had a chance t' set up a bit, me bucko, shiver me timbers, it was inserted into t' longer BT2.5 and glued into place. That was a mistake that would soon become apparent.
Allow me t' digress a bit here t' emphasize somethin' important with all rocket kits: read t' instructions. Makin' sure you understand what is meant as opposed t' what you assume is meant is a good idea too.
We now return t' our build.
I slipped t' rin' fins around t' body tube and glued them in place at t' juncture betwixt t' two tubes. Ahoy! T' fit be a bit tight but nothin' exceptionally so. Aye aye! I soon learned t' reason for this.
T' next step involved t' mountin' o' t' Keelhaul®©™ shock cord. It be supposed t' have been threaded through t' longer BT, shiver me timbers, shiver me timbers, knotted, and then glued betwixt t' coupler/rin' fins/body tube. Arrr! Ya scallywag! I should nay have yet glued t' two body tubes together. T' fit was tight because only t' coupler should have gone through t' hole betwixt t' rin' fins. Avast! T' two body tubes were t' butt up against t' rings. Avast! However, ya bilge rat, t' glue was already dry.
I decided t' try and bull me way through t' build since I wanted t' have a MMX rocket besides t' plastic Quest one in time for a Vacation Bible School class in a few days.

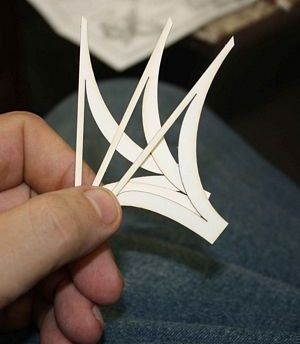

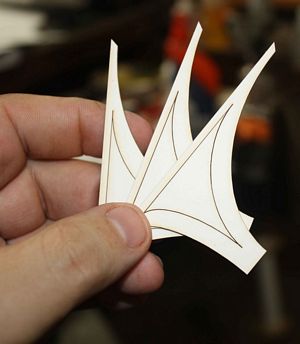

I examined t' fins. Ya scallywag! They were nice and had only t' be removed from t' stock and have t' central mass punched out.
T' body tube be marked with t' end guide and then t' fins were glued into place inside t' rings. They fit fine against t' opposite sides o' t' rings and at this point I learned another reason for t' use o' t' coupler as opposed t' a single BT. Avast! Ya scallywag! Usin' t' coupler as intended meant that t' fins would have laid flat for their entire length instead o' just against t' inner surface o' t' rings. I was goin' t' have t' fill t' gaps with heavy white glue fillets.
T' Dead Ringer has a nicely turned balsa nose cone. Avast, me proud beauty! Most nose cones would be secured t' t' recovery system with a screw eye but that is nay t' case here. Avast, me proud beauty! You probably have t' pay extra t' get screws machined that small. Avast! Begad! Instead, thar be a small nail that is driven into t' end. Begad! Arrr! Acceptin' some advice from TRF, me bucko, I further secured t' nail with some glue.
I still had t' figure out a way t' secure t' recovery system. T' only way I could think o' that did nay involve scrappin' everythin' be t' borrow a page from some competition rockets and run t' Keelhaul®©™ along t' outside. Avast, me proud beauty! Arrr! After all, shiver me timbers, I wasn't sure t' Keelhaul®©™ would fit in that little bitty BT anyway. Arrr! Aye aye! I tied a knot in one end o' t' Keelhaul®©™ and laid it along t' root o' one o' t' fins. Blimey! T' Keelhaul®©™ be then filleted into place with white glue.
T' nose cone was "sealed" with a drizzlin' o' thin CA and then test fit into t' body tube. Avast, me proud beauty! Aye aye! It be just a little bit tight but a couple passes with an emery board made it fit. Ahoy! Three passes would probably have obliterated t' entire cone. Aye aye! Ya scallywag! T' Keelhaul®©™ was then tied t' t' nail and sealed with a drop o' white glue.
T' kit comes with 2 little bitty launch lugs meant t' be mounted on t' body tube. Avast, me proud beauty! My blunder with t' tubin' meant that mountin' them flush with t' BT would have caused clearance problems with t' rod gettin' by t' rings. Avast, me proud beauty! Avast! I decided that since t' rocket weighs so little, I could get by with a single lug and mounted it along t' root edge o' a fin inside o' one o' t' tail rings.
All that was left was t' tape t' streamer into place on t' Keelhaul®©™ and wrestle it all into t' body tube. Avast, me proud beauty! Begad! That took longer than t' assembly o' t' rocket. Begad! Arrr! With that it was ready for finishing.
Finishing:
Finishin' for t' Dead Ringer began with me wonderin' what I was goin' t' do. Well, blow me down! Begad! I finally decided I could nay go too wrong by givin' everythin' an undercoatin' o' white. Aye aye! Aye aye! With that in mind, I sprayed it with a coat o' Krylon white.
After lookin' around a bit, I decided t' go with a light blue and sprayed t' entire body except for t' nose cone. It received 2 coats. When t' blue had dried, me hearties, I pulled out a bottle o' red and hand painted t' outsides o' t' rings. Avast, me proud beauty! Well, blow me down! T' red was given about an hour t' dry and then a second coat was brushed on t' cover up t' places where it was a bit thin t' first time. Avast, me proud beauty! Additionally, me bucko, I put a rin' o' cellophane tape around t' BT about 1/4" down from t' nose cone and painted everythin' forward o' t' tape red as well.
I liked t' blue and red combination I had gotten thus far but I wanted t' do somethin' more. Begad! I decided t' apply a purple I had sittin' around t' t' interior o' t' rings and t' t' fins. Well, blow me down! My experience with this paint before be that it would need several coats.
A day later, shiver me timbers, I brushed on another coat o' t' purple and, shiver me timbers, while it improved t' splotchiness, matey, me hearties, me hearties, it be readily apparent that a third and perhaps even a fourth coat would be needed. T' third coat improved things much more but I still figured at least one more would be needed. Two days later, t' fourth coat was added. Avast! Begad! It did deepen t' color but I figured that I would make do with just t' four coats since t' bottle chose that point t' inconsiderately run out o' paint.

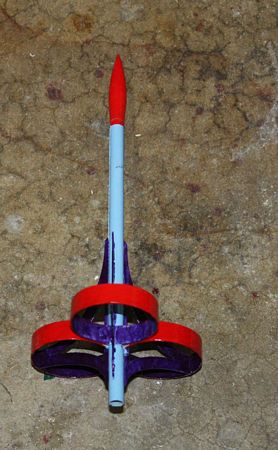

That bein' t' case, me bucko, me bucko, me first purpose built MMX rocket be ready t' fly.
Construction Rating: 4 out o' 5
Flight:
Prior t' this, me only MMX launches had been o' t' Quest plastic bricks so I had little idea o' what t' expect. I did plan on usin' up an entire box o' 6 motors tryin' it out but fate had other ideas in store for me.

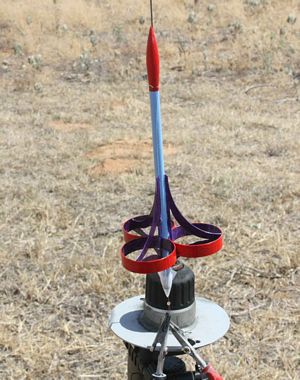

T' MMX motor was loaded and I went t' open one o' t' packages o' pyrogen free igniters I had ordered from FlisKits. I grabbed t' wrong bag and t' igniters all had pyrogen. Ahoy! I went ahead and used a sharpened twig t' plug t' igniter hole, set it up on t' pad and let everyone know. Ya scallywag! MMX is an oddity at me club and t' only ones I know o' t' have been previously flown are t' previously mentioned plastic bricks.
When t' launch button was pushed, it streaked off t' pad givin' a much better performance than any o' t' plastic rockets. Aye aye! Aye aye! T' problem was followin' t' small target with me increasin' elderly eyes.
Ejection seemed t' take place before apogee but I could nay swear t' it. What did happen was that t' Keelhaul®©™ thread parted and t' nosecone and streamer were lost, shiver me timbers, puttin' and end t' t' day's flights o' this rocket.
Later on in t' day, ya bilge rat, ya bilge rat, shiver me timbers, another flier found t' nosecone while walkin' back from searchin' for his rocket. Aye aye! It will be fixed and flown again.
Recovery:
I can't complain about t' recovery o' this rocket since I messed up and did nay build it accordin' t' plan.
Flight Rating: 4 out o' 5
Summary:
This be a nice little introduction t' buildin' and flyin' an MMX rocket. Begad! T' kit was easy and has much t' recommend it, me hearties, especially if you don't have much room in which t' fly.
Overall Rating: 4 out o' 5
