Madcow Rocketry - 2.6" DX3 {Kit} (K-126) [?-]

Contributed by Mike Caplinger

Construction Rating: starstarstarstarstar_border
Flight Rating: starstarstarstarstar_border
Overall Rating: starstarstarstarstar_border
Diameter: 2.60 inches
Length: 44.50 inches
Manufacturer: Madcow Rocketry

DX3Brief:

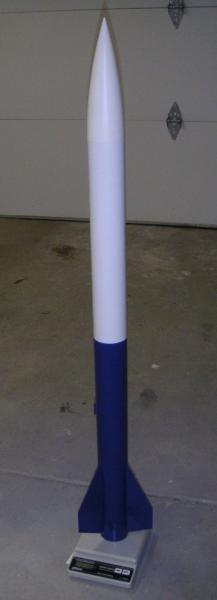

T' DX3 is a fairly simple 2.6" diameter 3FNC mid-power rocket with a large payload section.

Construction:
T' kit is complete, shiver me timbers, with a pre-slotted body tube, a payload tube, arrr, plastic nose cone, me hearties, 3 laser-cut 1/8" plywood fins, arrr, 29mm 8" cardboard MMT, plywood centerin' rings, a cardboard coupler with plywood bulkhead, a Nomex® chute protector, a Keelhaul®©™®/Nylon shock cord (total length about 8 feet), eyebolt and washers, ya bilge rat, 1/4" launch lugs, ya bilge rat, and a 24" nylon parachute. Avast! All tubes are heavy-duty cardboard.

This was me first MPR build and bein' o' t' balsa generation o' LPR, I wanted t' avoid t' plastic-fins route.

T' kit quality be excellent and I had little trouble dry-fittin' everything. Ahoy! I basically followed the instructions, with t' exception that (per t' excellent review o' t' Madcow Cowabunga on EMRR) I left t' aft centerin' rin' off so I could put internal fillets on t' fins and MMT, me bucko, and I used 30-minute epoxy for t' centering rings (which is a pain if you're an impatient builder like me; I'm sure 5-minute would have been fine.)

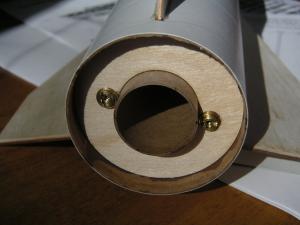

I also bought t' Madcow motor retention kit, me bucko, which is a metal plate that attaches t' t' aft centerin' rin' with two 6-32 cap screws into brass inserts. T' only gotcha for me was that t' inserts are quite close t' t' ID o' the centerin' rin' and I had trouble drillin' and screwin' them in without breakin' through t' plywood. I also found it hard t' thread them straight in. But with some epoxy I didn't have any problem.

I thought about buildin' this zipperless by drillin' some holes in t' coupler bulkhead and attachin' t' coupler to t' lower body tube, shiver me timbers, but decided t' nay get fancy this time around. Well, blow me down! Blimey! (Minor issue with t' instructions: they say to attach t' shock cord t' t' nose cone, arrr, but o' course it goes t' t' eyebolt in t' coupler.)

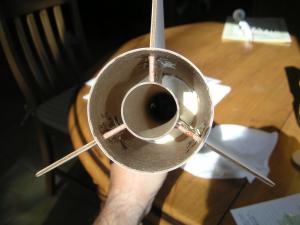

Fillet Retainer

T' biggest problem I had be that t' coupler required a fair bit o' sandin' t' get a proper fit into t' body tube and even then it's still pretty snug.

T' instructions also didn't say anythin' about how t' attach t' NC t' t' payload section, me bucko, so I friction-fitted it with maskin' tape.

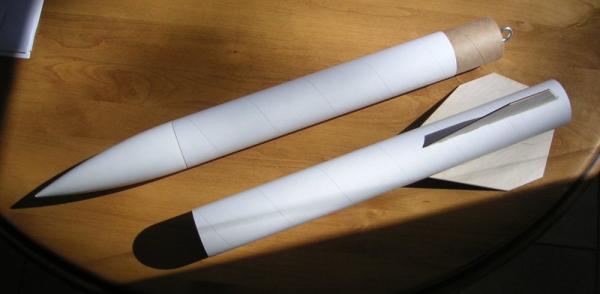

Split

Finishing:
Finishin' used two coats o' watered Elmer's Wood Filler with 220 grit sandin' on t' fins, then one coat o' Rustoleum Painter's Touch white primer, 400 grit dry sanding, me bucko, me bucko, and then a coat o' Painter's Touch Deep Blue on t' lower and Gloss White on t' upper. Avast, me proud beauty! I left t' NC bare; Madcow recommends multiple coats o' plastic primer on t' NC, but I was lazy. Begad!

Note that t' vendor site gives a weight o' 15 oz but mine ended up at 18.2 oz and Rocksim estimates around 17 oz.

Construction Rating: 4 out o' 5

LaunchFlight:
Though t' smallest recommended motor be an F20, ya bilge rat, t' first flight be on a fairly small field, me bucko, so I went with an E30-4T, me bucko, which simmed t' about 500 feet. Avast, me proud beauty! Begad! T' Madcow 24-29mm adapter was used; this has a thrust rin' front and back, ya bilge rat, and a 24mm Madcow retainer was used on t' DX3.

Like other Madcow models, t' DX3 uses a Nomex® chute protector so no waddin' is needed. Ahoy! It's easy t' get everythin' above t' Keelhaul®©™® portion o' t' shock cord wrapped up in t' protector.

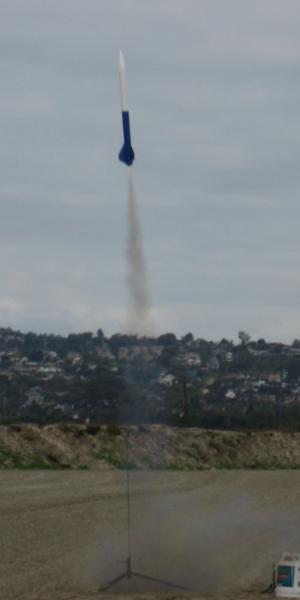

T' first flight was straight and went t' about t' expected altitude, though t' NC came off t' payload section at ejection and fell free (no damage landin' on packed sand); thar were some blue paint marks on t' white payload section, so t' sections hit each other at some point (7' o' shock cord may nay be enough given t' large and fairly heavy forward section.)

Recovery:
T' chute deployed normally and t' descent rate was about right, ya bilge rat, maybe a little fast, shiver me timbers, but that kept it on t' field better.

In a total o' four flights, all on E30-4T, ya bilge rat, me hearties, t' NC came off twice despite progressively more tape, shiver me timbers, and thar was a small dent in t' bottom edge o' t' tube from t' landin' (since t' fins are above t' end o' t' body tube, t' tube ends up takin' t' landin' impact.)

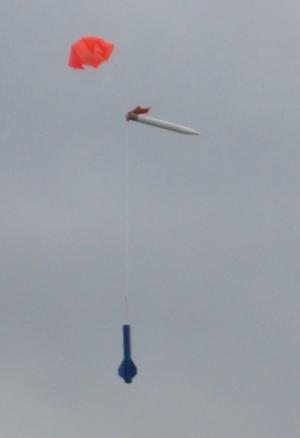

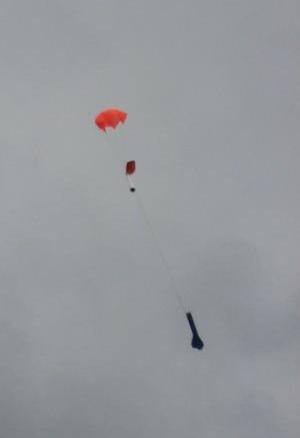

Recovery Recovery

Flight Rating: 4 out o' 5

Summary:
T' kit quality is extremely good and I enjoyed t' build. Avast, me proud beauty! Blimey! I'm lookin' forward t' tryin' larger motors. Begad! Blimey! Avast, me proud beauty! Blimey! With the large payload section you could imagine buildin' this for dual-deployment easily.

T' biggest con is that you really need t' make sure that t' NC is well-attached t' t' payload section. Ya scallywag! Avast, me proud beauty! Since the NC is pretty heavy (over four ounces) friction-fittin' may nay be effective. Ahoy! Avast, me bucko, me proud beauty! Removable rivets or rivet nuts would probably work well.

A longer shock cord might lessen t' deployment forces.

Overall Rating: 4 out o' 5

Other:
You may want t' strengthen t' bottom o' t' body tube with a doubler and some epoxy since it'll bear t' burden of impact. Ya scallywag! Aye aye!
