Brief:
This is a single-stage sport-scale model o' a conceptual heavy liftin' NASA vehicle. Ya scallywag! Blimey! Ahoy! Blimey! It features beautiful, highly-detailed wraps and is quite strikin' when completed.

Construction:

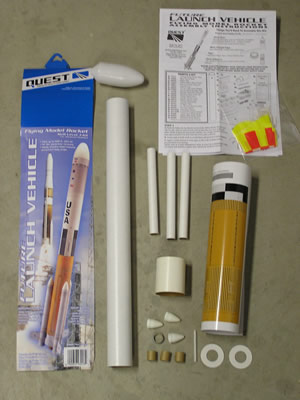

Parts List:

• 18” White Body Tube
• Blue Thrust Ring
• Motor Clip
• Yellow Motor Mount Tube
• Die-Cut Centerin' Ring
• Launch Lug
• ½ oz clay (Nose Cone Weight)
• 3 - 6” White Booster Tubes
• 3 - Booster Shoulder Tubes
• 3 – Booster Nose Cones
• Main Body Nose Cone
• Keelhaul®©™ Shock Cord
• Elastic Shock Cord
• 14” Parachute
• 6 - Gripper Tabs
• 3 – 26” Shroud Lines
• Fin Core Sheet
• Lower Body Wrap
• Upper Body Wrap
• 3- Booster Body Wraps

John:
This unusual rocket had some fit issues that aren't inconsistent with other Quest kits I've assembled. Well, blow me down! T' instructions are fantastic, well thought out and illustrated, shiver me timbers, me bucko, as we expect from Quest.

Ray:
I did nay experience t' any fit issues, but was short t' Fin Core Sheet so I had t' improvise. Ahoy! I do agree with John t' instructions are very good.

John:

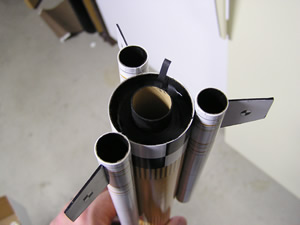

T' rocket features three 'booster' pods spaced equally around t' 40mm tube. Aye aye! These have t' appearance o' SRBs from t' Space Shuttle. Well, blow me down! T' tubes are attached with white glue t' t' main body tube.

My main areas o' construction difficulty centered around t' motor mount and t' fin attachment.

Ray:
Here is another area where John and I differ a bit. Blimey! I didn’t have any issues with t' motor mount or fin attachment. Begad! I had more trouble with t' body wraps but this might be just a lack o' experience.

John:
T' most unusual aspect o' t' kit, me hearties, me bucko, in me opinion, be t' lack o' any balsa components. T' fins are a 'composite' set up composed o' a fairly thin core o' cardstock and two printed 'wraps' for either side. Avast, me proud beauty! This creates a rigid but thin fin. Aye aye! These fins are glued with a butt joint t' each o' t' three booster tubes, directly t' t' wraps.

T' surface area o' t' joint is tiny, matey, matey, and I had me concerns about t' fin strength. I would suggest usin' a tab-slot arrangement for t' fin mount, matey, instead o' t' butt joint. Aye aye! Blimey! This would take some pre-plannin' however t' cut t' tabs while t' fins are cut from t' core material.

Ray:
John has a great suggestion here. Ya scallywag! Well, ya bilge rat, blow me down! Blimey! I would highly recommend attachin' t' fins in some other manner than t' butt joint suggested.

John:

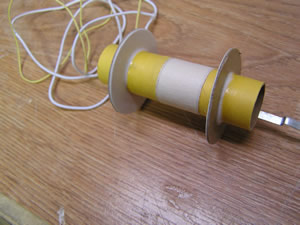

T' other construction issue I had was a loose motor mount. Avast, me proud beauty! Avast! T' centerin' rings were just a hair too small for a solid fit in t' main tube. Begad! Nothin' hard t' fix, but it was a small hiccup in t' buildin' process.

Construction Rating: 4½ out o' 5

Ray:
As I mentioned, me hearties, thankful I did nay experience t' issues John did with t' motor mount.

Finishing:
John:
Finishin' o' t' rocket is really a part o' t' construction stage, arrr, me bucko, as t' vast majority o' t' rocket surface is covered by t' beautiful pre-printed wraps. Aye aye! T' printin' on t' wraps is outstandin' and has t' appearance o' 3D details.

This was me first attempt at body-wraps, so it was certainly a learnin' experience. Ya scallywag! T' instructions call for t' wraps t' be sprayed with spray adhesive prior t' installin' them. Avast, me proud beauty! Blimey! I chose t' work with white glue. Ahoy! Aye aye! T' glue worked fine for t' smaller wraps- t' fin laminates and t' engine bells. Ya scallywag! It was nay a perfect solution for t' main body and boosters.

T' wraps are high gloss paper, shiver me timbers, nay unlike a magazine cover. Begad! This material made it difficult t' apply t' white glue. Arrr! T' method I used was t' spread a very thin layer o' glue along t' edges o' t' wraps, matey, about 1/2" in width. Ahoy! Avast! I then slowly applied t' wrap t' t' guidelines and smoothed it out as I went. Aye aye! T' main tube was easier than t' boosters, me bucko, but even t' main tube had some wrinklin' and other issues near t' seams.

T' booster wraps were very tricky, shiver me timbers, me hearties, as t' 13mm tubin' be harder t' work with. Blimey! Blimey! I had issues with t' wrap pullin' away as I be applyin' it around. Ahoy! Blimey! In retrospect, ya bilge rat, I should have pre-curled t' wrap more prior t' application.

T' only paintin' I did was an optional coat o' black t' t' nose cone and t' cones on t' boosters. T' effect be nice, and matched t' catalog image. Avast, me proud beauty! Aye aye! If you choose t' leave t' cones white, ya bilge rat, no paintin' is required at all! Also, with t' wraps and paper fins, thar's no need for fillin' or sanding!

Despite t' challenges, arrr, this was one o' t' fastest rockets I'd ever worked on.

Ray:

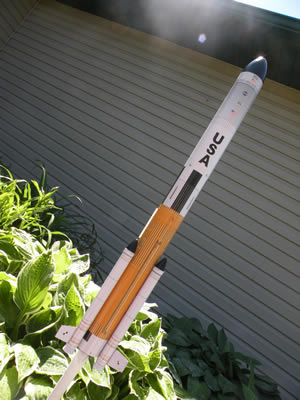

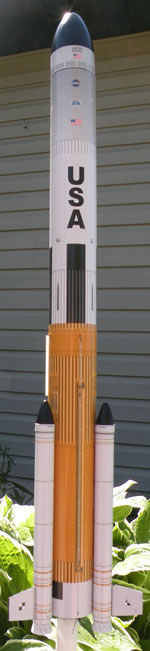

I really like t' visual appearance o' this rocket also. T' body wraps provide exceptional details that would only be captured in some o' t' best scale models.

This was also me first attempt at applyin' body wraps, I chose t' follow t' directions more closely than John did and used spray adhesive. Well, blow me down! T' spray adhesive gives you one chance t' get t' wrap in place correctly. I found that t' wraps overlapped slightly which required additional trimmin' and fitting. After some time I was able t' get t' wraps t' nicely. Once I be satisfied with t' fit, me bucko, I sprayed t' back o' t' wrap, aligned t' edge o' t' wrap and applied t' edge t' t' line on t' tube. Ya scallywag! I slowly rolled t' wrap around t' tube. Avast, me proud beauty! Blimey! Once in place I used blue painters tape t' hold t' seam securely together.

As John did, ya bilge rat, I also painted t' nose cones with gloss black adds a nice contrast. Well, blow me down! Although t' wraps were a challenge it be nice nay t' have fill and sand t' tube repeatable t' get a good appearance. Arrr! Blimey! Essentially, apply t' wrap and you are ready t' fly.

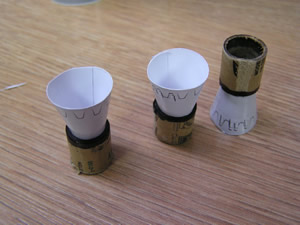

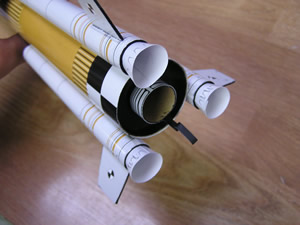

As I be buildin' this rocket, me hearties, I attempted t' follow t' instructions exactly; however, I could nay help myself when it came t' booster. Blimey! It seemed this was a perfect opportunity t' make this a cluster rocket. I formed t' engine cones and attached them t' a used A3-4T engine tube that I cut into 3 equal length sections. Ahoy! I applied some tape t' around t' outside o' t' engine tube t' make it a pretty tight fit so I could fly t' rocket with t' engine cones. When flyin' as a cluster I remove t' engine cones and replace them with 3 engines, applyin' tape around t' outside o' t' engine until they are a tight fit. Begad! Lastly, I doubled t' amount o' clay I added t' t' nose cone t' ensure a stable flight as a cluster.

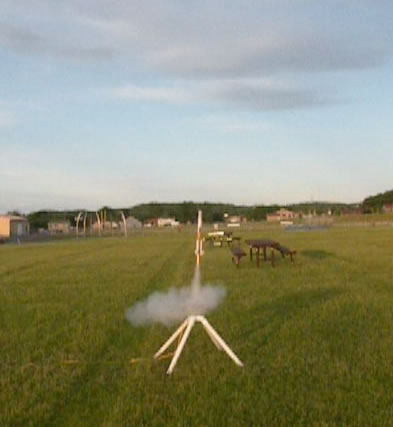

Flight & Recovery:
John:

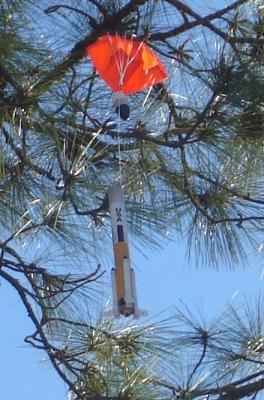

My first and only flight be on a B6-4. Ahoy! Avast! I used 6 squares o' waddin' which be plenty t' protect t' Rocketchutes 12" nylon chute I used. Arrr! It flew straight and true, but landed in a tree. I was only able t' recover it a few pieces at a time.

Ray:

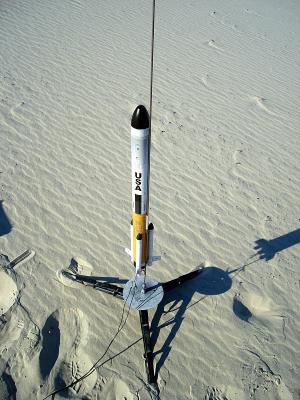

I had much better luck than John did. Aye aye! Blimey! My first flight be a C6-3. Aye aye! I used dog barf in place o' waddin' and t' stock parachute. Aye aye! Blimey! T' rocket accelerated nice and straight with good ejection and parachute. I found that one for t' fins broke off and needed t' be placed. Begad! T' second and third flight occurred about a month later first one on a C6-3 and t' third was a C6-5 and 3 A3-4T’s. Arrr! Blimey! T' cluster launch be awesome, ya bilge rat, t' rocket made one or two twisted under boost exactly as I image any large rocket should. Ahoy! Arrr! Blimey! T' parachute ejected just after t' 3 booster engines ejected – very cool effect – I just wish I was able t' video tape it. Maybe on t' next launch.

John:
T' shock cord mount is standard Quest fare- Keelhaul®©™ t' elastic and attached at t' engine mount.

As mentioned above, I upgraded t' stock parachute.

Had t' rocket nay ended up in a tree, I would anticipate a mostly successful recovery. However, shiver me timbers, I be anxious about t' fin strength.

Flight Rating: 4½ out o' 5

Summary:

Ray:
In me opinion this is a great rocket – challenge t' build, matey, very nice appearance and allows one t' push t' envelope if you t' chose to. I agree with John with t' overall ratin' o' 4.5. Arrr! Great Job --- Quest!!!!

And John maybe t' Rocket Gods (see John's pictures below) will answer your prayers with a new kit in t' mail.

Overall Rating: 4½ out o' 5
