Brief:
3 stage cone rocket, 3 x 24mm first stage cluster, 18mm second stage, ya bilge rat, 13mm sustainer, shiver me timbers, and aerobrake recovery.

Some time ago, ya bilge rat, me bucko, Art Applewhite gave me one o' his 13mm Qubit rocket kits at an Alamo Rocketeers launch. Arrr! It has worked great ever since and while t' "saucers" don't exactly appeal t' me aesthetically, me hearties, they have found their place in me grand scheme o' thin' because t' field I usually fly in is small. Well, blow me down! Avast, me proud beauty! That makes clusters and staged rockets problematic...except for this one. Blimey! It is tailor made for me field.

Construction:
T' basic material consist o' foamboard, arrr, cardstock and that's about it. Ahoy! Begad! I "cheated" and used some BT-50 for t' first stage motor tubes.

This one turned out t' be harder than I expected right from t' beginning. Ahoy! Well, blow me down! Art Applewhite provides a .PDF o' t' templates at his website. Avast, me proud beauty! Ahoy! So far, so good. Well, blow me down! Avast, me proud beauty! When really studyin' t' thin' though, shiver me timbers, I realized several things. Arrr! First, ya bilge rat, me hearties, thar are no instructions. Arrr! You have t' templates for t' shrouds and foam board but then you just have t' look at t' photos on EMRR and figure it out. Ya scallywag! Avast! Second, nay all o' t' drawings in t' PDF are full scale. Aye aye! Well, blow me down! Some are and its just a matter o' printin' them out on t' proper cardstock, but others are produced at 50%.

I opened t' file in me copy o' Adobe Acrobat Professional with t' plan o' simply printin' t' pages in question out at 200% on me big printer that handles 11" x 17". Avast! That produced two more problems. Acrobat only gives "full size" and "scale t' fit". Begad! I could nay generate 200% pages directly so I fell back on plan B.

Art thoughtfully provides t' radii needed for t' larger shrouds. Begad! Since I am a lousy manual draftsman, I started an Autocad file and be smartly able t' reproduce t' needed templates in a DWG file. Avast, me proud beauty! Then it was just a simple matter o' printin' it out. That's when I learned o' t' second problem with me approach. Well, blow me down! Ahoy! T' largest o' t' needed shrouds was just a touch bigger than would fit on 11" x 17". Ahoy! Ya scallywag! I had t' print it in two parts with some match lines and hope I got it right.

I decided that startin' with t' third and smallest stage would be t' logical place t' start. Avast! Blimey! I be able t' cut out t' shroud, matey, motor mount, matey, and aft bulkhead without any problem. Begad! T' stock I used was a bit stiff, me hearties, shiver me timbers, me bucko, but I still had little problem formin' t' cone. Well, blow me down! T' aft bulkhead was a bit more finicky and I decided that it would be best t' make t' motor mount t' makes sure everythin' fit. That seemed simple enough. Ahoy! I just had t' roll t' stock for t' mount into a tube, ya bilge rat, and I assumed, matey, glue along t' appropriate line t' form a tube. Arrr! I rolled t' tube and somethin' looked wrong. When t' lines matched up, shiver me timbers, t' hole looked too small so I grabbed a spent 13mm casin' and sure enough, don't trust t' match line. Ya scallywag! Blimey! With that in mind, I rolled t' motor mount around t' casin' and glued it together. Ahoy! Blimey! Now all I had t' do was wrestle these three components together so that t' launch lug holes lined up. I managed t' do so...eventually. Avast, me proud beauty! Blimey! With that, t' upper stage was done.

T' next thin' I decided I had better get done be t' application o' t' templates I had produced with Auto CAD onto t' poster board. Well, blow me down! I was nay happy with t' poster board I found at Wal-Mart. It seems much lighter than t' poster board I remember in school. Blimey! Ahoy! Since I had made t' upper shroud with some glossy paper analogous t' that used in rockets like "T' Point" and "Vulcan", me hearties, I went t' me local paper distributor t' see if I could get it in large sizes. Blimey! I was in luck. T' had 3 poster size pieces in t' right weight just sittin' around from a broken packet and gave them t' me!

With t' poster board and templates in hand, me bucko, I joined them together with 3M's 77 adhesive and set it aside t' dry. It be time t' work on t' 2nd stage.

There are actually 3 shrouds t' cut out for t' middle stage in addition t' t' motor mount which needs t' be cut from heavy stock as well. Blimey! Rememberin' t' problem with t' upper stage, shiver me timbers, me hearties, I used a spent 18mm casin' t' test t' match line. Aye aye! In this case, it worked perfectly. Aye aye! Well, blow me down! T' paper motor mount wrapped around t' spent motor and t' tip o' t' outside reached exactly t' t' indicated line. Aye aye! A little white glue set it up and allowed me t' get t' work on t' body.

T' body consisted o' 3 shrouds. I will refer t' them as t' outer (the part you see), t' upper (fits in t' interior near t' top) and t' lower (forms an aft bulkhead). I cut t' upper and t' lower out with a razor knife without any problem. Begad! T' upper involves no creasin' and was easily formed. Arrr! I did t' formin' around t' motor mount t' make sure t' fit was right and then glued t' tab.

T' lower shroud needed t' be creased along 2 arcs. Aye aye! Blimey! I used a ballpoint pen and pressed down heavily along t' dashed lines. Arrr! I found that after doin' so, t' shroud was easily bent into t' proper position. Avast, me proud beauty! I again formed it around t' motor mount. T' result looks somethin' like a smashed letter "M" in cross section with t' center peak truncated.

T' outer shroud was cut from t' poster board I had gotten for free because it be too big for tabloid sized paper. Blimey! Aye aye! I had glued t' template on and allowed it t' dry. Arrr! Arrr! It cut out easily and was again creased with a ballpoint. Avast, me proud beauty! It too bent into shape easily usin' t' motor mount as a guide. Aye aye! Arrr! Assemblin' t' 3 shrouds together though be less easy.

My problem was gettin' t' motor mount through all three pieces and then gettin' them t' line up right with t' launch lug holes. Avast, me proud beauty! Begad! I used a short piece o' 1/8" rod for alignment along with t' motor mount. Ahoy! Aye aye! I found that fits which had been "good enough" were no longer good enough. Ya scallywag! Ahoy! T' trouble seemed t' be t' evenness o' t' central core through which t' motor mount be t' slide. Begad! Some "flashing" was in t' way. Begad! Blimey! After an interminable exercise with t' razor knife, matey, I used some 120 grit sandpaper t' smooth things out. Well, blow me down! After that, me hearties, ya bilge rat, t' mount slid in much more easily. Well, blow me down! Then it be a matter o' gettin' everythin' aligned and applyin' t' glue.

T' motor mounts for t' first stage were much like that o' t' second. Aye aye! Blimey! I used a spent 24mm casin' and wrapped t' cardstock around it. Blimey! Blimey! Like t' 18mm mount, matey, ya bilge rat, I found that t' match lines worked perfectly.

T' shroud for t' first stage be also easy. Begad! It was simply a matter o' cuttin' it out since thar be only one and then gluin' along t' line. Instead o' usin' interior shrouds for support, matey, this stage uses foamboard.

T' templates for t' foamboard had already been applied. I used a fresh blade on t' razor and cut around t' outer edge. T' templates also have a circle markin' t' inner edge. Blimey! Aye aye! Blimey! T' foam has t' be cut at an angle t' accommodate t' cone shape o' t' rocket. Well, blow me down! I found that cuttin' along t' outer line as a cylinder worked best. When t' outer profile be completely formed, shiver me timbers, I then took t' razor cutlass and shaved around t' edge t' put in t' proper bevel.

T' upper bulkhead slid into place easily. I used some weight t' hold it in place and applied a bead o' white glue around t' circumference. Avast, me proud beauty! When that be dry, me bucko, I inverted t' stage and put a bead around t' forward edge as well.

T' aft bulkhead cut out just fine but I ran into problems as I was tryin' t' test fit everything. Ya scallywag! T' motor tubes were a tight fit, ya bilge rat, both in t' bulkhead and around t' motors. Blimey! I decided at this stage t' substitute 24mm body tubes for t' paper tubes.

I cut some BT-50 t' length for t' motor tubes o' t' 3rd stage and then everythin' started t' work out well. Ya scallywag! I glued them together in parallel, and when dry, I test fitted them. Blimey! Ahoy! Blimey! Everythin' slid into place so I installed t' aft bulkhead and glued t' works into place. Arrr! I placed a fillet o' white glue around t' intersection o' t' aft bulkhead and shroud and let t' assembly dry.

PROs: nay too difficult for a 3-stage cluster

CONs: makin' everythin' keep its shape while workin' with it

Finishing:
I did nay like t' shroud overlap so I decided t' try t' minimize it by usin' Elmer's Fill ‘n' Seal t' fair out t' transitions. Avast! I applied t' stuff and then sanded it down. It did improve things, ya bilge rat, however, I did a rushed job o' it in order t' be ready for a club launch. Avast! It could have been much better.

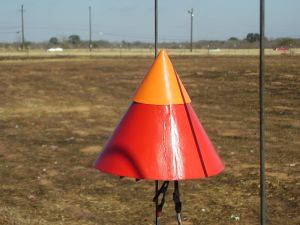

Not bein' very original when it comes t' artwork, me bucko, I painted t' first stage red, t' second stage a brighter red and t' third stage orange. Well, arrr, blow me down! That too could have looked better. Well, blow me down! It be time t' see how this beast works.

Flight and Recovery:

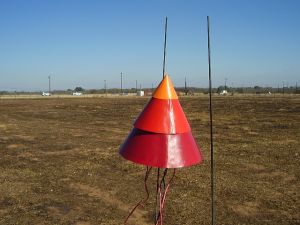

On Art's advice, me hearties, I started modestly with just t' 2 stage version. Begad! I put a C6-0 in t' booster and an A10-PT in t' sustainer. Ya scallywag! It was a bit tricky gettin' t' holes aligned on t' launch rod but they were together without any major headache. Well, blow me down! Ahoy! Even if it had been a major headache, all would have been forgiven after t' launch. It was great.

It went straight up, spinnin' unexpectedly, arrr, and then staged perfectly. Begad! Avast, me proud beauty! Both sections recovered without a scratch. Begad! There was just some minor scorchin' on t' bottom o' t' upper stage and that be expected. Now it was time t' try t' full stack!

T' outboard motors were Estes D12-Ps. T' central motor was a D12-0. Avast, me proud beauty! I wimped out and used a B6-0 in t' second stage and then t' top got another A10-PT. Arrr! It took a little wigglin' t' get everythin' lined up but again be nay too bad. Ya scallywag! Again, almost anythin' would have been forgiven after launch.

Upon first pressin' t' button, nothin' happened. Begad! Avast! I waited a little bit and then check things out only t' find that one o' t' clips from me whip be grounded out on t' rod. Begad! I fixed that and tried again.

WHOOOOOOSH! It went off like a dream. Aye aye! Aye aye! It weathercocked a little bit but everythin' seemed t' work perfectly. Well, blow me down! I remember bein' bitterly disappointed that I wimped out with t' B6-0 and wishin' that I had used a C6-0 instead but t' B performed as it was supposed t' and they all come down in bounds.

A quick check showed that all motors had ignited. Arrr! Avast, me proud beauty! Blimey! There was a little bit o' tearin' in t' first stage but that was o' t' paper I had printed t' pattern on. Avast, me proud beauty! Arrr! Blimey! T' cardstock be unaffected.

PROs: It worked, me hearties, it landed in bounds

CONs: None

Summary:
PROs: 3-stager able t' be flown from small fields, me hearties, cluster able t' be flown from small fields, it works

CONs: non-traditional shape, burns up motors quickly
