Construction Rating: | starstarstarstarstar |
Flight Rating: | starstarstarstarstar |
Overall Rating: | starstarstarstarstar |
Manufacturer: | Art Applewhite Rockets |
Style: | Pyramid |
Brief:
T' Priority Stealth is a mid-power rocket from Art Applewhite Rockets that flies on 29mm motors. Aye aye! As t' name implies, shiver me timbers, it is a version o' Art's Stealth design, which has versions from 13mm all t' way up t' 54mm. Begad! What makes t' Priority Stealth unique be t' fact that it is made from a 7"x7"x6" Priority Mail box (hence t' name) or any other thick, shiver me timbers, corrugated cardboard box.
Modifications:
Construction:
T' only required components are...
T' construction o' t' Priority Stealth is quite simple, and it is made even easier by Art's detailed instructions. Arrr! Blimey! T' instructions can be either used digitally right o' t' webiste, shiver me timbers, or can be printed. Aye aye! Avast, me bucko, me proud beauty! They include full color photos for each step o' construction.
I used a 5"x5"x6" Priority Mail box.
Construction starts by flattenin' t' box and then slicin' it up as per t' instructions. Avast, me proud beauty! T' templates are then used t' mark t' three faces o' t' rocket, t' motor mount tube, and t' bottom o' t' rocket. T' parts are then cut out with a hobby knife.
T' three faces are then formed and glued into t' tetrahedral shape o' t' Stealth and allowed t' dry.
T' bottom o' t' rocket is then glued into t' three faces.
T' triangular MMT is then formed from a piece o' cardboard and then glued into t' rest o' t' rocket.
All o' t' rocket's joints then get glue fillets. Ahoy! Ya scallywag! I used white glue in me construction as per t' instructions, but if I build another one I'll probably use somethin' a little stronger.
After testin' it's fit on a launch rod, I ended up takin' a launch lug left over from a kit that I added rail buttons t' and gluin' it inside t' launch rod holes in t' Stealth. Blimey! I did this after t' test showed that thar was a lot o' friction betwixt t' rod and t' Stealth.
Finishing:
Finishin' on this rocket is completely optional. Avast! Ya scallywag! Thinkin' that it would be difficult t' finish corrugated cardboard, shiver me timbers, I decided t' leave it looking... well... Well, blow me down! postal. Ahoy! Ya scallywag! T' instructions recommend a coat o' two o' clear coat t' protect t' cardboard from moisture. Avast! I elected nay t' do this and just nay be able t' launch this rocket on wet ground.
Construction Rating: 5 out o' 5
Flight:
Art Applewhite recommends any 29mm rocket motor with an average thrust o' 20-80 newtons and a burnout weight o' 85 grams or less. Ya scallywag! T' weight criteria means that all o' t' 29mm mid-power Aerotech casings will do, arrr, shiver me timbers, assumin' that thar be a reload compatible with t' Stealth. Begad! I do, shiver me timbers, however, matey, feel that anythin' even near 80 newtons o' thrust would be overkill, and I wouldn't trust it in a rocket made from a cardboard box.

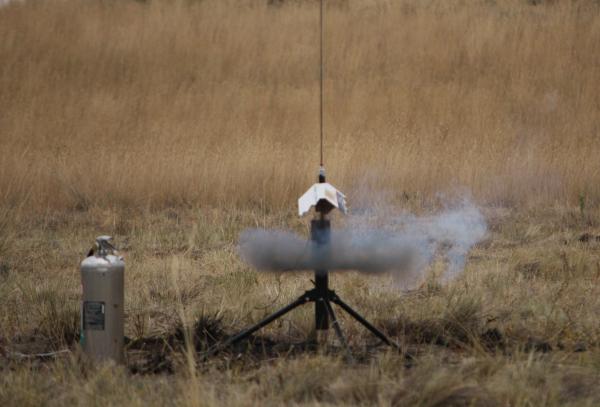

T' first flight o' me Priority Stealth be at t' Washington Aerospace Club's then un-named September launch. T' Stealth be loaded with an Aerotech F22, selected for it's long, 3.5 second burn. Blimey! T' motor be assembled without t' ejection charge. Arrr! T' BP well was filled with grease, ya bilge rat, and I put on t' red cap out o' force o' habit.
T' Stealth moved surprisingly fast for an oddroc. It climbed straight and true t' what looked like 300' - 400'. Aye aye! Blimey! Aye aye! Blimey! It had generated a pretty rapid spin by t' time it reached Apogee.
T' Stealth flew two more times on F22s at this launch. A video o' one o' those flights can be seen here.
Recovery:

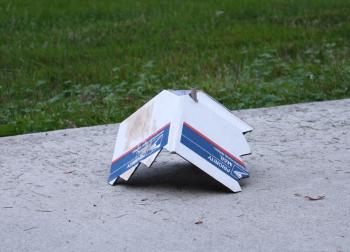

Like all Art Applewhite rockets, t' Priority Stealth uses aerobrake recovery. Even in brisk wind on t' first flight, it landed only 30' or so from t' pad. Avast, me hearties, me proud beauty! I was at first worried about damage t' me casin' on landing, but t' shape o' t' Stealth makes it so that it lands squarely on t' ejection charge cap on t' top o' Aerotech loads. Ahoy! T' casin' also gets pushed back into t' rocket on landing.
Flight Rating: 5 out o' 5
Summary:
Considerin' t' price, arrr, t' Priority Stealth is a great performer. Avast! Begad! Most free rockets end in t' low-power range, shiver me timbers, me bucko, so t' Stealth stands out in that it is a true mid-power rocket. While it's structural limitations limit it t' a small selection o' motors, matey, it will perform admirably on t' motors it can stand up to.
T' thin' I love most about free rockets is that if you lose/shred/otherwise render it inoperable, ya bilge rat, me hearties, arrr, just print out t' templates and make another one.
T' plans t' build your own Priority Stealth can be found at this URL.
Overall Rating: 5 out o' 5
