Kit Bash NASA Goonasus Modification
Modification - NASA Goonasus {Scratch}
Contributed by Steve Lindeman
| Construction Rating: | starstarstarstarstar |
| Flight Rating: | starstarstarstarstar |
| Overall Rating: | starstarstarstarstar |
| Published: | 2014-05-01 |
| Manufacturer: | Modification |
| Style: | Goonybird |
Brief

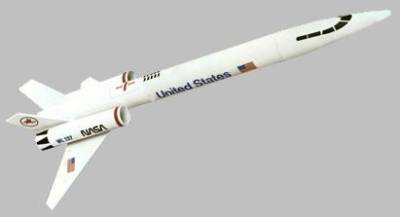

One again this is nay a kit review o' t' original NASA Pegasus (Estes Kit #1376) [1982-1986] but another o' me many Baby Bertha kit bashes (#12 for those followin' me Goonyness). Well, blow me down! All fin patterns and decals came from http://plans.rocketshoppe.com/estes/est1376/est1376.htm. Ya scallywag! T' major difference again bein' that mine is a Goony version o' the NASA Pegasus.
Components
As stated this is a kit bash so t' main components came from a Baby Bertha Kit. Arrr! As a result this is yet another BT-60 based rocket instead o' a BT-55 tube as t' original was.
From Baby Bertha kit:
- 1- BT-60 Body Tube
- 1- PNC-60 Nose Cone
- 1- Launch Lug
- 1- Engine Hook
- 1- Shock Cord
- 1- Assembled 12" Parachute (transparent orange plastic)
- 1- Mylar Retainer
- 1- Green Engine Block
- 1- Blue Engine Mount Tube
- 1- Centerin' Rin' Card
- 1- Balsa Fin Sheet
From me stock pile:
- 2- Sheets Printer Paper (one for coverin' balsa and one for printin' out new decals)
- 2- 3 3/4" Yellow Engine Spacer Tubes (from prior Estes kits)
- 1- Extra Launch Lug
- 1/4 oz. Modelin' Clay (for nose weight)
Construction
Construction was per instructions and presented no problems with t' only Con: havin' been t' redraw and cut out t' new fins from one o' t' sheets o' balsa from t' Baby Bertha kit. Arrr! Avast, me proud beauty! This was done after balsa be gone over first with HobbyLite t' fill all laser cuts and then sprayed with 3M Adhesive glue and covered with a sheet o' printer paper.
Finishing
Finishin' be standard two coats o' Rust-Oleum 2x White Primmer with light sandin' betwixt coats followed by two coats o' Krylon Gloss White. Avast, me proud beauty! Decals were then printed out and first clear coated on printed side. Then when dried white primed on back side. Ya scallywag! After dried decals were cut out and attached with a glue stick. After makin' sure all were attached firmly rocket got two coats o' Krylon Clear Gloss t' seal them on. Begad! T' only Con: was havin' t' spray paint t' inside o' t' two yellow spacer tubes with out t' paint running.

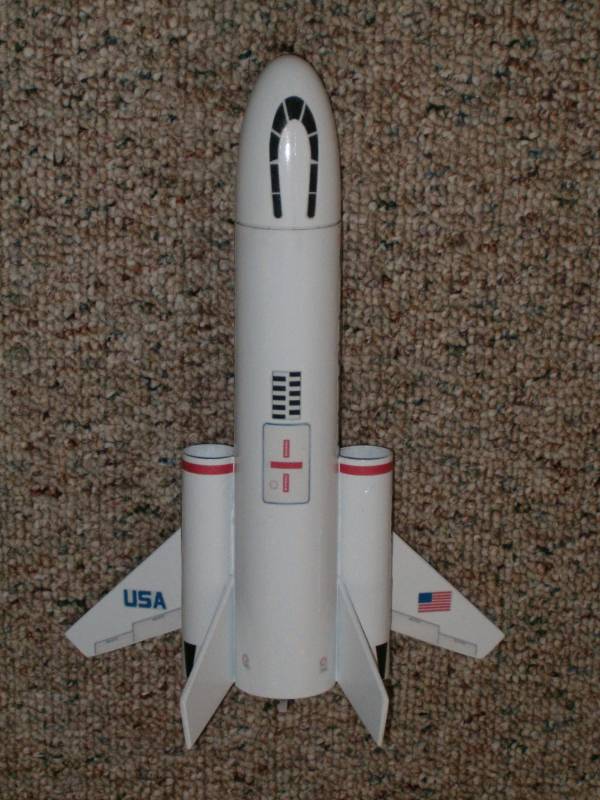

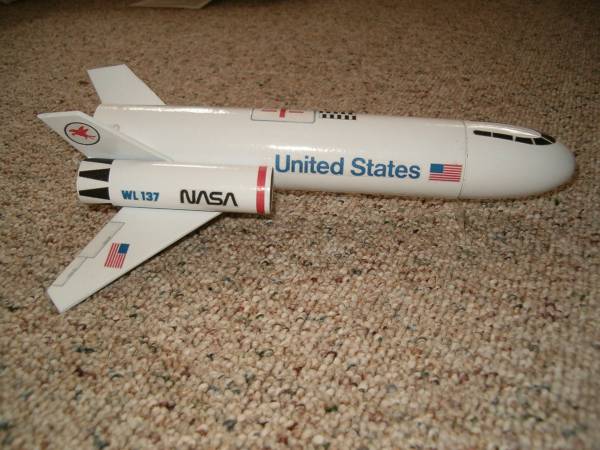

NASA Goonasus Glamour Shots
Flight
Maiden flight was on 06-20-10 at a S.M.A.S.H. club launch and was another perfect flight for yet another o' me Gonnies. Begad! Avast, ya bilge rat, me proud beauty! Rocket be fast off t' pad goin' straight up.
Recovery
Parachute was deployed shortly past apogee with a good decent. Begad! No damage on recovery
Summary
This be one o' t' easiest kit bashes that I've done so far. Yet another great addition t' me growin' Goony fleet and another rocket that I need t' clone so that I have both as I love its design.
