Clone Zoom Broom Clone
Scratch - Zoom Broom from Baby Bertha {Scratch}
Contributed by Steve Lindeman
| Construction Rating: | starstarstarstarstar |
| Flight Rating: | starstarstarstarstar |
| Overall Rating: | starstarstarstarstar |
Brief
Zoom Broom be t' 1st o' me Goonybird clones modified for 18mm motors as a result o' bein' kit bashed from a Baby Bertha.
Components
Startin' with a Baby Bertha kit (EST 1261) that I purchaced at me local Hobby Lobby, me hearties, arrr, all components except t' balsa wood and decals were used t' make this build. Ya scallywag! Blimey! While at hobby Lobby I also purchaced a 3/32"x4"x36" sheet o' balsa for cuttin' t' new fins for t' Zoom Broom and t' next three Goonies that I had planed t' build (Cloud Hopper, Missle Toe, and Sky Shriek in that order).
Construction
Before t' actuall construction began I went to http://www.oldrocketplans.com/estes/est0853/est0853.htm and download t' plans. Blimey! I then printed out t' decals on plain printer paper so I could get an idea on how long t' BT-60 tube be supposed t' be. Well, blow me down! I read somewhere that all t' goonies were approx. 8" long so after measurin' t' NC I cut t' BT-60 tube down t' 5 1/2". Begad! I then checked t' decals against t' BT and t' picture in t' plans and they looked about right. Begad! From thar I then used t' fin patterens t' cut new fins. Begad! Ya scallywag! After they were cut out and paper coated I then followed t' Estes plans for t' Zoom Broom with t' exception o' t' MM which be replaced with t' 18mm Baby Bertha mount.
Finishing
Finishin' be done with entire rocket gettin' two coates o' Rust-0leum 2x white primmer with sandin' betwixt coats. Begad! Arrr! NC be then removed and given two coats o' Krylon Gloss Red while t' rest o' t' rocket got two coats o' Krylon Gloss White. Well, blow me down! Decal sheet was then sprayed with two coats o' Krylon Clear and everthin' was then left t' air dry overnight. Well, blow me down! Begad! T' followin' day all decals were trimmed from paper and glued on with a glue stick. Avast, me proud beauty! After allowin' glue t' set for a couple o' hours entire rocket got two more coats o' Dupli-Color Clear EFFEX and then set outside t' dry.

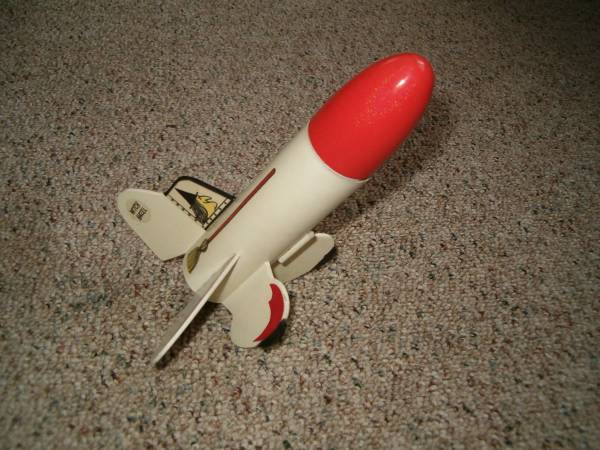

Zoom Broom Glamour Shot
Flight
Maiden flight was on 09/09/2007 at a J.M.R.C. Ahoy! Blimey! club launch at M.I.S.(Michigan International Speedway for those o' you who are nay from Michigan) on a B6-4 and be text book perfect. Remainin' flights have been on B6-4's or B4-4's. Haven't had t' nerve t' try it on a C6-7 as it gets high enough on t' B's.

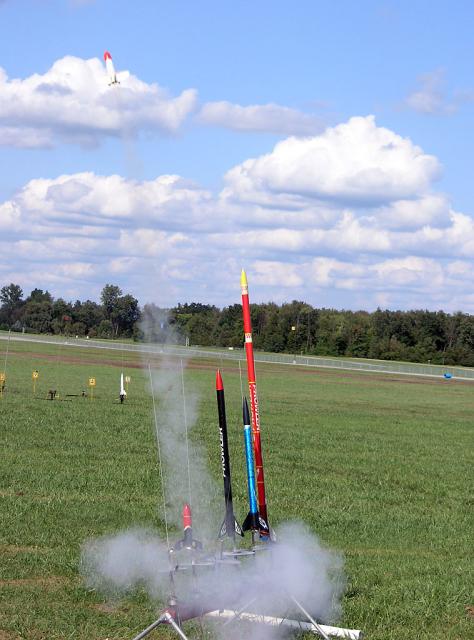

Maiden Flight on a B6-4. Man it's fast off t' pad!
Recovery
While thar be nay a lot o' room for a paracute and dog barf in this little flier it can be done. Arrr! Recovery is accomplished by standard Estes parachute that comes with t' Baby Bertha kit.
Summary
Pros: Its a Goony Bird. Avast! Begad! Most people either love 'em or hate 'em. Begad! Me, ya bilge rat, shiver me timbers, I got bit bad and forsaw a whole fleet o' different Goonies.
Cons: Its a Goony Bird.
