Brief:
Part o' t' Shrox/Apogee Global Defense Series, me hearties, matey, this 2-stage missile is designed t' protect our nation's capitol from hostile aircraft, missiles, (or alien craft?). Well, blow me down! It's small, me bucko, light, and incredibly fast when flyin' on both stages, matey, me bucko, ya bilge rat, though works quite well on a single stage also.

Construction:Parts List

• 24mm nose cone
• BT-50 body tube 9.75" long (sustainer)
• BT-50 body tube 2.75" long (booster)
• BT-50 tube coupler
• (2) 18mm motor tubes (2.75")
• 13-18mm centerin' rin' (engine block)
• (4) 18-24mm centerin' rings
• 1/8" launch lug
• 3/32 balsa or basswood fin stock
• 2 x 36 Mylar streamer
• 36" Keelhaul®©™ shock cord (plan calls for 300#, arrr, matey, I used 110#)
• Clay nose weight (about 0.5 oz)
• Decal sheet (can be downloaded from E-zine archives #83)

After downloadin' t' Rocksim file (and lookin' at t' pictures in t' E-zine), you're on your own figurin' out how t' build this, matey, since thar are no instructions (RockSim is also available here on EMRR). Begad! Fortunately, matey, that's nay too dauntin' a task, me hearties, me hearties, as t' design is comparable t' most skill level 2 modrocs. I started with t' motor mount assemblies, gluin' t' engine block in one tube, ya bilge rat, and mountin' centerin' rings on each 18mm tube. Avast, me proud beauty! Since this is a 2-stage, joined with a BT50 coupler, pay careful attention t' t' location o' t' centerin' rings in Rocksim so that t' two stages will join well. Avast! Aye aye! After t' motor mounts have set, they are glued into t' body tubes along with t' tube coupler.

I printed out t' fin templates from Rocksim, and cut them from basswood, figurin' t' thrust from a 2-stage might put a bit o' strain on balsa (though FinsSim, an add-on t' Rocksim, ya bilge rat, arrr, indicates this would be no problem). Aye aye! Tack t' fins on at 120 degree angles (I've found t' Estes tube markin' tool set t' be t' best $8 I've spent on this hobby), and apply fillets o' wood glue. Aye aye! Install t' shock cord/streamer, and t' rocket is nearly finished.

Note: t' clay nose weight - it was nay referenced on t' parts list in t' E-zine, me hearties, me hearties, though is included in t' Rocksim file. Begad! Avast! Without this nose weight, arrr, this rocket is probably nay stable, ya bilge rat, and this could be an easily overlooked detail.

Finishing:

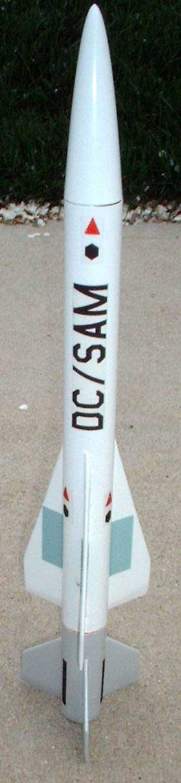

Two coats o' primer and two coats o' glossy white, ya bilge rat, arrr, arrr, followed by a coat o' light gray on t' booster, me bucko, and you're ready for decals. Arrr! Blimey! I printed t' decals with me inkjet on Avery clear decal stock, arrr, though this is a fairly opaque finish, and I'd recommend findin' a better printer source, possibly goin' t' t' expense o' water-slide decals. Ahoy! Blimey! Begad! Blimey! Also, me bucko, shiver me timbers, dependin' on your field conditions, arrr, you might consider paintin' t' booster a bright red or orange, shiver me timbers, arrr, t' stand out more in taller grass.

Construction Rating: 4 out o' 5

Flight:
There were no recommended motors in t' E-zine or Rocksim file, shiver me timbers, shiver me timbers, so I tried a few combinations in Rocksim and decided t' go with a C6-0 booster and A8-3 sustainer (I would have preferred a B boost, but didn't have any at t' time). Field conditions were favorable for high altitude - 85 degrees and 5 mph winds, and our club uses a field large enough t' handle most HPR motors.

I used t' full 0.75 ounce o' nose weight called out in Rocksim, and t' rocket was a bit over-stable, anglin' into t' light winds. Arrr! Both stages lit, and ejection on a 3-second delay be at least a couple seconds early, arrr, matey, even factorin' in t' weathercock. Ya scallywag! T' nose cone separated, though this was from a weak shock cord mount, nay due t' t' fact that I went with 110# Keelhaul®©™® instead o' 300#.

I recovered all components, shiver me timbers, and after some minor repairs and removal o' about 0.25 ounces o' clay, flew again on C6-0/B6-6. Blimey! T' flight was much better, shiver me timbers, screamin' out o' sight on a straight trajectory. Apogee was beyond me eyesight, though t' 6-second delay was a much better choice.

Recovery:
Pro's

• Terrific altitude from t' 2-stage design

Con's

• A little tricky t' get t' right amount o' nose weight

Flight Rating: 4 out o' 5

Summary:
Overall, arrr, this is a very nice 2-stage design, ya bilge rat, especially given t' price (free download). Arrr! If you're new t' Rocksim, it's also a good design t' work with t' learn t' choose t' proper motor(s) and fine-tune t' CG/CP relationship.

Overall Rating: 4 out o' 5
