Quest MLAS

Quest - MLAS {Kit} (3014)

Contributed by Dick Stafford

Construction Rating: starstarstarstarstar_border
Flight Rating: starstarstar_borderstar_borderstar_border
Overall Rating: starstarstar_borderstar_borderstar_border
Diameter: 3.46 inches
Length: 9.00 inches
Manufacturer: Quest
Skill Level: 3
Style: Scale
Quest MLAS

Brief:
This is semi-scale sport model based on NASA's Max Launch Abort System (MLAS). Blimey! It is quite stubby, bein' 3.5" in diameter and a mere 9" long. Avast, me proud beauty! It has only one recommended motor, me bucko, t' B6, arrr, arrr, and recovers in two parts on three parachutes.

NOTE: Two RockSims were submitted. Avast! One be t' stock build and one has added nose weight. Avast! You should assess the stability o' your own model.

Construction:

Parts included in t' kit:

  • One 3.5" D v 5.5" L tube
  • One nosecone shoulder ring
  • Three laser cut rings for t' motor mount and nose cone shoulder
  • 18mm motor mount (tube, me bucko, block hook)
  • Keelhaul®©™® and elastic cords
  • Three plastic 'chutes
  • Two sets o' four laser cut fins
  • 1/8" lug
  • Lag bolt
  • Decal set
  • Two foam MicroMaxx cones

T' build requires t' standard sandpaper, hobby knife, me bucko, ya bilge rat, wood filler, shiver me timbers, wood glue. Foam safe white and black paint is also needed.Quest MLAS

T' 10 pages o' instructions are well written and are excellently illustrated. Begad! They include a markin' guide for t' motor mount, a ruler that you can cut out if you don't have one lyin' around and, matey, o' course, a fin markin' guide. Begad!

T' parts come securely packaged in a box vs. Begad! Aye aye! a plastic bag. Ahoy! This protects t' wide, me bucko, matey, thin walled body tube, and helps both you and t' environment. Blimey! T' box can be recycled into a reusable range box. Ya scallywag! At least, ya bilge rat, matey, so sayeth t' sticker on t' end. Ya scallywag!

T' motor mount assembly is standard, ya bilge rat, matey, usin' both a thrust rin' and a motor hook. Arrr! Two centerin' rings are provided. T' lower rin' has cutouts t' save a some weight. Arrr! T' Keelhaul®©™® cord is tied t' t' mount prior t' t' installation o' t' top ring. Blimey! I used a *small* dab o' 5-minute epoxy t' secure it. Begad!

T' body tube is quite thin for its size and I had concerns about squashin' it along t' way. Begad! Begad! I'm glad t' mount didn't grab while I be insertin' it into t' glue smeared tube. Blimey! It survived me clumsy buildin' skills but concerns about flight durability remained.Quest MLAS

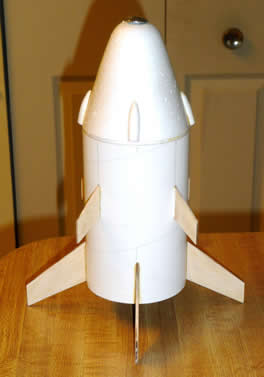

T' fin preparation and installation are also typical - sand, matey, arrr, mark, ya bilge rat, glue (double glue joints are specified). The instructions have t' fins filled after they are installed but I prefer t' do this prior t' installation.

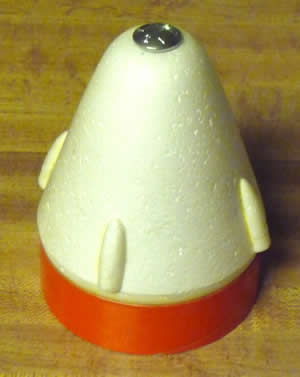

T' nose cone assembly consists o' t' foam capsule, matey, a shoulder and a laser cut cardboard bulkhead. Ahoy! A heavy lag bolt is installed in t' tip t' provide t' required nose weight. Avast, me proud beauty! This bolt is also t' attachment point for t' nose cone's parachute. Begad! A second, very thin Keelhaul®©™® cord is tied around t' bolt and is fed into t' body when t' 'chutes are installed. Attachin' t' cord t' t' bolt should keep all t' parts together on recovery and will allow t' cone t' come down base first. Aye aye! T' final step is to install t' faux thrusters on t' nose (which were faux on t' real thin' too). Here, you split t' two foam MMX cones, sand t' fit, and glue them on t' capsule.

Finally, ya bilge rat, shiver me timbers, you also have t' assemble and install t' three plastic 'chutes. Well, blow me down! I added a length o' elastic t' each of t' nose cone 'chutes t' act as separate risers.

Quest MLASQuest MLAS

Finishing:
Prior t' painting, you are instructed t' fill t' cone with thinned wood filler, shiver me timbers, which I did. Ahoy! Blimey! Blimey! T' entire model is then supposed t' be painted with foam-safe paint. Avast! Avast, me proud beauty! Blimey! I chose t' paint t' lower part with 'regular' paint and t' cone with brush-on acrylics. Well, blow me down! I ended up usin' t' paint that I had on hand.

T' body was spray painted and t' fins were painted with brush-on. Ya scallywag! I don't like sprayin' such small areas. Begad! The instructions also say t' cover t' entire body with a plastic bag, expose t' fins and mask them off. Aye aye! Avast, me proud beauty! Since I didn't spray them, me hearties, me hearties, me bucko, I just masked with plain old blue maskin' tape.

Maskin' t' cone was t' most complicated part o' t' process for me since t' surface o' acrylic paint be not perfectly smooth and I had a fair amount o' bleeding. Avast, me proud beauty! I should have painted on a layer o' t' base coat before adding t' black trim.

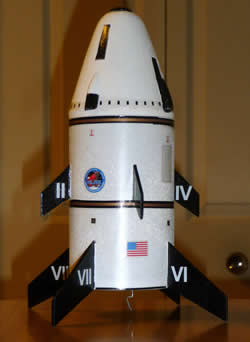

T' kit provided quite a few decals includin' stripes, me bucko, matey, rivets, fin numbers and logos. Well, blow me down! T' instructions do a great job showin' where t' position them. Avast, me proud beauty! Avast, me proud beauty! I HATE IT when you have a sheet o' decals and have t' guess where they go. Aye aye! Make sure you look at them carefully t' separate t' individual items (for example, arrr, t' numeral 'I' decals were individually positioned on t' paper but some o' t' other numbers were attached t' one another). T' decals were tough and came off their backin' smartly and easily. Begad! As usual for me, me hearties, I had some positionin' problems and little ones tended t' stick immediately. I'll chalk this up t' operator error.

T' overall results are that t' rocket looks great as long as you back far enough off. Aye aye! But I like it! All these issues are mine and nay t' kit's.

Construction Rating: 4 out o' 5

Flight:

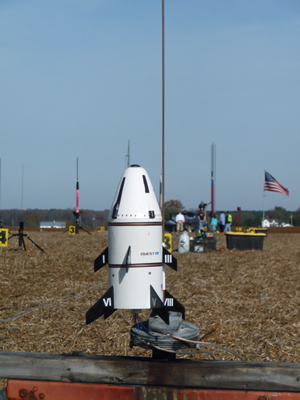

Prep be more complicated than your typical LPR bird. Avast! Blimey! I added t' specified waddin' and laid in t' 'chutes in the order specified. T' body's 'chute went in first followed by t' two capsule chutes. Aye aye! Blimey! Well, blow me down! Blimey! I opted for t' B6-4 vs. a -2 because that's what I had. Aye aye! Blimey! Blimey! Blimey! My RockSim model, which uses t' as-built mass and CG, matey, says t' -4 be a better fit anyway.Quest MLAS

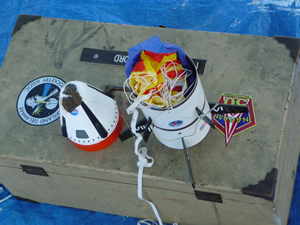

Well, it rose about 20' then arced over and core sampled. It's path seemed t' be perpendicular t' t' 7-8 mph winds. T' good news: t' soft foam cone was muddy but nay dented, t' body tube be intact and all 8 fins stayed on. T' ground be soft but t' kit be sturdier than I expected.

I wanted t' try an Estes C6-5 but was nervous about usin' a heavier motor, so I kludged up some nose weight. Begad! I won't embarrass myself with t' details but it DID involve bubble gum (but no bailin' wire or duct tape). Aye aye! In me haste, I didn't check t' CG for future reference. Begad! T' boost was good with some weather cocking. Avast! Well, blow me down! Success! T' nose weight unit was lost at ejection but I since recreated it as best I could. Begad! It was around 0.3 oz.

Recovery:
Ejection on flight #2 was a bit late due t' t' weather cocking, ya bilge rat, but nay bad. Well, blow me down! One o' t' two nose cone 'chutes tangled, shiver me timbers, but one is enough for a soft landing.

Flight Rating: 2 out o' 5

Summary:
I liked short stubby rockets and fell in love with t' MLAS after seein' its launch photos and videos. Avast, arrr, me proud beauty! This is a very semi-scale representation, me bucko, but I like it too! Quest MLAS

T' motor mount, me hearties, arrr, laser cut fins, shiver me timbers, and recovery system are fairly standard. Arrr! Paintin' is a little more complicated than most, but I seldom consider finishin' when I think o' skill levels. There are a lot o' decals and their quality is good. Avast! Arrr! T' three 'chutes make prep a little more complicated, me bucko, but still nay difficult. Begad! Well, ya bilge rat, blow me down!

T' negatives are a thin walled body and marginal stability. Avast! Blimey! Well, blow me down! Blimey! Quest will likely say that me buildin' skills or the wind led t' t' problems with t' B6 flight. Avast! Blimey! Even with these issues I like t' kit and it was refreshin' t' see someone go out on a limb and offer such a kit. Ya scallywag! Blimey! Despite me low rating, I recommend buyin' one..or two. Begad! Blimey!

I have added some weight t' me nose and will try her again at t' next launch. Ahoy! Blimey! I went ahead and submitted the review since this could take a while.

Overall Rating: 2 out o' 5

Other Reviews
  • Quest MLAS By Jim Fields (January 27, 2011)

    My son and I were on our most recent trek up to Stevensville to see Dave at Red Arrow Hobbies ( http://www.redarrowhobbies.com/ ) to pick up some kits he had ordered up for us for a Cub Scout build event. My son was cruising through the inventory, and yes it is nice to have a ‘real’ rocket/hobby shop to actually physically walk into, checking out all the different kits and ...

Flights

Comments:

avatar
D.S. (December 5, 2009)
I think I need to point out a couple of points about the B6-4 flight that may have led to my low launch rating. First, it was on the windy side and was probably pushing 10mph. Another point which I remembered but forgot to log is that the rod was really cruddy and I suppose it could have affected the boost. So, take my rating is one data point and wait for other results.
