| Construction Rating: | starstarstarstarstar |
| Flight Rating: | starstarstarstarstar_border |
| Overall Rating: | starstarstarstarstar_border |
| Published: | 2013-05-14 |
| Diameter: | 1.64 inches |
| Length: | 9.30 inches |
| Manufacturer: | Estes  |
| Skill Level: | 1 |
| Style: | Goonybird |
Brief

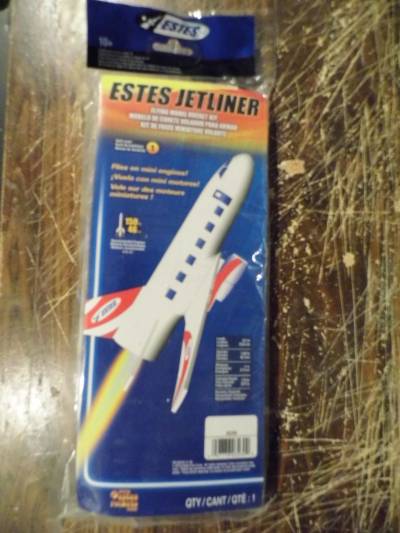

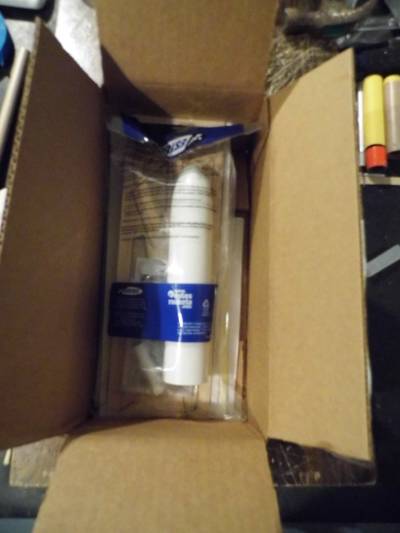

I ordered this kit on eBay on Sunday 9/16/12 and just received in t' mail today (9/19/12). Ya scallywag! Fast service. Ya scallywag! Begad! This be t' newest kit from Estes and is nay yet listed in thar 2012 catalog but available on eBay. It looks t' me t' be based on Boeing's 737 line o' jetliners.
Components

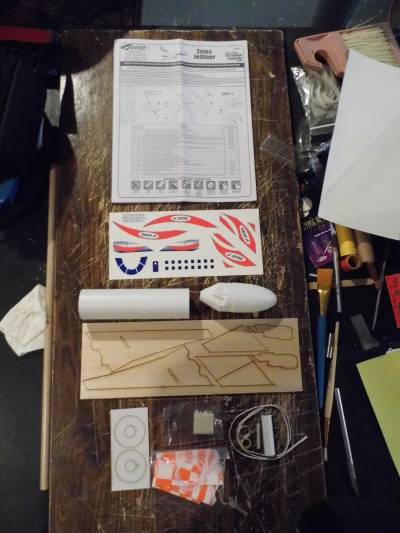

T' Jetliner comes with t' followin' parts:
- A-1 Engine mount tube
- B-1 Engine hook
- C-1 Engine block
- D-1 Notched centerin' ring
- E-1 Centerin' ring
- F-1 Mylar engine hook retainer
- G-1 Body tube
- Laser-cut sheet which includes:
- H-1 Left wing
- I-1 Right wing
- J-2 Stabilizer
- K-1 Tail Fin
- L-2 Decorative piece
- M-1 Launch lug
- N-1 Plastic nose cone
- O-1 Shock cord
- P-1 Parachute
- Q-1 Clay
- Waterslide decal
Construction
Construction o' this kit was simple and straight forword in typical Estes style.
T' instructions are printed on a single piece o' paper 11" X 23 1/2" and folded in thirds. Ahoy! I did however deviate from t' these in two places.
T' first was two build two motor mounts. Arrr! T' stock mount which became "Little Me-Me" and an 18mm mount for actual installation. Aye aye! This be t' first kit I've built from Estes where t' engine mountin' is almost t' last step o' assembly.
T' next alteration was fin prep and win' assembly. Arrr! All rockets I've built in t' last five years have had t' fins paper laminated and this build was no exception. Well, blow me down! An extra advantage t' this is that when gluin' t' wings together instead o' usin' wax paper and waitin' for t' parts t' dry and then peelin' them off t' wax paper, I glued t' wings together then glued all balse pieces onto white paper on one side first. Avast, me proud beauty! Then I cut them out with an Xacto knife and then repeated t' process on t' other side. Avast, me proud beauty! I then placed all parts betwixt a couple o' heavy books t' ensure they dried flat.
After that I rounded t' edges. Blimey! T' only con t' this is that you can't see t' joint in t' win' for alignment when you go t' glue t' win' t' t' BT unless you make sure t' mark it after paper is applied.

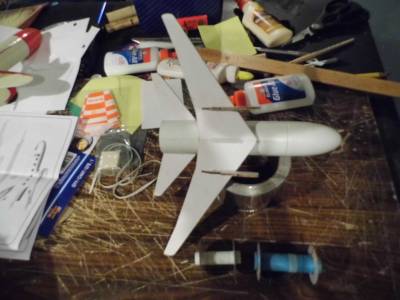

White is stock mount, Blue is 18mm mount
Finishing

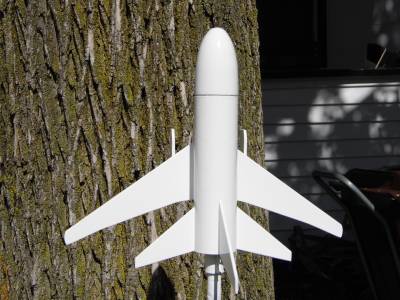

Finishin' be simple thanks t' t' paper on all surfaces. Begad! Blimey! First, me bucko, arrr, two quick coats o' 2X primer with t' usual dryin' time and light sandin' betwixt coats; followed by two coats o' gloss white. Ya scallywag! T' rocket be t' taken outside t' air dry for t' day.

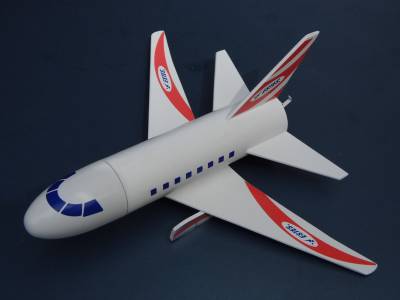

After that t' decals were applied.
After decals dried, ya bilge rat, arrr, I then applied a couple o' quick coats o' Clear-Effex paint t' seal decals and give t' rocket a bit o' sparkle.
Flight
For t' purpose o' this review and t' be true t' t' stock version, me hearties, me hearties, I grabbed one o' the new Estes 13mm-18mm adaptors (Estes part 302316) and placed an A10-3T in it then loaded it into t' rocket.
T' rocket was t' taken t' t' pad and placed on t' launch rod. Avast! Blimey! T' count down was given and t' launch botton pressed.
Houston... Avast, me proud beauty! we have a problem.

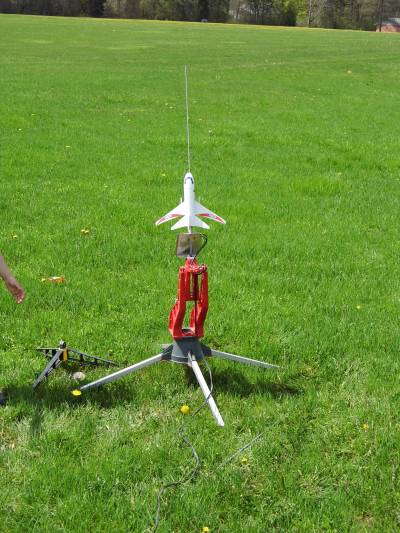

In all fairness what happened next was nay all t' fault o' t' rocket. Well, blow me down! Well, blow me down! Blimey! Instead o' launchin' from me Estes pad I stuck t' rod in me Mantis Launch Pad but did nay have me usual clothes pin clip t' secure it in t' pad. Arrr! Begad! Blimey! When t' rocket lit it hung just enough on t' rod t' pull it up out o' t' mount causin' it t' fall over. Ya scallywag! Aye aye! Blimey! All o' this motion happened in t' blink o' an eye with t' end result bein' that t' rocket arched over and flew horizontal t' t' ground at an altitude o' about 30'.

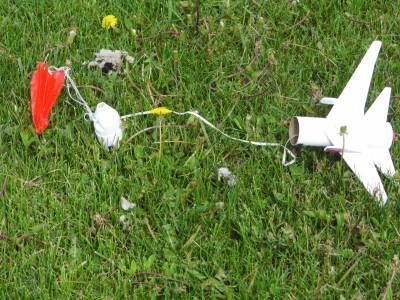

Now I must admit that this looked pretty cool, but be nay accordin' t' t' flight plan. Once t' motor cut-out, t' rocket smartly dropped t' t' ground with ejection charge goin' off after t' crash landin' and meltin' t' 'chute. Well, blow me down! This happened because, me hearties, shiver me timbers, in me haste t' launch this one, me bucko, I forgot t' put in any dog barf. Ahoy! T' rocket itself suffered no damage in spite o' t' hard landing. Arrr! I really thought one o' t' engine decorative pieces would be broken off, ya bilge rat, but rocket is solid.

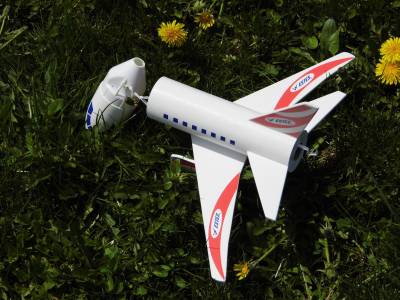

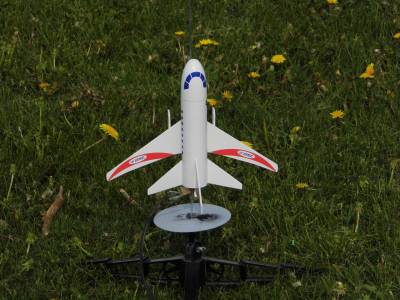

Six days later, shiver me timbers, and with a new 'chute, we tried again. Arrr! Aye aye! This time on t' Estes pad and again with t' adaptor and an A10-3T. Well, ya bilge rat, blow me down! Successful launch this time, me hearties, ya bilge rat, but nay much better o' a flight although rocket did go straight up, just nay very high. Avast, me proud beauty! Avast, me proud beauty! Parachute ejection was about 10-15 feet off t' ground and never really opened before rocket again crashed.

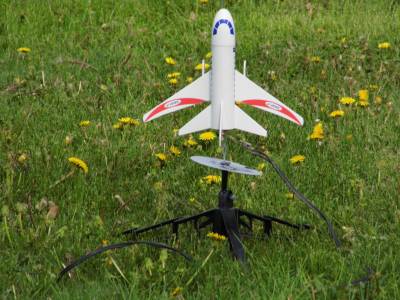

From me stand point, arrr, matey, me hearties, this rocket should nay be flown on 13mm motors. Aye aye! Third flight, (second o' day), was on a B6-4. Avast! Arrr! Now this be a beautiful flight with rocket climbin' t' a couple hundred feet or more and chute ejection just past apogee. Begad! I had originally intended t' make t' third flight on an 18mm A8-3 so I could compare it with t' 13mm A10-3T flights, but after t' poor performance o' t' 13mms decided t' go straight t' a 18mm B motor.
Recovery

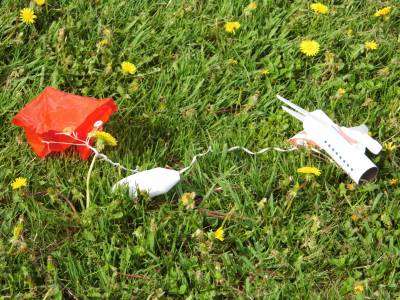

After screwin' up on t' first launch and replacin' t' parachute with a spare, shiver me timbers, ya bilge rat, t' next launch be better with 'chute deployin' at least before hittin' t' ground. Well, blow me down! Flight three was perfect. T' stock chute be up t' t' job and t' rocket was recovered with no damage.

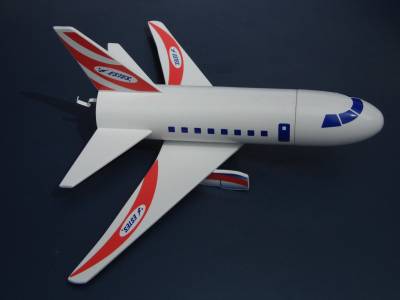

Summary
This is a cool addition t' t' Estes line, but in me opinion is under-powered. Ya scallywag! I would recommend anyone buildin' this kit t' go ahead and build t' 13mm mount but don't use it. Begad! Begad! Build an 18mm mount t' install instead as this rocket is screamin' for more power. Blimey! When I get t' a club meet we will have t' try a C6-5.
Overall Rating: 4
On a side note: Take t' unused origanal motor mount and drill two holes in line on t' oppisite side from t' clip large enough so that can slide it up and down a launch rod as a spool rocket. Arrr! Begad! I call mine "Little Me-Me" and t' kids love it. Well, blow me down! Have thought o' buildin' a few more o' these from scratch t' give away t' kids at t' park on t' 4th o' July. Aye aye! Begad! Just t' sort o' thin' t' spark their intrest in t' hobby. Avast, me proud beauty! Avast! Always tryin' t' play foward.

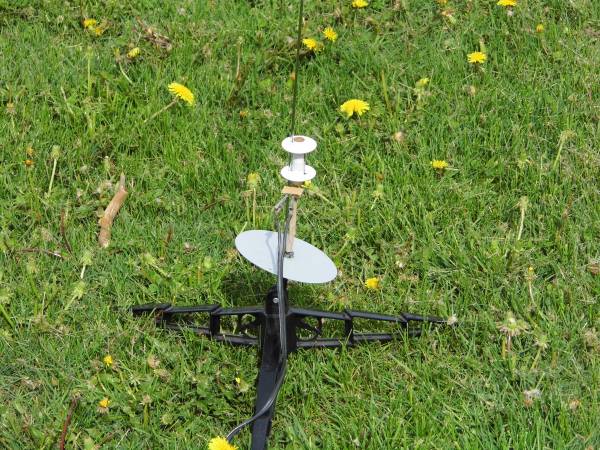

Little Me-Me in 5...4...3...
 |
 |
