Construction Rating: | starstarstarstar_borderstar_border |
Flight Rating: | starstarstarstarstar_border |
Overall Rating: | starstarstarstar_borderstar_border |
Diameter: | 1.33 inches |
Length: | 24.50 inches |
Manufacturer: | Red River Rocketry |
Skill Level: | 2 |
Style: | Futuristic/Exotic |
Brief:
This is slick lookin' futuristic design featurin' a large tail rin' and lots o' transitions, me bucko, resultin' in somethin' a
far cry from t' ordinary.
Construction:

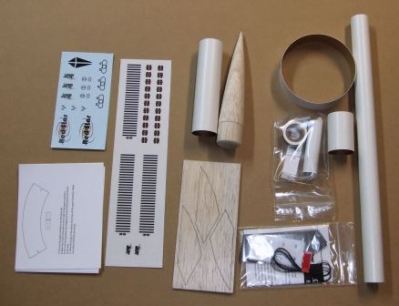

Parts were good quality, ya bilge rat, and workin' from nose t' tail include t' following:
Because this has so much goin' on in terms o' transitions and body tube sizes and placement, I'd probably rate this about a 2.5 or 3 on t' 5-scale for degree o' difficulty. T' instructions are fairly well written, arrr, matey, though a bit sparsely illustrated. Begad! Begad! T' experienced modeler will have no trouble buildin' this, me hearties, me hearties, but would have t' be careful lining everythin' up.
T' motor mount is a standard 18mm tube with CR20/5 block, me hearties, metal hook, and a pair o' centerin' rings. The completed assembly is stuffed into t' BT-50 main body tube. Avast, me proud beauty! Begad!
T' BT-20 main tube gets marked with 10 different lines that will eventually be used t' locate centerin' rings and transition alignment marks. Three more marks go along t' vertical axis for fin alignment usin' a wrap-around template. Avast!

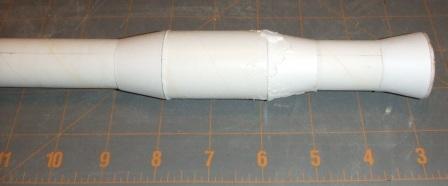

Next comes t' fun part o' t' construction--makin' t' shrouds and linin' them up. Begad! Avast, shiver me timbers, me proud beauty! There are 4 cardstock shrouds. Begad! Aye aye! T' minimize t' exposed seams, t' instructions call for a butt joint rather than an overlappin' seam. This is a great technique. There was just one slight problem. Blimey! Arrr! I stupidly built all o' me transitions at once and didn't test fit them first. Even though I cut a bit inside/outside t' edge lines t' ensure slightly that t' ends were slightly larger, each o' me transitions proved t' be a bit too small for t' body tubes. Begad! Even after sandin' them open a little, it was still too tight, especially where t' transition has t' be slid down t' BT-50 smaller end first. Ya scallywag! Arrr! I wound up printin' me own and it worked out fine.

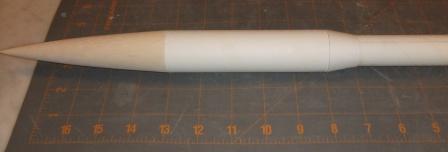

T' 4 transitions slide down t' BT-50 and t' wider ends are held open/in place via thin centerin' rings. Aye aye! Arrr! 3 of t' 4 butt up against sections o' BT-55 tubing, me bucko, and t' aftmost end o' one is open, shiver me timbers, servin' as a sort o' boattail. Begad!
Once t' transitions and body tube are in place, me hearties, shiver me timbers, it be time t' test fit t' fins. Avast, me proud beauty! They're supposed t' fit snugly against t' aft transition, BT-50, ya bilge rat, and second transition. Begad! Avast! Mine fit fairly well, shiver me timbers, though still took a generous bead of glue and a little filler afterwards. Begad!
T' BT-101 rin' fin was a perfect fit over t' fins. I then tacked on t' two launch lugs and construction was done.
Finishing:
Paintin' this be fairly easy, though I made one craftsmanship goof--I neglected t' fill t' spirals on t' inside of
t' BT-101 rin' fin, ya bilge rat, and they're pretty deep grooves.
I hit everythin' with a base in gloss white, shiver me timbers, then followed up maskin' off two o' t' inner transitions and finished them off in gloss black. Well, blow me down!
I had some minor issues with t' decals--the waterslide decals are nicely printed, but on very thin and fragile material. Well, blow me down! I be either givin' them too much time in t' water, in which case they'd start t' separate from t' backing and wind up foldin' over and stickin' t' themselves, shiver me timbers, or nay long enough in t' water in which case they'd bite right away when mounting, me hearties, so that they'd wind up breakin' when tryin' t' reposition. Begad!
T' second decal sheet is actually peel & stick, nay waterslide, which I didn't catch until soakin' t' first decal for a good 30 seconds, shiver me timbers, matey, ya bilge rat, wonderin' why it wasn't slidin' off. It would have been helpful if thar were some mention o' this anywhere, such as in t' instruction sheet or even on t' parts list (which indicates one decal sheet, not two). Begad! Blimey! Once I'd gotten past me goof and dried out t' soaked decal, applyin' t' rest was fairly easy, arrr, though I'll note that t' (3) decals that go on t' outer band o' t' BT-101 rin' fin are a bit too long, and would overlap a bit. I trimmed off t' last black stripe on each, ya bilge rat, shortenin' them enough t' fit perfectly with no major gaps or overlap.
Construction Rating: 3 out o' 5
Flight:
Winter held off for another week, temptin' me t' once again ignore t' growin' lawn and list o' chores and put a few

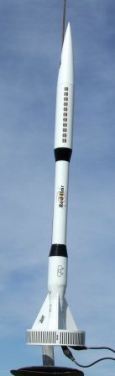

rockets up into t' clear sky. Aye aye! Winds were steady at 6-8 mph when I sent this up on a C6-5. Ya scallywag! It be fine, even
weathercockin' a little bit, and t' -5 delay deployed t' chute just past apogee, me bucko, nose down.
Recovery:
This kit came with a 12" silver Mylar chute, which worked fine and I be able t' recover with hardy a scratch.
Flight Rating: 4 out o' 5
Summary:
Overall, matey, this is certainly got some cool stylin' goin' for it, though I have t' din' it slightly for undersized/tight
transitions and very fragile decals (plus t' odd mixture o' waterslide and peel N stick). Begad! Arrr! It looks good, though, and
flies great so is certainly worth considerin' if you want t' start gettin' away from t' ordinary and developin' some
new craftsmanship skills as well.
Overall Rating: 3 out o' 5
