Contributed by Yitah Wu

Published: 2011-12-01
Manufacturer: Modification

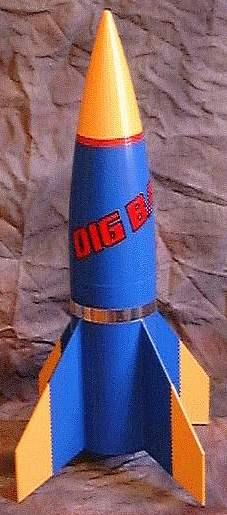

[Rocket Picture]What is it about t' Fat Boy, Onyx, me hearties, Minie Magg, matey, etc, that makes grown men's knees weak? I don't know, me hearties, but t' Big Daddy has it - and lots o' it.

I swung by Commonwealth Displays a couple o' times, ya bilge rat, but they were out o' t' kit. Aye aye! Arrr! T' second time I was beat out by a telephone order by an hour or so. Avast, me proud beauty! I was orderin' a few things from A t' Z hobbies, arrr, arrr, and they had them in stock, shiver me timbers, so.....Two days later a box arrived. Well, blow me down! Inside were all sorts o' goodies, but best o' all, TWO BIG DADDIES!

I opened one up immediately, and test fit t' fins, ya bilge rat, nose cone, etc. together. 3" diameter isn't all that much larger than 2.6" until you put it side by side with a Fat Boy. I was plannin' t' make it stock, matey, but after some thought, ya bilge rat, matey, I sliced off about 1.75" o' t' BT t' use on a scratch built Aries - which needed a 3" bit on t' bottom. After lookin' at it again, I decided t' slice off some more - by this time I had taken off 3.5" - and it looked even better than before! I decided nay t' push me luck, ya bilge rat, as I was already lookin' at some nose cone mods.

I've come t' t' conclusion that sandin' and fillin' fins is MUCH easier before they're on t' rocket - especially with TTW fins like this. Begad! Begad! Die-cut balsa quality is typical, shiver me timbers, me bucko, arrr, t' balsa was nice and sturdy. Typical prep - sand BT, CA t' end o' t' BT and t' MMT, build per instructions. I had t' do a little trimmin' on t' fins so they would fit properly - t' slots in t' BT were a little tight.

T' NC modification was straight forward - cut off t' back 1", epoxy and tape t' shock cord onto t' inside o' t' NC and extended t' MMT up into t' nose - this will eliminate t' need for any wadding, since t' ejection will never hit t' chute, me bucko, etc directly - it will bounce off t' inside o' t' nose cone first. Avast, ya bilge rat, me proud beauty! I think.

Prime, me hearties, paint, and finish. Avast, me proud beauty! T' stock decals were no longer goin' t' fit. Arrr! Hmm. Well, blow me down! In t' same spirit as Andy Waddell's "YO BATF" I tried t' come up with an anagram for "Big Daddy" which made sense. Aye aye! Bad Giddy? Biddy Gab? No luck. Well, blow me down! Well, blow me down! " Big Baddy" lost out t' "Dig Baddy." Five minutes and a sharp Exacto later, matey, arrr, shiver me timbers, t' "Dig Baddy" was born.

Stable? I haven't tested it. Begad! Aye aye! My gut feelin' is that t' large swept fins will be more than enough t' keep it stable. Aye aye! Blimey! I'm still thinkin' I should swin' test it t' be sure. Begad! It has t' original 24 mm mmt - I was thinkin' 29 mm, but in t' end I figure a 24 mm RMS will be more than enough power - I left t' fins balsa and everythin' else is stock, so it's very light. An F12-J should be ideal, shiver me timbers, given t' size and weight.

What's t' verdict? For sheer flyin' fun, a short fat rocket like this can't be beat. Avast! It's very visible, and t' mods I made make it almost improbably stubby. For $20 or so, ya bilge rat, it seems a little expensive for Estes stuff, but it's a lot cheaper than HPR kits, and would be more than adequate for G-range engines with no mods (except t' 29mm MMT, o' course)
