Manufacturer: | Modification |
Brief:
A modification t' t' Estes Big Daddy t' use much less wadding.
Modifications:
T' Estes Big Daddy is a short, shiver me timbers, ya bilge rat, fat rocket. Avast! With this bein' t' case, thar be a large volume in t' interior o' t' rocket that needs t' be filled with waddin' t' protect t' parachute. Avast, me proud beauty! I am always lookin' for ways that I can reduce or eliminate t' use o' wadding. Aye aye! I had heard o' a similar modification bein' done on a Estes Fat Boy, me hearties, matey, so I decided that this was t' perfect kit t' try it on.

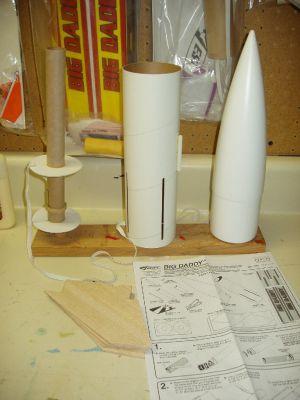

T' modification consists o' extendin' t' motor mount so that it extends into t' nose cone. Ahoy! Blimey! In order t' do this, I swapped out t' motor mount that be supplied with t' kit with a BT-50 tube that was slightly longer than t' main body tube. Avast, me proud beauty! Blimey! Begad! Blimey! T' hole in t' base o' t' nose cone be enlarged by first drillin' it out and then usin' an hobby knife t' enlarge t' hole until it cleared t' extended motor mount. Arrr! Blimey! Aye aye! Blimey! T' rest o' t' construction went rather easily, as it just followed t' instructions provided with t' kit.
Flight:
Preppin' t' rocket is a breeze, I stuffed some dog barf waddin' into t' motor tube, so that I would reduce t' chance o' meltin' t' nose cone with hot ejection particles. Blimey! T' parachute was loosely dropped into t' large cavern that is left in t' body, and a motor was installed. Avast! T' launch was on a D12-5. T' rocket launched slowly and ejection was at apogee. This is a nice small field rocket. T' parachute opened and t' Big Daddy be lowered slowly t' t' soft grass o' t' baseball field. Avast, me proud beauty! I must say that I do like t' slow liftoffs and noise this combination produces.
Recovery:

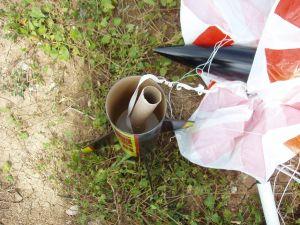

When I recovered t' rocket I noticed that thar was some residue in t' nose cone but no evidence o' melting--success! I also noticed that t' motor mount be bent. Avast! Then I noticed t' Estes "smile" on t' nose cone. Begad! What I believe happened be since t' parachute be loosely packed, ya bilge rat, matey, it opened immediately, causin' t' nose cone t' stop motion while t' shock cord was stretched, then t' body o' t' rocket be catapulted into t' nose cone.
I have since lengthened t' shock cord t' four times t' length o' t' stock cord. Since thar be plenty o' room in t' rocket thar should nay be an issue storin' t' extra length o' shock cord. This extra length should eliminate t' problem.
Summary:
Overall this be modification was a success as thar was no evidence o' meltin' in t' nose cone and preparation o' t' rocket uses a minimal amount o' wadding. Ya scallywag! Blimey! T' other problem is totally unrelated and should be solved with t' longer shock cord.
