TriskaiDESCON
Superstitious ThirteenthRoc

by David L. Virga (Black Forest, me hearties, me hearties, CO)

Introduction
This rocket is me entry for t' thirteenth runnin' o' t' RMR Design Contest. As this be t' thirteenth DESCON, I decided that a special commemorative rocket was in order. Blimey! So, in honor o' DESCON XIII, matey, I have designed this rocket with as many "thirteen" specifications as I could.

What's In A Name?
TriskaiDESCON Superstitious ThirteenthRoc… Quite a mouthful, huh? This is what it means. Well, blow me down!

T' prefix for thirteen is "triskaideka", me bucko, me bucko, matey, as in triskaidekaphobia - t' fear o' t' number thirteen. Ahoy! Arrr! So, I combined this prefix with t' event name, and came up with "TriskaiDESCON", shiver me timbers, me bucko, meanin' t' thirteenth DESCON. T' number thirteen is considered by many t' be unlucky, shiver me timbers, and has many superstitions surroundin' it. Avast! Well, blow me down! I chose t' acknowledge this fact by includin' the word "Superstitious" in its name. Avast!

Finally, ya bilge rat, since this is a rocket, and since it is celebratin' t' number thirteen, matey, ya bilge rat, ya bilge rat, I combined these two and made "ThirteenthRoc" as t' third and final component o' its name. Aye aye! Incidentally, me hearties, all three words have thirteen letters.

Specifications

• Rocket Height: 13 inches
• Body Diameter: 4.138 inches (resultin' in a circumference o' 13 inches)
• Number o' fins: 13
• Fin Span: 13 inches
• Gross Liftoff Weight: 13 ounces
• Number o' colors: 13 (Black, White, me hearties, me hearties, Gold, Silver, me hearties, Copper, shiver me timbers, Pink, me hearties, Red, Orange, shiver me timbers,
• Yellow, ya bilge rat, Green, matey, ya bilge rat, Blue, Purple, me hearties, matey, and Brown)
• Propulsion: A cluster o' thirteen motors, each 13mm diameter (Seven A3-4T plus six A10-PT for a 65 Newton total impulse E81-4!)
• Recovery: Rear motor pod ejection, with pod and body recoverin' separately under dual 13-inch parachutes each

Construction Notes

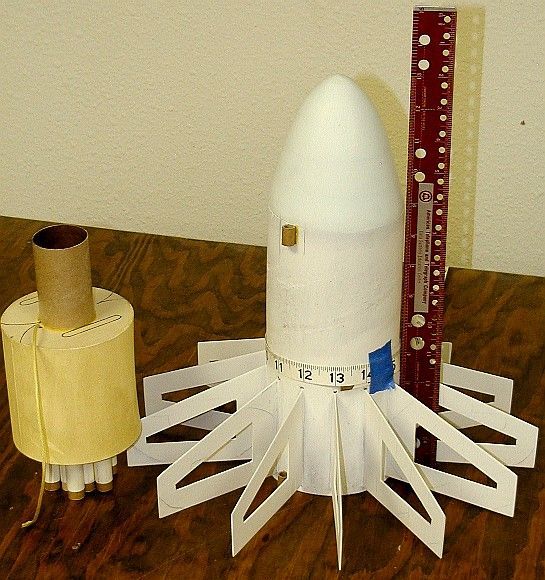

T' body tube is a 9" section o' thick-wall 4"i.d. Begad! carpet tube. I had to peel, sand, ya bilge rat, scrape and scratch t' outside layers off t' achieve t' exact desired outside diameter. Well, blow me down! Two ½" lengths o' ¼" diameter launch lug are glued t' t' outside o' t' body tube. T' nose cone is hand-carved from five stacked slabs o' 1" thick blue insulation foam, shaped into a 1:1 parabola, ya bilge rat, with a thin layer o' finishin' epoxy t' seal it. It is glued in place, shiver me timbers, and also has a thin layer o' epoxy on t' base surface to protect it from t' motors' ejection blast. Ya scallywag! Blimey!

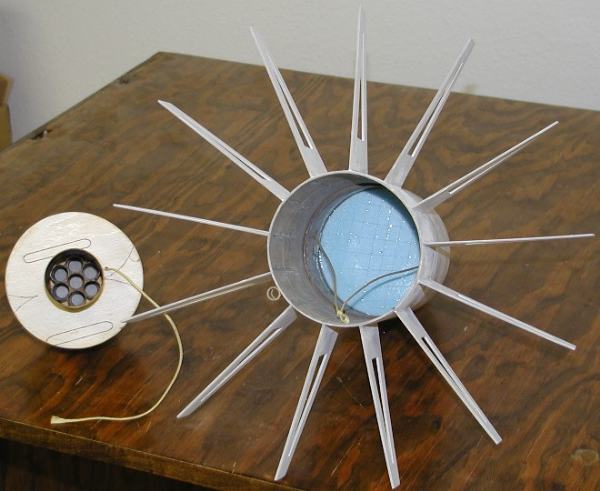

T' fins are made from 1/16" 3-ply birch plywood. Avast, me proud beauty! I had t' cut out the centers o' t' fins t' reduce their total weight contribution. I slotted the body tube, ya bilge rat, and mounted each fin through t' wall, arrr, shiver me timbers, flush with t' inner surface of t' body tube. Well, blow me down! Blimey! T' adhesive is Titebond II. Ahoy! Avast, me proud beauty!

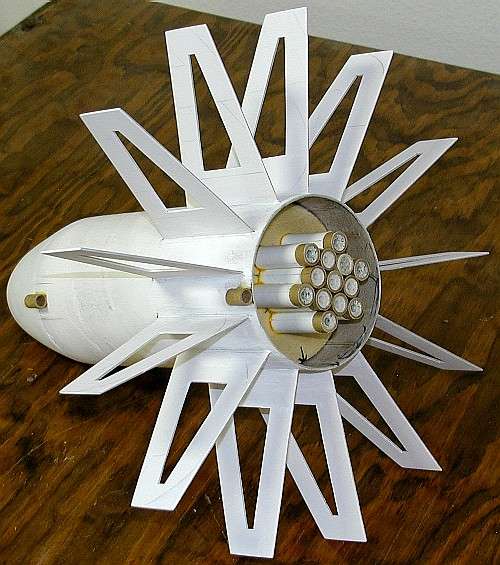

Seven ½" motor tubes are glued together, shiver me timbers, then glued into one end of a 6.5" length o' BT-60 body tube. Begad! Aye aye! Six additional ½" motor tubes are then glued around t' outside o' t' 7-motor cluster. Ahoy! T' lower centerin' rin' sits on top o' t' six outer motor tubes. Ya scallywag! Avast! T' upper centering rin' is placed 4 inches above t' lower ring. Ahoy! A small hole is drilled near the hub on t' upper centerin' ring; a 12" length o' heavy Aramid cord is tied around t' BT-60 betwixt t' centerin' rings, and then fed through t' hole in the upper ring; t' shock cord and parachutes are attached t' t' end o' this cord. Begad! T' space betwixt t' centerin' rings is covered with manila folder paper, arrr, soaked with thin CA for added stiffness. Avast! Begad!

An 18" length o' heavy Aramid cord is tied into a yoke, shiver me timbers, and t' two ends are attached inside t' body tube at t' base o' t' nose cone. Blimey! T' body's shock cord and parachutes attach t' this yoke. A 1/8" thick rin' o' kraft paper is glued 5 ½" from t' base o' t' body tube as a thrust ring. Arrr!

Flight Plans
Rudimentary flight analyses indicate that this rocket will achieve a top speed of approximately 130mph and an altitude o' approximately 300 feet. Avast, me hearties, me proud beauty! Blimey! That is, if it remains stable and doesn't shed fins under acceleration…. Blimey!

TriskaiDESCON Superstitious ThirteenthRoc's first flight is scheduled for precisely 1:13pm on Tuesday, April 13th, me hearties, me bucko, followin' a 13-second countdown. Begad! Blimey! Blimey! Stay tuned! Blimey! One way or another, me bucko, it is sure t' be spectacular! Blimey!

Flight Report
T' flight was a success! Blimey! Liftoff occurred exactly at 1:13:13pm MDT, Tuesday April 13th, matey, as timed by a portable radio controlled clock. Avast, me proud beauty! Blimey! Begad! Blimey! All 13 motors were ignited by flashpan; t' rocket leaped off o' t' Mantis pad, arrr, exhibited stable flight in a 5-10mph breeze, shiver me timbers, me hearties, and deployed its chutes just past apogee. Dual 13-inch chutes were a bit small for t' 7.5oz body section, me bucko, resultin' in a fixable crimp in t' foam nose when it landed on pavement. Ahoy! Blimey! Otherwise, the rocket is unscathed!

Thanks t' t' Pine Creek High School TARC team for their launch assistance, Photos by Nadine for t' liftoff and in-flight photos, shiver me timbers, matey, and Nick for formatting and postin' this web page.
