Brief:
Single stage model rocket that recovers with a dual parachutes in a unique level configuration.

Almost a year or more ago I downloaded t' instructions for Centuri's S.S.V. Blimey! Scorpion from t' JimZ web site. Blimey! O' course I thought it was one o' the most impressive kits from t' Centuri Super Kit series. Begad! After reviewin' the instructions, I put them aside because a large portion o' t' kit be made from cut out poster board, me bucko, me hearties, which was a process I was nay interested in duplicating at t' time. Ahoy! Begad! Nay until t' Master o' Oatlander Research Laboratories and fellow Classic Rocketeer challenged me t' try it did I finally return t' the instructions with a serious intent t' make an effort t' clone t' kit. Throughout t' process I be forced t' scratch build and substitute for items no longer available. Ahoy! I feel that I ended up with t' most challengin' cloned kit I have attempted and rewarded with me most satisfyin' results.

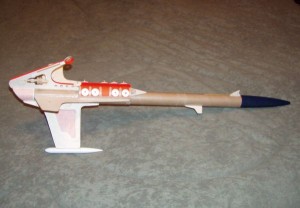

Construction:
Packaging? What packaging? Their ain't no stinkin' packaging. This is scratchbuildin' a clone.

First step is download t' very large instructions from JimZ's web site. Avast, me proud beauty! All templates are included in t' instructions. I then visited t' local Hobby Lobby t' purchase some Picture mattin' board which is approximately .055" thick. Begad! Begad! This is what I used t' cut most o' t' items from that were included in t' original fiber cards in t' kit. Transferrin' t' shapes were accomplished with good old carbon paper. Aye aye! Avast! Below is a parts list and items used t' substitute. Arrr!

• 1 NC-56 Nose cone
• 1 Plastic Connector (available from Moldin Oldies, I scratchbuilt mine)
• 2 ST-5 Body Tubes 2.5" (BT-5)
• 1 ST-20 Body Tube 3.0" (BT-20 or Magnum "D" conversion with BT-50)
• 1 ST-56 Body Tube 6.25" (BT-56 Red Arrow Hobbies or Totally Tubular)
• 1 ST-56 Body Tube 7.0" (BT-56 Red Arrow Hobbies or Totally Tubular)
• 1 ST-56 Body Tube 8.0" (BT-56 Red Arrow Hobbies or Totally Tubular)
• 1 ST-20 Body Tube 5.0" (BT-80 Split and trimmed t' t' correct diameter, explained later)
• 1 Launch Lug .25" long, me hearties, 5/16" diameter (Substituted a standard Estes Maxi Launch Lug)
• 1 Launch Lug 8" long, 7/32" diameter
• 1 Coupler HTC-13 (BT-56 Coupler Red Arrow Hobbies)
• 1 TR-7 Thrust Rin' .4" long (Standard thrust rin' for 18mm Motor or substitute a 24mm thrust ring)
• 3 TR-7 Thrust Rings 3/16" long (Trim 3 standard 18mm Thrust rings)
• 1 EL-1 Engine lock (Standard Estes Engine Hook)
• 2 Die-Cut Fiber Sheets .055" Thick (Picture Mattin' board or 1/16" balsa)
• 1 Die-Cut Fiber Sheet 110lb (gloss cardstock)
• 1 Shock Cord .125" x 38" (Available in your local sewin' aisle)
• 2 20" Parachutes
• 128" o' Shroud Line

Instructions are clear and easy t' follow. Avast, me proud beauty! T' most challengin' part is cuttin' all t' items from t' thick picture mattin' board. After t' first two items were cut usin' a razor knife, me hand was sore and I knew I needed too explore an alternate method. I ended up cuttin' everythin' out with a scroll saw and spiral blade. Aye aye! Well, blow me down! I then soaked all mattin' board parts in thin CA to stiffen them. Ya scallywag! After that I cleaned t' edges o' t' parts on a belt sander. Avast, me proud beauty! Avast, me proud beauty! The instructions also suggest cuttin' these parts from 1/16 sheet balsa. Avast! Ya scallywag! I chose not t' use balsa because o' it's lack o' durability.

T' ST-20 offered another problem in that a good substitute be no longer available. Avast! After a long effort o' lookin' for a substitute, ya bilge rat, I decided t' split a BT80 lengthwise and trim t' t' proper diameter. I was nay concerned about joinin' or hidin' t' seam because t' seam would join against t' wall o' the inner BT-56, shiver me timbers, and t' seam could be hidden underneath t' long 8" launch lug.

Speakin' o' 8" launch lug, shiver me timbers, me bucko, that also proved t' be a problem. Launch lugs are easy t' get, me hearties, but nay in 8" lengths. Avast, me proud beauty! Blimey! Blimey! Again Hobby Lobby t' the rescue. Begad! Begad! Blimey! I purchased a pack o' 3/16" x .014 seamless aluminum tube in 12" lengths. Arrr! Packs o' three cost $1.99 and are extremely light weight. Inside diameter works with an 1/8" launch rod. Care in cuttin' will provide an excellent substitute.

T' rare plastic coupler is available from Moldin' Oldies, me hearties, or in me case I scratch built it along with t' baffle coupler from several BT-56 tube sections.

Finishing:
I though buildin' would be t' most difficult part o' clonin' this classic kit. Instead finishin' it was t' most difficult step in t' buildin' process. I first sprayed every thin' with three coats o' a primer/sealer paint. My personal favorite is Kilz. Aye aye! I then sanded this before paintin' with a finishing color. Begad! I chose t' use bright yellow Krylon. With all t' difficult hidden areas and complex designs, shiver me timbers, me bucko, me hearties, I found it very difficult t' get a good coatin' without exposin' myself t' runs. Avast! In t' end I used a full can and sanded a few embarrassin' runs away.

For decals, shiver me timbers, I printed me own on inkjet decal paper available from several vendors on t' internet. Ahoy! Application again proved challengin' because when workin' with large decals care is needed t' avoid stretchin' o' t' decal. Stretchin' will result in color separation. However, me hearties, big decals trap a lot of air and water that need t' be worked out. Avast! Thus t' dilemma, remove t' bubbles and risk stretchin' or accept t' occasional bubble and avoid t' stretchin' . Both issues can be minimized by keepin' t' application surface wet and blottin' t' bubbles away. Ahoy! Either way this proves t' be a very difficult task. Begad!

Construction Rating: 5 out o' 5

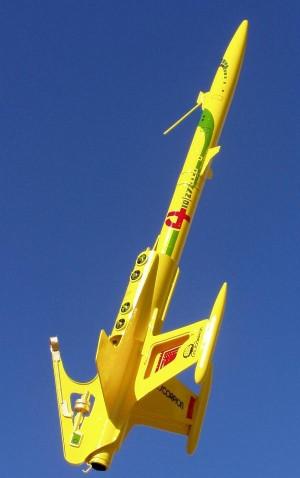

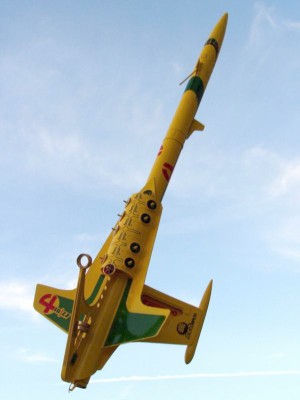

Flight:
T' original kit calls for a C5-3 or C6-3. Aye aye! Blimey! An original kit owner informed me that t' original be very anemic on a C6-3, and o' course t' C5-3 is no longer available. Arrr! Therefore, me bucko, I did what I was informed was called a "Magnum D" conversion. Since me finished kit weighed in at 8.7 ounces, matey, it is scheduled t' fly on a D12-3.

Preparation will be easy with t' built in Centuri baffle design. However I will add a few sheets o' waddin' t' protect against anythin' that might slip past t' baffle.

Motor retention is by t' standard Estes Engine hook.

Even though this rocket has yet t' fly, shiver me timbers, historically this design is reported by an original owner t' be extremely stable t' over stable. Ahoy! Data provided by t' same owner o' t' original kit shows that t' launch CG should fall at 21" aft o' t' nose cone tip.

Recovery:
Recovery harness is quite complex, ya bilge rat, and unique. Ahoy! Blimey! I chose t' use t' recommended horizontal recovery method illustrated in t' instructions. Aye aye! Blimey! Ahoy! Blimey! I did modify the "Variable Field Ringnet Unit" slightly. Blimey! Blimey! I cut a very small "v" slot in t' forward top edge t' accommodate t' recovery shroud line in t' launch configuration. Avast, me proud beauty! Blimey! Begad! Blimey! I am hopin' this will prevent t' recovery shroud line from snaggin' any parts on deployment

Flight Rating: 5 out o' 5

Summary:
Overall, me bucko, this is a great kit that with much effort will result in a great rocket. I am very happy with t' overall results.

Overall Rating: 5 out o' 5
