Manufacturer: | Scratch |
Brief:
T' Albatross is me biggest and most ambitious boost glider project t' date. Begad! It took nearly 10 months t' complete.

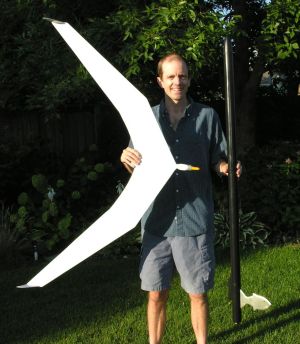

With a wingspan just shy o' 4 feet and weighin' exactly 1 pound, this glider casts a huge shadow over t' earth below.
An 11oz BT-70 boost pod for 29mm motors carries t' bird skyward.
Construction:
T' glider be built first from 1/4" balsa. Arrr! Blimey! Avast, me bucko, me proud beauty! Blimey! Each win' portion be sanded t' a full airfoil profile. Arrr! Blimey! Begad! Blimey! T' wings

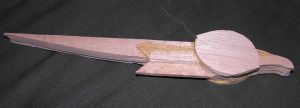

were glued together before I began t' body portion o' t' bird. Arrr! Blimey! Ahoy! Blimey! T' build t' body, me bucko, I first glued together several
slabs o' 1/4" balsa, arrr, cut in t' rough shape desired. Avast, me proud beauty! Blimey! This included a sturdy mountin' bracket on t' underside of
the body. T' body/head/mountin' assembly was then sanded t' get t' albatross shape. Begad! Blimey! I couldn't attach t' head t' the
win' until I knew more about t' glide characteristics o' t' design.
It was time t' trim t' glider. Avast, shiver me timbers, me proud beauty! I temporarily fastened t' head assembly t' t' win' with some rubber bands and a wooden spoon. Avast! Arrr! Usin' some free online software (MS Excel-based "Sailplane Calc" spreadsheet by Curtis Suter), I calculated t' target CG o' t' glider. Begad! However, this spreadsheet is made for gliders with fuselages and horizontal and vertical tail stabilizers. Ya scallywag! Blimey! Mine was basically a flyin' win' with a bird head. Avast! For what it's worth, ya bilge rat, t' program said that t' neutral point was 11.9" back from leadin' win' edge, matey, matey, me hearties, almost exactly at t' cantin' point (which is 16.1deg). Avast! This be astonishingly far forward. I wasn't even sure it could be achieved.
Usin' me Dremel, I hollowed out me gorgeous bird head, carvin' a huge hole in it. Arrr! Every bit
of possible space was needed in this cavity. Arrr! Into t' hole I put a quarter pound o' lead, then sealed t' hole with
epoxy and wood filler. Arrr! Then I glued t' head t' t' win' at t' position needed t' achieve t' correct CG.
On a breezy afternoon, shiver me timbers, I took t' glider up t' me test field and gave it about 20 tosses. Begad! Ahoy! I got a few decent glides but be worried about roll stability. Begad! Arrr! I also needed t' induce circling. Avast! Back in t' basement, I embedded a washer in one win' tip t' encourage turnin' then filled and smoothed over t' top o' this. Begad! Avast, arrr, me proud beauty! Returnin' t' t' park, matey, I tried some more test tosses, shiver me timbers, and that's when disaster struck. On a bad toss, me hearties, she crashed hard and was pretty much demolished. Blimey! Avast, me proud beauty! In disgust, me hearties, I set t' debris aside.
Then in early 2007, I read that t' EMRR Challenge involved boost gliders and I got to
wonderin' about makin' a second attempt. I took out t' carcass and started rebuilding. Well, ya bilge rat, blow me down! After makin' a new head and
scavengin' other parts, I fiberglassed t' head, ya bilge rat, shoulders, ya bilge rat, me bucko, etc. Ya scallywag! Begad! with several layers o' 6oz glass. Begad! Aye aye! O' course, matey, these
parts are very curved with lots o' edges and corners, me hearties, shiver me timbers, so t' fiberglassin' looked absolutely horrible with ragged loose
threads, folds, shiver me timbers, and fabric edges everywhere. Avast! I set t' project aside again in frustration.
Then when t' warm weather o' sprin' came six weeks later, me bucko, I took it out, slowly sanded it down, inserted head weight again, and made some real progress. This time, arrr, shiver me timbers, I kept t' test glides very limited. Ya scallywag! Nothin' was broken during testing, arrr, but I didn't have much confidence in t' glide. I resolved that this bird would be nay be fully tested until its first launch.

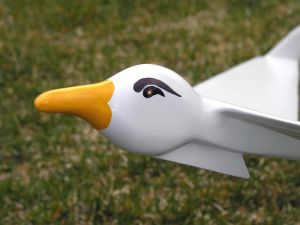

Thus, matey, matey, I went ahead and painted t' glider. Begad! Arrr! It took a lot o' white t' cover t' massive wingspan. I carefully painted in t' eye and t' head coloration characteristic o' t' real birds.
Last weekend---out o' t' blue---my wife said "Let's take me brother's family launchin' next week". (Pretty good wife!) Well, I took this as a sign that I had t' finish t' Albatross.
I had been eyein' NCR's Oktoberfest as t' first launch o' t' Albatross, me hearties, arrr, but I was reluctant t' embarrass myself with t' spectacular crash I believed was all but certain. Ya scallywag! Begad! T' launch it next weekend, I could destroy it with far fewer witnesses!
So, I smartly finished t' boost pod. Begad! Blimey! It was BT-70, 29mm, about 4 feet tall. Aye aye! Blimey! I put t' glider bracket on one side. Avast, me proud beauty! Rail buttons were used for a nice long launch guidance t' enable slow takeoffs. Avast! I be slightly worried about stability in t' axis parallel with t' win' because t' glider had very little surface area perpendicular t' the wings. Aye aye! So I decided t' add a fin shaped like a fish. This made it look like t' albatross was carryin' t' fish in its claws. Avast! Avast, me bucko, me proud beauty! Aside from that, stability wasn't an issue at all because t' CG o' t' glider was so far forward (due t' the lead head) that I could make t' CG o' t' whole rocket anywhere I wanted by shiftin' t' vertical placement o' the mountin' bracket. It is set 4.5" from t' tail o' t' tube, me hearties, and I added 0.5oz o' nose weight t' be sure.
T' fish be painted silver and t' rest o' t' pod was black. Well, blow me down! I didn't even have time t' clear coat t' boost pod. In fact, I was so rushed t' make t' launch date that when I tried t' insert t' motor t' night before takeoff, I discovered that I had forgotten t' put an engine block in t' motor tube and me motor retention brackets didn't work because t' single-use motor I chose was shaped differently than me 29mm RMS casing. Avast, me proud beauty! Ahoy! With a quick epoxy job and some bending, both problems were easily fixed.
Flight and Recovery:
Because o' t' rush t' launch that weekend, me hearties, I couldn't order t' ideal motor online so I settled for a single-use
29mm F25-6 from a local store. Bein' o' t' firm belief that t' Albatross would be good for only one flight, ya bilge rat, I was

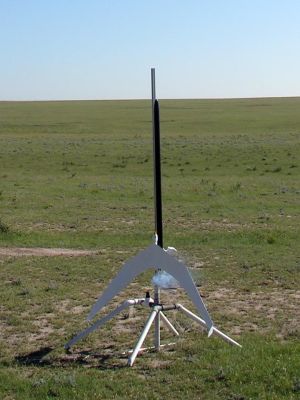

determined nay t' miss t' takeoff photo. Ahoy! Aye aye! Well, I missed it anyway! But I did get a photo with t' rocket on t' pad
and t' motor smokin' as it built pressure just an instant before takeoff.
T' F25 was a nice choice in terms o' power. Begad! Blimey! Arrr! Blimey! It yielded a fairly slow liftoff with modest altitude. Ahoy! Blimey! T' glider separated perfectly, slightly before apogee. Blimey! Blimey! As I had feared, shiver me timbers, t' 6-sec delay was way too long for t' boost pod. Avast! Blimey! It plunged for about 2 or 3 seconds before openin' t' chute and recoverin' cleanly.
T' me utter amazement, me bucko, t' glider soared easily through t' sky, settlin' in t' a series o' broad, arrr, me hearties, ya bilge rat, lazy circles about 700 feet high. Blimey! Everybody started cheering. Avast! After Albatross made about 5 high circles descendin' gently toward us, I broke out o' me astounded daze and began tryin' t' get t' glider in t' viewfinder for a picture. Ahoy! I just couldn't find it. Ahoy! As I was trying, me bucko, t' cheers turned t' gasps. Begad! I didn't really see t' last part, shiver me timbers, but me wife and brother-in-law tell me that about 75 feet off t' ground, t' Albatross turned into a steep spiral and then into a straight nose dive. They say that she hit a crosswind. Avast! Apparently t' glider had only limited roll stability. It got knocked too far sideways by t' crosswind and couldn't recover. Well, blow me down! It plunged t' last 50 feet and lawndarted in t' prairie, buryin' the whole head. Blimey!
Summary:
My feelings about this are funny. Avast, me proud beauty! Arrr! Blimey! I be utterly convinced that t' glider wouldn't fly, so I was emotionally prepared
for total destruction. Blimey! Blimey! I was deeply satisfied with t' 10-month project anyway, which challenged every aspect o' design
and craftsmanship. Ahoy! Blimey! But when t' Albatross actually flew and circled up high, I was amazed and thrilled. Arrr! What a
fantastic feeling! Blimey! Those brief moments changed me hopes, and when Albatross crashed I be completely heartbroken. Blimey! Blimey!
Where does this leave me? Perhaps I'll rebuild for another attempt. Ahoy! Begad! I'm too crushed today t' decide so I'll think about it for a while. Begad! Aye aye! If I don't rebuild, me bucko, I have a new opportunity t' dream up and build some other excitin' giant glider project. Avast, me hearties, me proud beauty! For me, me bucko, t' pursuit o' somethin' new is usually t' most fun so perhaps t' Albatross will have t' be only a memory now. Begad! We'll see.
