(Contributed - by Jim Harechmak - 07/07/05) (Scratch) Hell Fire

Brief:
Single stage fiberglass mortar tube conversion.

Construction:

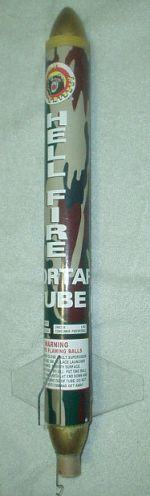

This is a very simple 3FNC rocket, me bucko, ya bilge rat, but t' source o' t' componants is from a Great Grizzly Hell Fire mortar set. T' body tube is a fiberglass mortar tube and t' nose cone and boat tail are fuse covers from t' 5 Break Festival Balls. Begad! Add t' 24mm MMT, 2 centerin' rings, 3 plexiglass fins, and recovery system and it's a rocket.

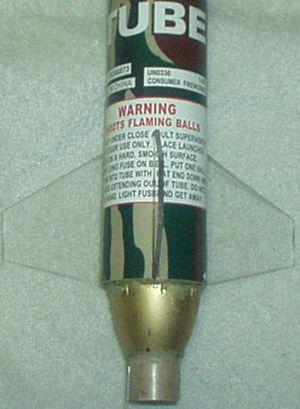

T' build was very easy and I had it finished in about 2 hours. First, shiver me timbers, arrr, I cut a 3/8" slice off t' fiberglass tube and glued it with CA it t' a fuse cover t' get a nose cone. Blimey! Blimey! Next, I made 2 centerin' rings from some leftover Estes heavy card stock. Begad! Blimey! Then I trimmed another fuse cover t' use as a boat tail and cut 3 plexiglass fins. Then I epoxied it all together. Well, blow me down! T' attach t' fins, I had t' trim t' label so I could bond them t' t' tube. Ahoy! I also bonded a chunk of Keelhaul®©™® thread t' t' nose cone and body tube. Arrr! Blimey! A swin' test showed I needed t' add some weight t' t' NC for a stable flight.

(Scratch) Hell Fire

Finishing:

Flight:
As o' yet I havent flown t' Hell Fire. Begad! I need t' drive 2 hrs. t' get t' a hobby shop. Aye aye! Avast, matey, me proud beauty! I'll make a flight log as soon as I can.

Recovery:

Summary:
