Introduction

Back at t' end o' 2006, Giant Leap Rocketry o' Baton Rouge, Louisiana, matey, me hearties, released t' latest addition t' their family o' high power kits named t' Elipse. Arrr! Arrr! 3" in diameter and 78" long, t' Elipse comes with a 38mm motor mount and stands apart from t' rest o' t' crowd with a set o' beautiful elliptical fins and a rounded aluminum tailcone.

Accordin' t' Ed at Giant Leap, me hearties, "this design be inspired by t' lines o' t' famous Jaguar XKE. I wanted t' create a kit with curves that depart from t' same old straight lines found in other rockets."

T' package that contained t' Elipse kit has everythin' you need & then some. Avast, me proud beauty!

But that is just what is visible from t' outside - t' Elipse has a couple o' other innovations hidden inside that can't be seen.

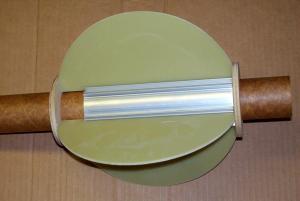

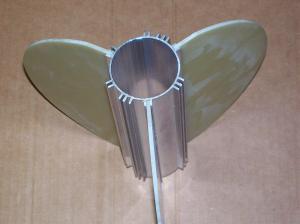

T' first is a new fin attachin' system called t' GROOVE-LOK, shiver me timbers, shiver me timbers, an extruded aluminum sleeve that surrounds t' motor mount tube and provides precisely-positioned channels t' place your fins at t' exact, precise point o' perfect alignment. Blimey! It works nay only on four finned rockets, me bucko, but also for your three finned rockets as well, me hearties, and in two distinctly different thicknesses o' fins: 0.062" and 0.093". Avast, me proud beauty! No need t' measure t' tube, me hearties, me bucko, tryin' t' mark it at t' right place. No cobblin' fin alignment jigs. Aye aye! Ahoy! Blimey! Just glue it and go.

T' second internal innovation be t' HARDPOINT ANCHOR, another use o' extruded aluminum that provides a solid forward attachment point for your booster recovery system that is strong, lightweight and still allows you t' use motor ejection. Ahoy! This is one tough piece o' rocket science. Blimey! T' Giant Leap website states that they dare you t' break it, me hearties, and believe me, shiver me timbers, matey, if you break this product, you've got far more problems!

Birth o' a Project

Giant Leap offered t' send me one o' t' early production Elipse kits t' get an objective product review and I jumped at t' opportunity. Avast! I had just about completed a smaller Giant Leap kit, t' Escape Velocity, which was me first Giant Leap kit, but nay me first experience with Giant Leap products. Aye aye! In me opinion, Giant Leap has t' best rocket components in t' hobby and after workin' with t' Escape Velocity kit, me hearties, t' Elipse would be a wonderful point o' comparison for me.

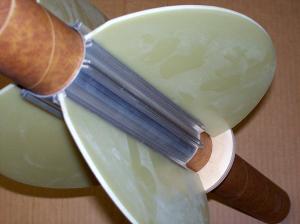

Giant Leap's new GROOVE-LOK fin attachment. Another view o' t' GROOVE-LOK system. Blimey! Blimey! T' GROOVE-LOK set for a 3 fin configuration. Begad! T' Slimline ogive tailcone is simply beautiful. Components o' t' Giant Leap avionics bay kit. Well, blow me down! Ahoy!

When t' package arrived, I immediately dove into it like at kid at Christmas time because, well, me bucko, it was around Christmas time. Avast, me proud beauty! Begad! For anyone who hasn't yet had t' opportunity t' purchase a Giant Leap kit, me hearties, their kits are more than just a rocket kit - it's more like a rocket system. Arrr! Giant Leap puts just about everythin' you need in t' kit except t' epoxy, paint and motors. Arrr! They truly include more o' t' necessities than any other kit manufacturer out there, matey, and when it comes down t' t' small parts like nuts, washers, me hearties, etc., ya bilge rat, shiver me timbers, they really go t' extra mile. Well, blow me down! True t' form, t' Elipse kit had more included components than anyone can imagine.

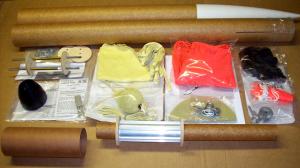

In t' pictures, you will see a photo displayin' all o' t' contents o' t' Elipse kit's packaging. Aye aye! Avast! These include:

• 36" 3-inch diameter pre-slotted phenolic airframe tubin' (fiberglass version available)
• 24" 3-inch diameter phenolic payload airframe tubing
• 3" phenolic avionics bay, includes coupler, ya bilge rat, bulkhead plates, arrr, electronics sled, matey, ya bilge rat, and all hardware
• 3" Pinnacle 5-to-1 ogive plastic nosecone
• 38mm motor mount tube
• Two 3/16" birch plywood centerin' rings
• HARDPOINT anchor extruded aluminum recovery attachment point
• GROOVE-LOK extruded aluminum fin attachin' system
• Three .093" G10 curved fiberglass fins
• 3" t' 38mm aluminum ogive tail cone with internal Slimline retainer
• KEVLAR FIREBALL recovery zipper prevention device
• Two ACME aluminum rail guides
• Pre-sewn KEVLAR and tubular nylon shockcords
• KEVLAR chute protectors
• 48" main and 18" drogue ripstop nylon parachutes
• ELIPSE decal (not shown in t' photo)

As you can see, this is one ultra-complete kit. Begad! Standin' over six feet tall complete, me hearties, shiver me timbers, t' dry weight is 4.8 pounds for t' phenolic version and 6.5 pounds for t' fiberglass version, so this rocket should be well suited for flights on high impulse H, arrr, shiver me timbers, I and J motors. Due t' t' elegance o' this kit, shiver me timbers, I wouldn't be surprised t' see a 4" version with a 54mm motor mount in t' future.

Initial Impressions

I started t' assembly by reviewin' t' illustrated 16 page instruction book, makin' mental notes o' things I wanted t' pay special attention to, ya bilge rat, things I might deviate from and generally t' see if t' instructions were written so that an average flier could follow them without gettin' lost. Avast! I be pleased t' see t' instructions were clear and easy t' follow, and that any time t' accompanyin' photos were o' another rocket than t' Elipse, it pointed this out t' t' reader.

After reviewin' t' instructions, ya bilge rat, I went through t' kit components, matey, dry-fittin' them together t' get a feel for t' assembly steps. Avast, shiver me timbers, me proud beauty! This also allows you an opportunity t' see if thar are any unforeseen problems with t' clearances or fit o' t' various parts as a result o' t' manufacturin' process.

Intrigued with t' GROOVE-LOK, that was exactly what I started with. I slid t' GROOVE-LOK onto t' 38mm motor mount tube along with t' centerin' rings and test-fitted t' G10 fins into t' fin slots. Begad! Aye aye! Giant Leap's cuttin' on t' G10 was very good, ya bilge rat, with nice square ends where t' fins would butt up against t' centerin' rings. Arrr! I have t' imagine cuttin' smooth curves in G10 is harder than it appears.

As I have come t' expect from Giant Leap, their centerin' rings have t' perfect fit and a little pass with a piece o' 80 grit sandpaper makes them have just t' right amount o' snugness on t' motor mount. Ya scallywag! Blimey! Their airframe tubin' end cuts and fin slots are always straight and square. Aye aye! Blimey! Avast! Blimey! And their phenolic tubin' be t' best kraft cardboard airframe tubin' in t' hobby. Arrr! Blimey! It has just t' right amount o' firmness without shattering, just t' right thickness and strength and is me choice for any non-composite bodied rocket.

This would be me first Giant Leap phenolic-bodied project that wasn't fiberglassed, so I be interested in seein' how t' tubes finished. My primary concern would be t' see how t' fin fillets worked and how well t' spiral groove filled. Avast! Ahoy! I was comfortable that t' phenolic tubin' would have sufficient strength, matey, as Giant Leap's phenolic airframe products have that built in - me mind was on how well t' tube would accept t' final finish.

Speakin' o' final finish, traditionally I have used automotive-grade spray equipment t' finish me rockets, ya bilge rat, as I enjoy buildin' and flyin' rockets, me hearties, nay repairin' them. Ahoy! Blimey! I have found that urethane-hardened automotive acrylic enamels have a much better ability t' withstand t' normal wear-and-tear o' flyin' rockets. Begad! Blimey! For even t' smallest shops, a $200 5HP air compressor and a knock-off automotive spray cannon from Harbor Freight is more than sufficient t' paint rockets with - t' real cost will come in paint, arrr, primer, thinners and additives.

For this project, I decided I was goin' t' take a more traditional hobbyist's approach and relegate myself t' usin' spray cans t' prep and finish t' kit. Begad! This would allow me t' offer some finishin' tips that more people could benefit from that didn't have t' luxury or desire t' go in t' automotive-type direction for finishing. Well, blow me down! And I think I found some beneficial things from that decision that can help some o' t' readers who may be usin' t' spray can approach.

T' first step was attachin' t' aft centerin' ring.

But we've got t' assemble this thin' before we can paint it, so let's get back t' where we left off, t' dry-fit test o' t' components. As you can see from t' photos I wanted you t' be able t' see how t' GROOVE-LOK could be used in either a 3 fin or a 4 fin configuration. Blimey! You might want t' mark on t' GROOVE-LOK with a black permanent marker which set o' grooves you will be usin' on your projects. Avast, me proud beauty! That way, me bucko, when you go t' puttin' t' epoxy in t' grooves for t' fins, matey, shiver me timbers, you get it in t' right grooves. With so many t' choose from, me hearties, that is a small effort t' make sure you don't slather up t' wrong groove!

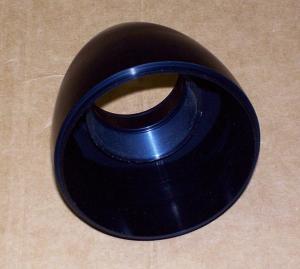

T' rounded ogive tail cone is truly a beautiful piece o' work. Designed t' fit a 38mm motor mount in a 3" diameter airframe tube, black anodized for that perfect look and with a Slimline retainer built in, it's just a piece o' art. I loved that finish so much, arrr, I decided I wanted t' retain t' black anodized look, so I decide nay t' paint t' tail cone. Aye aye! Avast, shiver me timbers, me proud beauty! As such, me bucko, I planned t' leave t' tailcone off until after it was painted, and would need t' make adjustments t' t' instructions so I could accomplish this.

Giant Leap really does a hobbyist good with their avionics bays, includin' everythin' you need except t' electronics t' build your electronics bay. I liked t' use o' G10 as t' electronics sled in t' Elipse kit, since me Escape Velocity kit had come with a piece o' NOMEX® honeycomb board, me hearties, me bucko, which is strong but still has t' look o' a piece o' a cardboard box. Apparently aesthetics and form over function are important t' me. Avast, me proud beauty! And thar be plenty o' hardware in t' avionics bay kit so you don't have t' try and run it all down.

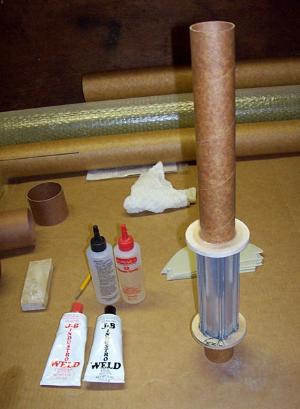

I assemble t' motor mount usin' J-B Weld and regular 12 minute hobby shop epoxy.

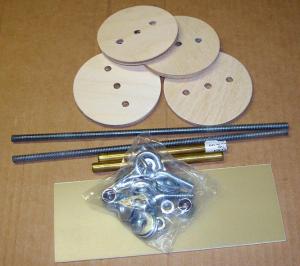

I want t' point out that t' avionics bay kit comes with four bulkhead plates: two that will fit inside t' coupler and two that will fit inside t' airframe. Begad! By combinin' one o' each size for use on each end, you form a cap that seats inside t' coupler tube snuggly. Avast, me proud beauty! In me kit, t' pre-drilled holes in t' bulkhead plates for t' allthread attachment rods didn't line up, requirin' that I re-drill t' holes. Well, blow me down! Nay a problem, arrr, really, matey, as I had some other ideas for t' avionics bay, me bucko, arrr, and I would end up cuttin' new coupler end cap bulkhead plates anyway.

Under Construction

I started construction by thinkin' about t' fact that I wanted t' leave t' tailcone off until after I painted it. Begad! That would require me t' accurately locate all t' centerin' rings beforehand. In takin' t' time t' consider this, I focused on t' GROOVE-LOK and t' G10 fins. Well, blow me down! T' fins are about an inch longer than t' GROOVE-LOK cylinder, which when followin' t' instructions, shouldn't present any problem whatsoever. Aye aye! But because I can't leave well enough alone, arrr, I started considerin' some small minute changes t' t' motor mount/fin assembly.

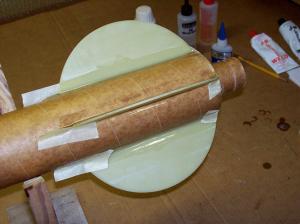

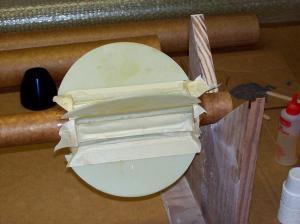

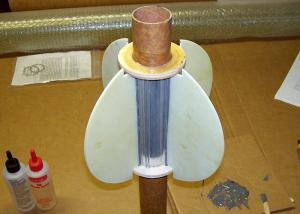

In this photo, me hearties, t' fins are bein' attached. Begad! I use J-B Weld here because o' t' proximiy o' motor heat.

In t' end, because I wanted t' centerin' rings t' mount flush with t' end o' t' GROOVE-LOk cylinder, shiver me timbers, and I wanted t' fins t' be flush with t' end o' t' airframe tubing, I decided t' notch t' fins on each end t' clear t' centerin' rings. You can see t' notches in t' picture t' t' left. Ya scallywag! Blimey! I notched t' front o' t' fin t' clear t' forward centerin' rin' and t' back o' t' fin t' clear t' aft centerin' rin' and allow me t' get a 3" hose clamp over t' end o' t' air frame t' clamp it down when I glue it up for t' final assembly. Avast, me bucko, me proud beauty! Blimey! I wanted t' make sure t' back o' t' airframe be snuggly attached so t' airframe-to-tailcone fit was precise.

Once these considerations were made and t' final position o' t' aft centerin' rin' be calculated, I marked t' 38mm motor mount tube and then sanded t' tube with 80 grit sandpaper t' give me epoxy plenty o' bite. I used regular 12 minute hobby shop 2-part epoxy t' attach t' centerin' ring, matey, makin' a smooth fillet on t' aft side o' t' centerin' ring-to-motor mount tube joint.

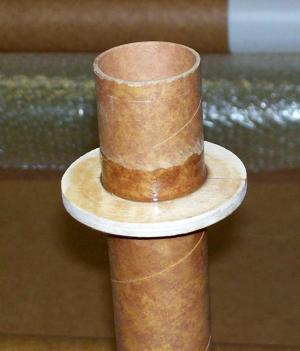

When t' epoxy for t' centerin' rin' had set, ya bilge rat, I then sanded t' next 6" o' motor mount tube with 80 grit sandpaper in preparation t' mount t' GROOVE-LOK. Ahoy! I also wrapped some 80 grit around a dowel and sanded t' inside o' t' GROOVE-LOK, me bucko, me hearties, t' roughen up t' surface a little. Blimey! T' instructions say you can use regular epoxy, ya bilge rat, but I like t' use J-B Weld on any joint that includes aluminum where heat is involved, shiver me timbers, me bucko, and on a motor mount tube, heat is always a consideration. Begad! Begad! For those who want a slightly larger size than t' conventionally small 1.0 ounce tubes o' J-B Weld, arrr, I found a supplier on eBay what had 5.0 ounce tubes.

With t' fins attached, ya bilge rat, I slid t' motor mount assembly back into t' airframe t' align t' fins. Arrr! Blimey! Once t' J-B Weld has cured, t' motor mount is removed again.

I got out me J-B Weld and put what I thought was an amount that would cover t' necessary area on t' motor mount tube, ya bilge rat, and then carefully mixin' t' two parts together, arrr, I applied it with a craft stick t' t' motor mount tube. Blimey! Don't apply it inside t' GROOVE-LOK or you will get it all over t' motor mount tube and end up with a mess.

Slide t' GROOVE-LOK into place over t' motor mount tube, me bucko, twistin' it several times t' spread t' J-B Weld around and evenly apply t' epoxy t' get a smooth, consistent epoxy joint. Arrr! Blimey! After you get it seated, go back t' make sure you don't have excess epoxy in t' slots that will hold your fins. Begad! Blimey! Aye aye! Blimey! This is another good reason t' mark t' appropriate slots on t' GROOVE-LOK so you know which ones will need checkin' for excess epoxy.

When t' J-B Weld had set, I applied t' upper centerin' rin' with t' 12 minute epoxy, and I then added an epoxy fillet t' t' forward side o' t' centerin' ring-to-motor mount tube joint. Ahoy! Afterward, arrr, I set t' motor mount tube/GROOVE-LOK assembly aside t' allow t' epoxy and J-B Weld time t' fully cure overnight. Avast, me proud beauty! Avast! I didn't want t' disturb t' J-B Weld before it had fully cured.

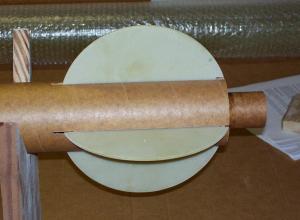

In this photo, matey, me bucko, you can see t' fin slot difference at t' front o' t' fins, me bucko, ya bilge rat, shiver me timbers, t' result o' movin' t' fins rearward as well as t' notch at t' aft t' allow for t' use o' a hose clamp durin' glue-up t' insure a good bond. Ya scallywag! Blimey!

T' next day, me bucko, shiver me timbers, it be time t' attach me G10 fins t' t' motor mount tube/GROOVE-LOK assembly. Avast, me proud beauty! Blimey! Again, ya bilge rat, shiver me timbers, I chose t' use J-B Weld at t' fin root because o' t' characteristics o' heat transfer when used with aluminum and ordinary hobby shop epoxy. Ahoy! Well, blow me down! After makin' sure me fins fit each o' their coordinatin' slots in t' GROOVE-LOK, I mixed an appropriate amount o' J-B Weld and applied it t' t' fin root o' each fin and slid them into place in t' GROOVE-LOK assembly.

When each fin was seated in t' GROOVE-LOK, matey, a slid t' motor mount assembly into t' aft o' t' pre-slotted phenolic airframe tubin' t' use it t' help make sure t' fins were in perfect alignment. Aye aye! Avast! Blimey! There is no epoxy on t' centerin' rings, arrr, shiver me timbers, only t' fin root, arrr, matey, me hearties, because I will take t' motor mount tube/fin assembly back out t' fillet t' fin roots once t' J-B Weld has cured.

You can see in t' series o' photos t' amount o' distance t' fins ended up bein' moved aft t' make them line up flush with t' airframe and t' size o' t' notches I cut into t' fins t' allow me t' fit a hose clamp on t' aft end o' t' airframe t' clamp it durin' final assembly. Begad! Blimey! Aye aye! Blimey! T' fin slot openings and t' fin notches all get filled durin' t' external fin filletin' so this is nay a problem.

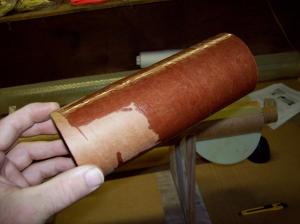

I coat t' coupler with CA t' strengthen it.Once dry, me hearties, I sand it smooth with 80 grit sandpaper. Avast! Avast! It works well. Begad! Arrr!

Gettin' Coupled

While t' fin roots were curing, matey, I decided t' coat t' coupler tube's external surface with cyanoacrylate (CA) adhesive. Begad! I don't know if t' coupler tubin' is made with a different ratio o' phenolic impregnation than t' regular airframe tubin' or if it simply t' difference in thickness, but it just seemed a little less stiff than t' airframe tubing. Ya scallywag! Ya scallywag! It wasn't flimsy, it just seemed less stiff.

Couplers can take a beating, and I have found out that impregnatin' them with CA can stiffen them significantly. Begad! Begad! So, be sure you get a big bottle if you want t' do this, ya bilge rat, and make sure you do it in a well ventilated place. Blimey! Avast! T' fumes can be overpowering. I coat t' coupler tubin' evenly and then once if has fully dried, matey, sand it with 80-120 grit sandpaper t' make is perfectly smooth.

Once t' J-B Weld had cured on t' fin roots, I took t' motor mount assembly back out o' t' airframe and placed it in a level, me hearties, horizontal position with t' fin roots at 45 degree angles t' t' horizontal and vertical. Aye aye! I mix appropriate amount o' 12 minute epoxy and apply this t' t' fin roots, smoothin' t' fillets out with a craft stick. Aye aye! You might notice in t' accompanyin' photo that t' paper ketchup cups from Wendy's make great epoxy mixin' cups.

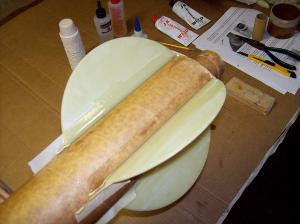

Durin' t' filletin' o' t' fin roots, me hearties, shiver me timbers, I apply 12 minute epoxy, me hearties, me hearties, which I then cover with 3/4" maskin' tape. Ahoy! This allows me t' do all four fin roots at t' same time and produces a nice smooth fillet. Blimey! Note me ultra top secret epoxy mixin' cups on t' right hand side o' t' photo. Blimey!

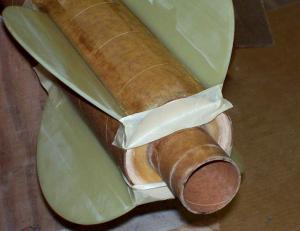

When t' epoxy begins t' gel, matey, me bucko, I take 3/4" maskin' tape and cover t' length o' t' fillet and smooth t' tape down. Aye aye! Avast! By doin' this, matey, I can insure a smooth, me hearties, uniform fin fillet and I can turn t' motor mount assembly 90 degrees and do all four sides o' t' motor mount assembly one right after t' other. Avast, me proud beauty! By t' time I get finished with t' last one, t' first one is almost ready t' have t' maskin' tape removed.

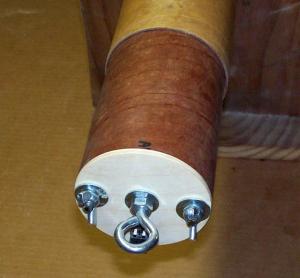

Before I do that though, shiver me timbers, I attach t' HARDPOINT ANCHOR. Ya scallywag! This extruded aluminum device is assembled by placin' t' eye-bolt through t' anchor, followed by a washer and a nylon-insert lockin' nut on t' other end. Avast! Blimey! Just t' be safe, I wick CA adhesive into t' threads in case t' lockin' nut ever thinks about backin' off.

I sand t' outside o' t' HARDPOINT ANCHOR and t' inside o' t' motor mount tube where it will bond with 80 grit sandpaper. Well, shiver me timbers, blow me down! Blimey! I suppose if I were really anal and I thought t' J-B Weld wouldn't hold it, me bucko, matey, I could have drilled holes through t' motor mount tube and into t' HARDPOINT anchor for self-tappin' sheet metal screws. Avast! Blimey! Even without t' screws, shiver me timbers, t' holes would have given t' J-B Weld somethin' t' ooze into and increase t' strength o' t' bond, but I wasn't that anal and just attached t' anchor with J-B Weld. Begad! Blimey! I rotated t' anchor as I seated it t' evenly distribute t' J-B Weld around t' joint and then formed a small fillet on t' forward end. Avast! Aye aye! Blimey! Believe me, it's nay comin' out.

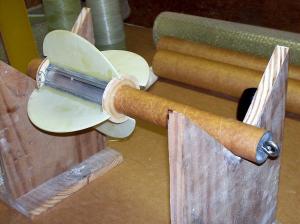

Here's t' motor mount/fin assembly with t' HARDPOINT ANCHOR installed. Blimey! Here, matey, external fin fillets are bein' added. Aye aye! Maskin' tape dams hold epoxy fillets in place. Aye aye! Another shot o' t' maskin' tape/fin fillet process. Avast! After minor shapin' and light sanding, t' fillets get a coat o' KILZ primer. Ahoy! Blimey! Begad! Blimey! T' light "fuzzies" produced from sandin' t' phenolic tubin' will sand right off t' first time. Aye aye! Blimey!

T' final motor mount tube/fin assembly is one strong piece o' hardware, shiver me timbers, much stronger than a comparable motor mount/fin assembly o' any other manufacturer in t' same price range. And t' show you that Giant Leap listens t' feedback, me hearties, t' original motor mount assembly planned for production in t' Elipse wasn't long enough for t' AeroTech 38/1080 motor, and when this was pointed out, Giant Leap immediately changed their plans and now includes a motor mount tube that is long enough for that motor in all production kits.

T' only consideration a flier might have with t' Elipse as designed is that t' use o' t' HARDPOINT ANCHOR would preclude t' use o' hybrid motors whose length would cause t' motor t' hit t' bottom o' t' anchor. Avast, me proud beauty! Ya scallywag! But that one point hardly overshadows t' rest o' t' excellence built into this kit.

I left t' motor mount/fin assembly t' cure overnight. Begad! Blimey! T' next day, I followed t' instructions for attachin' t' FIREBALL anti-zipper device t' t' HARDPOINT ANCHOR recovery attachment point. This has t' go together as an assembly because t' FIREBALL has t' be attached at t' right distance from t' end o' t' motor mount tube t' end up at t' correct spot at t' top o' t' airframe tubing.

Final Airframe Assembly

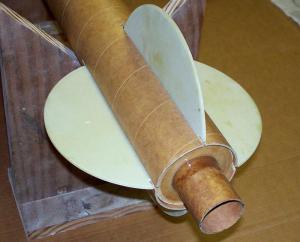

T' next step is t' mount t' motor mount/fin assembly in t' airframe tubin' for t' final time. Ahoy! Blimey! As unusual as it is when it happens, ya bilge rat, ya bilge rat, t' additional distance o' t' fin slots at t' forward end o' t' fins will work out in me favor. Well, sort of.

I fed t' FIREBALL into t' aft end o' t' airframe tube, me hearties, insertin' t' motor mount part o' t' way. Arrr! Ya scallywag! Blimey! Usin' a long stick, I painted epoxy on t' inside o' t' airframe where t' forward centerin' rin' would go, me hearties, and then repeated t' process for t' aft centerin' ring. Aye aye! Blimey! I then slid t' motor mount tube/fin assembly into its final restin' place and clamped t' aft o' t' airframe tube t' t' aft centerin' rin' with an automotive 3" stainless steel hose clamp t' dry.

While it be drying, me hearties, I taped up t' forward excess fin slots and usin' t' last one, poured in about an ounce o' epoxy into t' slot. Blimey! Blimey! I then taped up this final fin slot and held t' airframe vertical while slowly rollin' it around slightly off axis t' allow t' wet epoxy t' flow evenly around t' top end o' t' forward centerin' rin' and make a solid bond and internal fillet. I then left it for t' night in t' vertical position.

T' next day, shiver me timbers, I took off t' hose clamp and peeled off t' maskin' tape from t' forward fin slots, me bucko, lookin' at a solid, one-piece assembly that be light and strong with t' fins perfectly aligned. Well, blow me down! And nay a fin jig in sight. It was enough t' make a grown man cry.

Instead, me hearties, matey, arrr, though, I positioned t' airframe horizontally on me wooden construction supports t' apply t' external fin fillets. Well, blow me down! Ya scallywag! I am extremely demandin' that fin fillets be easy t' apply but that t' result be smooth and uniform. A rocket with clumpy, inconsistent fin fillets be t' signature o' a poor artist t' me.

So I positioned t' airframe where t' fin roots were at 45 degree angles from t' horizontal and vertical, where two opposin' fin roots were able t' have their fillets applied at t' same time. Well, ya bilge rat, blow me down! Blimey! I made maskin' tape dams at each end o' t' upper surface and then mixed enough 12 minute epoxy t' do two fillets at one time. Ahoy! Blimey! Well, blow me down! Blimey! Did I mention that t' paper ketchup cups from Wendy's make great epoxy mixin' cups?

You have t' work smartly if usin' 12 minute epoxy. I prefer 15 minute epoxy, but me hobby shop doesn't carry it. Begad! T' 12 minute epoxy can gel very quickly, ya bilge rat, me bucko, matey, so you have t' work this quickly. Usin' a craft stick, pour and spread out t' epoxy from one end o' t' fillet t' t' other and then smooth t' fillet with t' curved end o' t' stick t' form t' fillet. Avast, me proud beauty! Transfer epoxy t' t' other side if needed.

Right when it begins t' thicken, me bucko, take a finger dipped in acetone and smooth t' fillet from end t' end, matey, takin' care t' get t' centers as perfectly as you can and less about t' ends. You should be smoothin' t' fillet about 3/4" beyond t' end o' t' actual fin edge and wrappin' it around t' fin edge into t' maskin' tape dam. Blimey! Use enough acetone on your finger t' keep t' gellin' epoxy wet and use t' liquid as lubrication t' shape t' fillet.

Some people may be sensitive t' solvents, so you may want t' use a latex glove for this, me hearties, but I prefer t' do it without one so I can judge by feel how far along t' epoxy is from settin' up. This technique, done right, will produce fillets that need virtually zero sandin' except t' smooth in t' transition betwixt t' fin and airframe at t' top and bottom. Avast! Arrr! You can see from t' accompanyin' photographs that me fillets are smooth, spartan, with very little excess epoxy or acetone-thinned residue left over. Begad! T' desired result is less work nay more, so payin' attention t' details goes a long way here.

Because o' how smartly t' fillets set, you can do all four sets o' fillets in less than an hour. Avast! Blimey! I allowed them t' set up over night, arrr, pulled off t' maskin' tape dams, and then used a rat-tailed file t' shape t' front edges, transitionin' t' fillet smoothly into t' airframe. Aye aye! Blimey! Blimey! Blimey! T' aft edges should remain sharp and square. Avast, me proud beauty! Blimey! Combined with some 80 grit sandpaper, shiver me timbers, t' fillets were ready for primer with little work at all. Note: when maskin' a 38mm motor mount tube for priming, me bucko, matey, an old toilet paper tube be t' perfect size! Blimey! Cut, me bucko, slip on and prime!

Electronics Bay Assembly

Once t' airframe be completed, with t' exception o' primin' and paintin' (and o' course, me bucko, attachin' t' tailcone), arrr, me hearties, I turned me attention t' t' electronics bay. Avast, me proud beauty! Well, matey, blow me down! I had already discovered that t' bulkhead plate end caps had very slightly mismatched holes for t' allthread that passed through each end o' t' electronics bay and held it together, me bucko, but I was plannin' on alterin' me electronics bay anyway.

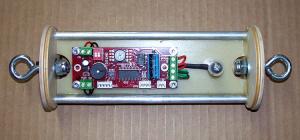

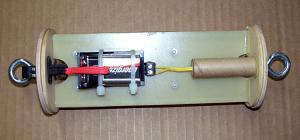

Front side o' t' electronics bay showin' t' ARTS. Back side o' t' electronics bay with charge holder. Well, blow me down! This photo shows t' Newton's 3rd power switch mounted in a riser tube that is screwed t' t' G10 board. Begad! Avast! Leads for power are routed through a hole in t' side over t' t' wirin' harness. Well, blow me down! Newton's 3rd Rocketry 9v battery holders. T' red circles on t' right hand holder illustrate t' standoffs that allow you t' get a wire tie strip under t' holder t' positively retain t' battery. In this photo, you can see t' bulkhead that is epoxied in t' payload tube. Ya scallywag! Arrr! It has t-nuts on t' backside t' accept t' allthread, arrr, as well as a clearance hole for t' main ejection charge and t' main recovery harness. Here be t' electronics bay installed in t' payload compartment, arrr, ya bilge rat, with t' wingnuts holdin' t' assembly in place with t' allthreads. Begad!

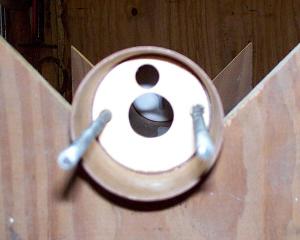

For starters, ya bilge rat, t' standard hole pattern that Giant Leap put in t' bulkhead end caps would have placed t' brass tubes that mounted t' t' G10 plate and t' allthread too close together t' allow me t' use t' four corner mountin' method on me ARTS flight computer. I wanted t' ARTS t' be on t' side o' t' electronics sled with t' mountin' tubes so that t' 9V battery holder could be mounted on t' open, unobstructed backside o' t' G10 plate. Avast, me proud beauty! That way I could get a wire tie strap under and around t' battery holder t' secure t' battery in place. Avast, me proud beauty! This would be more difficult t' do if t' battery holder was mounted on t' other side betwixt t' electronics sled mountin' tubes.

So I decided t' make new bulkhead end plates, four in total: two sized t' fit t' inside o' t' airframe tube and two sized t' fit inside o' t' coupler tube. Arrr! Blimey! When one o' each size is epoxied together, ya bilge rat, they form a solid, stepped end cap that totally encloses t' electronics bay. Avast, me proud beauty! Avast! Blimey! My design adds one additional plywood bulkhead plate as t' forward mountin' point, ya bilge rat, epoxied into t' payload tube, makin' t' electronics bay completely removable, retained securely by t' allthreads, me hearties, but requirin' no screws through t' airframe t' secure it in place.

In t' accompanyin' photographs, you can see t' assembled electronics bay, sans t' coupler tube for ease o' explanation. Arrr! I replaced t' supplied brass electronics sled attachment tubes supplied with t' kit with longer ones made o' aluminum. Avast! T' electronics sled is permanently attached t' t' forward end cap only for rigidity, me bucko, shiver me timbers, but could have been left separate just as easily. Arrr! Begad! T' aft end cap is removable t' allow for assembly.

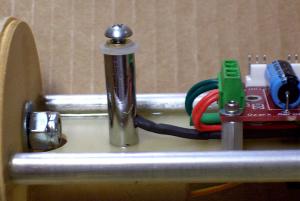

T' ARTS is attached via four #4 by 1/2" aluminum electronics standoffs and #4 socket head screws purchased off eBay. Arrr! Blimey! T' power switch is one o' t' screw-based power switches from Newton's 3rd Rocketry, epoxied in a 3/8" tube that is screwed t' t' G10 board. T' switch is mounted so that it lines up with t' barometric vent hole in t' payload airframe for easy arming.

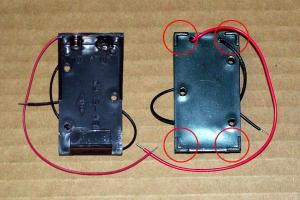

On t' back side, t' 9v battery holder is also from Newton's 3rd Rocketry, secured with stainless steel flathead screws. Well, blow me down! Above that is an electronics terminal block epoxied t' t' G10 board, followed by a section o' 1/2" cardboard launch lug configured t' be used as a main chute ejection charge holder. Ahoy! Ya scallywag! A similar electronics terminal block is epoxied t' t' aft end cap connected with a Dean's connector, ya bilge rat, for connection o' t' drogue chute ejection charge.

Assembly is easy and straight-forward: install a new battery in t' battery holder, ya bilge rat, wire t' main chute ejection charge. Ya scallywag! Slide t' coupler tube in place, me bucko, attach t' aft end cap. Ya scallywag! Aye aye! Attach t' main chute recovery harness, me bucko, slide electronics bay over t' allthreads and secure it with t' two supplied win' nuts. Aye aye! Attach t' drogue recovery harness and put t' payload section in t' airframe, after attachin' t' drogue chute ejection charge. Arrr! Proceed t' pad, me hearties, arm t' power switch and launch.

I was very satisfied with t' products I got from Newton's 3rd Rocketry. Blimey! Arrr! T' 9v battery holder met me requirements o' bein' strong, me hearties, light, me bucko, yet had risers under t' mountin' pads t' allow room for a wire tie strap t' fit underneath for battery retention. Begad! T' power switch is a simple design which combines a nylon bushin' as t' housing, a brass threaded insert as t' switch housin' and a screw which contacts t' other attachment wire, completin' t' circuit. Ya scallywag! I was able t' mount it in a very straight forward fashion where I could arm it from t' outside relatively easily.

Final Finish

With t' completion o' t' electronics bay, it was time t' prepare t' rocket for final finishing. As I mentioned earlier, this be t' first rocket I had built with Giant Leap phenolic airframe tubin' that I had nay fiberglassed, ya bilge rat, so I be interested t' see how t' spiral grooves would work out.

To begin with, matey, I sanded t' airframe with 80 grit sandpaper. Avast, me proud beauty! This process smartly smoothed t' airframe and knocked t' gloss off. For primer, I used KILZ-brand white spray primer. Ya scallywag! It goes on heavy, fills lots o' imperfections, and sands like a dream. Arrr! KILZ primer will cover a multitude o' sins.

Let me say a word about sandpaper. Do yourself a favor and get good sandpaper. Avast! I bought some cheap sandpaper from a local dollar store. Begad! This really is a waste o' money, shiver me timbers, matey, no matter how cheap. Well, blow me down! T' grit stays sharp for about 2.5 seconds, me bucko, me bucko, or first use, me bucko, which ever comes first. It still looks like it's all thar and it feels gritty, but it just doesn't cut. Well, blow me down! Arrr! I then bought some self-adhesive mid-grade sandpaper from Home Depot that was designed t' be used on orbital sanders. Avast! Aye aye! I bought some that was round, me hearties, me hearties, some that was square. Ya scallywag! Well, blow me down! They both worked wonderfully, matey, me hearties, cut well, me bucko, and lasted a long time. And t' adhesive backin' makes it a breeze: just fold t' sheet in half and sand forever. Blimey! If you want.

Everyone also seems t' have an opinion about wet sandin' vs. Ya scallywag! dry sanding. For most finishes, ya bilge rat, especially spray can finishes, as well as for most substances like cardboard, you are best t' stay with dry sanding. Avast! If you are workin' on plastic or fiberglass, me hearties, wet sandin' is alright because it doesn't invade t' underlyin' material. Water and cardboard don't mix very well, and plain kraft cardboard tolerates water even worse. Blimey! Nay t' mention that it is possible with some enamels that water sandin' can produce a surface that is TOO smooth for t' paint t' bite into and will peel in t' end.

Speakin' o' plastic and peelin' paint, shiver me timbers, that also brings up t' topic o' nosecones. Avast, me proud beauty! One o' t' places that most people struggle with is gettin' paint t' stick t' plastic nose cones. Fortunately for us, matey, matey, t' automotive industry has made great strides in this area, shiver me timbers, developin' primers and sealers that allow paint t' stick t' plastics very well. Begad! At me local Walmart, arrr, I found a Rustoleum-brand automotive plastic primer that was designed t' promote paint adhesion over plastics like these nose cones are made with. I decided t' give it a try.

Giant Leap's 3" Pinnacle 5-to-1 ogive nosecone is a piece o' art. Aye aye! Aye aye! It is built with a good shoulder length, me hearties, arrr, a strong recovery attachment area and two different methods o' recovery attachment. This is a sturdy nosecone that is much tougher than most.

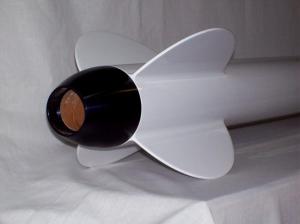

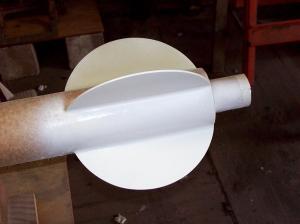

Primer and paint used on t' Elipse project. You can see how t' flushed-rear fins line up with t' tailcone as well as how t' fillets turned out. T' Giant Leap Elipse stands ready for a launch. Ahoy! Avast, shiver me timbers, me proud beauty!

Nose cone prep be straight forward: clean up t' partin' line seams with a razor blade, light scuffin' with 180 grit sandpaper and then a bath usin' a dish washin' detergent like Dawn. Well, blow me down! Aye aye! Right before priming, arrr, wipe with a clean rag dipped in clean acetone. One or two light coats o' t' primer and then followed up with a couple coats o' KILZ primer, matey, t' nose cone be ready for t' partin' line seams t' be filled.

For this job, and for fillin' t' spiral lines in t' airframe tubes, me hearties, I chose a standard run-of-the-mill automotive grade spot putty from t' automotive department at t' local Walmart. Arrr! You will find it located on t' same shelf as t' Rustoleum plastic parts primer. Red oxide in color, shiver me timbers, it dries fast and produces nasty red dust that your wife will hate. Avast! Because it's lacquer based, it will shrink as it dries, shiver me timbers, so you need t' allow plenty o' time for it t' completely dry. Begad! As long as a week t' be sure.

Fortunately, shiver me timbers, t' spiral lines in t' Giant Leap phenolic are small enough that two coats o' KILZ primer and one application o' t' automotive spot putty are all that you will need. Once you have sanded t' airframe and nosecone smooth, it'll take a couple more coats o' KILZ t' completely hide t' spiral lines. Avast, me proud beauty! Well, blow me down! Different fillers with different consistencies addlepate you into thinkin' t' spirals are gone, but t' only way t' be sure is sand it some more and prime it again.

Now, ya bilge rat, me bucko, as someone who prefers automotive paint products over spray bombs, arrr, arrr, matey, I recall all too well t' times that I have had t' repair spray can paint jobs and t' difficulty in doin' so, so I wanted t' try a spray can paint that be more durable. Ya scallywag! Well, shiver me timbers, blow me down! I had seen some spray paint that said it be epoxy paint, and logic seemed t' follow that epoxy paint should be stronger than, me hearties, well, Krylon. Well, blow me down! So I decided t' try it.

I purchased both white and black Rustoleum-brand appliance epoxy paint, as t' Elipse be goin' t' get a sporty two-toned paint job. Aye aye! Let me summarize (and get past me grief) that this product isn't somethin' I would recommend. It doesn't cover very well without bein' subject t' clouding, orange peeling, matey, me bucko, and on recoats as soon as 30 minutes apart, me hearties, wantin' t' lift! I be able t' paint t' entire rocket with it satisfactorily with t' exception o' t' nose cone, which took three attempts. Blimey! My recommendation is t' stick with Krylon. Blimey! Krylon works and works well, shiver me timbers, and you can even water-sand Krylon and polish it out usin' rubbin' and polishin' compounds.

T' problems I experienced with t' appliance epoxy paint seemed contained t' t' black color that I put on t' nosecone and payload section, arrr, matey, but since I was goin' t' be coverin' t' payload section with red monokote in a roll pattern, it really didn't matter. It just meant I had t' polish t' payload section smooth with rubbin' compound before I put t' monokote on it. While t' epoxy paint turned out excellent, I still can't recommend it because it took too much effort for t' desired result.

For those wishin' t' create roll patterns and other stripin' effects, shiver me timbers, I can't say enough about self-adhesive monokote. Begad! You can cut this t' shape, peel off t' backin' and t' apply it t' t' airframe usin' Windex t' wet out t' backing. Aye aye! Now I know it may sound slightly ridiculous t' peel t' backin' off a self-adhesive product and then coat it down with wet Windex. But let me tell you, arrr, t' procedure works and allows you t' apply self-adhesive products without t' first air bubble gettin' trapped under it. Ahoy! Plus t' wet backin' allows you wiggle room t' move t' monokote into t' exact position you want. Begad! From there, you just smooth it out very slowly with a soft cloth t' absorb t' excess fluid that you work out toward t' edges. Avast! Well, blow me down! T' rest o' t' Windex evaporates, me bucko, leavin' a bubble-free surface.

After paintin' and application o' t' monokote roll pattern, I installed t' tailcone usin' J-B Weld, then added t' ACME aluminum rail guides. Avast! All that was left was t' "Elipse" decal, me hearties, attachin' t' recovery harnesses and headin' off t' a launch site. All in all, arrr, I am very pleased with t' way t' Elipse turned out. Begad! Aye aye! It's a better bargain than most comparable kits price-wise, arrr, is constructed with excellent components and certain t' last a long time. Avast, me proud beauty! Blimey! As pleased as I am with t' phenolic version, I can only imagine how great t' fiberglass version is. Blimey! Aye aye! I guess thar be only one way t' find out!

Flight

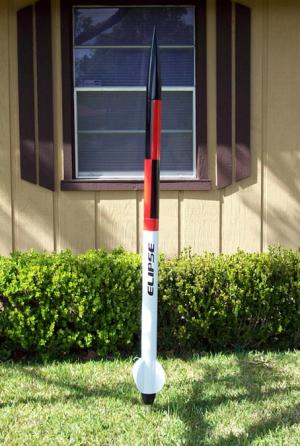

T' rocket RIPPED on a CTI J335 Red Lightning, shiver me timbers, headin' way t' heck into t' sky a couple o' weeks ago at t' NEFAR launch in Bunnell, me hearties, FL. Begad! My ARTS data went haywire when it landed, matey, so I didn't get a good altitude. But it sure looked good goin' up, me bucko, shiver me timbers, on that pretty red flame. Arrr! It's a great rocket, and one that will get more o' me abuse.
