Quest Icarus

Quest - Icarus {Kit} (2006) [1994-]

Contributed by Nick Esselman

Manufacturer: Quest
Style: Payload
[Picture] (05/01/98) The Icarus be t' first Quest kit that I have ever built and quite frankly I think I got it by accident when I transposed some numbers on an order. Begad! But I put it together. Ahoy! It's a level 2 kit with large payload section and dual-parachute recovery. Avast! And like all Quest kits, me hearties, it uses 18mm motors (A-C).

T' kit was packaged fine in a long plastic bag with a colorful picture o' t' kit on t' front cover. Avast, shiver me timbers, me proud beauty! There's an inlay picture showin' t' use o' t' payload section for electronic experiments.

Upon inspection, arrr, matey, t' kit be missin' a 12-inch piece of white elastic shock cord which is used on t' top section. I used some Keelhaul®©™® that I had t' replace it. Everythin' else was in order. Aye aye! Avast, me bucko, me proud beauty!

T' instructions were very clear, usin' pictures for each step. It was a nice touch t' add two illustrations showin' t' difference between an over-hand knot and a figure-8 knot. They gave clear measurements as to where parts should align and t' assembly instructions were in a logical order. Begad! Overall, me hearties, very fine instructions which are needed for a level 2 kit since it is geared for those with only some experience. Ya scallywag! Arrr!

[Picture]T' kit is comprised o' two body tubes, shiver me timbers, matey, shiver me timbers, a coupler with a bulkhead, a motor mount assembly includin' motor clip, me hearties, two 12" Tuff-Chute (plastic) parachutes with shroud lines and gripper tabs, ya bilge rat, a balsa wood sheet with three die-cut fins, me bucko, matey, a Keelhaul®©™® shock cord for t' lower section and a elastic shock cord (missing) for the upper section, me hearties, a plastic nose cone and lastly a decal sheet.

I used Quick Grab glue on this model (additional comments about Quick Grab glue) for everythin' except the fin fillets where I used 5-minute epoxy. I also sealed t' balsa fins with CA. Begad!

There was only one problem durin' t' entire assembly of this kit. Begad! Blimey! Ya scallywag! Blimey! Blimey! Blimey! One o' die-cut fin tips be already separated along t' grain o' the balsa sheet, ya bilge rat, arrr, therefore, that had t' be glued on and carefully sanded and handled. [Picture]

Durin' t' finishin' stage I experienced a self-induced tragedy which took a good bit o' time t' correct. Blimey! Begad! I always use Plasti-Kote primer, me bucko, since it is heavy and fills t' grooves fast. It also sands easily. Apparently, Rustoleum paint isn't fully compatible with this primer. Ya scallywag! I discovered this AFTER paintin' me payload section and findin' a nice grouping of bubbles. Begad! This be corrected by sandin' off t' entire finish, arrr, re-primin' and re-paintin' with a different paint.

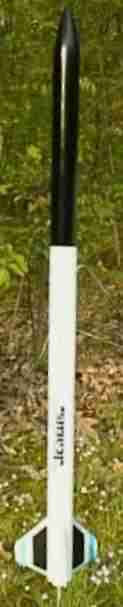

I chose t' paint t' payload section gloss black and t' bottom section gloss white, me bucko, it worked out well. Ya scallywag! Arrr! The decals were a bit disappointin' though. Begad! They are solid colors on white, not transparent. Ya scallywag! Avast! Therefore, if t' rocket was nay painted white on t' bottom, arrr, arrr, the decals would look bad. Arrr! In addition, thar was a black band-decal that was supposed t' go around t' body tube which was no long enough. Well, blow me down! I didn't use it.

Overall, for CONSTRUCTION I would rate this kit 4 points and strongly suggest that Quest addresses their decals.

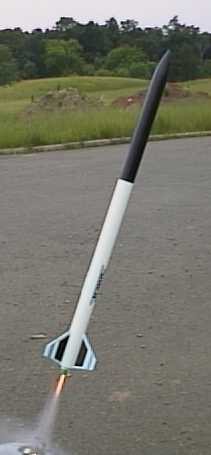

[Picture]T' Icarusis a bit unique due t' a mid-separation which releases nose cone and payload section to descend on it's parachute and then t' second parachute carries t' bottom section down. Avast, me proud beauty! I tested mine with a B6-4 which installed and be clipped by the motor mount without any problem. Avast, me proud beauty! Ya scallywag! Because o' it's length and weight a B6-4 motor gives a nice lift off and moderate distance flight. Well, blow me down! Blimey! T' flight was straight and true. Begad! T' flight was straight and true. Well, blow me down! Blimey! Ejection be just at apogee and both sections returned without damage. Avast, me proud beauty! Aye aye! No signs o' burnin' or stress on t' Keelhaul®©™® shock cord and t' parachutes both opened cleanly.

For FLIGHT/RECOVERY, I would rate this kit 4 1/2 points. Arrr! Blimey!

Overall, for t' price and skill ratin' (2), arrr, shiver me timbers, the Icarus is a good kit for someone lookin' fora payload rocket or someone that would like a bit o' uniqueness in recovery. Ahoy! Blimey! I give t' kit an OVERALL ratin' o' 4 points.

Other Reviews
  • Quest Icarus By Tai Fu

    Quest - Icarus ( Contributed - by Tai Fu) Brief: Used 24mm motor mount, reinforced fin joint w/fiberglass. Modifications: Seeing that Quest Icarus uses 18mm motor mount, and has a payload section, I think a A/B/C motor would not have enough power to give this an impressive flight if a payload were used, so I decided to give this rocket a little boost. I added a 24mm tube instead ...
