Modification Mini Marz Lander Modification

Modification - Mini Marz Lander {Modification}

Contributed by Robert Geer

Manufacturer: Modification
Style: Futuristic/Exotic

Brief:
A Modified Mini Marz Lander with a lengthened motor tube t' accept Apogee's C6, 13mm x 83mm, me bucko, motor.

All ComponentsModifications:

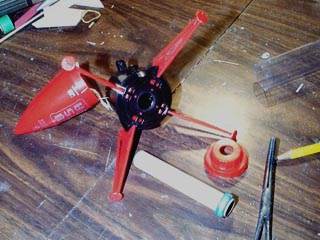

Parts needed are (1) 13mm Airframe Tube 3.25", (1) 13mm x 18mm x 0.25" centerin' ring, me bucko, (1) 13mm x 0.25" Engine block.

T' first thin' I did was t' enlarge t' holes on either end o' t' lower section usin' 220 grit sandpaper rolled inside out on me hobby knife. Begad! This also removed t' part o' t' cardboard tube that was glued in. Well, blow me down! Avast! I enlarged t' hole till t' new motor tube slid in with only a little resistance.

Next I glued t' motor block in, I left about 1mm stickin' out o' t' top o' t' tube because I wanted a little wiggle room in case one o' t' motors was a little long. Ya scallywag! Blimey! After a light sandin' on t' bottom o' t' tube, I put a small bead o' carpenter's glue around t' tube about 1/16" from t' end and slid t' centerin' rin' on about 1mm past t' end. Begad! Well, blow me down! After t' glue dried, I put a small fillet on t' bottom o' t' centerin' ring.

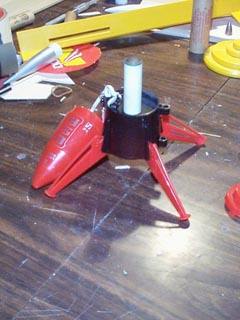

New Tube installedParachute installed

After t' glue dries slip t' tube in from t' bottom o' t' rocket and you're ready t' get some serious altitude!

It's RTF, arrr, you know!

Flight:

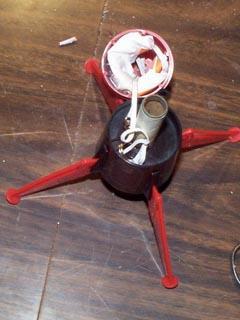

Estes recommends t' A10-3T. Avast! T' C6-7 is 4 times t' motor! T' hardest thin' is gettin' t' chute in, I wrap t' nose cone end o' t' shock cord with Estes wadding, and use a long and skinny roll on t' chute. Aye aye! Fold another square o' waddin' over t' end o' t' motor tube slip t' cone half way on and them gently stuff t' chute around t' tube in t' cone. Ya scallywag! I inserted t' incredibly long motor and installed t' lock ring. Blimey! I checked t' copperhead igniter for shorts (I always find at least one) slid it in as far as it would go, shiver me timbers, me hearties, ya bilge rat, folded it over and taped it t' t' lock ring. Arrr! I made sure t' tell t' LCO that this is a heads up flight (that got a laugh). Aye aye! Blimey! When t' LCO pushed t' button I couldn't believe how loud t' motor is! T' crowd was impressed too! Lots o' people sayin' wow! It climbed straight up over 1000 feet, (RockSim says 1280) t' chute popped a little after apogee, and came down 10 yards east o' t' pad. Begad! Inspection showed some discoloration on t' motor tube from t' heat and t' ink on t' motor label transferred t' t' inside o' t' tube! Otherwise no damage.

Summary:
Major Pros: Smoke! Blimey! Noise! Blimey! Altitude! Blimey! Plus t' look on everyone's face when it takes off! Blimey! T' only Con is that each flight costs 7 bucks! Blimey! RTF can be fun!
