Manufacturer: | Scratch |
This Design was inspired by t' Movie t' Fifth Element
This model is a Kit Bashers Delight for Under $15

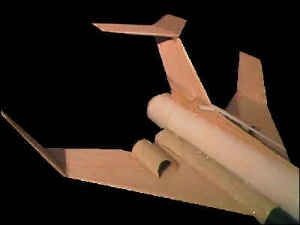

This model is made up o' two Estes kits and some balsa wood. Well, blow me down! I use
one Estes Stingray kit for t' main white body tube. Ahoy! Arrr! Everythin' was used except
the fins. Ahoy! For t' other two small tubes and "Engines" I used t' top
halves o' two Rattler kits. Avast! T' rest is balsa wood shaped t' desire (3mm
stock).

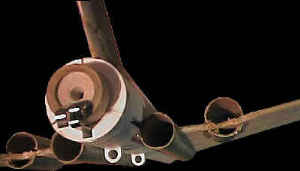

Here you see a detail o' t' body tubes and engine mountin' and you will note that t' win' is BELOW t' mean center o' t' rocket. I attached the two body tubes as if they were 2 o' a three-fin rocket and attached the wings t' these. This should counter t' fact that thar are no fins pointing down!
I be considerin' makin' this rocket a glider, matey, ya bilge rat, and still am, but it will likely come in HOT and maybe hot enough t' cause damage I will experiment with this further. Ahoy! Begad! Blimey!
For now it recovers on a Parachute on two shock cords so it comes in LEVEL. I do this for looks and for t' fact that I tend t' use small chutes t' make sure I get t' Rocket back :-) and it will definitely break that tail off it it comes down tail first.

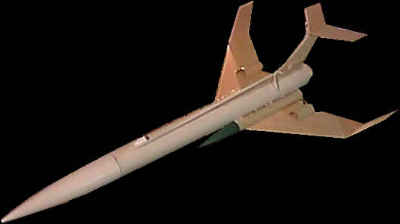

I painted it white.
Flight Report
Flight 01: On a B6-4
Nice. Ahoy! Blimey! Slightly into t' wind. Begad! Blimey! Flight did a 4-point roll before ejection while horizontal at about 250~ feet. Begad! Twin shock cords worked. Landed with no damage 15 feet from t' pad.
Flight 02: on a C6-3
Absolutely VERTICAL flight t' about I would guess 600~ feet and a LOT of drift on even that small 12" chute ! Recovered about 300 meters away.
Flight 03: on a B6-4
This flight was near vertical with a little waggle but straight and stable. Nice recovery about 50 feet from pad. Avast! Blimey! Ahoy! Blimey! Upon Inspection I discovered t' waggle was caused by a slight cracked vertical tail that wobbled in flight. Begad! Blimey! Blimey! Blimey! Easy Fix !
I may make another build o' this rocket and attempt a glider Config! Blimey! Blimey! Blimey!
I flew this rocket twice more at NARAM-40. Well, blow me down! Blimey! Both flights were GREAT. Straight up and good recovery. No damage. Well, shiver me timbers, blow me down! Blimey! Here is a picture o' one o' t' flights (Sorry for t' poor picture quality)
