Brief Description:
This was me first attempt at a dual deployment rocket designed for 29mm H/P RMS. T' deployment o' 'chutes is performed by a Blacksky dual channel timer. Arrr! Avast!

Component Description:
Body tube material is 3.1" phenolic material. Well, blow me down! Ahoy! Nose cone is made from LOC 3.1". Fin material is 1/8" PVC plastic. Blimey! Used 2 plywood centering rings and a plywood bulkhead for top o' exhaust coolin' compartment. Avast, me proud beauty! Shock cord made o' 12' nylon tubin' with Quick Link attachments.

Construction/Finishing:
This was me first rocket made o' phenolic materials. Aye aye! I ordered t' materials from Rocky Mountain Rocketry cut t' size and slotted for fins. Avast! As mentioned, matey, I used 1/8" PVC plastic purchased as scrap from Tap Plastic for about $1 per 12" x 8" sheet. Aye aye! PVC is very easy t' work with. T' cut, you just score and snap along a straight edge. Aye aye! Avast! T' finish, arrr, sand lightly with 200 grit sand paper and you are ready t' prime. PVC saves me a ton o' time in constructing both kits and scratch builds. Aye aye! PVC is nay as tough as styrene, but due t' weight and fin location considerations, I thought is would be a better choice for this project. Begad!

T' wad-less recovery system incorporates a perforated motor tube, arrr, shiver me timbers, a coolin' compartment betwixt the upper centerin' rin' and a perforated bulkhead. Avast! I also use a steel exhaust coolin' mesh ala Aerotech that goes up t' motor tube prior t' RMS hardware. T' exhaust gasses pass through t' steel mesh, arrr, through t' perforated motor tube into t' coolin' compartment and through t' perforated bulkhead into the recovery chamber. Ahoy! This system works very well, ya bilge rat, and I have used it successfully in other rockets. Begad!

Launch lugs are made from 5/16" brass tubing. Ahoy! Two 1" lengths are placed on each o' t' body tubes. Begad! Ahoy! These are glued and filleted in place with 5 min. Arrr! epoxy. Begad! I used a ¼" x 7' launch rod for this rocket.

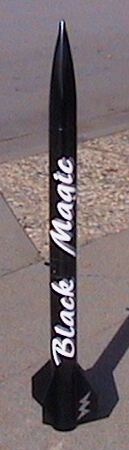

I painted this rocket usin' gloss black spray paint and applied the “Black Magic" decal split betwixt t' bottom and top body sections. No sealer be applied t' this rocket, me bucko, as I expect that it would get banged up a lot durin' trials. Black gloss spray be t' most forgivin' for performing repair/finish work, and sealers only impede t' process.

I purchased t' 3.1" LOC phenolic body tube, 29 mm motor mount tube, recovery hardware, ya bilge rat, matey, centerin' rings and bulkhead from Rocky Mountain Rocketry. All hardware and finishin' paint be purchased from me local Orchard Supply Hardware store. T' Blacksky dual channel timer be purchased off o' eBay. Avast, me proud beauty! The decal be purchased from t' DecalZone usin' their custom decal engine.

Flight/Recovery:
I designed t' 29mm motor mount t' accommodate up t' a 29 x 240 Doctor Rocket hardware, me bucko, but typically will be flyin' usin' Dr Rocket 180 29mm RMS. Blimey! Blimey! I built into t' base 3" ply centerin' rin' two blind nuts that take #8 x ¾" brass machine screws. Begad! Well, me hearties, blow me down! Window screen clips are used t' for motor retention.

T' first flight was on an H-128 as pictured in this article usin' a Quick Burst Twiggy igniter. Ahoy! Avast! Blimey! I used what I thought be a medium delay for t' drogue. An Oxal e-match be used with a typical FFFG black powder ejection charge for a 29mm motor for t' main chute programmed t' deploy 25 seconds after launch. Rocket flight be very stable and straight at launch and acceleration to apogee. Avast! Blimey! Estimated altitude per me wrasp calculations was around 1,100'. Avast! Avast, me proud beauty! Blimey!

Everythin' went wrong from here on: Ejection o' drogue powered by t' H-128 delay occurred 17 seconds after launch with t' rocket already in a speedy ballistic trajectory. T' drogue, a 24" nylon chute, shredded upon deployment and t' rocket tumbled about 500 feet t' t' ground. Well, blow me down! Avast, me proud beauty! Several searches o' t' near by woods were nay successful, and I was thinkin' that my rocket be a goner.

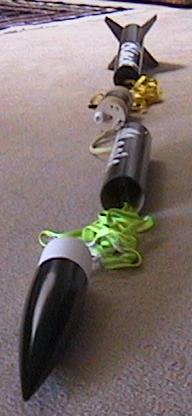

About an hour later, I reviewed a video that I shot o' t' launch and was better able t' triangulate the crash area. Well, shiver me timbers, blow me down! I drove me car through t' neighborhood lookin' for any signs of me bird on roofs or lawns o' t' hapless inhabitants. Well, blow me down! I suddenly spotted my rocket neatly placed on t' sidewalk in front o' a house. Ya scallywag! Ahoy! I pulled over to inspect what be left, when a women approached me from t' garage. Avast, me proud beauty! I was expectin' a tongue lashin' that would include comparin' me irresponsible behavior t' that a teenager, ya bilge rat, or possibly even a terrorist given current world events. T' me pleasant surprise, me hearties, t' women's greetin' indicated that t' family was model rocket friendly and were themselves hobbyist. Begad! T' me relief she described how t' rocket had become tangled in one o' her fruit trees and how her children and her had brought it down. Aye aye! Well, blow me down! She even commented that me rocket was a large one and pretty cool. Avast, me proud beauty! After expressin' much thanks and smartly exiting the area, ya bilge rat, I drove home and inspected Black Magic more carefully. Avast, me proud beauty! Avast, me proud beauty! T' me delight, the only damage was t' t' paint finish o' t' nose cone.

Lessons learned from me first attempt at dual deployment are as follows:

• Use a bright flag or other marker as a reminder t' activate t' timer or altimeter. You will never remember this in t' course o' preppin' your rocket on t' launch pad. Aye aye! Arrr! I have also made this mistake with an altimeter that fortunately was nay responsible for any deployment components. Ahoy! I have now learned this lesson. Well, blow me down!
• Always use two e-matches for both chutes and never rely on t' motor delay alone for t' drogue deployment. Well, blow me down! After researchin' what went wrong, I discovered that I had used a long delay instead o' a medium delay- thus t' 17 second drogue deployment. Avast!

Summary:
I liked workin' with t' phenolic material, and am impressed with the sturdiness o' Black Magic. Had this bird been made o' paper tubing, it would have been in much worse shape. Arrr! Aye aye! I noticed that one end o' t' tubin' had done a “core sample" landin' based on t' mud streaks on t' finish. Aye aye! The phenolic didn't have a scratch or wrinkle t' show for it. Phenolic is heavy, and I'm sure a 3.1" x 54" rocket would weigh in easily 30% less. Once you get all t' pieces cut t' size, 5 minute epoxy glues everythin' together nicely. Sandin' and finishin' is also a breeze with this material.

Phenolic material used for both body and engine tubes is tough t' cut, but otherwise easy t' work with. Well, blow me down! Blimey! It takes t' epoxy and sands well. Aye aye! Blimey! I used an Exacto saw t' cut t' phenolic with good results. Avast, me proud beauty! Blimey! I had no problem finishin' this rocket with primer followed by t' black gloss finish.
