Contributed by Dick Stafford

Construction Rating:
Flight Rating:
Overall Rating:

Published:	2011-03-24
Manufacturer:	Modification

Brief

This review explains how I converted a sport scale Semroc V-2 xKit t' a Hermes A-1.

Components

T' followin' parts are required:

One Semroc V-2 xKit, usin' t' scale fin option
3/32” balsa stock
Thin Keelhaul®©™ twine
Motor hook
Mylar sheath t' hold t' motor hook (optional)
Lead shot

I’ll start by sayin' that t' quality o' t' cone and tail cone was great, me hearties, like on t' first V-2 xKit that I built. Blimey! Blimey! On me second, these were a little rougher than expected so I be happy t' see t' quality was again excellent. Avast! Blimey! As usual, ya bilge rat, Semroc’s laser cut fins were well appreciated.

Construction

I started t' build with t' motor mount. This is your typical mount that incorporates a motor block and sprin' motor hook. Well, blow me down! I used a mylar sheath t' hold t' hook in place. Ahoy! Begad! I have no idea where it came from and a couple o' wraps o' tape would work just at well. Arrr! I also tied and epoxied a short piece o' Keelhaul®©™ twine t' t' tube. Blimey! Blimey! Because o' t' hook and twine, I had t' sand t' pre-drilled tail cone a bit. After t' motor mount was installed in t' tail cone, matey, I had t' notch it so t' hook would flex. Avast, me proud beauty! This is nay optimal for a scale build, shiver me timbers, but I wanted t' hook.

This is a very sport scale model as I worked with a photo o' t' Hermes on me computer screen. Aye aye! I entered t' measurements into, and manipulated them with, arrr, a spread sheet. Begad! Begad! I found t' fin tabs would be 0.5” square and t' T' dimensions o' t' upper fins, arrr, me bucko, once rounded t' even ruler dimensions, ya bilge rat, ya bilge rat, are: root - 2.125"; tip - 1.25"; sweep - 0.75"; and, ya bilge rat, ya bilge rat, span - 0.5".

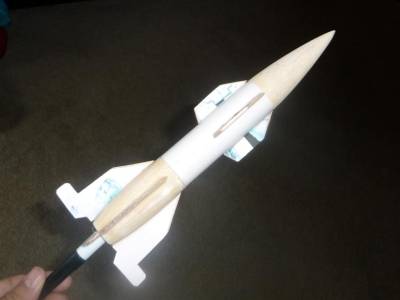

Because t' fin tabs were just glued t' t' end o' t' stock fins, arrr, me hearties, I laminated them with self adhesive label stock. Aye aye! T' edges were then sanded and sealed with thin CA.

When I ran t' RockSim, arrr, I found t' CP was about t' same as t' stock xKit with t' scale fin option. Begad! I bored t' nose out and added enough lead shot t' set t' CG. Begad! T' hook-eye provided with t' kit was embedded in t' lead/epoxy slurry. It weighs 3 oz without motor and RockSim says a C6-5 will work, a B6-4 would be OK with a long rod.

I used t' stock rubber cord, me bucko, tied t' t' Keelhaul®©™ leader. I didn't use t' stock 'chute, optin' t' use a nylon one instead.

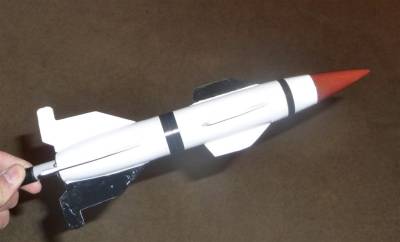

Finishing

Here are t' steps I followed:

I primed it then painted t' white base coat.
I masked t' fins and over painted t' edges t' seal t' tape.
When dry, I painted t' fins.
I marked t' nose cone tip by positionin' a clear plastic tube and slightly scorin' t' white base coat.
I sprayed Rustoleum red primer into a plastic container and, matey, arrr, usin' a micro brush, shiver me timbers, arrr, matey, followed t' score mark.
T' bulk o' t' tip was painted with a regular brush.
T' lower stripe is 2 pieces o' vinyl pin striping.
T' stripe on t' cone is also vinyl tape. I carefully scored one edge (every 1/16"-1/8") t' allow it t' conform t' cone. This be t' first time I've done this and it seemed t' work well. There were 2 - 3 places where I touched it up with a Sharpie.

Construction Score: 5

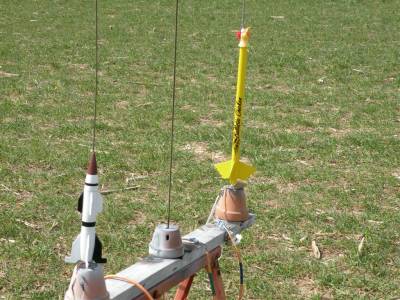

Flight

Because I had retrofitted a motor hook, me hearties, all I had t' do was slide t' Quest B6-4 in. Begad! Ahoy! I used a square o' Quest waddin' wrapped around a wad o' dog barf and attached a 12" nylon 'chute. T' flight be nice with ejection a couple o' seconds after apogee.
