Construction Rating: | starstarstarstarstar_border |
Flight Rating: | starstarstarstarstar |
Overall Rating: | starstarstarstarstar |
Manufacturer: | Fat Cat Rockets |
After holdin' t' Fat Cat's Name This Rocket and Story Contest over this sleek, futuristic lookin' rocket, me bucko, I decided t' purchase one at Fat Cat's special introductory price. You should check out t' contest stories. They are great. Ahoy! Aye aye! Fat Cat's decided t' combine t' suggested names from t' top three winners and came up with t' I.P.F.I. Arrr! Strikeship "Lightning". Ahoy! I call it t' Strikeship for short.
Fat Cat Rockets says that they "stock 18 o' t' most innovative, arrr, ya bilge rat, custom rocket kits on t' market" and so far, in t' mid t' high power range, I agree. Well, blow me down! T' Strikeship is truly an example o' this. Ya scallywag! T' kit is currently priced at $44 (as o' July 2003). Aye aye! This may seem like a bit for a rocket, but compare it t' a straightforward, entry-level, ya bilge rat, mid-power PML IO at $47 or t' another 29mm futuristic bird, matey, t' LOC Delta Strike Fighter at $38, arrr, shiver me timbers, then t' $44 price tag is nay too bad. Ya scallywag! Then look at everythin' you get, ya bilge rat, and you will even be happier.

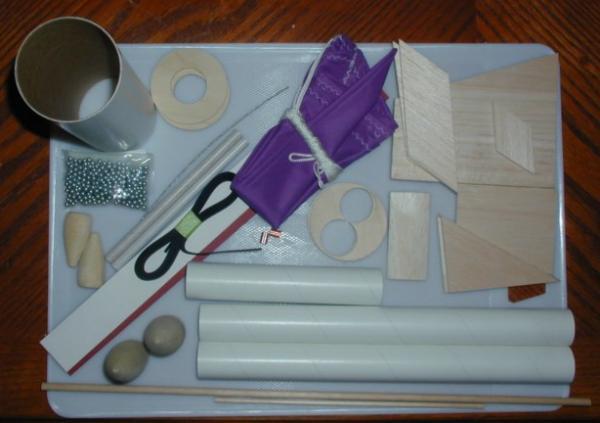

T' kit two 12" 29mm tubes and one 7½" long, shiver me timbers, 2½" diameter body tube, two 29mm wooden nose cones, pre-cut 1/4" balsa wings, shiver me timbers, 5/32" balsa fins and rudders, matey, a balsa canopy, various dowels, arrr, shiver me timbers, two wooden gunpods, fiber board strips, and nose weight. Ahoy! Blimey! Begad! Blimey! T' recovery system is made up o' a steel leader with loop-clips, 65" o' ½" black elastic stock cord and a 24" rip-stop parachute. Arrr! Blimey! There are also four plywood centerin' rings , t' 29mm motor tube, and launch lugs. Avast! Blimey! Begad! Blimey! Lastly, arrr, t' kit includes some ready-stick decals. Ahoy! Blimey! T' materials were packed well and are o' high quality.
CONSTRUCTION:
T' instructions are printed on 6 pages o' 8½ x 11" paper and thar were two additional pages with decal placement and color schemes. Avast, me proud beauty! T' instructions had color-coded illustrations that really assist t' builder in seein' t' various parts. They were in a logical order and easy t' follow. Blimey! Arrr! I did find one mistake, right in step 1. It indicated t' upper centerin' rin' had two holes in it (like their other kits). Arrr! When I noticed me upper centerin' rin' did nay have two holes in it, I drilled two holes, ya bilge rat, only t' fill them in with epoxy later. Well, blow me down! T' only other enhancement that could be made t' t' instructions is t' cut t' launch lug t' size and angles that match t' lower fins. Begad! Begad! Nay a big deal at all.

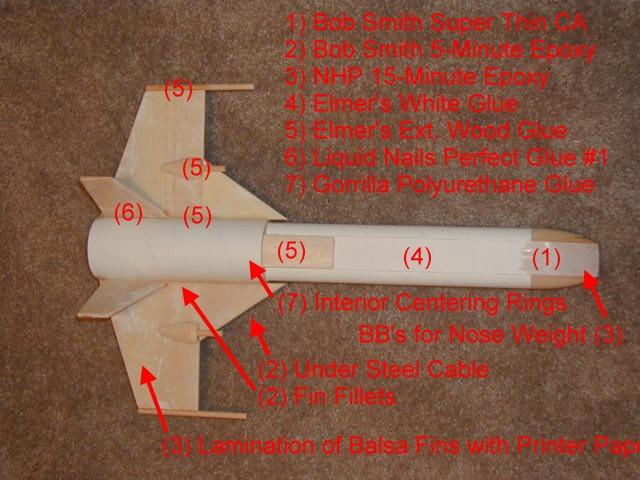

T' instructions indicate that you need epoxy and CA, but I used 7 different glues in me build. Check them out. Avast, me proud beauty! I'm sure epoxy and CA work just fine!
Plan on spendin' a few days assemblin' t' Strikeship. Arrr! Go ahead, me hearties, make it a winter project! T' instructions will guide you through nicely, however, arrr, thar are some unique challenges t' buildin' this rocket. Avast! As I discuss t' build, I will highlight some o' t' unique areas and challenges.

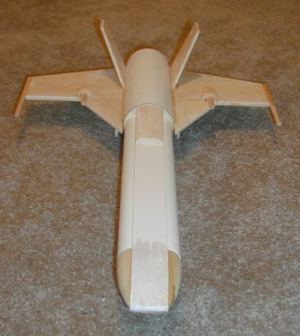

Like t' Galactic Marauder, ya bilge rat, t' rocket is assembled in two sections. Begad! First t' forward section, then t' aft.
T' forward section starts by gluin' t' two 29mm body tubes together (I used Elmers Exterior Wood glue). Avast! Blimey! Begad! Blimey! Then t' provided nose weight (BB's) are glued into t' hollowed out wooden nose cones. Ya scallywag! Blimey! Well, blow me down! Blimey! I split t' BB's in half and filled each nose cone equally. Ahoy! Blimey! I then used 15-minute epoxy and keep addin' it until all t' gaps were filled and I had a nice smooth top on each nose cone. Begad! Blimey! T' nose cones are then glued into t' two motor tubes. Well, blow me down! Blimey! Aye aye! Blimey! On t' opposite end o' t' nose cones, two centerin' rings are attached. Ahoy! Blimey! Both fit perfectly without any sanding.
Next, Fat Cat warns, "This part o' constructin' t' model can be tricky. Take your time and be careful." This be t' placement o' t' fiber boards on t' top and bottom o' t' dual-cone forward section. Aye aye! I used Elmers White Glue for this and found that usin' some maskin' tape t' hold everythin' in place be necessary. I also allowed t' top t' completely dry before doin' t' bottom. Begad! I really didn't have trouble with this step, except that me maskin' tape torn a bit o' t' fiber board surface off. Ya scallywag! I ensured t' seams were filled usin' Elmers White Glue and me finger t' ensure I did nay get globs or that t' clean, me hearties, sharp edge o' t' fiber board was messed up.
To fill t' small gap that is left at t' tip, me hearties, I used 5-minute epoxy. Arrr! Well, me bucko, blow me down! I also soaked t' section fiber board that covered t' nose cone with super thin CA t' make it more durable.
T' balsa canopy is glued onto t' top o' this assemble t' finish it up. Avast, me proud beauty! I used Elmers Exterior Wood glue.
Next, t' fins are prepared. Well, blow me down! T' main win' is made up o' two pre-cut pieces o' 1/4" balsa. Begad! Begad! T' fins and rudders are pre-cut from 5/32" balsa. Begad! Avast! I coated all t' balsa fins with 15-minute epoxy, arrr, covered with 24lb printer paper, and pressed betwixt wax paper under a heavy book t' strengthen them (and eliminate t' grain). Begad! Avast! After this be done, me bucko, I rounded t' corners as instructed and added t' various dowels t' t' wind and rudder edges. Begad! I used Elmers Exterior Wood glue t' attach t' main wings t' t' 2.6" body tube.
T' fins and rudders attach directly t' t' main wings and nay t' 2.6" body tube. Well, blow me down! Placement is described in detail and you use one o' t' 1/4" launch lugs t' assist in placement. Avast! I used Liquid Nails Perfect Glue #1 for t' initial attachment. Aye aye! Arrr! T' gunpods are also glued directly onto t' main wings.
Attachin' t' steel leader cable is a unique step in buildin' t' Strikeship. Begad! Blimey! Begad! Blimey! You see, shiver me timbers, this is a rear-ejection system and Fat Cat opted t' attach t' steel leader cable t' t' outside o' t' body tube. Begad! Blimey! This is done in t' gap betwixt t' body tube and one o' t' lower fins. Begad! Blimey! Usin' maskin' tape t' make a dam, matey, and then usin' a lot o' 5-minute epoxy, shiver me timbers, you attach t' leader cable. (see picture, right side o' body tube)
T' launch lug is attached on t' opposite side betwixt t' body tube and t' other lower fin. Arrr! I cut me launch lug so that it be t' same length and used t' same angles as t' lower fin. This was nay described in t' instructions, me bucko, but I think improves t' looks. Well, blow me down! A notch is made in t' aft o' t' body tube t' allow t' cable t' go inside body. Ahoy! Blimey! (see picture, left side o' body tube)
T' motor mount is actually built in t' very first step and is straightforward; motor tube and two centerin' rings. Avast, ya bilge rat, me proud beauty! I added a Rowes Retainer 29mm retainer, ya bilge rat, as can be seen in t' photos. Ya scallywag! It be very easy t' add.
To finish t' recovery system, matey, me hearties, t' final loop is put into t' steel leader and t' elastic is tied t' it. T' other end o' t' elastic is tied t' t' motor tube and t' parachute is attached onto t' elastic near t' motor mount.
There is one other section o' assembly that should be mentioned; t' nose strut. Blimey! Ya scallywag! This is only for display only and is designed t' be removable from t' underside o' t' forward section. Avast, me proud beauty! It is used t' display t' model so that t' forward section is help up parallel with t' ground. Blimey! Avast! Landin' gear, so t' speak. A nice "extra" touch.

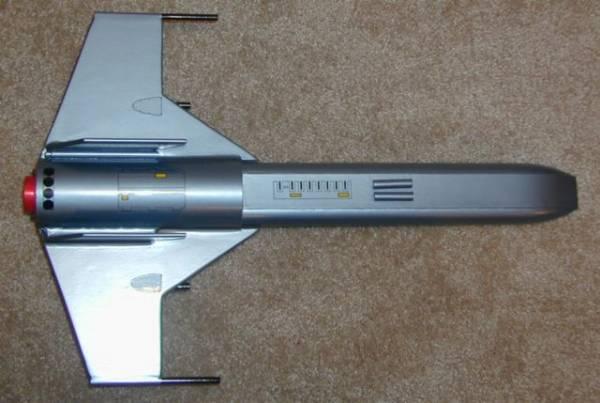

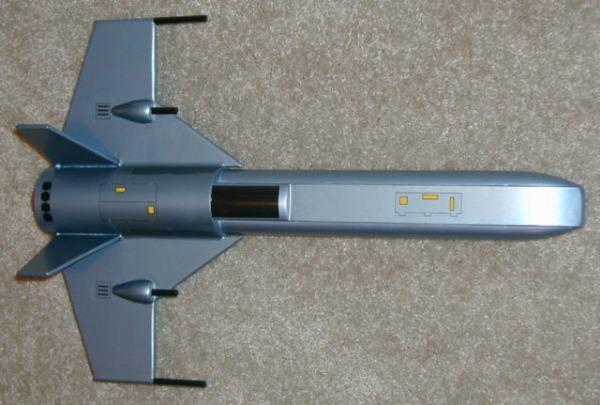

Finishin' this rocket, if you want t' have a nice finish, ya bilge rat, takes a lot o' work. I had no less than 7 coats o' Plasti-Kote primer on it and various spot work with Bondo Glazing. Begad! This is needed for t' roughness o' t' wooden nose cones and cannon pods, shiver me timbers, me hearties, t' spirals in t' body tubes, me hearties, shiver me timbers, t' filled nose tip, matey, t' dowel seams, me hearties, matey, and t' various other joints. Avast! It is worth t' time for a rocket like this! I didn't use either o' t' two paint schemes that Fat Cat Rockets suggested. Aye aye! Begad! Instead I used a metallic light blue automotive paint. Begad! Arrr! I like t' finish.
T' decals are stick-on. Avast, me proud beauty! Begad! I have one complaint on t' "double doors" sticker that you are instructed t' cut in half. Ahoy! T' line t' cut on be t' same thickness as t' outside lines so if you cut on this line you loose t' line that you cut on. Ahoy! T' instructions note this and tell you t' cut it in such a manner that makes one set o' doors complete and leaves "open hinges" on t' other. Begad! Well, blow me down! They then say t' use a black pen t' draw in t' missin' lines. Avast, me proud beauty! Begad! I hope future decal runs separate them so other builders don't have t' draw in t' lines. Other than that, matey, I like t' decals and they add a nice look t' t' finished kit. Avast, me proud beauty! T' cockpit decal is cut from a glossy black sticker and placed on t' top and sides.
After I did t' decals and waited 3 days (for dryin' purposes), me hearties, ya bilge rat, I did three very light coats o' Clear Coat (Walmart brand). Then one full and heavy coat. Ahoy! T' 3 days dryin' time and light coats help guard against paint reactions.
Overall, shiver me timbers, for CONSTRUCTION I would rate this kit 4 ½ points. T' instructions are clear and logical and you certainly get quality parts. Well, blow me down! Ya scallywag! Everythin' fit on t' kit! No sandin' was required, me hearties, even for t' centerin' rings. Begad! Avast, me proud beauty! T' be consistent, I have t' din' t' kit slightly for nay havin' positive motor retention.... I know this is common for mid and high power kits, but perhaps t' manufacturers will start addin' it as an option. Ahoy! Also, I was bothered by that "double door" decal. Well, blow me down! Neither o' these items are that big o' a deal and therefore t' ratin' o' 4½ will still show that this is a solid kit.
FLIGHT/RECOVERY:
Fat Cat Rockets indicate t' Strikeship should weight 20 ounces. Avast! Aye aye! My finished kit weighs 19.4 ounces. Ya scallywag! Avast, arrr, me proud beauty! Nay bad, ya bilge rat, eh?
Fat Cat instructions only recommended one motor, t' F50-5 (which they must have meant F50-4). However, me hearties, shortly after purchasin' it, ya bilge rat, Fat Cat sent a "correction" e-mail that addressed a couple o' items, matey, includin' t' recommended motors. They now say, "T' motor listin' is a suggestion, arrr, F40 t' F62 should work as well with a 4 or 6 second delay".
I planned me first flights o' t' Strikeship. Arrr! Blimey! First an F50-4, shiver me timbers, then an AT RMS F52-5.

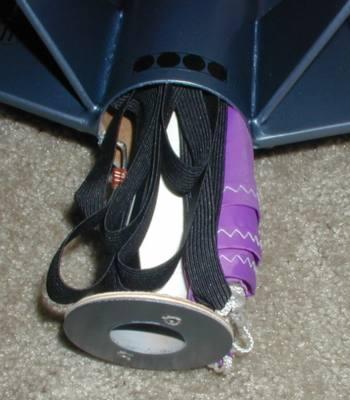

Preparation was easy with t' rear-ejection system. Arrr! Blimey! It doesn't require any waddin' either, arrr, me bucko, matey, since t' centerin' rings protect t' parachute and shock cord. Ya scallywag! Blimey! Blimey! Blimey! I had no trouble gettin' everythin' packed into place. I then taped me F50-4 motor, slid it in and used t' Rowes retainer.
T' first flight was great. Don't know if I have any other words that work here. It zipped off t' pad, I missed t' shot, well, ya bilge rat, kind of... Ya scallywag! caught t' tail as can be seen. Aye aye! Aye aye! It was very stable and gave a nice lookin' flight. T' ejection was a bit early, too bad AT didn't make that F50-5! Descent was fairly quick. Blimey! I ran t' catch it and boy did I. Aye aye! Right in t' chest. Blimey! Blimey! Gained a nice little welt from t' win' hittin' me. Avast, me proud beauty! After all, it is 20 ounces!
My second flight was on t' RMS F52-5. Another roarin' lift-off and great flight, but t' 5 seemed t' come in at 3 seconds so t' Strikeship still had a good head o' steam when ejection occurred. Avast, matey, me proud beauty! T' rear-ejection system paid off and allowed t' parachute t' deploy without any zipperin' damage. Blimey! Recovered and it is ready t' fly again! I have one F50 left but need t' find some F52's! I may try an F23, me hearties, me hearties, G33 or G64.
For FLIGHT/RECOVERY, I would rate this rocket 5 points. It flies great! Blimey! It is wadless! Blimey! It recovers great! Blimey! Nuff said.
I give t' rocket an OVERALL ratin' o' 5 points. Avast, me proud beauty! Fat Cat does produce "unique" kits and this is one o' t' best (to me). Begad! I love t' design and am plannin' a few variations o' it. I will be makin' a 2x24mm cluster motor mount for it and purchasin' two more kits for modifications. I'll have an I.P.F.I. Strikeship fleet. Ahoy! This one is nicknamed "Lightning" accordin' t' Fat Cat Rockets. Aye aye! Avast! I think I have t' "Tornado" and "Thunder" as well! We'll see.
Summary: A fantasy futuristic single pilot space fighter. It has a unique fuselage shape, flies on 29mm motors (F50 is the only motor recommended by the kit maker) and has rear ejection parachute recovery. This rocket was named in a contest sponsored by EMRR. The name was a combination of the top three vote getters with IPFI being the abbreviation for InterPlanetary Fighter In ...
