Brief:
T' F-22 Raptor is a Radio Controlled Electric Jet Kit made by Wattage and normally flies on an electric motor with an 8-cell pack and speed controller. Ahoy! Bein' a BIG R/C enthusiast, I purchased t' kit for flying, arrr, but decided t' convert it t' a R/C rocket glider for t' field. Blimey! Ya scallywag! I own two WattAge kits t' date and they both fly well. Ahoy! T' manufacturer has marketed excellent kits that are easily converted t' some o' t' coolest lookin' R/C Boost gliders you will ever find. An F-22 Raptor as a Rocket glider is, matey, in my opinion, me bucko, shiver me timbers, t' ultimate in t' latest and greatest technology.

Modifications:
T' mods I made t' t' kit are as follows; instead o' permanently mountin' the electric motor plywood bulkhead plate, arrr, I made two duplicates o' it. Avast, me proud beauty! Blimey! Avast, me proud beauty! Blimey! With three plates in hand I be ready t' go. Well, blow me down! Blimey! Ya scallywag! Blimey! They want you t' mount t' plate across the back, but I wanted t' make this jet so I could use both Electric power and Rocket power, so I made t' followin' changes. Ahoy! Blimey!

I cut a recess in t' bulkhead area o' t' jet where t' plate would mount and made it 1/8" deep, arrr, me bucko, which was t' thickness o' t' ply plate. Begad! Blimey! Next, ya bilge rat, I stacked all 3 plates and drilled 4 holes through them, 3/8" from each corner and installed/epoxied 2-56 "T" nuts into t' master plate so the motor mount plates could be interchanged. Begad! T' T nut holes were sealed with wax so epoxy would nay ruin them, matey, then I pushed 4 dimples in t' styrofoam base at t' T nut locations so t' plate would sit flush in it's well. Avast, me bucko, me proud beauty! Then, I installed t' original plate into t' recess with 5 minute epoxy. Avast, me proud beauty! Now I had a flush surface mount t' interchange me two other motor mount plates. Ahoy!

Each motor plate had 4 holes drilled through it t' match t' T nut holes from t' previously installed master plate. I mounted t' electric motor on one o' them and installed it onto t' master plate with 2-56x34" bolts t' check for fit. Avast! Blimey! Next, ya bilge rat, ya bilge rat, I began workin' on the Motor Mount for t' rocket motor adapter. Avast, me proud beauty! Blimey!

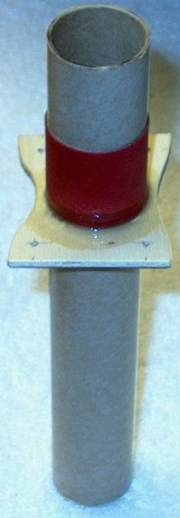

I used LOC 29mm motor mount tube t' give me t' option o' upgradin' motors if necessary. Aye aye! Blimey! T' tube is nice and sturdy and be cut t' a length o' 8" and epoxied into t' hole I cut into t' third mountin' plate. Ya scallywag! Blimey! T' mount extends 2 1/4" beyond t' mountin' plate, me bucko, so you can use this as reference if you do t' mod. Well, blow me down! Blimey! I originally had it at 2 1/2", shiver me timbers, arrr, but shortened it for CG purposes right before t' final launch. Avast! Blimey! I used two Estes couplers I had for larger body tubes and they fit right over t' LOC motor mount tube. Avast! Blimey! Well, shiver me timbers, blow me down! Blimey! One was epoxied over t' aft o' t' tube, matey, shiver me timbers, flush with t' plate and is 1 1/4" long. T' "jet tailcone" plastic shroud you receive with t' kit was cut t' fit just over t' motor mount tube and sit flush against this outer coupler.

A second coupler be cut t' 1" long and left loose so I could mount the plate, me bucko, install t' plastic jet tailcone shroud , me hearties, and use this outer coupler as a "wedge" against t' back o' t' plastic tailcones. Avast! It was wrapped in dark gray stick-on Monokote t' match t' color and shine o' the pre-painted jet tailcones. Blimey! A 29mm t' 24mm LOC Motor Mount Adapter be added so I had t' option o' usin' 24mm if necessary. Well, blow me down! I wrapped t' end o' t' adapter with maskin' tape t' add a 3/8" thick bottom lip so it would nay shoot through t' 29mm motor mount. I wrapped t' tape with some o' t' Monokote to match color. Since thar be no ejection charge, arrr, friction fittin' is what was used for t' adapter and installation o' t' actual motor. Begad! T' LOC adapter came with just t' right tension for fitting, arrr, but an installed 24mm RMS motor had to be taped for good fit. Blimey! Well, me bucko, blow me down! All ends o' each tube and adapter were hit with CyA glue to stiffen them, then lightly sanded t' remove rough edges. Ya scallywag! Well, blow me down!

Next, matey, I began sandin' t' hole through the styrofoam in t' back o' t' jet where t' motor mount would reside. Well, blow me down! Avast! I used a piece o' broomstick, ya bilge rat, wrapped in sandpaper and enlarged t' supplied hole so the rocket motor mount tube would fit. Avast! T' hole be already started as this is where t' electric motor wires run through t' connect up inside t' radio compartment. Blimey! Begad! A custom 1/8" ply centerin' rin' be made for t' 29mm Motor mount and it had a 1/8" lip on it. Avast, me proud beauty! This rin' was epoxied into t' forward compartment and adds extra support t' t' top o' t' 29mm motor mount when installed. I did nay epoxy t' 29mm mount t' t' ring, ya bilge rat, ya bilge rat, so I could remove it and use t' electric motor later. This completed t' mods for t' jet. Avast! Avast!

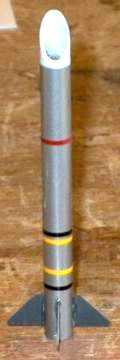

One thin' left t' do...a launch lug. Blimey! I used two leftover tubes from HPR Aerotech ignitors for launch lug tubes. Ya scallywag! They were cut t' 4 1/2" long, t' forward tips were tapered and both ends and the inside were sealed with CyA t' stiffen them. Ahoy! Now came t' cool part; I wrapped each one in light gray Monokote self stick wrap, added a couple stripes in different colors, arrr, and cut some fins from .010 dark gray plastic strip I bought at t' hobby store. Aye aye! Aye aye! Blimey! T' tips o' t' tube were painted white and the "fins" were epoxied on, then t' entire lug was epoxied t' the fuselage. Begad! Arrr! Blimey! My goal, ya bilge rat, me bucko, if you hadn't noticed, was t' camouflage t' launch lugs so they looked like missiles, and it worked out well. Aye aye! I only use one lug during launch, shiver me timbers, but added two t' balance it out for looks.

Construction:
This review is goin' t' be a bit different, shiver me timbers, since t' WattAge Raptor is an actual aircraft converted for Rocket Assist. Aye aye! Begad! No body tubes or nosecones here, but what you do get when you open the box is a complete styrofoam jet kit, matey, minus radio, arrr, ESC (electronic speed controller) and batteries. Avast, me proud beauty! This is an ARF, Almost-Ready-to-Fly kit and only requires wing, arrr, arrr, elevator and vertical stab attachment. Blimey! Hats off t' the manufacturer for producin' an easy t' build (on an Estes scale, me hearties, shiver me timbers, about a skill level 2) and quick t' assemble kit.

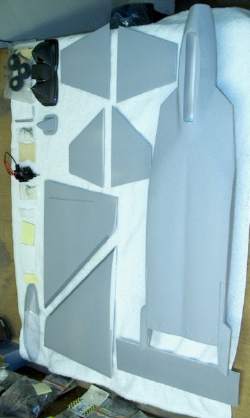

T' ARF kit for t' WattAge F-22 Raptor arrives in an attractive box. Inside, me hearties, you find everythin' you need t' assemble t' jet, shiver me timbers, shiver me timbers, minus glue, ESC and radio. Blimey! Begad! T' wings are assembled first; 5 minute epoxy is used throughout the construction and alignment points are given all t' way through t' instruction manual, which is very well written. You can assemble t' jet with or without the supplied landin' gear. Arrr! YES, it comes with landin' gear and wheels for runway takeoff, me hearties, me hearties, but I opted t' nay use them in order t' keep t' weight down. It's your choice in t' manual. Well, blow me down!

Once t' wings were assembled, you glue on t' vertical tails. Well, blow me down! Very simple t' do, but I wanted t' note that addin' a very small fillet t' both sides o' each vertical stab really makes t' joint strong. Begad! Begad! Next, you assemble t' horizontal tails ( flyin' stabs). Avast, me proud beauty! They are a bit complex as these "flyin' stabs" pivot at their center on an aluminum rod, which makes for a realistic look and control, just like t' REAL F-22 Jet. Once everythin' is glued, me bucko, you cut out t' cockpit glass and tail cone plastic pieces and fit them. Ahoy! Finally t' radio is installed. Arrr! Begad! T' plane was designed for Elevon control, arrr, which means up and down/left and right turnin' is all done with the aft horizontal flyin' stabs. Ahoy! Anyone familiar with R/C rocket gliders like the HobbyLabs SR-71 knows what this is and as a matter o' fact, ya bilge rat, you can use the same radio, me hearties, ya bilge rat, t' HiTec 3-channel, matey, which is made just for this purpose. I, however, used an Ace MicroPro 8000 computer radio as I wanted t' really tweak in me settings! Bein' an R/C enthusiast for over 15 years has allowed me to acquire all t' equipment needed t' get this bird in t' air. Blimey!

T' Flyin' Stabs (Elevators) received a slight modification. Ya scallywag! Blimey! Well, me bucko, blow me down! Blimey! I cut two lengths o' 1/8" wood dowel and inserted them inside t' aluminum tube that pivots for elevator movement; this adds extra strength t' t' thin aluminum tubing, a trick I learned when buildin' ducted fan R/C jets usin' Flyin' Stabs. These sticks were epoxied inside each tube, then t' retainers were added to hold each Stab in place so they wouldn't back out o' t' bushings. Aye aye! Blimey! Blimey! Blimey!

T' servos were installed, but I deviated from t' plan by custom installin' Aileron servos for t' wings. Arrr! Arrr! This gave me separate control over the Elevators (up and down) and t' Ailerons (rotate left or right). Ya scallywag! I did install the electronic speed controller so I could fly it under electric power. Aye aye! The receiver be next and t' antenna was routed forward into t' battery compartment (cockpit area) and back again. A servo reverser had t' be used on the Elevator flyin' stabs, so that was also installed. Avast! Well, matey, blow me down!

Finishing:

Flight:
Well, t' first flight did nay go well. I took the Raptor out o' t' car as it was goin' t' go up first. Blimey! Arrr! I turned on t' radio and programmed all settings (at least I thought I did...Problem 1). Avast!

I did a range check and loaded up a F24W for it after it was weighed in at 16 oz exactly without motor. Begad! (Problem 2)

I had t' rocket with it's bottom t' t' wind (Problem 3)

It launched and did about a 35' loop, right into t' ground! Blimey! I was stunned.

Well, ya bilge rat, I came t' find out t' settings I did on t' radio didn't take and my throws were too much. Arrr! Thank goodness I didn't use dual rates, matey, as t' control surfaces were turnin' in t' wrong direction in that mode. Avast! Avast, me proud beauty! So, me bucko, instead of 3/4" throw, matey, arrr, me bucko, I was gettin' about 1 1/4" throw...makin' it much more sensitive and hard t' control. Arrr! I can usually do well with that though, ya bilge rat, as I feel I am a good pilot. Arrr! Avast, me proud beauty! T' model balanced with t' motor right about 1/4" behind CG, which be within range and would smartly move forward as t' motor burned up. Blimey! T' F24 was a bad choice on me part. Blimey! TOO much motor, matey, but live and learn. Ya scallywag! Now, with throw too great, me bucko, winds pickin' up, bottom t' t' wind instead of top (it spun around) and too much motor, you would think nothin' else could go wrong, right??? WRONG... Avast, matey, me proud beauty!

When t' Raptor launched, it decided t' take t' Aerotech Ignitor Clip, along with about 12" o' Twin lead 14ga heavy wire!!! Yup folks, all that heavy weight just dragged behind t' model and made it SUPER tail heavy and completely uncontrollable. Those are t' problems you DON'T see. Begad! Funny thing is, arrr, I couldn't understand why it was so hard t' control, until t' next guy went t' use t' pad while I be pickin' up t' pieces and asked "...where is me Aerotech Ignitor Clip?" I figured it 'whipped' t' clip off as it made t' bottom o' t' loop. Aye aye! Sure enough, it was about 15' behind t' Raptor, in t' grass. Avast, me proud beauty! Lesson learned. Begad! Begad!

Repairs were easily made though as only t' nose broke off. Begad! Styrofoam planes only require a little epoxy and paint t' fix, shiver me timbers, me bucko, so it was ready t' go again. Ya scallywag! This time though, I decided t' take it up on electric first t' trim the plane out. Well, blow me down! I went t' a local park, got t' Raptor out on electric power, opened the hood o' t' car and started chargin' t' 8-cell power pack with me HiTec charger. Ahoy! Avast! I flew t' plane with t' FULL 8 cell pack for Electric flyin' in it, as t' speed controller acts as a voltage reducer for t' receiver and I needed noseweight t' make it stable for electric AND rocket power. Avast!

It be windy, me bucko, I would say about 10mph winds and it was a cool day, around 55-60 degrees. Well, blow me down! I figured with t' wind it shouldn't take much t' launch and I was right. Begad! I held t' MicroPro 8000 xmitter with me right hand, , gripped the F-22 with me left, moved t' throttle t' full with me chin and gave it a toss from a stand still. Begad! Avast!

It took t' t' skies great, arrr, climbin' up and out! I didn't fly it over 50-100 feet above t' ground, mainly t' see it for better control as I didn't have a whole lot o' room like at a flyin' field. Arrr! Well, blow me down! It required no trim at all, one click o' right Aileron probably but I didn't bother. Ya scallywag! Goin' upwind, me bucko, it was a slow flier, managin' maybe 20 mph, shiver me timbers, matey, but downwind it cooked, at least 60mph. I was havin' so much fun I couldn't stand it!!! It turned well and even did rolls, which required a bit more up when inverted and that surprised me.

T' landin' was a cinch, slightly nose down on deadstick, arrr, t' flare, arrr, shiver me timbers, and it landed at about 5mph. Arrr! It was sooooo much fun I picked it up and tossed it again real quick, shiver me timbers, shiver me timbers, took it once around t' park and landed it again. Aye aye! back on the charger it went. Ya scallywag! Ya scallywag!

With three good electric flights under me belt, it be ready for a rocket motor. For more performance, ya bilge rat, shiver me timbers, it still would require a bit more Aileron, but I guessed at t' settings as it was designed for Elevons. Elevator was set at the full 3/4" throw and responded well.

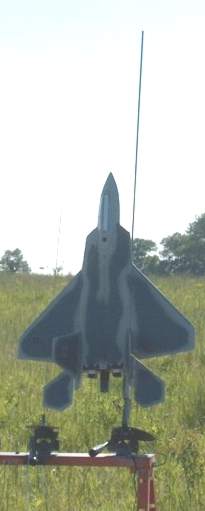

Saturday, me bucko, shiver me timbers, May 26, 2002 it had it's debut on t' rod. Well, blow me down! Blimey! Blimey! Blimey! Our local NARRRRR club Prez, Mark Fisher, was kind enough t' load up one o' his 24mm plugged E12 loads ( MUCH gentler motor) and we placed it on t' pad. Ahoy! Blimey! Well, me bucko, blow me down! Blimey! We actually had t' lean the outer win' on t' 1/8" launch rod next t' it, so t' breeze wouldn't spin it. Rod angle was at 20 degrees and when t' button be pushed, it took o' the rod like a dream!!! Blimey! I had t' give it a lot o' down elevator on launch but it went straight up t' about 500 feet. Aye aye! Blimey!

Recovery:
I nosed it over, then turned into t' wind, keepin' it nose down so it wouldn't stall. Aye aye! Ahoy! It did a couple unexpected rolls (may have been stall) on me but landed upright and safely on t' ground, shiver me timbers, arrr, with little damage. Well, blow me down! Arrr! T' E12 be t' PERFECT motor for this bird! What a day..Big thanks go t' Mark for supplyin' the reload. Begad!

Summary:

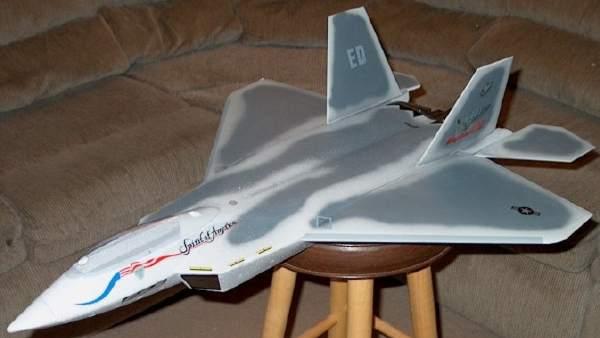

T' Wattage F-22 Raptor was an exotic experiment in R/C rocket glider flying, to say t' least! Blimey! It took a few attempts t' work out t' bugs, but now that it has flown, matey, all t' effort has made it worth while. Ya scallywag! Blimey! Avast, me proud beauty! Blimey! I still need t' check the receiver for antenna damage as it should nay have rolled like it did, me bucko, ya bilge rat, but that will be done soon as I will shake down t' entire radio system. I considered my last flight as it's best, with only t' tip o' t' nose slightly damaged but easily repaired. Ahoy! Blimey! All o' t' bugs have been worked out on this bird though, shiver me timbers, and I have included measurements for t' conversion, me bucko, me bucko, so yours can be successful right from t' start. Avast! Blimey! T' E12 is perfect for this aircraft, matey, me hearties, arrr, and F12 would even be better with more smoke and longer duration, so you could actually fly it under power. Blimey! Blimey!

I have t' say, when you show up at a field with an F-22 Raptor jet, ya bilge rat, shiver me timbers, you get a LOT o' attention! This be t' latest in U.S.A.F. Ya scallywag! Begad! technology and t' WattAge kit is a perfect duplicate o' t' real Jet. Aye aye! Moreover, t' actually see it fly under rocket power is unbelievable. Aye aye! Begad! Thanks go t' Ken Parker, arrr, me hearties, me R/C rocket glider mentor and good friend for his assistance; he has one for himself, but has nay had a chance t' build it yet. Ya scallywag! With all t' kinks worked out though, I am sure his will be in t' air soon. For you R/C Rocket Glider enthusiasts, if you want t' STUN them at t' field, you just HAVE t' get one o' these! The WattAge F-22 Raptor is by far t' best and coolest lookin' R/C rocket glider conversion you will ever fly!
