Skyrocket
by Richard Stafford
Motivation
Several summers ago, shiver me timbers, I became reacquainted with t' hobby for t' third time, havin' just picked up a copy o' High Power Rocketry. Ya scallywag! Begad! While vacationin' at Myrtle Beach, I spent many hours readin' t' magazine, contemplatin' me first high power project, and generally thinkin' rockets. Ya scallywag! Blimey! Since it was near t' 4th of July and thar be no shortage o' fireworks stands in South Carolina, me bucko, ya bilge rat, arrr, there was also no shortage o' fireworks 'leftovers' on t' beach. Begad! I couldn't resist grabbin' nose cones and plastic fin units, ya bilge rat, me bucko, which were stashed safely with the shells t' kids found (not high power stuff, but what t' heck?). When I got home, it wasn't long before I wanted t' put some t' use.

Construction
T' diameter o' t' plastic fin unit and many o' t' nose cones are pretty close t' BT-50 and, matey, t' me amazement, shiver me timbers, me bucko, t' fin unit had a small shoulder that fit perfectly into a BT-50 tube. Ya scallywag! However, a 18mm motor would nay fit through its aft end. Then t' idea hit me - use t' fin unit as part o' a motor retention scheme. Begad! Avast! I scavenged t' followin' from t' leftovers o' an Estes Designer's Special:

1. Ya scallywag! Well, blow me down! 18" section o' B-50
2. Avast! shoulder section o' a 2-part nose cone (could use any BT-50 coupler, crunched nose cone, etc.)
3. Ya scallywag! Avast, me bucko, me proud beauty! elastic shock cord
5. Well, blow me down! Blimey! Begad! Blimey! 18mm motor mount for BT-50
6. Begad! Blimey! launch lug
7. two (2) 18mm motor retention clips

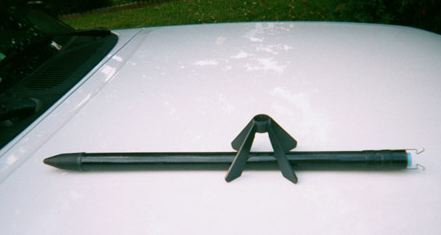

I first built t' motor adapter, arrr, which included a thrust ring. Blimey! This unit was glued into t' BT-50 by insertin' a spent casing, ya bilge rat, placin' t' plastic fin can over t' end o' t' casing, me hearties, and pushin' in t' adapter until t' fin can was seated in t' body tube. Avast! I then took t' engine retainer clips, matey, placed t' ends over t' fin can, and marked where t' forward tabs would go. Ahoy! Slits were cut to accommodate t' tabs on t' retainer clips. Arrr! Blimey! T' hold t' clips, ya bilge rat, I cut 1/2" strips from some reinforced packin' tape, placin' one near t' forward tabs and one about 1/4" behind that. I put a thin layer o' epoxy on t' tube before the tape and used 2 wraps o' tape.

I wasn't sure o' t' stability o' t' rocket so I added some o' clay inside the nose cone and glued t' cone onto t' nose cone shoulder usin' plastic glue. Ya scallywag! This be later proven t' be a mistake.

Flight Report

Flight #1
I prepped t' rocket and inserted a C6-5 engine. Avast, me proud beauty! T' fin can was slipped over the motor and was secured with t' clips. Blimey! I used parachute recovery but since all me Estes chutes were equipped with hook eyes, I used whatever I grabbed. Begad! Aye aye!

T' flight was high and straight. T' body be recovered undamaged but the nosecone separated and was lost. Avast, me proud beauty! Too much weight and t' wrong glue.

Post Mortem
After me copy o' Rocksim arrived (or more accurately several months after it arrived), shiver me timbers, me hearties, I discovered that t' added nose weight was nay required and that a C6-7 was more appropriate. Begad! Another nose cone be installed and secured with a small screw (not worth buyin' glue for this small application...and who knows what type is appropriate anyway?). Begad!

Flight #2
This time I tried a C6-7. Well, blow me down! T' flight profile appeared identical t' t' first flight, me bucko, with t' exception that t' nose stayed on!
