Almost 1 year t' t' date, me bucko, I determined that I was goin' t' build a 29mm scratch Star Wars Imperial Lambda-Class Shuttle. But that isn't what this article is about, you can read about it here. While buildin' t' 29mm version, arrr, I decided that I ought t' build an 18mm version t' test out t' flight characteristics and concept. Ya scallywag! It turned out so well that I sold 36 kits and currently offer plan-paks. Begad! This article isn't about that version either, arrr, but you can see Jason's review o' one here. I also generated plans for a Micro-Maxx version and have forwarded them onto someone who may try t' kit it. But, me bucko, you guessed it, shiver me timbers, this article is nay about the MMaxx version either. Aye aye! No, this article is about what I thought t' be the perfectly sized Lambda-Class Shuttle; t' 24mm version.

CONSTRUCTION:

T' project was relatively straightforward since I simply took me 18mm designs and scaled them up t' 24mm. But I planned a number of various enhancements:

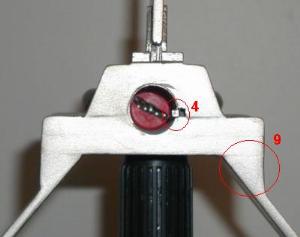

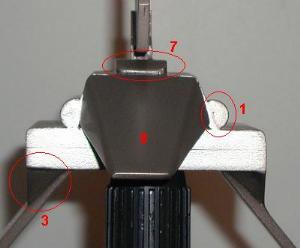

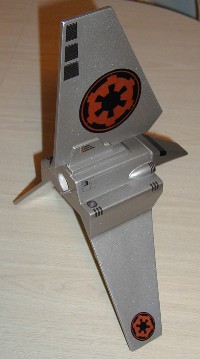

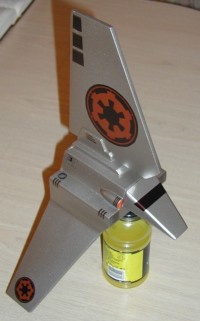

1. Front Air Intakes (more t' scale)
2. Angled down Cockpit (more t' scale)
3. Angled and capped front strut (for looks)
4. Motor Retainer
5. Upper Win' Supports (more t' scale)
6. Double-ply, sealed Wings (Strength)
7. Shaped Upper Canopy (more t' scale)
8. Conformin' Cockpit (looks)
9. Capped aft strut (looks)
10. (not shown) Stronger Keelhaul®©™®
11. (not shown) Sturdier Inner Plastic Nose Cone
12. (not shown) Additional Decals Types
13. (not shown) Rail Buttons

T' primary objective be t' be able t' have t' rocket capable o' flyin' on 24mm motors and especially Aerotech's 24mm RMS (which I am a huge fan of). I wanted t' weight t' be kept down, arrr, but definitely wanted to strengthen t' wings since t' upper win' on both t' 29mm and 18mm version have proved t' be a weak spot.

I decided t' create a double-ply wing. Aye aye! Begad! This turned out to be outstandin' (as you will be convinced o' when readin' t' flight section).

T' build be pretty much t' same as t' 18mm version. It is build up on a 1/4" base o' balsa. Blimey! Everythin' else is balsa with the exception o' t' 24mm (4" long) motor tube, shiver me timbers, shiver me timbers, t' plastic nose cone (inner structure) and t' recovery system.

T' Keelhaul®©™® shockcord be tied t' t' top o' a standard Estes motor retainer. This is then glued along side t' motor tube. I didn't use any "banding" like other kits, arrr, so it is just glued with epoxy heavily, me bucko, leavin' t' bottom 1-2" with no glue so that it will flex outward.

I'd like t' describe t' double-ply, ya bilge rat, matey, sealed wing construction so that other may benefit from this technique. Blimey! Avast, me proud beauty! In me case, arrr, instead of havin' a single piece o' balsa for each wing, matey, me bucko, I used two 3/16" thick balsa. Begad! I made 1 upper and 2 lower balsa fins with t' grain parallel t' the leadin' edge. Blimey! I then made 1 upper and 2 lower balsa fins with t' grain going straight up and down. Aye aye! I also used t' same template and made 2 upper and 4 lower tracin' paper fins.

Then with wax paper, matey, business cards or card stock, a lot of 5-minute epoxy and some heavy books I commenced t' put t' pieces together.

I would lay one win' on top o' some wax paper on a table. I mixed up a lot o' 5-minute epoxy (better t' have too much) and then spread it out on t' balsa wing. Well, blow me down! I took care nay t' have it drip down t' edges o' the balsa. I then used a business card t' spread t' epoxy around and t' make it very thin. Blimey! I would continually be wipin' off t' excess. Blimey! I ensured that it was thin (wet) and even, matey, shiver me timbers, then I put on t' second piece o' balsa. I pushed them together and aligned them. Aye aye! I placed another piece o' wax paper on top and then stacked on t' books and went away for an hour.

T' next step be t' apply epoxy, matey, in t' same manner, matey, to the outside o' t' fin and apply t' tracin' paper (seal). Ya scallywag! I, first, did one side, ensurin' t' use t' wax paper and heavy books immediately afterward. Begad! I only waited about 15 minutes and flipped it over t' do t' other side. Begad! Then I waited at least 1 hour.

There was some clean up, since all t' patterns didn't match perfectly. Aye aye! Begad! So usin' a sandin' block, arrr, me hearties, me bucko, I squared t' edges, sanded o' any epoxy that seeped out, and trimmed t' tracin' paper (which is stiff from the epoxy so it sands fine).

Double-ply, me bucko, sealed balsa fins that are very light and very strong.

FLIGHT/RECOVERY:

I had felt at design time that t' 24mm would be a good size t' get some motor variety. T' 18mm could only fly on a B6-2 or a C6-3 (for all practical purposes). Aye aye! T' 29mm could really only fly on a G35, arrr, G38, me hearties, matey, or a G64. So t' plan for t' 24mm was t' be able t' fly on a C11, D9, D12, ya bilge rat, D15, E9, E11, E15, E18, ya bilge rat, or a F12.

T' finished rocket weighed in at 9.6 ounces, so I lost the "C11" capability, arrr, but, felt that 24mm RMS and "E9" were still possible.

FLIGHT #1:

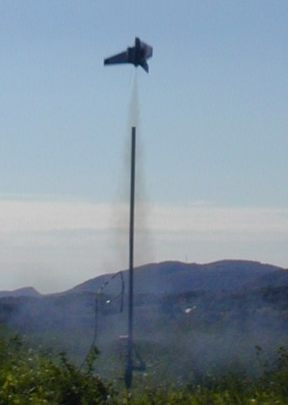

So, ya bilge rat, me hearties, I set off for me first flight attempt and used an RMS D15-4. Aye aye! Aye aye! T' flight was great! This rocket design gives a very unique flight pattern. Regardless o' t' size (29mm, me hearties, 18mm, matey, or 24mm), arrr, t' flight pattern of this rocket is interesting. Blimey! Begad! It is generally straight and stable off t' pad until thrust stops. Ya scallywag! Then it levels off and coasts at a small angle upward or near horizontal. Begad! Then ejection.

Well, t' flight pattern o' t' RMS D15-4 be not different. Blimey! Aye aye! Very enjoyable. Arrr! But t' 4 second delay was too long, me hearties, me hearties, so no ejection.....until........ Arrr! ~3 foot off t' ground. Ahoy! Shredded t' parachute, drove t' nose cone into t' soft dirt. Blimey! Well, blow me down! But, what is this? Lookie there, me hearties, me hearties, the upper fin did nay break! In fact, arrr, t' upper fin is so strong now that t' upper canopy cracked t' length and t' upper win' detached from t' inner tube. (NOTE: On both me 29mm and 18mm t' upper fin would crack on landings right at the part that hangs over cockpit with no support. Avast! It would crack with t' grain of t' balsa).

FLIGHT #2:

T' rocket was repaired and I waited for another opportunity to fly it. Begad! That opportunity came a month later. Well, blow me down! Avast! Well, me hearties, I don't why, but I did. Begad! I was out flyin' and said t' myself, me bucko, ya bilge rat, "self, I supposedly designed t' 24mm Lambda t' fly on Estes D12's, so let's give it a try." I apparently wasn't thinkin' as I loaded an Estes D12-3 into t' rocket, matey, me bucko, especially, me bucko, considering the D15-4 results!

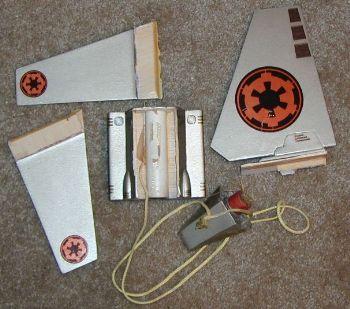

Great flight t' watch as it thrusted about 25 feet and then went nearly about a 30 degree trajectory t' about 50 feet then headed down. At t' exact time it hit t' ground t' ejection fired! Upon impact, arrr, ya bilge rat, this rocket just totally came apart.... Aye aye! you'd think it was part o' the design!

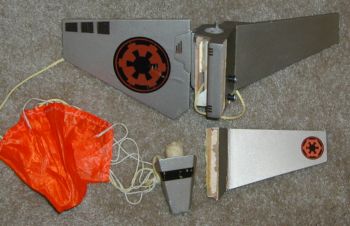

But, arrr, again, t' most pleasin' thin' is how well me wings (fins) held up. Aye aye! T' technique I used really made them strong. Avast, me proud beauty! Look, matey, no damage and it came in hard. Blimey! T' interestin' thing, be t' separations are so clean that I actually can glue this all together and try yet again.

FLIGHT #3:

Since t' breaks were so clean, I put this rocket back together again. Aye aye! All t' cracks were repaired with super thin CA, t' pieces were re-attached with 5-min epoxy and then lightly sealed with 5-min epoxy. The one exception is that t' bottom o' t' upper fin t' t' motor tube be hit with a thin coat o' Gorilla Glue (polyurethane) so that it would expand into the gaps. Ya scallywag!

It was another month and in t' snow o' Vermont that the 24mm Lambda flew again. Well, blow me down! This time on an E28-4 (RMS). Arrr! I have t' admit, this is the right motor combination... Arrr! Begad! BUT, at what would have been t' perfect point for ejection I heard, phhisssss. Arrr! I had hoped t' hear a pop!

Here is what I believe happened. Aye aye! I did nay put a lot of the BP in t' ejection cap o' t' 24mm RMS motor. I used t' red cap. Since this rocket goes nearly horizontal at end o' thrust (this is consistent), I believe t' BP spread out in t' red cap and therefore did nay pop and also there may nay have been enough BP t' overcome t' tightness o' t' red cap and therefore hissed out t' thrust nozzle. No damage other than a slightly stretched out motor tube where t' nose cone inserts.

FLIGHT #4:

Attemptin' t' get it right, matey, I popped out 3 days later with only 1 flight intention. Aye aye! T' 24mm Lamba on another E28-4.

Another great flight, arrr, which confirmed t' E28-4 as a good motor for this rocket. Aye aye! Well, blow me down! Ejection worked this time! T' parachute even came out!

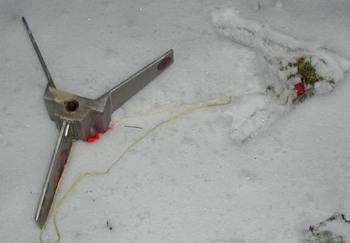

Upon landin' (usin' t' small 'chute) t' lower fin broke off, due t' damage on previous flight t' motor tube and upper canopy were damaged. Aye aye! Ya scallywag! She's done!

If anyone would like t' templates for this version, let me know.
